Creating Templates
Last updated: 2025-09-09 11:42:42
Download PDF

Feature Description

Create an audio/video transcoding template.

Authorization Description

When using with a sub-account, the ci:CreateMediaTemplate permission is required. For details, see Cloud Infinite actions.

Activating a Service

Using this feature requires enabling Cloud Infinite in advance and binding a bucket. For details, see Bind Bucket.
Use this feature requires enabling Media Processing Service in advance via console or API. For details, see Enable Media Processing Service.

Use Limits

When using this API, please first confirm the relevant restrictions. For details, see Usage Limits.


Request

Request sample:

POST /template HTTP/1.1
Host: <BucketName-APPID>.ci.<Region>.myqcloud.com
Date: <GMT Date>
Authorization: <Auth String>
Content-Length: <length>
Content-Type: application/xml

<body>
Description
Authorization: Auth String. For details, see Request Signature document.

Request header.

This API only uses common request headers. For details, see Common Request Headers documentation.

Request body.

The implementation of this request operation requires the following request body.
<Request>
    <Tag>Transcode</Tag>
    <Name>TemplateName</Name>
    <Container>
        <Format>mp4</Format>
    </Container>
    <Video>
        <Codec>H.264</Codec>
        <Profile>high</Profile>
        <Bitrate>1000</Bitrate>
        <Width>1280</Width>
        <Fps>30</Fps>
        <Preset>medium</Preset>
    </Video>
    <Audio>
        <Codec>aac</Codec>
        <Samplerate>44100</Samplerate>
        <Bitrate>128</Bitrate>
        <Channels>4</Channels>
    </Audio>
    <TransConfig>

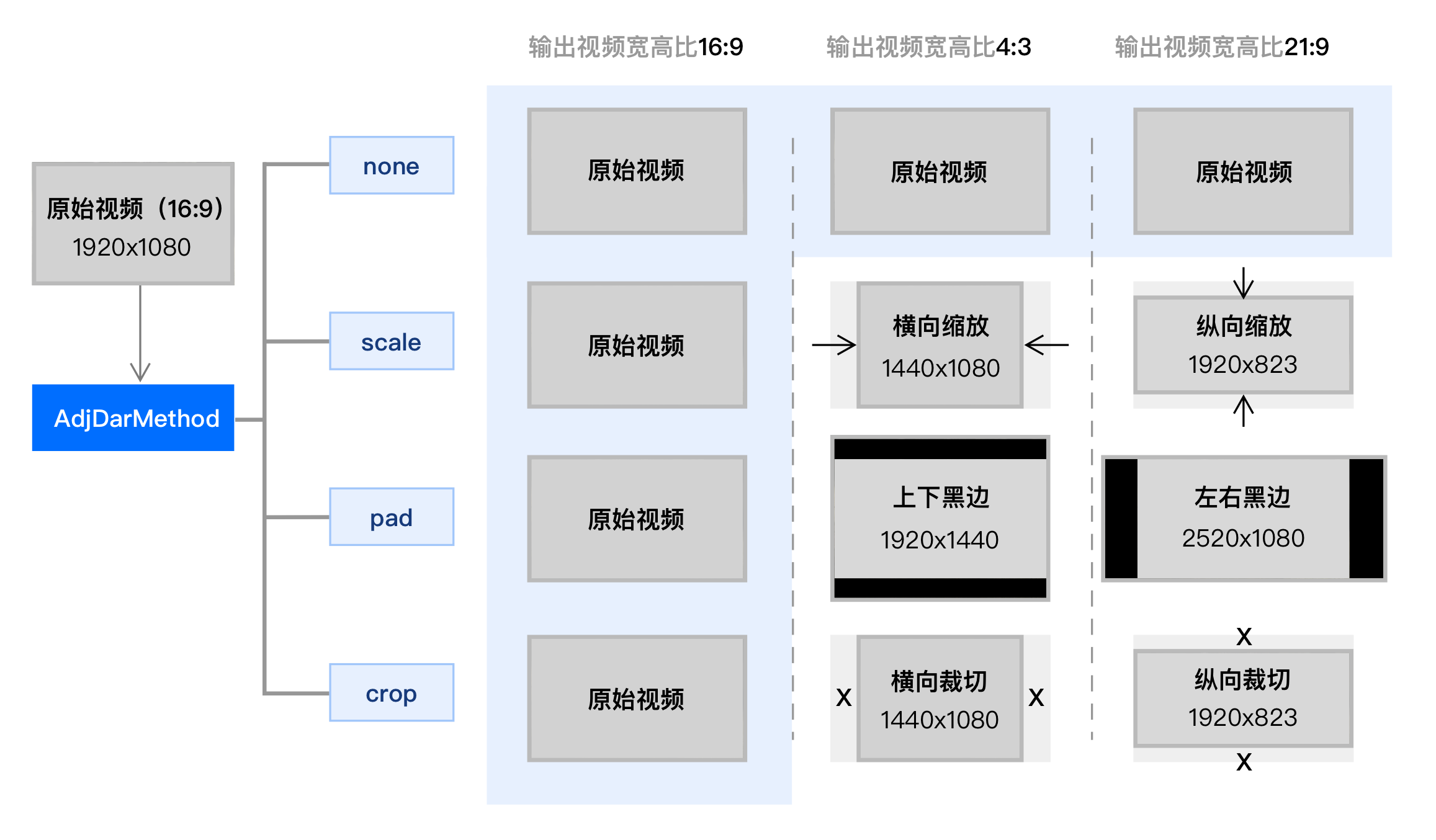

        <AdjDarMethod>scale</AdjDarMethod>
        <IsCheckReso>false</IsCheckReso>
        <ResoAdjMethod>1</ResoAdjMethod>
    </TransConfig>
    <TimeInterval>
        <Start>0</Start>
        <Duration>60</Duration>
    </TimeInterval>
    <AudioMixArray>
        <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix1.mp3</AudioSource>
        <MixMode>Once</MixMode>
        <Replace>true</Replace>
        <EffectConfig>
            <EnableStartFadein>true</EnableStartFadein>
            <StartFadeinTime>3</StartFadeinTime>
            <EnableEndFadeout>false</EnableEndFadeout>
            <EndFadeoutTime>0</EndFadeoutTime>
            <EnableBgmFade>true</EnableBgmFade>
            <BgmFadeTime>1.7</BgmFadeTime>
        </EffectConfig>
    </AudioMixArray>
    <AudioMixArray>
        <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix2.mp3</AudioSource>
        <MixMode>Once</MixMode>
        <Replace>true</Replace>
        <EffectConfig>
            <EnableStartFadein>true</EnableStartFadein>
            <StartFadeinTime>3</StartFadeinTime>
            <EnableEndFadeout>false</EnableEndFadeout>
            <EndFadeoutTime>0</EndFadeoutTime>
            <EnableBgmFade>true</EnableBgmFade>
            <BgmFadeTime>1.7</BgmFadeTime>
        </EffectConfig>
    </AudioMixArray>
</Request>

The data are described as follows:
Node Name (Keyword)
Parent Node
Description
Type
Required or Not
Request
None.
Container for saving requests
Container
Yes
The specific data description for the
Request
Container type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Required or Not
Tag
Request
Template type: Transcode
String
Yes
Name
Request
Template name, only supports Chinese, English, digits, _, -, and *, with length not exceeding 64.
String
Yes
Container
Request
container format
Container
Yes
Video
Request
video information
Container
No
Audio
Request
audio content
Container
No
TransConfig
Request
transcoding configuration
Container
No
TimeInterval
Request
time interval
Container
No
AudioMix
Request
Audio mix parameter, for details, see AudioMix
Container
No
AudioMixArray
Request
Audio mix parameter, up to 2 can be transmitted simultaneously.
Container array
No
Note:
Not passing Video is equivalent to deleting video information. Not passing Audio is equivalent to deleting audio information. Video and Audio cannot both be left unpassed.
Note: AudioMix and AudioMixArray are valid only when Audio.Remove is false.
AudioMixArray is an array. Each sub-item has the same content as AudioMix. AudioMix has higher priority. When setting AudioMix, AudioMixArray becomes invalid.
The specific data description for the
Container
type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Required or Not
Format
Request.Container
Encapsulation format. For values, refer to the audio/video supported formats table below.
String
Yes
ClipConfig
Request.Container
Sharding configuration, valid when format is hls or dash.
Container
No
The specific data description for the ClipConfig Container type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Required or Not
Duration
Request.Container.ClipConfig
Segment duration. The default value is 5 seconds.
String
No
Set container. Supported audio/video formats are as shown in the table below:
Container
Audio Codecs
Video Codecs
mp4/hls/mkv
aac,mp3
H.264,H.265,AV1
ts/flv/avi/mov
aac,mp3
H.264
dash
aac
H.264
WebM
Vorbis,opus
VP8,VP9,AV1
aac
aac
Not supported
mp3
mp3
Not supported
flac
flac
Not supported
amr
amr
Not supported
adts
aac
Not supported
m4a
aac
Not supported
wav
pcm_s16le
Not supported
The specific data description for the
Video
Container type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
Codec
Request.Video
encoding/decoding format
H.264
H.265
VP8
VP9
AV1
String
H.264
When Format is WebM, it is VP8.
No
Profile
Request.Video
Encoding level
support this parameter only for H.264
support baseline, main, high, auto
When Pixfmt is auto, the parameter value will be set as auto.
baseline: suitable for mobile devices, no limit on I-frames and P-frames, does not support interlaced scanning, no slice data partitioning, some encoding levels are limited under this profile.
main: suitable for standard resolution devices
high: suitable for high-resolution devices, supports 8*8 blocks
auto: consistent with the source video, may be baseline, main, high, high10, high422, high444
String
high
No
Bitrate
Request.Video
Bitrate of the video output file
Value range: [10, 50000], unit: Kbps
Set to auto means adaptive bitrate
String
None.
No
Width
Request.Video
Width
Value range: [128, 4096]
unit: px
If only Width is set, calculate Height based on the original aspect ratio of the video.
Must be even
String
Original width of the video
No
Fps
Request.Video
Frame Rate
Value range: (0, 60]
Unit: fps
String
None.
No
Preset
Request.Video
Preset video algorithm
H.264 supports this parameter, with values veryfast, fast, medium, slow, slower
VP8 supports this parameter, with values good, realtime.
AV1 supports this parameter, with values universal, medium.
H.265 and VP9 do not support this parameter
String
When Codec is H.264, it is medium
When Codec is VP8, it is good
No
Height
Request.Video
High
Value range: [128, 4096]
unit: px
If only Height is set, calculate Width based on the original aspect ratio of the video.
Must be even
String
Original height of the video
No
Remove
Request.Video
Remove video stream, value true or false.
String
false
No
Crf
Request.Video
bitrate - quality control factor
Value range: (0, 51]
If Crf is set, the setting of Bitrate becomes invalid.
When Bitrate is empty, it defaults to 25.
String
None.
No
Gop
Request.Video
Maximum frames between key frames, value range: [1, 100000]
String
None.
No
Bufsize
Request.Video
buffer size
Value range: [1000, 128000]
Unit: Kb
Codec is VP8/VP9 does not support this parameter
String
None.
No
Maxrate
Request.Video
Video bitrate peak value
Value range: [10, 50000]
unit: Kbps
Codec is VP8/VP9 does not support this parameter
String
None.
No
Pixfmt
Request.Video
video color format
H.264 supports: yuv420p, yuv422p, yuv444p, yuvj420p, yuvj422p, yuvj444p, auto
H.265 supports: yuv420p, yuv420p10le, auto
Codec is VP8/VP9/AV1 does not support this parameter
String
None.
No
LongShortMode
Request.Video
Long Short Mode
true or false.
Codec is VP8/VP9/AV1 does not support this parameter.
String
false
No
Rotate
Request.Video
Rotation angle
Value range: [0, 360)
unit: degree
String
None.
No
Roi
Request.Video
Roi intensity
value is none, low, medium, high
Codec is VP8/VP9 does not support this parameter
String
none
No
Crop
Request.Video
Free cropping
Custom crop: width:height:left:top. Example: 1280:800:0:140
The value of width and height must be greater than 0, and the value of left and top must be greater than or equal to 0
Codec is H.265/AV1 does not support this parameter.
Support for this parameter is disabled when adaptive encoding is enabled.
Support for this parameter is disabled when roi is enabled.
String
None.
No
Interlaced
Request.Video
Enable interlaced scanning
false/true
Codec is H.265/AV1 does not support this parameter.
Support for this parameter is disabled when adaptive bitrate is enabled.
Support for this parameter is disabled when roi is enabled.
String
false
No
ColorParam
Request.Video
Color parameters
Codec is H.265/AV1 does not support this parameter.
Support for this parameter is disabled when adaptive bitrate is enabled.
Support for this parameter is disabled when roi is enabled.
container
None.
No
The specific data description for the
Audio
Container type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
Codec
Request.Audio
encoding/decoding format, parameter values: aac, mp3, flac, amr, Vorbis, opus, pcm_s16le
String
aac
When format is WebM, it is Vorbis.
When format is wav, it is pcm_s16le.
No
Samplerate
Request.Audio
sampling rate
unit: Hz
Option 8000, 11025, 12000, 16000, 22050, 24000, 32000, 44100, 48000, 88200, 96000
Different encapsulations. MP3 supports different sampling rates, as shown in the table below.
When Codec is set to amr, only 8000 is supported.
When Codec is set to opus, it supports 8000, 16000, 24000, 48000.
String
44100
When Codec is opus, the default value is 48000.
No
Bitrate
Request.Audio
Raw audio bitrate
unit: Kbps
Value range: [8, 1000]
String
None.
No
Channels
Request.Audio
Number of sound channels
When Codec is set to aac/flac, 1, 2, 4, 5, 6, and 8 are supported.
When Codec is set to mp3/opus, 1 and 2 are supported.
When Codec is set to Vorbis, only 2 is supported.
When Codec is set to amr, only 1 is supported.
When Codec is set to pcm_s16le, only 1 and 2 are supported.
When the encapsulation format is dash, 8 is not supported.
String
None.
No
Remove
Request.Audio
Remove source audio stream, value true or false.
String
false
No
SampleFormat
Request.Audio
sampling bit width
When Codec is set to aac, it supports fltp
When Codec is set to mp3, fltp, s16p, and s32p are supported.
When Codec is set to flac, s16, s32, s16p, and s32p are supported.
When Codec is set to amr, s16 and s16p are supported.
When Codec is set to opus, s16 is supported.
When Codec is set to pcm_s16le, it supports s16
When Codec is set to Vorbis, supports fltp
When Video.Codec is H.265, this parameter is invalid.
String
None.
No
KeepAllTracks
Request.Audio
reserve all audio channels
String
No
false
Description
Y indicates support for this sampling rate, N indicates no support.
Audio.Codec sampling rate support status, as shown in the table below:
Audio.Codec
aac
amr
flac
opus
Vorbis
pcm_s16le
mp3
8000
Y
Y
Y
Y
Y
Y
Encapsulation differs, support varies
11025
Y
N
Y
N
Y
Y
12000
Y
N
Y
N
Y
Y
16000
Y
N
Y
Y
Y
Y
22050
Y
N
Y
N
Y
Y
24000
Y
N
Y
Y
Y
Y
32000
Y
N
Y
N
Y
Y
44100
Y
N
Y
N
Y
Y
48000
Y
N
Y
Y
Y
Y
88200
Y
N
Y
N
Y
Y
96000
Y
N
Y
N
Y
Y
When Audio.Codec is mp3, the sampling rate compatibility of Container.Format is as follows:
Muxing Format / Audio Sample Rate
8000
11025
12000
16000
22050
24000
32000
44100
48000
88200
96000
flv
N
N
N
N
Y
N
N
Y
N
N
N
mp4
N
N
N
Y
Y
Y
Y
Y
Y
N
N
hls/ts/mp3/mkv/avi/mov
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
N
The specific data description for the
TransConfig
Container type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
AdjDarMethod
Request.TransConfig
Resolution adjustment method
value is scale, crop, pad, none
When the aspect ratio of the output video differs from that of the original video, adjust the resolution according to this parameter.
String
none
No
IsCheckReso
Request.TransConfig
Check resolution, value true or false.
When it is false, transcode according to the configuration parameters.
String
false
No
ResoAdjMethod
Request.TransConfig
Resolution adjustment method
This parameter takes effect when IsCheckReso is true; value 0 or 1.
0 indicates using the original video resolution;
1 indicates a transcoding failure.
String
0
No
IsCheckVideoBitrate
Request.TransConfig
Check video bitrate, value true or false.
When it is false, transcode according to the configuration parameters.
String
false
No
VideoBitrateAdjMethod
Request.TransConfig
Video bitrate adjustment method
This parameter takes effect when IsCheckVideoBitrate is true; value 0 or 1.
When the output video bitrate is greater than the original video bitrate, 0 indicates using the original video bitrate; 1 indicates returning a transcoding failure.
String
0
No
IsCheckAudioBitrate
Request.TransConfig
Check audio bitrate, value true or false.
When it is false, transcode according to the configuration parameters.
String
false
No
AudioBitrateAdjMethod
Request.TransConfig
Audio bitrate adjustment method
This parameter takes effect when IsCheckAudioBitrate is true; value 0 or 1.
When the output audio bitrate is greater than the original audio bitrate, 0 indicates using the original audio bitrate; 1 indicates returning a transcoding failure.
String
0
No
IsCheckVideoFps
Request.TransConfig
Check video frame rate, value true or false.
When it is false, transcode according to the configuration parameters.
String
false
No
VideoFpsAdjMethod
Request.TransConfig
Video frame rate adjustment method
This parameter takes effect when IsCheckVideoFps is true; value 0 or 1.
When the output video frame rate is greater than the original video frame rate, 0 indicates using the original video frame rate; 1 indicates returning a transcoding failure.
String
0
No
DeleteMetadata
Request.TransConfig
Remove MetaData information from the file, value true or false.
String
false
No
IsHdr2Sdr
Request.TransConfig
Enable HDR to SDR conversion, value true or false.
String
false
No
TranscodeIndex
Request.TransConfig
Specify the stream number for processing, corresponding to Response.MediaInfo.Stream.Video.Index and Response.MediaInfo.Stream.Audio.Index in the media information. For details, refer to Retrieve Media Information Synchronization Request.
String
None.
No
HlsEncrypt
Request.TransConfig
hls encryption configuration
Container
None.
No
DashEncrypt
Request.TransConfig
dash encryption configuration
Container
None.
No
Schematic diagram of the AdjDarMethod parameter



The specific data description for the Container type HlsEncrypt is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
IsHlsEncrypt
Request.TransConfig.HlsEncrypt
Enable HLS encryption, value true or false.
Supports encryption when Container.Format is hls
String
false
No
UriKey
Request.TransConfig.HlsEncrypt
HLS encryption key
When IsHlsEncrypt is true, this parameter is meaningful.
String
None.
No
The specific data description for the Container type DashEncrypt is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
IsEncrypt
Request.TransConfig.DashEncrypt
Enable DASH encryption, value true or false.
Supports encryption when Container.Format is dash.
String
false
No
UriKey
Request.TransConfig.DashEncrypt
Encryption key for DASH
When IsEncrypt is true, this parameter is meaningful.
String
None.
No
The specific data description for the
TimeInterval
Container type is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
Start
Request.TimeInterval
Start Time
video duration
Unit: second
Support float format, execution accuracy accurate to milliseconds
String
0
No
Duration
Request.TimeInterval
Duration
video duration
Unit: seconds
Support float format, execution accuracy accurate to milliseconds
String
original video duration
No
The specific data description of the Container type ColorParam is as follows:
Node Name (Keyword)
Parent Node
Description
Type
Default Value
Required or Not
ColorRange
Request.Video.ColorParam
Color range
Example: tv Available values: tv, mpeg, pc, jpeg
String
None.
No
ColorSpace
Request.Video.ColorParam
Colorspace
bt709, available values:
rgb,bt709,fcc,bt470bg,smpte170m,smpte240m,ycgco,bt2020nc,bt2020c,smpte2085,chroma-derived-nc,chroma-derived-c,ictcp,ycocg,bt2020_ncl,bt2020_cl
String
None.
No
ColorTrc
Request.Video.ColorParam
Color trace
Example: bt709, available values: bt709, gamma22, gamma28, smpte170m, smpte240m, linear, log100, log316, iec61966-2-4, bt1361e, iec61966-2-1, bt2020-10, bt2020-12, smpte2084, smpte428, arib-std-b67, log, log_sqrt, iec61966_2_4, bt1361, iec61966_2_1, bt2020_10bit, bt2020_12bit, smpte428_1
String
None.
No
ColorPrimaries
Request.Video.ColorParam
Color primary
Example: bt709, available values: bt709, bt470m, bt470bg, smpte170m, smpte240m, film, bt2020, smpte428, smpte428_1, smpte431, smpte432, jedec-p22, ebu3213
String
None.
No
Note:
About ColorParam, details are visible in colorspace description.

Response

Response Headers

This API only returns the public response header. For details, see Common Response Headers documentation.

Response Body

The response body is returned as application/xml. An example including the complete node data is shown below:
<Response>
    <RequestId>NjQ0NGNlNDZfMThhYTk0MGFfY*********</RequestId>
    <Template>
        <Tag>Transcode</Tag>
        <TemplateId>t1460606b9752148c4ab182f55163ba7cd</TemplateId>
        <Name>TemplateName</Name>
        <BucketId>test-1234567890</BucketId>
        <Category>Custom</Category>
        <Container>
            <Format>mp4</Format>
        </Container>
        <Video>
            <Codec>H.264</Codec>
            <Profile>high</Profile>
            <Bitrate>1000</Bitrate>
            <Width>1280</Width>
            <Fps>30</Fps>
            <Preset>medium</Preset>
        </Video>
        <Audio>
            <Codec>aac</Codec>
            <Samplerate>44100</Samplerate>
            <Bitrate>128</Bitrate>
            <Channels>4</Channels>
        </Audio>
        <TransConfig>
            <AdjDarMethod>scale</AdjDarMethod>
            <IsCheckReso>false</IsCheckReso>
            <ResoAdjMethod>1</ResoAdjMethod>
        </TransConfig>
        <TimeInterval>
            <Start>0</Start>
            <Duration>60</Duration>
        </TimeInterval>
        <AudioMixArray>
            <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix1.mp3</AudioSource>
            <MixMode>Once</MixMode>
            <Replace>true</Replace>
            <EffectConfig>
                <EnableStartFadein>true</EnableStartFadein>
                <StartFadeinTime>3</StartFadeinTime>
                <EnableEndFadeout>false</EnableEndFadeout>
                <EndFadeoutTime>0</EndFadeoutTime>
                <EnableBgmFade>true</EnableBgmFade>
                <BgmFadeTime>1.7</BgmFadeTime>
            </EffectConfig>
        </AudioMixArray>
        <AudioMixArray>
            <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix2.mp3</AudioSource>
            <MixMode>Once</MixMode>
            <Replace>true</Replace>
            <EffectConfig>
                <EnableStartFadein>true</EnableStartFadein>
                <StartFadeinTime>3</StartFadeinTime>
                <EnableEndFadeout>false</EnableEndFadeout>
                <EndFadeoutTime>0</EndFadeoutTime>
                <EnableBgmFade>true</EnableBgmFade>
                <BgmFadeTime>1.7</BgmFadeTime>
            </EffectConfig>
        </AudioMixArray>
        <CreateTime>2020-08-05T11:35:24+0800</CreateTime>
        <UpdateTime>2020-08-31T16:15:20+0800</UpdateTime>
    </Template>
</Response>
The data are as follows:
Node Name (Keyword)
Parent Node
Description
Type
Response
None.
Container for saving results
Container
Container node
Response
content:
Node Name (Keyword)
Parent Node
Description
Type
Template
Response
Container for saving template details
Container
RequestId
Response
unique request ID
String
Container node
Template
content:
Node Name (Keyword)
Parent Node
Description
Type
TemplateId
Response.Template
template ID
String
Name
Response.Template
Template Name
String
BucketId
Response.Template
Template's bucket
String
Category
Response.Template
Template Properties, Custom or Official
String
Tag
Response.Template
Template type: Transcode
String
UpdateTime
Response.Template
Update time
String
CreateTime
Response.Template
Creation time
String
TransTpl
Response.Template
Detailed template parameters
Container
Container node TransTpl content:
Node Name (Keyword)
Parent Node
Description
Type
TimeInterval
Response.Template.TransTpl
Request.TimeInterval in the request body
Container
Container
Response.Template.TransTpl
Same as Request.Container in the request body
Container
Video
Response.Template.TransTpl
Request.Video in the request body
Container
Audio
Response.Template.TransTpl
Same as Request.Audio in the request body
Container
TransConfig
Response.Template.TransTpl
Same as Request.TransConfig in the request body
Container
AudioMix
Response.Template.TransTpl
Same as Request.AudioMix in the request body
Container
AudioMixArray
Response.Template.TransTpl
Same as Request.AudioMixArray in the request body
Container array

Error Codes

This request returns common error responses and error codes. For more information, see Error Codes.

Examples

Request

POST /template HTTP/1.1
Authorization: q-sign-algorithm=sha1&q-ak=**********************************&q-sign-time=1497530202;1497610202&q-key-time=1497530202;1497610202&q-header-list=&q-url-param-list=&q-signature=**************************************
Host: test-1234567890.ci.ap-beijing.myqcloud.com
Content-Length: 1666
Content-Type: application/xml

<Request>
    <Tag>Transcode</Tag>
    <Name>TemplateName</Name>
    <Container>
        <Format>mp4</Format>
    </Container>
    <Video>
        <Codec>H.264</Codec>
        <Profile>high</Profile>
        <Bitrate>1000</Bitrate>
        <Width>1280</Width>
        <Fps>30</Fps>
        <Preset>medium</Preset>
    </Video>
    <Audio>
        <Codec>aac</Codec>
        <Samplerate>44100</Samplerate>
        <Bitrate>128</Bitrate>
        <Channels>4</Channels>
    </Audio>
    <TransConfig>
        <AdjDarMethod>scale</AdjDarMethod>
        <IsCheckReso>false</IsCheckReso>
        <ResoAdjMethod>1</ResoAdjMethod>
    </TransConfig>
    <TimeInterval>
        <Start>0</Start>
        <Duration>60</Duration>
    </TimeInterval>
    <AudioMixArray>
        <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix1.mp3</AudioSource>
        <MixMode>Once</MixMode>
        <Replace>true</Replace>
        <EffectConfig>
            <EnableStartFadein>true</EnableStartFadein>
            <StartFadeinTime>3</StartFadeinTime>
            <EnableEndFadeout>false</EnableEndFadeout>
            <EndFadeoutTime>0</EndFadeoutTime>
            <EnableBgmFade>true</EnableBgmFade>
            <BgmFadeTime>1.7</BgmFadeTime>
        </EffectConfig>
    </AudioMixArray>
    <AudioMixArray>
        <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix2.mp3</AudioSource>
        <MixMode>Once</MixMode>
        <Replace>true</Replace>
        <EffectConfig>
            <EnableStartFadein>true</EnableStartFadein>
            <StartFadeinTime>3</StartFadeinTime>
            <EnableEndFadeout>false</EnableEndFadeout>
            <EndFadeoutTime>0</EndFadeoutTime>
            <EnableBgmFade>true</EnableBgmFade>
            <BgmFadeTime>1.7</BgmFadeTime>
        </EffectConfig>
    </AudioMixArray>
</Request>

Response

HTTP/1.1 200 OK
Content-Type: application/xml
Content-Length: 100
Connection: keep-alive
Date: Thu, 14 Jul 2022 12:37:29 GMT
Server: tencent-ci
x-ci-request-id: NTk0MjdmODlfMjQ4OGY3XzYzYzhf****

<Response>
    <RequestId>NjQ0NGNlNDZfMThhYTk0MGFfY*********</RequestId>
    <Template>
        <Tag>Transcode</Tag>
        <TemplateId>t1460606b9752148c4ab182f55163ba7cd</TemplateId>
        <Name>TemplateName</Name>
        <BucketId>test-1234567890</BucketId>
        <Category>Custom</Category>
        <Container>
            <Format>mp4</Format>
        </Container>
        <Video>
            <Codec>H.264</Codec>
            <Profile>high</Profile>
            <Bitrate>1000</Bitrate>
            <Width>1280</Width>
            <Fps>30</Fps>
            <Preset>medium</Preset>
        </Video>
        <Audio>
            <Codec>aac</Codec>
            <Samplerate>44100</Samplerate>
            <Bitrate>128</Bitrate>
            <Channels>4</Channels>
        </Audio>
        <TransConfig>
            <AdjDarMethod>scale</AdjDarMethod>
            <IsCheckReso>false</IsCheckReso>
            <ResoAdjMethod>1</ResoAdjMethod>
        </TransConfig>
        <TimeInterval>
            <Start>0</Start>
            <Duration>60</Duration>
        </TimeInterval>
        <AudioMixArray>
            <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix1.mp3</AudioSource>
            <MixMode>Once</MixMode>
            <Replace>true</Replace>
            <EffectConfig>
                <EnableStartFadein>true</EnableStartFadein>
                <StartFadeinTime>3</StartFadeinTime>
                <EnableEndFadeout>false</EnableEndFadeout>
                <EndFadeoutTime>0</EndFadeoutTime>
                <EnableBgmFade>true</EnableBgmFade>
                <BgmFadeTime>1.7</BgmFadeTime>
            </EffectConfig>
        </AudioMixArray>
        <AudioMixArray>
            <AudioSource>https://test-xxx.cos.ap-chongqing.myqcloud.com/mix2.mp3</AudioSource>
            <MixMode>Once</MixMode>
            <Replace>true</Replace>
            <EffectConfig>
                <EnableStartFadein>true</EnableStartFadein>
                <StartFadeinTime>3</StartFadeinTime>
                <EnableEndFadeout>false</EnableEndFadeout>
                <EndFadeoutTime>0</EndFadeoutTime>
                <EnableBgmFade>true</EnableBgmFade>
                <BgmFadeTime>1.7</BgmFadeTime>
            </EffectConfig>
        </AudioMixArray>
        <CreateTime>2020-08-05T11:35:24+0800</CreateTime>
        <UpdateTime>2020-08-31T16:15:20+0800</UpdateTime>
    </Template>
</Response>

Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
No

Feedback
