In the TDSQL-C for MySQL console, the cluster list page supports tab and list views. You can switch between them as instructed below.
When there are no more than ten clusters, the tab view displays clearer cluster information and instance data than the list view.
Note
TDSQL-C for MySQL walks you through using the tab view in the console. In addition to the document introduction, you may learn about the tab view by clicking User Guide in the the console.
Directions
1. Log in to the TDSQL-C for MySQL console, and toggle on the button in front of List View in the top right of the cluster list.
Before toggling on:
After toggling on:
2. After it is toggled on successfully, the tab view is as follows.
3. Click the target cluster in the cluster list on the left to enter the cluster management page.
Note
Cluster List provides indicator lights to indicate the status of the current cluster as follows.
A green light indicates that the cluster status is "Running".
A gray light indicates that the cluster status is "Creating".
A red light indicates that the cluster status is "Isolating".
4. On the Cluster Management page, you can upgrade the database version of the cluster, log in to the cluster, terminate the cluster, request a refund, adjust project, change network, modify deployment mode, edit tags, set renewal and billing mode.

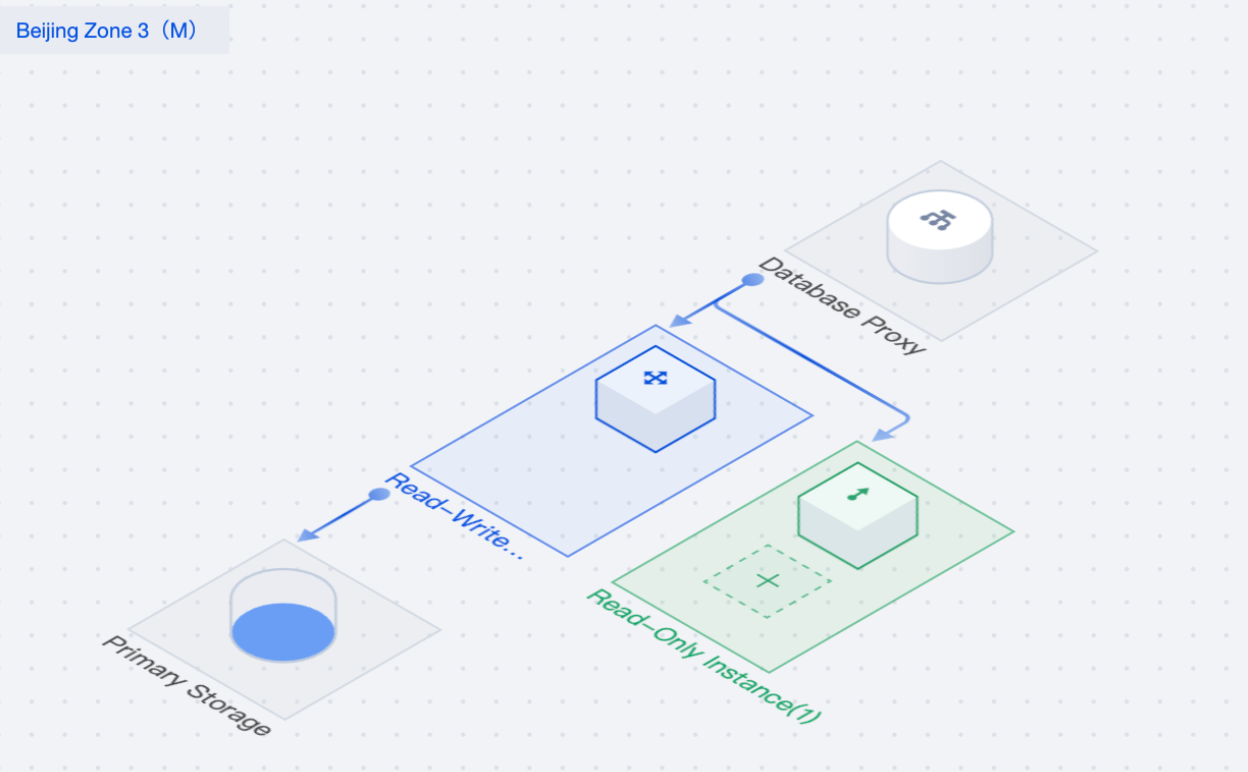

5. On the Cluster Details page, you can learn about the cluster architecture and storage details of TDSQL-C for MySQL and perform related operations on the instance. For more information, see Instance Management Overview.
6. If you need to switch the list view, you can toggle off the button in front of Tab View in the top right of the console.
Before toggling off:
After toggling off:
Hiding Cluster List
In the tab view, you can hide Cluster List for a clearer preview of the corresponding cluster management page. On the top of the cluster list, click Hide cluster list.
To display the cluster list again, click Expand cluster list.
