Viewing an Instance

PDF
Focus Mode
Font Size
Last updated: 2025-04-30 16:33:26

Overview

After purchasing the TencentDB for CTSDB 3.0, you can intuitively and quickly view the details of instances on the console, including their running status, resource usage, and network status, and efficiently perform operation and maintenance management on the instance.

Prerequisites

Creating an Instance has been finished.
The instance is not terminated.

Viewing the Instance List

1. Log in to the CTSDB Console using a Tencent Cloud account.
2. At the top of the console page, select Version 3.0.

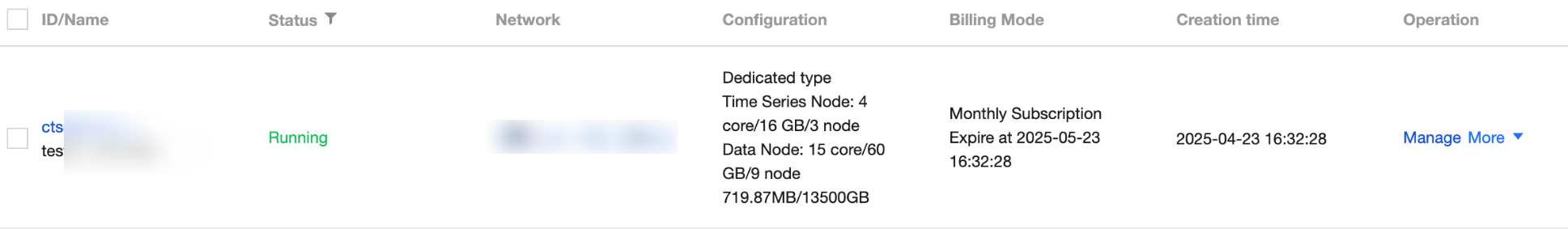

3. In the Instance List, search for the instance you want to view. The meaning of each parameter is shown in the following table.

Parameter Name
Parameter Description
ID/Name
Instance ID and name. System will randomly allocate an ID number for each instance.
Hover over the instance name and click

to re-edit the instance name.
Status
Current running status of the instance.
Region
The region to which the instance belongs.
Network
VPC name of the instance.
Configuration
Instance type, specification configuration information of computing nodes and data nodes
Instance type: Only dedicated is supported.
Time sequence node: 2 cores 8 GB / 3 nodes, corresponding to the CPU cores, memory specifications / quantity of computing nodes.
Data node; 15 cores 60 GB/9 nodes, corresponding to the CPU cores, memory specifications/node quantity of data nodes; 719.87 MB/13500 GB, corresponding to the used disk capacity/total disk capacity.
Billing mode
Billing mode: Currently only supports Monthly Subscription in prepaid mode.
Expiration time: the expiration time of instance use.
Creation time
The time point for a successful instance creation.
Tag
Tags of the instance, making it easy to manage instance resources by tags.
Operation
Click on Manage to enter the Instance Details page.
Click More > Return and Refund to return instance resources. For detailed operations, please refer to Returning Instances.
Click More > Edit Tag, you can set the Tag Key and Tag Value in the Edit Tag window. For specific operations, see Editing Tag.

Viewing Instance Details

Click on Instance ID in the instance list, or click on Manage in the Operation column to enter the Instance Details page.

Page Area
Parameter Name
Parameter Description
Basic information
Instance ID
The system randomly allocates an ID number to the instance.
Click

to directly copy the instance ID.
Instance Name
The name configured for the instance when it was created.
If it is not configured, it will be left empty.
Click

to rename the instance.
Region
The region to which the instance belongs
Zone
The default settings are Multi-AZ deployment, with data replicas automatically distributed across multiple availability zones, providing higher availability and disaster recovery capabilities.
Status
The instance is in the running status.
If it is Running, it means that the instance currently has no tasks running.
Tag
Tag keys of instances.
Compute
Time Series Node Specification
Instance configuration's compute specifications: 2 cores 8 GB / 3 nodes, indicating the number of CPU cores and memory specifications / quantity of billing resources.
click Adjust to readjust the specification. For details, see Modification of Specifications.
Billing Mode
Billing mode of computing resources.
Storage
Data Node
Instance configuration's data node specifications. click Adjust to readjust the specification. For details, see Modification of Specifications.
Instance storage capacity
Used disk capacity and total disk capacity.
Billing Mode
Billing mode of storage resource.
Data Replica
Quantities of storage data replicas.
Consistency
Requirements for data consistency. Strong consistency refers to reading the latest data.
Storage Type
Currently, only SSD Local disk storage is supported.
Network information
VPC
VPC Information.
Time Series Node Private Network Address
Time Series Node Connection Address.
Analysis Node Private Network Address
deprecated, ignore it.
Configuration information
Creation time
Instance creation time.
Expiration Date
Expiration time of annual and monthly subscription billing.
