This is to prevent the system from being affected when some monitoring metrics reach a certain value. You can set alarm rules for these monitoring metrics to enable the alarm system to automatically check the monitoring data and send an alarm notification to the administrator when the monitoring data meets the conditions. This helps you understand business exceptions the first time and resolve them quickly.
Background
Tencent Cloud Observability Platform (TCOP) is a real-time monitoring and alarm service for cloud product resources. TencentDB for CTSDB 3.0 provides alarms for monitoring metrics through TCOP. The alarm monitors some specific metrics within a certain period and sends alarm notifications by various methods (such as WeChat and SMS) every several time periods based on the given threshold. For more information, see Tencent Cloud Observability Platform(TCOP).
Billing Instructions
TCOP allows you to configure alarm policies to monitor key metrics of instances, which can be used for free.
Information about alarm notification objects has been collected, including emails, SMS, and phone calls.
Directions
1. Log in to the CTSDB Console using a Tencent Cloud account.
2. At the top of the right page, select Version 3.0.
3. In the Instance List, find the instance you need to view.
4. Click the target instance ID, or click Manage in the Operation column to enter the Instance Details page.
5. Select the Instance Monitoring tab. In the upper right corner of each monitoring view, click
to enter the Create Alarm Policy page.

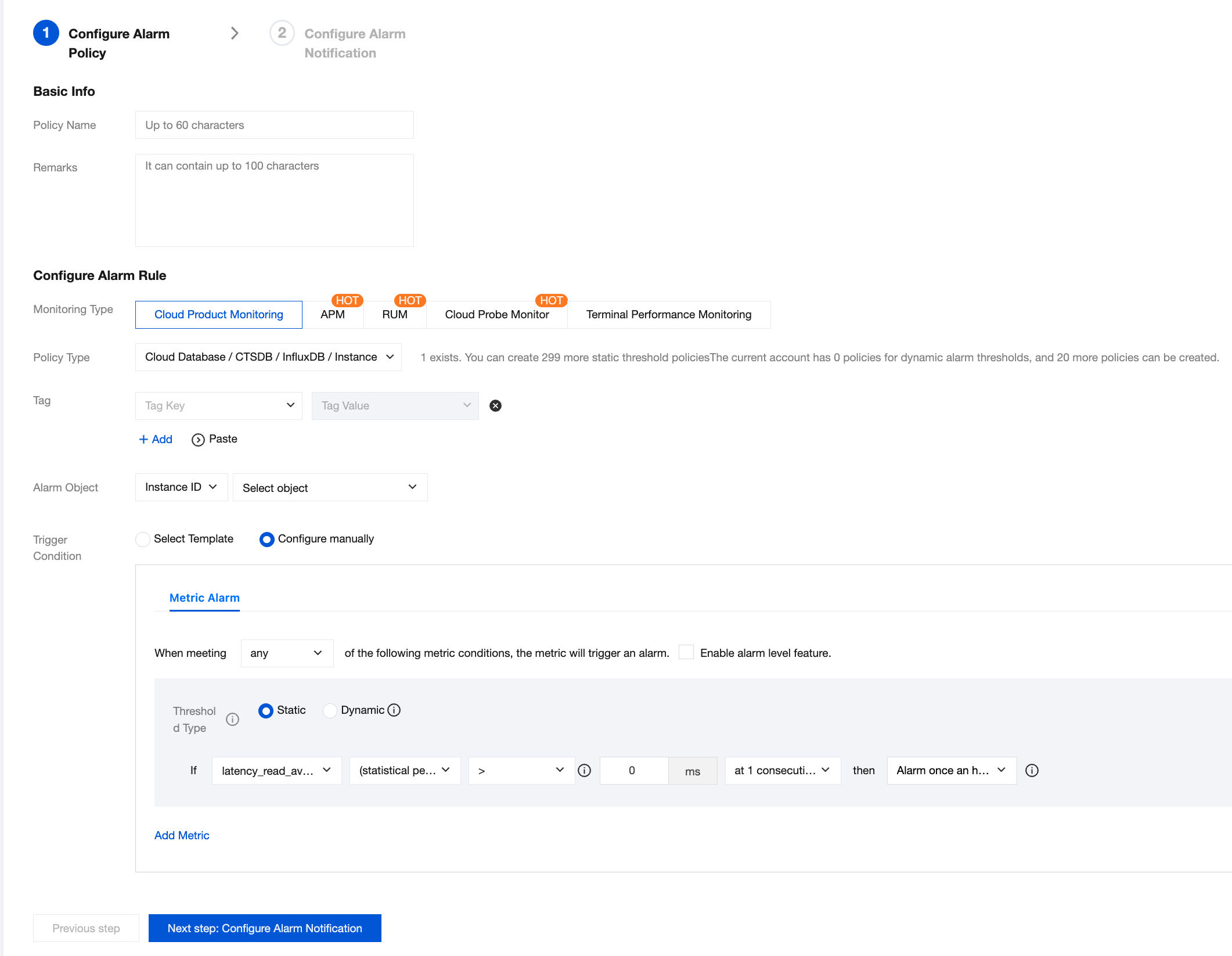

6. On the Create Alarm Policy page, see the following table to configure the alarm policy. For the basic concept of alarm policy, see Creating Alarm Policy.
Parameter Name
Parameter Interpretation
Policy Name
Customize the name of an alarm policy for easy identification.
Remarks
Briefly describe the alarm policies for easy identification.
Monitoring Type
Select Cloud Product Monitoring.
Policy type
The policy types that can be set are as follows:
Cloud database/CTSDB/InfuxDB/Instance
Cloud database/CTSDB/InfuxDB/compute node
Cloud database/CTSDB/InfuxDB/Database
Tag
Specify a tag for the alarm policy.
Alarm Object
Select Instance ID: The alarm policy is bound to the specified database instance.
Select Instance Group: The alarm policy is bound to the specified database instance group. For instructions on creating an instance group, see Instance Group.
Select All Objects: The alarm policy is bound to all instances for which the current account has permissions.
Select Tag: The alarm policy is bound to all instances related to the current tag key and tag value.
Trigger Condition
Select Template: Select a template file from the drop-down list. Alarms will be reported according to the preset trigger conditions of the template file. For specific configuration, see Configuring Trigger Condition Templates.
Configure manually: Configure the threshold conditions for triggering an alarm for each metric in the Metric Alarm area below. The threshold type in the Metric Alarm area can be static or dynamic.
Static: A constant threshold is manually set, and an alarm is sent when the trigger conditions are met.
Dynamic: Abnormalities are determined based on the threshold boundaries calculated by machine learning algorithms.
You can select a preset or user-customized notification template. Each alarm policy can be bound to at most three notification templates. See Notification Template for details.
7. Confirm that the configuration is correct and click Complete. For more information about alarms, see Alarm Overview.
