Message Push Target

Last updated: 2024-01-22 20:52:28

Overview
For Tencent Cloud service events collected by the default Tencent Cloud service event bus, EventBridge allows you to configure message push to push Cloud Monitor events to user terminals in real time.
Note
Currently, message push can only be bound to the default Tencent Cloud service event bus.
By default, the number of events delivered to a target cannot exceed 2,000 per day.
﻿
﻿
﻿
Directions
1. Log in to the EventBridge console and click Event rule in the left sidebar. Select the default Tencent Cloud service event bus.

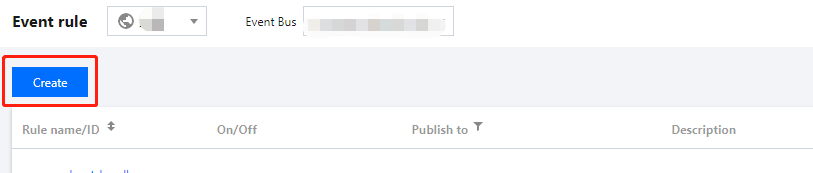

2. On the Event rule page, click Create event rule, as shown below:
﻿
3. On the Create event rule page, select Notification message for Trigger Method and set other parameters such as the recipient and delivery method as prompted, as shown below:
﻿
﻿
﻿
Note
Use limits: For SMS message delivery, a notification message can contain up to 500 characters. For phone delivery, a notification message can contain up to 350 characters. If fields such as the instance name are too long, notification messages may fail to be sent due to excessive length. We recommend that you configure multiple delivery channels.
Cross-MLC-border API callback may fail due to network instability.
Message Push Template
Tencent Cloud ${Service name abbreviation} Alert
Dear Tencent Cloud user,
﻿
An alert is triggered for Tencent Cloud ${4} under your account (Account ID: ${Account ID}; Name: ${Account name}). Check and resolve the issue in time.
﻿
﻿
﻿
Alerted event: ${Event details}
Alerted service: ${Service name abbreviation}
Alerted resource: ${Resource ID}
Alarm region: ${Resource region}
Event generation time: ${Alarm time}
Event status: ${Recovered/Not recovered/Stateless}
﻿
For more details, log in to the EventBridge console.
Callback Samples
Note
DDoS event callbacks are different from others.
Sample callback of a monitoring alarm template
{
"sessionId": "xxxxxxxxxxxxxxxx",  // Event ID
"alarmStatus": "1",//Event.Status
"alarmType": "event",// The value is fixed, indicating an event alarm
"alarmObjInfo": {
   "region": "sh",        // Event region
   "dimensions": {     // Additional description of the resource, which is subjected to the related Tencent Cloud service (CVM here)
      "unInstanceId": "ins-xxxxx",
      "objDetail": {
                  "deviceLanIp": "xxxx",
                  "deviceWanIp": ""
                  "uniqVpcId": "vpc-xxx"
       },
       "deviceName": "xxx"
   }
},
"alarmPolicyInfo": { // Alarm policy information, which is compatible with existing callbacks of Tencent Cloud Observability Platform.
      "policyName": "xxxx",  // EventBridge event rule name
        "conditions": {
            "productName": "cvm",                 // Abbreviation of the related Tencent Cloud service
             "eventName": "guest_reboot",    // Event type
             "alarmNotifyType": "", // It is left empty and is compatible with existing callbacks of Tencent Cloud Observability Platform.
             "alarmNotifyPeriod": ""  // It is left empty and is compatible with existing callbacks of Tencent Cloud Observability Platform.
     }
},
"additionalMsg": [{ // Additional information of the event, which is determined by the event reporter (CVM here)
"key": "alias",
"value": "xxxx"
}, {
"key": "deviceLanIp",
"value": "xxxx"
}, {
"key": "deviceWanIp",
"value": ""
}, {
"key": "uniqVpcId",
"value": ""
}],
"firstOccurTime": "2021-10-19 11:15:47", // Alerted time
"durationTime": 0,  // Duration
"recoverTime": "0"  // Recovery time
}
Sample callback of a general notification template
{
"id":"xxxxxxxxxxxxxxxx",   // Event ID.
"type":"cdb:ErrorEvent:PlannedSwitch",  // Event type. Example: cdb.
"specversion":"1.0",
"source":"cdb.cloud.tencent", // The Tencent Cloud service.
"subject":"xxxxxx",  // Event resource, such as the instance ID.
"time":1662538320000,  // Timestamp when the event occurred, which is accurate to milliseconds.
"region":"ap-beijing",  // Event region.
"datacontenttype":"application/json;charset=utf-8",
"status":"0",  // Event status. Valid values: `0`: recovered. `1`: triggered. `-`: stateless.
"tags":"",
"data":{
    "additionalMsg":[  // Additional information of the event. The information varies with the Tencent Cloud services.
            {
                "key":"InstanceName",
                "value":"xxxxx"
            },
            {
                "key":"IP",
                "value":"xxxxxxx"
            }
        ],
    "dimensions":[  // Additional information of the event resource. The information varies with the Tencent Cloud services.
            {
                "key":"InstanceId",
                "value":"cdb-xxxxxx"
            }
        ]
    }
}
DDoS callback sample
{
"id":"xxxxxxxxxxxxxxxx",
"type":"antiddos:ErrorEvent:DDoSAlaram",
"specversion":"1.0",
"source":"antiddos.cloud.tencent",
"subject":"xx.xx.xx.xx",
"time":1662538320000,
"region":"ap-beijing",
"datacontenttype":"application/json;charset=utf-8",
"status":"0",
"tags":null,
"data":{
     "Appid":xxxxxxxxx,
     "InstanceId":"ins-xxx",
     "Ip":"xx.xx.xx.xx",
     "NickName":" xxxxx",
     "Region":"ap-beijing",
     "Uin":"xxxxxxxxxxx"
    }
}
﻿
