SDK for PHP

Last updated: 2022-06-10 11:32:41

    Directions

    This document uses the SDK for PHP as an example to describe how to connect the client to TDMQ for CMQ and send/receive messages.

    Prerequisites

    Queue Model

    Directions

    1. Create a queue service in the console as instructed in Queue Management.
      Note

      You can create a message queue in the console or via TencentCloud API. To use TencentCloud API, you need to install the SDK 3.0 for PHP.

    2. Add dependencies.
      composer require tencentcloud/tencentcloud-sdk-php
    3. Add references.
      require '/path/to/vendor/autoload.php';
    4. Create a message queue.
      $cred = new Credential($secretId, $secretKey);
      $httpProfile = new HttpProfile();
      $httpProfile->setEndpoint($endPoint);

      $clientProfile = new ClientProfile();
      $clientProfile->setHttpProfile($httpProfile);
      $client = new TdmqClient($cred, "ap-guangzhou", $clientProfile);

      $req = new CreateCmqQueueRequest();

      $params = array(
      "QueueName" => "queue_api", // Message queue name
      // Below is the dead letter queue configuration
      "DeadLetterQueueName" => "dead_queue_api", // Name of the dead letter queue that needs to be created first
      "Policy" => 0, // Dead letter policy. 0: Message has been consumed multiple times but not deleted. 1: `Time-To-Live` has elapsed
      "MaxReceiveCount" => 3 // Maximum receipts. Value range: 1–1000
      // MaxTimeToLive: Maximum period in seconds before an unconsumed message expires, which is required if `policy` is 1. Value range: 300–43200. This value should be smaller than `msgRetentionSeconds` (maximum message retention period)
      );
      $req->fromJsonString(json_encode($params));

      $resp = $client->CreateCmqQueue($req);
      Parameter Description

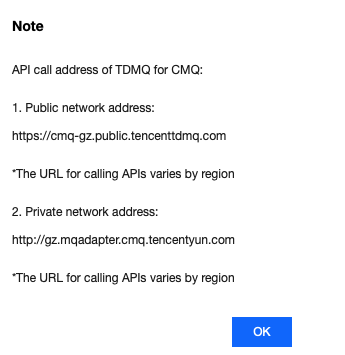

      $endPoint API call address, which can be copied from Queue Service > API Request Address in the TDMQ for CMQ console. img

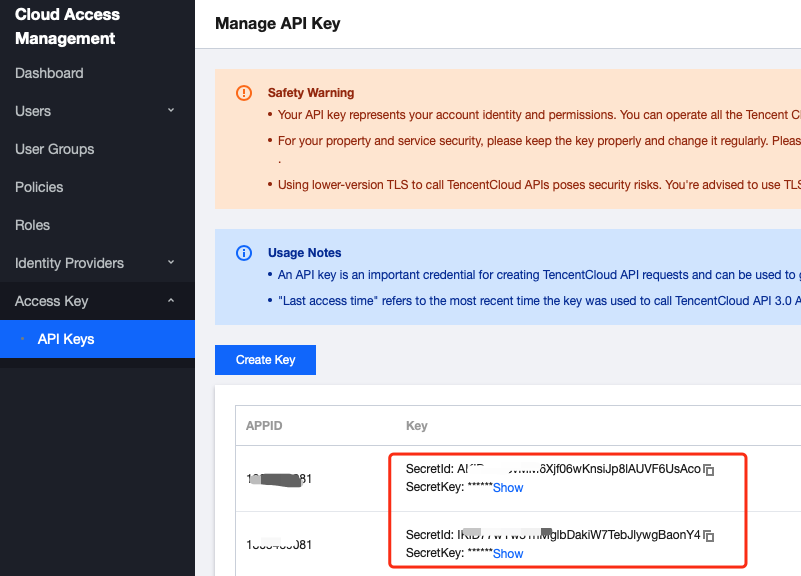

      $secretId, $secretKey TencentCloud API key, which can be copied on the Access Key > API Key Management page in the CAM console. img
    5. Import CMQ files into the project.
    6. Send messages.
      // Message queue name
      $queue_name = "php_queue";
      // Authentication information
      $my_account = new Account($this->endpoint, $this->secretId, $this->secretKey);

      $my_queue = $my_account->get_queue($queue_name);

      $queue_meta = new QueueMeta();
      $queue_meta->queueName = $queue_name;
      $queue_meta->pollingWaitSeconds = 10;
      $queue_meta->visibilityTimeout = 10;
      $queue_meta->maxMsgSize = 1024;
      $queue_meta->msgRetentionSeconds = 3600;

      try {
      // Message content
      $msg_body = "I am test message.";
      $msg = new Message($msg_body);
      // Send messages
      $re_msg = $my_queue->send_message($msg);
      echo "Send Message Succeed! MessageBody:" . $msg_body . " MessageID:" . $re_msg->msgId . "\n";
      } catch (CMQExceptionBase $e) {
      echo "Create Queue Fail! Exception: " . $e;
      return;
      }
      ParameterDescription
      endpointAPI call address, which can be copied from Queue Service > API Request Address in the TDMQ for CMQ console. img
      secretId, secretKeyTencentCloud API key, which can be copied on the Access Key > API Key Management page in the CAM console. img
      $queue_nameQueue name, which can be obtained on the Queue Service page in the TDMQ for CMQ console.
    7. Consume messages.
      // Message queue name
      $queue_name = "php_queue";
      // Authentication result
      $my_account = new Account($this->endpoint, $this->secretId, $this->secretKey);

      $my_queue = $my_account->get_queue($queue_name);

      $queue_meta = new QueueMeta();
      $queue_meta->queueName = $queue_name;
      $queue_meta->pollingWaitSeconds = 10;
      $queue_meta->visibilityTimeout = 10;
      $queue_meta->maxMsgSize = 1024;
      $queue_meta->msgRetentionSeconds = 3600;

      try {
      // Obtain messages
      $recv_msg = $my_queue->receive_message(3);
      echo "Receive Message Succeed! " . $recv_msg . "\n";
      // Successfully consumed messages are deleted
      $my_queue->delete_message($recv_msg->receiptHandle);
      } catch (CMQExceptionBase $e) {
      echo "Create Queue Fail! Exception: " . $e;
      return;
      }
      ParameterDescription
      endpointAPI call address, which can be copied from Queue Service > API Request Address in the TDMQ for CMQ console. img
      secretId, secretKeyTencentCloud API key, which can be copied on the Access Key > API Key Management page in the CAM console. img
      $queue_nameQueue name, which can be obtained on the Queue Service page in the TDMQ for CMQ console.

    Topic Model

    Directions

    1. Prepare the required resources and create a topic subscription and a subscriber.
      1. Create a topic subscription in the console or via TencentCloud API. To use TencentCloud API, you need to install the SDK 3.0 for PHP.
        $cred = new Credential($secretId, $secretKey);
        $httpProfile = new HttpProfile();
        $httpProfile->setEndpoint($endPoint);

        $clientProfile = new ClientProfile();
        $clientProfile->setHttpProfile($httpProfile);
        $client = new TdmqClient($cred, "ap-guangzhou", $clientProfile);

        $req = new CreateCmqTopicRequest();

        $params = array(
        "TopicName" => "topic_api1", // Topic name, which must be unique in the same region under the same account
        "FilterType" => 2, // Used to specify the message match policy for the topic. 1: Tag matching policy. 2: Routing matching policy
        "MsgRetentionSeconds" => 86400 // Message retention period. Value range: 60–86400 seconds (i.e., 1 minute–1 day)
        );
        $req->fromJsonString(json_encode($params));

        // Create a topic
        $resp = $client->CreateCmqTopic($req);
        ParameterDescription
        $endPointAPI call address, which can be copied from Queue Service > API Request Address in the TDMQ for CMQ console. img
        $secretId, $secretKeyTencentCloud API key, which can be copied on the Access Key > API Key Management page in the CAM console. img
      2. Create a subscriber in the console or via TencentCloud API. To use TencentCloud API, you need to install the SDK 3.0 for PHP.
        $cred = new Credential($secretId, $secretKey);
        $httpProfile = new HttpProfile();
        $httpProfile->setEndpoint($endPoint);

        $clientProfile = new ClientProfile();
        $clientProfile->setHttpProfile($httpProfile);
        $client = new TdmqClient($cred, "ap-guangzhou", $clientProfile);

        $req = new CreateCmqSubscribeRequest();

        $params = array(
        // Name of the topic for which to create a subscription
        "TopicName" => "topic_api1",
        // Subscription name
        "SubscriptionName" => "sub1",
        // Subscription protocol. Currently, two protocols are supported: HTTP and queue. To use the HTTP protocol, you need to build your own web server to receive messages. With the queue protocol, messages are automatically pushed to a CMQ queue and you can pull them concurrently.
        "Protocol" => "queue",
        // Endpoint that receives notifications, which varies by protocol: for HTTP, the endpoint must start with `http://`, and the `host` can be a domain or IP; for queue, `QueueName` should be entered.
        "Endpoint" => "topic_queue_api",
        // CMQ push server retry policy. Valid values: 1) BACKOFF_RETRY; 2) EXPONENTIAL_DECAY_RETRY.
        "NotifyStrategy" => "BACKOFF_RETRY",
        // The number of `BindingKey` cannot exceed 5, and the length of each `BindingKey` cannot exceed 64 bytes. This field indicates the filtering policy for subscribing to and receiving messages.
        "BindingKey" => array("a.b"),
        // Message filter tag (used for message filtering). The number of tags cannot exceed 5.
        // "FilterTag" => array("TAG"),
        // Push content format. Valid values: 1. JSON; 2. SIMPLIFIED, i.e., the raw format. If `Protocol` is `queue`, this value must be `SIMPLIFIED`. If `Protocol` is `http`, both options are acceptable, and the default value is `JSON`.
        "NotifyContentFormat" => "SIMPLIFIED"
        );
        $req->fromJsonString(json_encode($params));

        // Create a subscription
        $resp = $client->CreateCmqSubscribe($req);
        Note

        BindingKey and FilterTag should be set according to the type of subscribed topic; otherwise, they will be invalid.

        ParameterDescription
        $endPointAPI call address, which can be copied from Queue Service > API Request Address in the TDMQ for CMQ console. img
        $secretId, $secretKeyTencentCloud API key, which can be copied on the Access Key > API Key Management page in the CAM console. img
    2. Import CMQ files into the project.
    3. Create my_topic to publish messages.
      // Topic subscription name
      $topic_name = "php_topic_tag";
      // Authentication information
      $my_account = new Account($this->endpoint, $this->secretId, $this->secretKey);
      $my_topic = $my_account->get_topic($topic_name);
      ParameterDescription
      endpointAPI call address, which can be copied from Queue Service > API Request Address in the TDMQ for CMQ console. img
      secretId, secretKeyTencentCloud API key, which can be copied on the Access Key > API Key Management page in the CAM console. img
      $topic_nameTopic subscription name, which can be obtained on the Topic Subscription page in the TDMQ for CMQ console.
    4. Send tag messages.
      // Send tag messages
      $msg = "this is a test message for tag.";
      $msgid = $my_topic->publish_message($msg, array("TAG","TAG1"));
    5. Send route messages.
      // Send route messages.
      $msg = "this is a test message for route.";
      $msgid = $my_topic->publish_message($msg, array(), "a.b.c");
    6. The consumer can consume messages in the message queue subscribed to by the subscriber.
    Note:

    Above is a brief introduction to message production and consumption in two models. For more information, see Demo or TDMQ for CMQ code repository.
