Exchange Management

Last updated: 2022-02-11 14:22:17

    Overview

    A producer sends a message to an exchange, which subsequently routes the message to one or more queues based on its attributes or content (or discards it). Then, a consumer pulls it from one of these queues and consumes it.

    This document describes how to create, delete, and query an exchange in the TDMQ for RabbitMQ console.

    Prerequisites

    You have created a vhost as instructed in Creating Vhost.

    Directions

    Creating exchange

    1. Log in to the TDMQ console, select the region, and click the ID of the target cluster to enter the cluster's basic information page.
    2. Click the Exchange tab at the top, select a vhost, and click Create to enter the Create Exchange page.

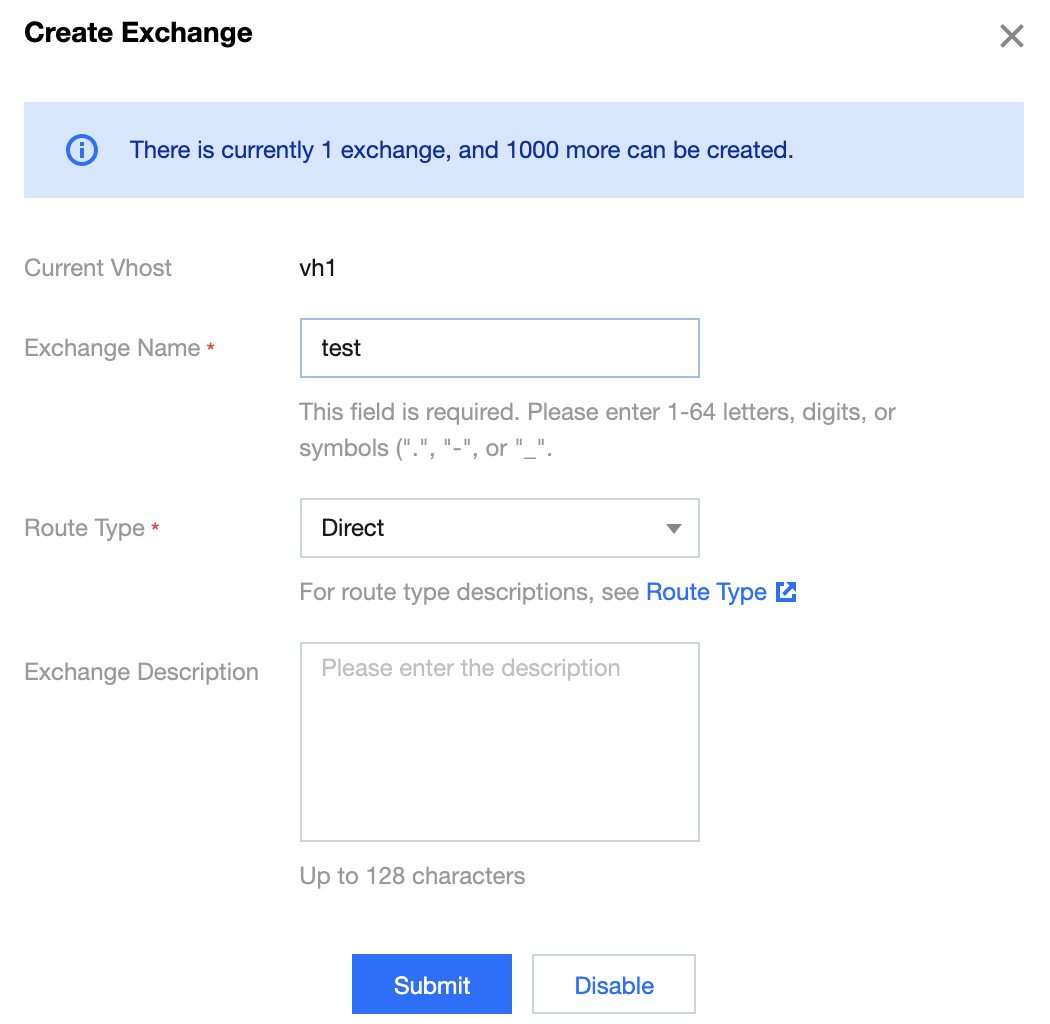

    3. In the Create Exchange window, enter the following information:
      • Exchange Name: enter the exchange name, which cannot be modified after creation and can contain 3–64 letters, digits, hyphens, and underscores.
      • Route Type: select a route type (direct, fanout, or topic), which cannot be changed after creation. For more information on route types, see Exchange.
        • Direct: a direct exchange will route messages to the queue whose binding key exactly matches the routing key.
        • Fanout: a fanout exchange will route messages to all queues bound to it.
        • Topic: a topic exchange supports multi-condition match and fuzzy match; that is, it will route messages to the queues bound to it by using routing key pattern match and string comparison.
      • Exchange Remarks: enter the exchange remarks of up to 128 characters.
    4. Click Submit, and you can see the created exchange in the exchange list.

    Editing exchange

    1. In the exchange list, click Edit in the Operation column of the target exchange.
    2. In the pop-up window, you can edit the exchange remarks.
    3. Click Submit.

    Deleting exchange

    Note:

    After an exchange is deleted, all the configurations under it will be cleared and cannot be recovered.

    1. In the exchange list, click Delete in the Operation column of the target exchange.
    2. In the pop-up window, click Delete.
