Spring Boot Starter

Last updated: 2022-05-24 14:56:42

    Overview

    This document describes how to use open-source SDK to send and receive messages by using the SDK for Spring Boot Starter as an example and helps you better understand the message sending and receiving processes.

    Prerequisites

    Directions

    Step 1. Add dependencies

    Add dependencies to the pom.xml file.

    <!--rabbitmq-->
    <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-amqp</artifactId>
    </dependency>


    Step 2. Prepare configurations

    1. Add RabbitMQ configuration information to the configuration file (with the YML configuration as an example).
      spring:
      rabbitmq:
        # The host address can be obtained in the console. You can also use the RabbitMQ service address
      host: amqp-xx.rabbitmq.x.tencenttdmq.com
      port: 5672
      # Name of the role to be used, which can be obtained on the **Role Management** page in the console
      username: admin
      # Role key
      password: eyJrZXlJZ....
      # Full name of vhost, which can be obtained on the **Vhost** tab in the console
      virtual-host: amqp-xxx|Vhost

    Parameter Description
    host Cluster access address, which can be obtained from Access Address in the Operation column on the Cluster page. img
    port Cluster access port, which can be obtained from Access Address in the Operation column on the Cluster page.
    username Role name, which can be copied on the Role Management page.
    password Role key, which can be copied in the Key column on the Role Management page. img
    virtual-host Vhost name in the format of "cluster ID + | + vhost name", which can be copied on the Vhost page in the console. img
    1. Create a configuration file loading program (with the Fanout exchange as an example).
      Note:

      For the configurations of exchanges in other types, see Demo.

     /**
      * Fanout exchange configuration
      */
     @Configuration
     public class FanoutRabbitConfig {

         /**
          * Exchange
          */
         @Bean
         public FanoutExchange fanoutExchange() {
             return new FanoutExchange("fanout-logs", true, false);
         }


         /**
          * Message queue
          */
         @Bean
         public Queue fanoutQueueA() {
             return new Queue("ps_queue", true);
         }

         @Bean
         public Queue fanoutQueueB() {
             // You can use this method to bind a dead letter queue
             Map<String, Object> requestParam = new HashMap<>();
             requestParam.put("x-dead-letter-exchange", "my-deadLetter-exchange");
             // Set the message validity period
             requestParam.put("x-message-ttl", 60000);
             return new Queue("ps_queue1", true, false,true, requestParam);
         }

         /**
          * Bind the message queue to the exchange
          */
         @Bean
         public Binding bindingFanoutA() {
             return BindingBuilder.bind(fanoutQueueA())
                     .to(fanoutExchange());
         }

         @Bean
         public Binding bindingFanoutB() {
             return BindingBuilder.bind(fanoutQueueB())
                     .to(fanoutExchange());
         }
     }

    Parameter Description
    fanout-logs Name of the bound exchange, which can be obtained from the exchange list in the console.
    ps_queue Name of the first queue bound to the exchange, which can be obtained from the queue list in the console.
    my-deadLetter-exchange Dead letter exchange name, which can be obtained from the exchange list in the console.
    ps_queue1 Name of the second queue bound to the exchange, which can be obtained from the queue list in the console.

    Step 3. Send messages

    Create and compile the message sending program DemoApplication.java and use RabbitTemplate to send message.

    @Autowired
    private RabbitTemplate rabbitTemplate;
    public String send() {
      String msg = "This is a new message.";
      // Send the message
      // Parameter description: Parameter 1: Exchange name, which can be obtained from the exchange list in the console. Parameter 2: Routing key. Parameter 3: Message content
      rabbitTemplate.convertAndSend("direct_logs", "", msg);
      return "success";
    }


    Step 4. Consume messages

    Create and compile the message receiving program FanoutReceiver.java (with Fanout exchange as an example).

    @Component
    public class FanoutReceiver {
    // Register a listener to listen on the specified message queue
    @RabbitHandler
    @RabbitListener(queues = "ps_queue")  // Name of the queue bound to the exchange, which can be obtained from the queue list in the console
    public void listenerPsQueue(String msg) {
       // Business processing...
       System.out.println("(ps_queue) receiver message. [" + msg + "]");
    }
    }


    Step 5. View messages

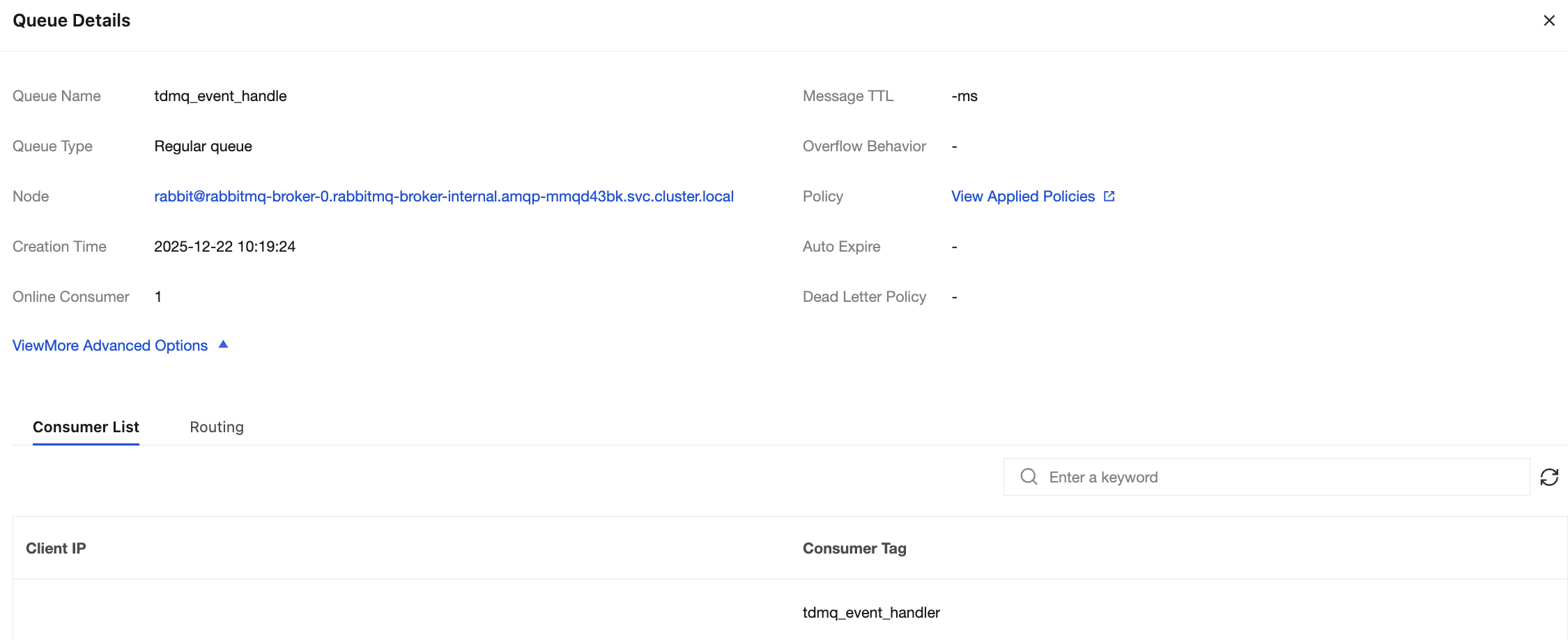

    To check whether messages are sent to TDMQ for RabbitMQ successfully, view the connected consumer status on the Cluster > Queue page in the console.


    Note:

    For other samples, see Spring AMQP.
