Downloading and Running Demo

Last updated: 2022-09-06 16:55:59

    Overview

    This document describes how to use open-source SDK to send and receive messages by using the SDK for Java as an example and helps you better understand the message sending and receiving processes.

    Note

    The following takes the Java client as an example. For clients in other languages, see TDMQ for RocketMQ.

    Prerequisites

    Directions

    Step 1. Install the Java dependency library

    Introduce dependencies in a Java project and add the following dependencies to the pom.xml file. This document uses a Maven project as an example.

    Note:

    The dependency version must be v4.6.1 or later.

    <!-- in your <dependencies> block -->
    <dependency>
    <groupid>org.apache.rocketmq</groupid>
    <artifactid>rocketmq-client</artifactid>
    <version>4.6.1</version>
    </dependency>

    <dependency>
    <groupid>org.apache.rocketmq</groupid>
    <artifactid>rocketmq-acl</artifactid>
    <version>4.6.1</version>
    </dependency>

    Step 2. Produce messages

    1. Create a message producer

    // Instantiate the message producer
    DefaultMQProducer producer = new DefaultMQProducer(
    namespace,
    groupName,
    new AclClientRPCHook(new SessionCredentials(accessKey, secretKey)) // ACL permission
    )
    ;
    // Set the NameServer address
    producer.setNamesrvAddr(nameserver);
    // Start the producer instances
    producer.start();
    Parameter Description

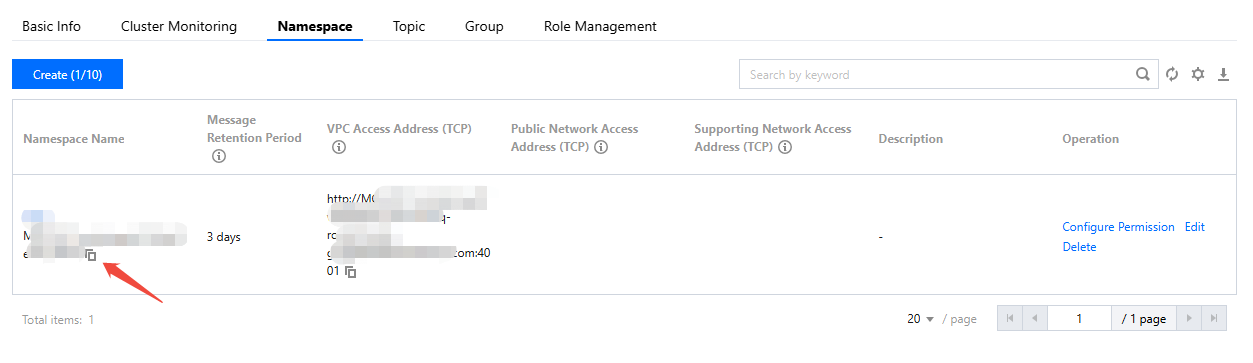

    namespace Namespace name, which can be copied under the Namespace tab on the cluster details page in the console. Its format is cluster ID + | + namespace.
    groupName Producer group name, which can be copied under the Group tab on the cluster details page in the console.

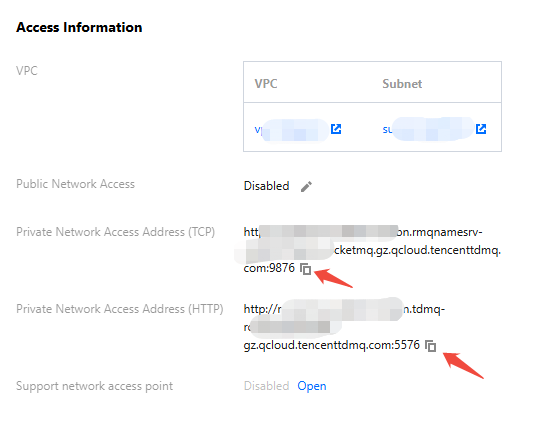

    nameserver Cluster access address, which can be copied from Access Address in the Operation column on the Cluster page in the console.

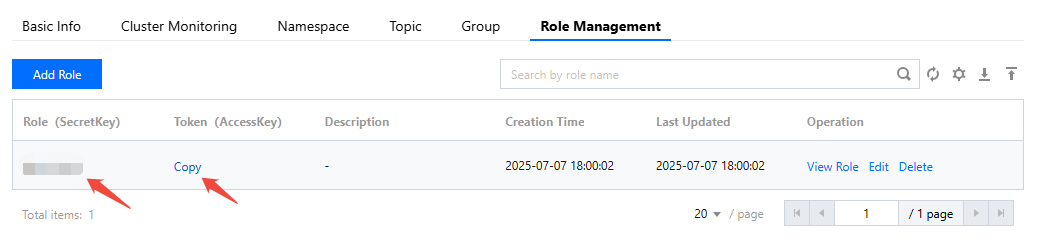

    secretKey Role name, which can be copied on the Role Management page.
    accessKey Role token, which can be copied in the Token column on the Role Management page. img

    2. Send messages

    Messages can be sent in the sync, async, or one-way mode.

    • Sync sending
      for (int i = 0; i < 10; i++) {
      // Create a message instance and set the topic and message content
      Message msg = new Message(topic_name, "TAG", ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET));
      // Send the message
      SendResult sendResult = producer.send(msg);
      System.out.printf("%s%n", sendResult);
      }
      Parameter Description

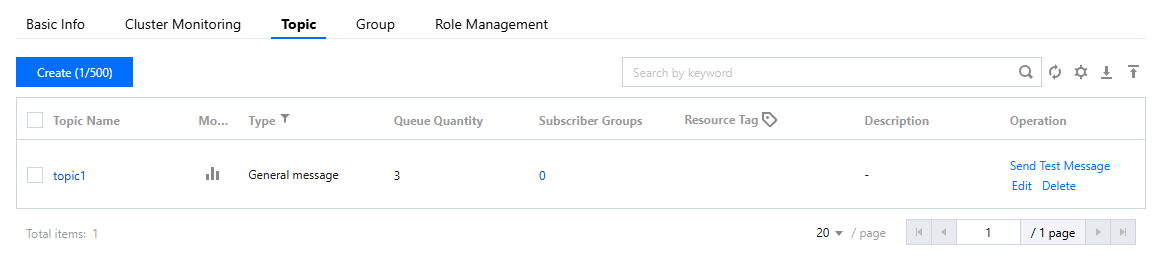

      topic_name Topic name, which can be copied under the Topic tab on the cluster details page in the console.
      TAG A parameter used to set the message tag.
    • Async sending
      // Disable retry upon sending failures
      producer.setRetryTimesWhenSendAsyncFailed(0);
      // Set the number of messages to be sent
      int messageCount = 10;
      final CountDownLatch countDownLatch = new CountDownLatch(messageCount);
      for (int i = 0; i < messageCount; i++)
      {
      try {
      final int index = i;
      // Create a message instance and set the topic and message content
      Message msg = new Message(topic_name, "TAG", ("Hello rocketMq " + index).getBytes(RemotingHelper.DEFAULT_CHARSET));
      producer.send(msg, new SendCallback() {
      @Override
      public void onSuccess(SendResult sendResult) {
      // Logic for message sending successes
      countDownLatch.countDown();
      System.out.printf("%-10d OK %s %n", index, sendResult.getMsgId());
      }

      @Override
      public void onException(Throwable e) {
      // Logic for message sending failures
      countDownLatch.countDown();
      System.out.printf("%-10d Exception %s %n", index, e);
      e.printStackTrace();
      }
      });
      } catch (Exception e) {
      e.printStackTrace();
      }
      }
      countDownLatch.await(5, TimeUnit.SECONDS);
      Parameter Description
      topic_name Topic name, which can be copied under the Topic tab on the cluster details page in the console.
      TAG A parameter used to set the message tag.
    • One-way sending
      for (int i = 0; i < 10; i++) {
      // Create a message instance and set the topic and message content
      Message msg = new Message(topic_name, "TAG", ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET));
      Send one-way messages
      producer.sendOneway(msg);
      }
      Parameter Description
      topic_name Topic name, which can be copied under the Topic tab on the cluster details page in the console.
      TAG A parameter used to set the message tag.
    Note:

    For more information on batch sending or other scenarios, see Demo or RocketMQ documentation.

    Step 3. Consume messages

    1. Create a consumer

    TDMQ for RocketMQ supports two consumption modes: push and pull.

    • For consumers using the push mode:
      // Instantiate the consumer
      DefaultMQPushConsumer pushConsumer = new DefaultMQPushConsumer(
      namespace,
      groupName,
      new AclClientRPCHook(new SessionCredentials(accessKey, secretKey)))
      ; //ACL permission
      // Set the NameServer address
      pushConsumer.setNamesrvAddr(nameserver);
      Parameter Description
      namespace Namespace name, which can be copied on the Namespace tab on the cluster details page in the console. Its format is cluster ID + | + namespace.
      groupName Producer group name, which can be copied under the Group tab on the cluster details page in the console.
      nameserver Cluster access address, which can be copied from Access Address in the Operation column on the Cluster page in the console.
      secretKey Role name, which can be copied on the Role Management page.
      accessKey Role token, which can be copied in the Token column on the Role Management page. img
    • For consumers using the pull mode:
      // Instantiate the consumer
      DefaultLitePullConsumer pullConsumer = new DefaultLitePullConsumer(
      namespace,
      groupName,
      new AclClientRPCHook(new SessionCredentials(accessKey, secretKey)))
      ;
      // Set the NameServer address
      pullConsumer.setNamesrvAddr(nameserver);
      // Specify the first offset as the start offset for consumption
      pullConsumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);
      Parameter Description
      namespace Namespace name, which can be copied on the Namespace tab on the cluster details page in the console. Its format is cluster ID + | + namespace.
      groupName Producer group name, which can be copied under the Group tab on the cluster details page in the console.
      nameserver Cluster access address, which can be copied from Access Address in the Operation column on the Cluster page in the console.
      secretKey Role name, which can be copied on the Role Management page.
      accessKey Role token, which can be copied in the Token column on the Role Management page. img
    Note:

    For more consumption mode information, see Demo or RocketMQ documentation.

    2. Subscribe to messages

    The subscription modes vary by consumption mode.

    • Subscription in push mode
      // Subscribe to a topic
      pushConsumer.subscribe(topic_name, "*");
      // Register a callback implementation class to process messages pulled from the broker
      pushConsumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
      // Message processing logic
      System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
      // Mark the message as being successfully consumed and return the consumption status
      return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
      });
      // Start the consumer instance
      pushConsumer.start();
      Parameter Description
      topic_name Topic name, which can be copied under the Topic tab on the cluster details page in the console.
      "*" If the subscription expression is left empty or specified as asterisk (*), all messages are subscribed to. `tag1 || tag2 || tag3` means subscribing to multiple types of tags.
    • Subscription in pull mode
      // Subscribe to a topic
      pullConsumer.subscribe(topic_name, "*");
      // Start the consumer instance
      pullConsumer.start();
      try {
      System.out.printf("Consumer Started.%n");
      while (true)
      {
      // Pull the message
      List<messageext> messageExts = pullConsumer.poll();
      System.out.printf("%s%n", messageExts);
      }
      } finally {
      pullConsumer.shutdown();
      }
      Parameter Description
      topic_name Topic name, which can be copied under the Topic tab on the cluster details page in the console.
      "*" If the subscription expression is left empty or specified as asterisk (*), all messages are subscribed to. `tag1 || tag2 || tag3` means subscribing to multiple types of tags.

    Step 4. View consumption details

    Log in to the TDMQ console, go to the Cluster > Group page, and view the list of clients connected to the group. Click View Details in the Operation column to view consumer details.

    Note:

    Above is a brief introduction to message publishing and subscription. For more information, see Demo or RocketMQ documentation
