Role and Authentication

Last updated: 2022-02-11 14:30:51

    Glossary

    • Role: different from a role in Tencent Cloud, a role in TDMQ is a proprietary concept. It is the smallest unit of permission division performed by you in TDMQ. You can add multiple roles and assign them the production/consumption permissions of different namespaces.
    • Token: it is an authentication tool in TDMQ. You can add a token in a client to access TDMQ for message production/consumption. Tokens correspond to roles one by one, and each role has its own unique token.

    TDMQ for RocketMQ inherits these concepts. In TDMQ for RocketMQ, the ACL_ACCESS_KEY defined in the open-source client corresponds to the TDMQ token.

    Use Cases

    • You need to securely use TDMQ to produce/consume messages.
    • You need to set production/consumption permissions of different namespaces for different roles.

    For example, your company has departments A and B, and department A's system produces transaction data and department B's system performs transaction data analysis and display. In line with the principle of least privilege, two roles can be configured to grant department A only the permission to produce messages to the transaction system namespace and grant department B only the permission to consume messages. This helps greatly avoid problems caused by unclear division of permissions, such as data disorder and dirty business data.

    Directions

    Creating role

    1. Log in to the TDMQ console and click Role Management on the left sidebar to enter the Role Management page.
    2. On the Role Management page, select the target cluster and click Create to enter the Create Role page.
    3. On the Create Role page, enter the role name and remarks:
      • Role Name: it can contain up to 32 digits, letters, and delimiters (underscore or hyphen).
      • Remarks (optional): enter remarks of up to 100 characters.
    4. Click Submit.

    Granting permission to role

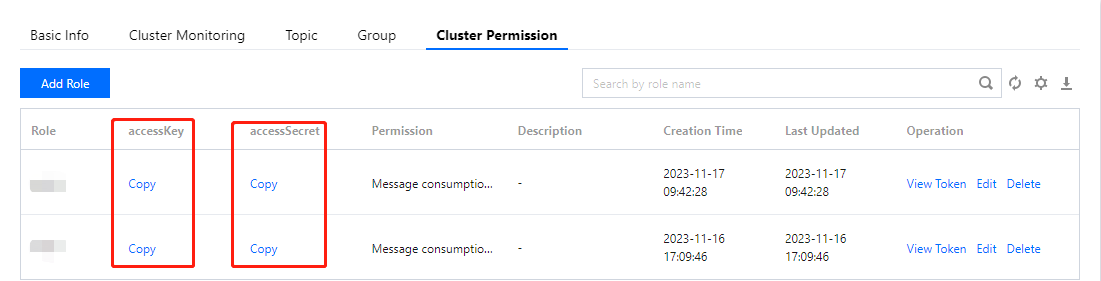

    1. Find the newly created role in Role Management in the TDMQ console and copy the role token in the following methods:

      Click Copy in the Token column.

    Note:

    Token leakage may lead to data leakage; therefore, you should keep your token confidential.

    1. Add the copied role token to the client parameters. For directions on how to add the token parameter to the client code, see the sample code of RocketMQ.

      A recommended way is given below:

      1. Declare two fields ACL_SECRET_KEY and ACL_SECRET_ACCESS. If you use various frameworks, we recommend you read them from the configuration file. Here, ACL_SECRET_KEY uses "rop" directly.

        private static final String ACL_ACCESS_KEY = "eyJr****";
        private static final String ACL_SECRET_KEY = "rop"; // Use "rop" directly

      2. Declare a static function to load a RPCHook object of the RocketMQ client.

        static RPCHook getAclRPCHook() {
        return new AclClientRPCHook(new SessionCredentials(ACL_ACCESS_KEY, ACL_SECRET_KEY));
        }

      3. When creating RocketMQ's producer, pushConsumer, or pullConsumer, import the RPCHook object.
        Below is the sample code for creating a producer:

        DefaultMQProducer producer = new DefaultMQProducer("rocketmq-mw***|namespace", "ProducerGroupName", getAclRPCHook());

    2. After selecting the cluster with the previously set role in the TDMQ for RocketMQ console, switch to the Namespace page, select a namespace for which to configure production and consumption permissions, and click Configure Permissions in the Operation column.

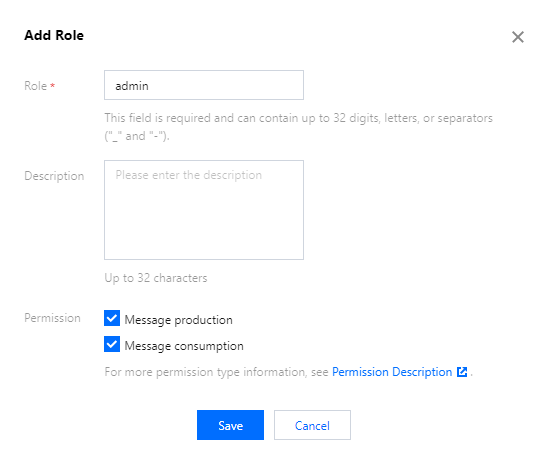

    3. Click Add Role, find the role just created in the drop-down list, select the required permission, and click Save.

    4. Check whether the permission has taken effect.
      You can run the configured client to access the topic resources in the namespace and produce/consume messages according to the configured permission. Check whether a no permission error is reported, and if not, the permission has been configured successfully.

    Editing permission

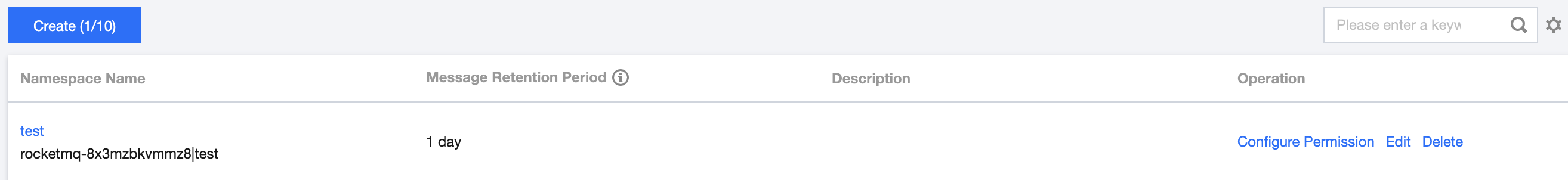

    1. In Namespace in the TDMQ for RocketMQ console, find the target namespace and click Configure Permission in the Operation column to enter the permission configuration list.

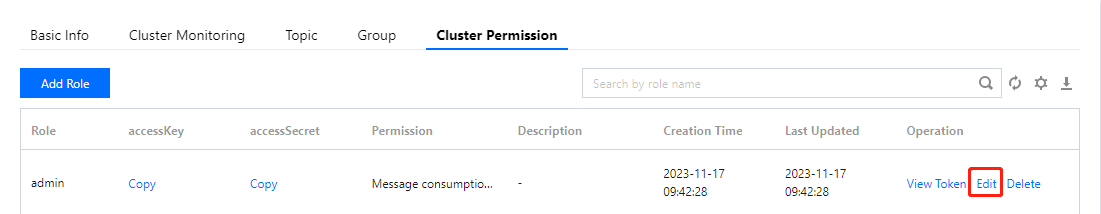

    2. In the permission configuration list, click Edit in the Operation column of the target role.

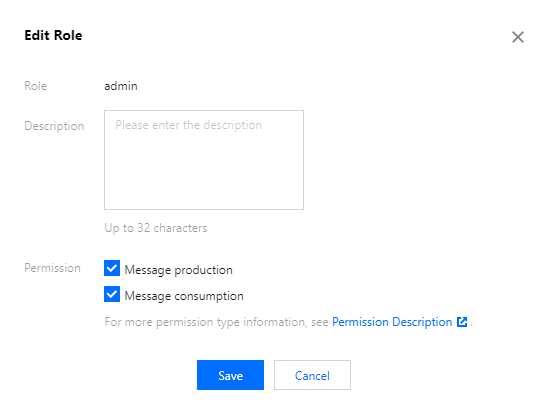

    3. In the pop-up window, modify the permission information and click Save.

    Deleting permission

    Note:

    • Before deleting a permission, make sure that the current business no longer uses the role to produce/consume messages; otherwise, a client exception may occur due to the failure to produce/consume messages.
    • A role cannot be deleted if it has permissions configured in namespaces.
    1. In Namespace in the TDMQ for RocketMQ console, find the target namespace and click Configure Permission in the Operation column to enter the permission configuration list.

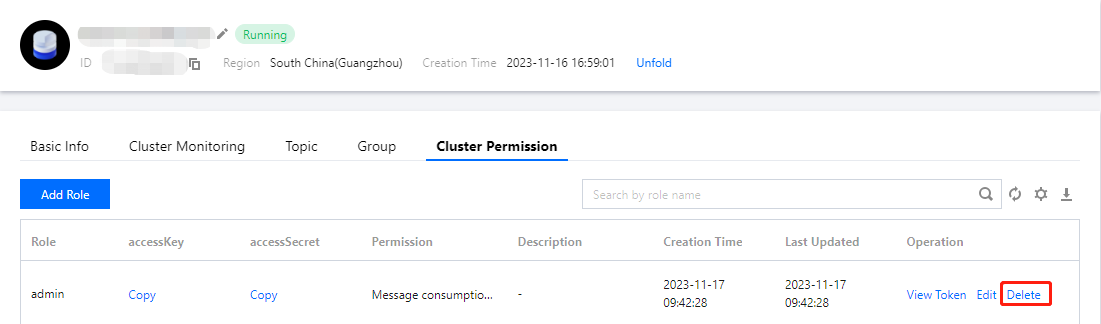

    2. In the permission configuration list, click Delete in the Operation column of the target role.

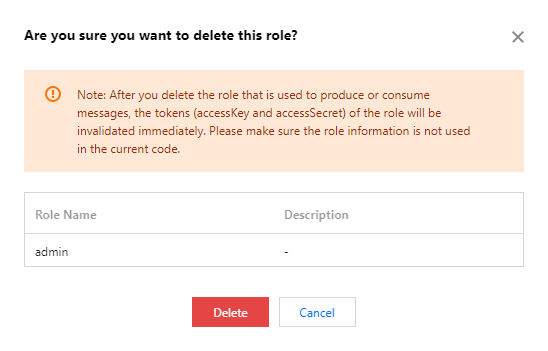

    3. In the pop-up window, click OK.
