Load Balancing

Last updated: 2022-04-13 11:51:36

    Overview

    Load balancing dynamically optimizes origin-pulls and intelligently assigns traffic to effectively avoid failed origin servers and reduce origin server overloads, ensuring the availability of the entire service.

    Note:

    • Currently, the EdgeOne console is available for only selected users. To access it, contact us to get the permission.
    • Load balancing can be by region or weight.

    Directions

    1. Log in to the EdgeOne console and click Origin-pull configuration > Load balancing on the left sidebar.
    2. On the load balancing page, select the target site and click Create load balancing task.

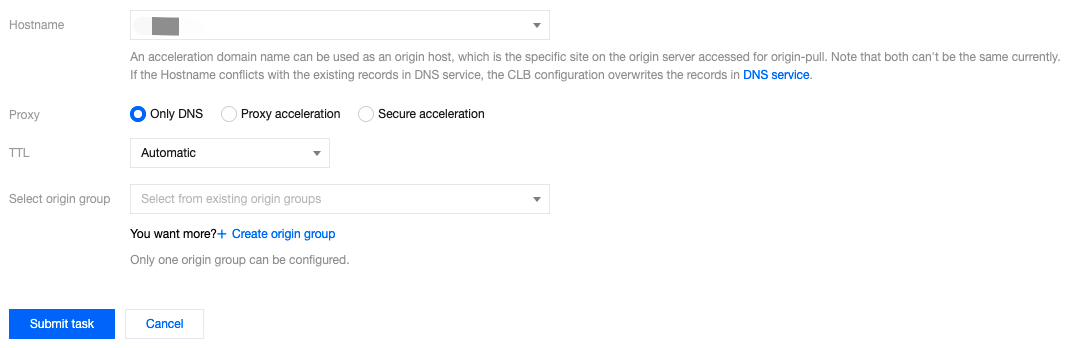

    3. On the load balancing creation page, configure the relevant parameters and click Submit task.

    Parameter description:

    • Hostname: Site acceleration domain, which is also the specific site domain at the origin server IP accessed during origin-pull, i.e., origin-pull domain. You can select an existing domain pulled from DNS records or add a domain (which must be under the current site).

      Note:

      • Currently, the business acceleration domain and the origin-pull domain must be the same.
      • If Hostname conflicts with an existing DNS record, the configuration in load balancing has a higher priority and will overwrite that in the DNS record. If the load balancing task is deleted, the original DNS record will recover.
    • Proxy mode: Select a mode as needed. For more information, see Proxy Mode.

      Note:

      If you select the DNS only mode and the connection method is NS connection, you can choose to configure the TTL.

    • Origin server: Configure load balancing origin servers by origin server group. You can select an existing origin server group or create one.

      • For more information on how to create an origin server group and configuration limits, see Origin Server Group.
      • If you select the DNS only mode, you can configure one origin server group at most.
      • If you select proxy acceleration or secure acceleration, you can configure two origin server groups at most, and requests will be forwarded to them by priority. Only when the origin server group whose priority is 1 fails and becomes unavailable will requests be forwarded to the group whose priority is 2. This implements the concept of primary/secondary origin server groups.
    1. On the load balancing page, you can view a created task. Each task has a deployment status.
    • Deploying: The current load balancing task is being deployed and cannot be deleted. Wait patiently.
    • Effective: The current load balancing task has taken effect in the production network and cannot be deleted. You need to disable it first before you can delete it.
    • Ineffective: The current load balancing task is disabled.

    FAQs

    Why are some origin server groups grayed out during origin server configuration?

    • The grayed out origin server group conflicts with the currently selected proxy mode; for example:
      • A port has been configured for an origin server in the origin server group, so the group cannot be used in DNS only mode.
      • The origin server group has an IPv6 origin server, so it cannot be used in DNS only mode.
      • The origin server group has both IP and domain origin servers, so it cannot be used in DNS only mode.
    • The maximum number of configurable origin server groups is reached:
      • If you select the DNS only mode, you can configure one origin server group at most.
      • If you select the proxy acceleration or secure acceleration mode, you can configure two origin server groups at most.
