Real-Time Task Ops

Last updated:2026-01-08 10:43:52

Real-Time Task Ops

Last updated: 2026-01-08 10:43:52

After users complete the configuration of real-time tasks such as DLC Spark Streaming in the orchestration space and submit them, they can manage and operate DLC Spark Streaming in the real-time task ops interface. This includes performing operations such as executing, decommissioning, deleting, and modifying the owner of tasks, as well as features like viewing instances and details.
Prerequisites
After real-time task submission, you can view and operate in real-time task ops.
Operation Steps
Entering the Real-Time Task Operation and Maintenance Page
1. Log in to  WeData console.
2. Click Project List on the left menu and find the target project requiring maintenance operations.
3. After selecting a project, click Ops Center at the top to enter the module.
4. Click Real-Time Task Ops on the left menu.
Real-Time Task Ops

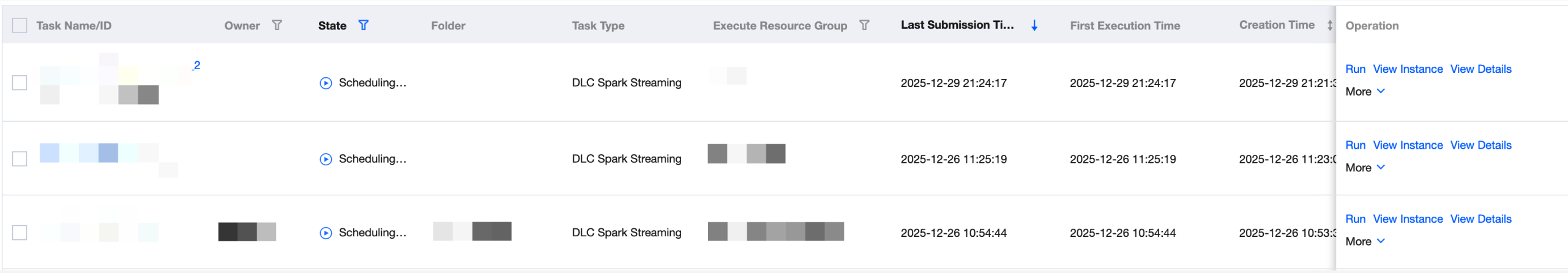

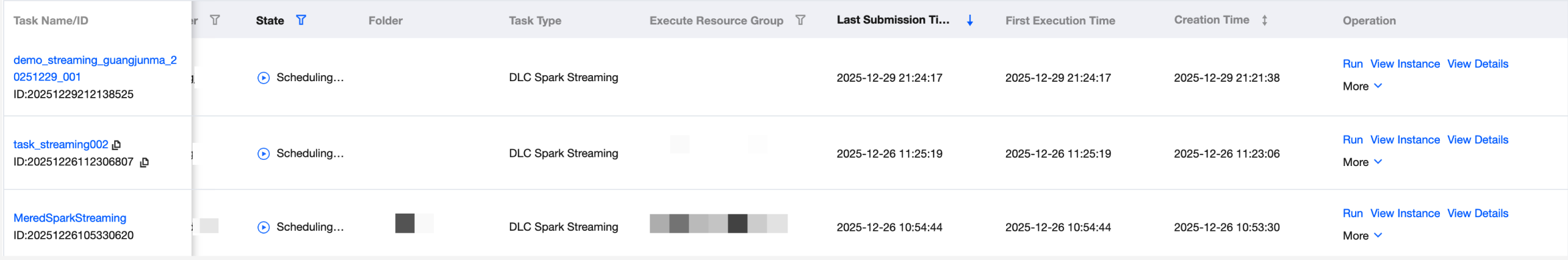

Real-Time Task Ops List
﻿
﻿
Feature description:
Information
Description(Optional)
Task name/ID
Copying the task name and ID is supported. Click the task name to navigate to the real-time task details page> execution history.
Owner
Owner of the computing task, clarifying the maintenance responsibility attribution, defaulting to the creator of the computing task.
State
The running state of a computing task includes two statuses: scheduling in progress and offline.
Scheduling in progress: The computing task has been submitted to the Ops center and is in normal "scheduling in progress" status in production environments.
Offline: The computing task is decommissioned and is in "Offline" status. Offline tasks do not support row operations to generate new running instances. To reschedule, resubmit in the orchestration space.
folder
The folder directory of the computing task in the orchestration space facilitates the identification of task ownership and enables unified management.
Task type
Task type of the computing task.
Execution Resource Group
Execution resource group configured for the computing task.
Last Submission Time
Display the date and time of the last update submitted for operations for the computing task, format: yyyy-MM-dd HH:mm:ss.
First execution time
Display the time when the computing task first runs the Generation Instance, format: yyyy-MM-dd HH:mm:ss.
Creation time.
Display the date and time when the computing task is first submitted for operations, format: yyyy-MM-dd HH:mm:ss.

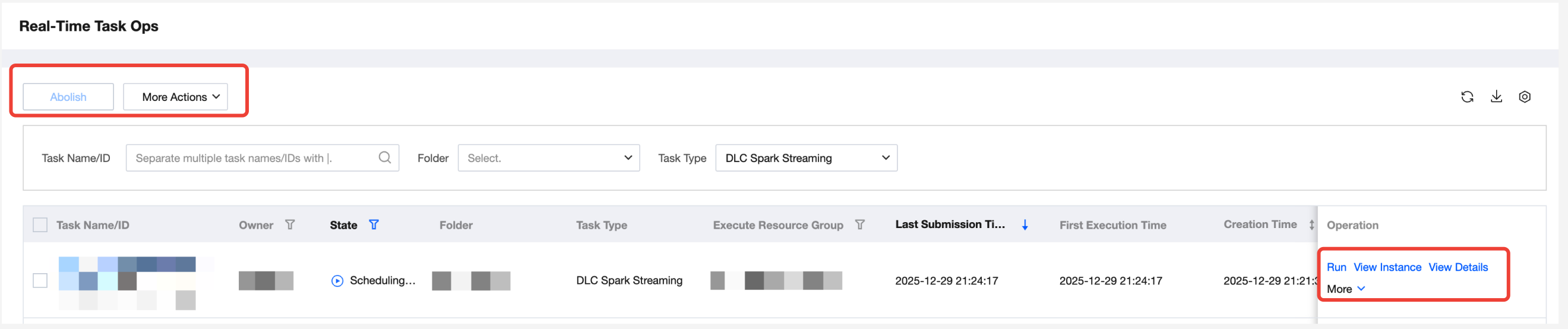

Real-Time Task Operation and Maintenance
﻿
Feature description:
Operation
Description(Optional)
Running
Single task operation is only applicable to tasks in scheduling. After running, the task will generate running instances, which can be viewed on the real-time instance Ops page. A task supports running multiple instances concurrently.
Abolish
Batch operations and single task operations are supported. For batch operations, check the task names and reuse the feature buttons at the top. For single task operations, click the operation item in the Operation column of the task list.
Deactivation is only valid for tasks "in scheduling". After deactivating a task, its status will be set to "Offline" and it will no longer support Generation Instance Execution. To re-execute, resubmit in the orchestration space.
Delete
Batch operations and single task operations are supported. For batch operations, check the task names and reuse the feature buttons at the top. For single task operations, click the operation item in the Operation column of the task list.
Deletion is only applicable to "Offline" tasks. The delete operation removes this task from both the Ops center and orchestration space.
Change the owner
Modify responsible person: Target a task to modify its responsible person, clarify computing task operation and maintenance responsibility attribution, and add multiple responsible persons to the same task once.
Setting Alarms
Setting Alarms: Set alarm monitoring for task running status so that O&M personnel can quickly detect task execution exceptions and respond promptly. For details, see Task Alarm.
Developing Tasks
Navigate to the corresponding compute node configuration interface in the orchestration space. This is a quick access channel for task operations to edit compute task nodes. For details, see Task Development.
View  Instance
Navigate to the List Interface of the corresponding computing task's generated instance. You can view the running state, running time, etc. of the instance and perform feature operations on it.
View Details
Navigate to the real-time task details page, support basic task operations, and view task basic information. For the introduction of the task details page, see below.

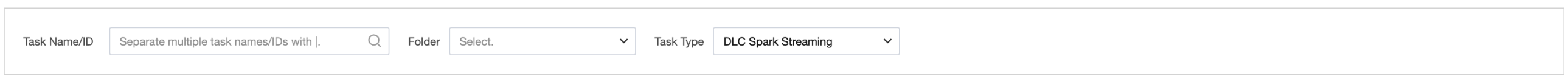

Real-Time Task Filter
﻿
Feature description:
Operation
Description(Optional)
Filter by task name/ID
Supports fuzzy matching by task name or task ID.
Filter by folder
Filter tasks in operations based on folder name in the orchestration space. Supports unfolding multi-level directory and multiple selections.
Filter by task type
Support by task type, the real-time task list currently contains only DLC Spark Streaming tasks, chosen by default.

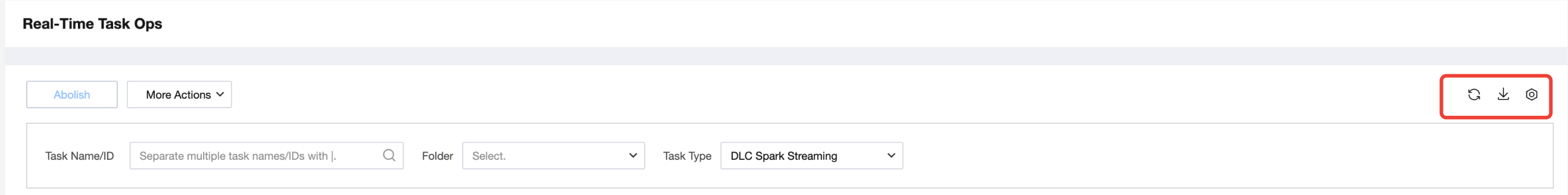

Real-Time Task Quick Actions
﻿
Feature description:
Operation
Description(Optional)
Refreshing
Click the
﻿
 icon to view the latest status of the task list.
Download
Click the
﻿
 icon to download task information displayed in the task list. Task information includes content shown on the current dashboard, such as task name, ID, and owner. The downloaded task information includes all pages of data under the selected criteria. After clicking the download icon, the WeData platform prepares data in the backend. Wait for data preparation to complete, then follow the pop-up guide at the top or click to enter the operation record in the left sidebar to download data.
Display column adjustment
Click the
﻿
 icon to adjust the display or hide of columns in the current task list panel as well as the order between columns. Configurable columns include: owner, status, folder, task type, execution resource group, most recent submission time, first execution time, and creation time.
Real-Time Task Details Page
Real-time task details are a collection of task information and operations, including the execution history and task info tabs.
Tab Page
Description(Optional)

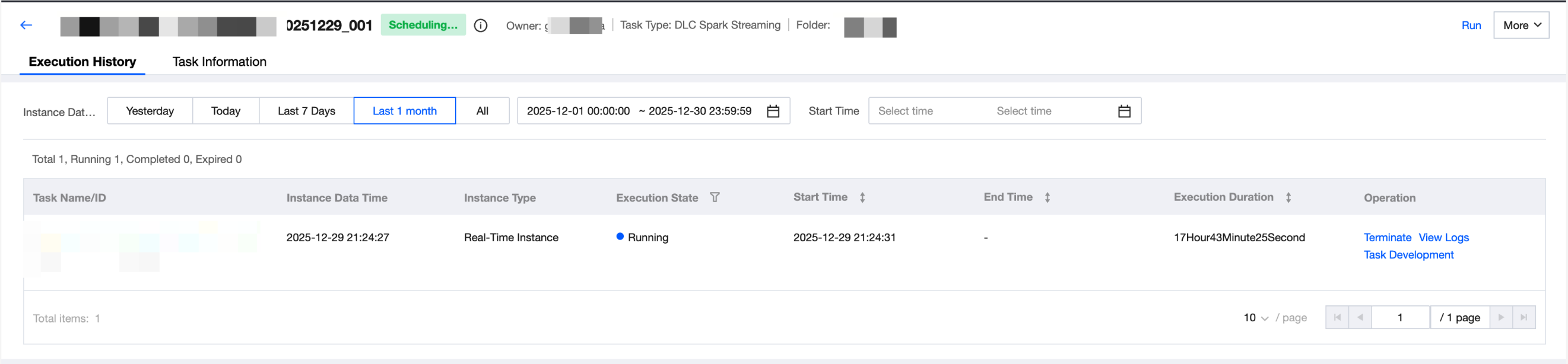

Execution History
Show real-time task history instance basic information:
Filter: Support by instance data time and start time to filter instances.
Statistics: Total number of instances in the filter range, including running, successful, and failed instances.
Instance list: Show basic information of instance and perform operations.
﻿

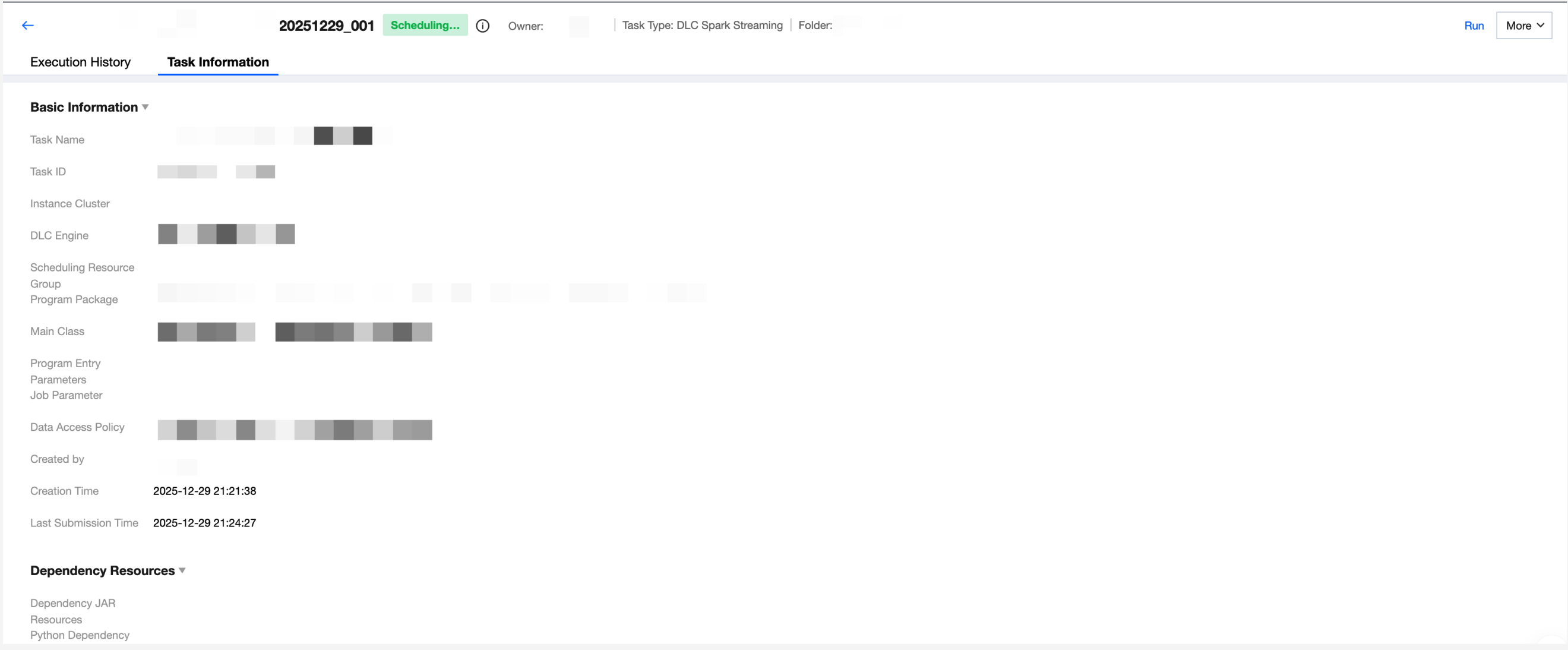

Task Information
Show real-time task submission configuration information in the Ops center, including basic information, dependency resources, and resource configuration information.
﻿

Was this page helpful?

You can also Contact Sales or Submit a Ticket for help.

Yes

Feedback

Information	Description(Optional)
Task name/ID	Copying the task name and ID is supported. Click the task name to navigate to the real-time task details page> execution history.
Owner	Owner of the computing task, clarifying the maintenance responsibility attribution, defaulting to the creator of the computing task.
State	The running state of a computing task includes two statuses: scheduling in progress and offline. Scheduling in progress: The computing task has been submitted to the Ops center and is in normal "scheduling in progress" status in production environments. Offline: The computing task is decommissioned and is in "Offline" status. Offline tasks do not support row operations to generate new running instances. To reschedule, resubmit in the orchestration space.
folder	The folder directory of the computing task in the orchestration space facilitates the identification of task ownership and enables unified management.
Task type	Task type of the computing task.
Execution Resource Group	Execution resource group configured for the computing task.
Last Submission Time	Display the date and time of the last update submitted for operations for the computing task, format: yyyy-MM-dd HH:mm:ss.
First execution time	Display the time when the computing task first runs the Generation Instance, format: yyyy-MM-dd HH:mm:ss.
Creation time.	Display the date and time when the computing task is first submitted for operations, format: yyyy-MM-dd HH:mm:ss.

Operation	Description(Optional)
Running	Single task operation is only applicable to tasks in scheduling. After running, the task will generate running instances, which can be viewed on the real-time instance Ops page. A task supports running multiple instances concurrently.
Abolish	Batch operations and single task operations are supported. For batch operations, check the task names and reuse the feature buttons at the top. For single task operations, click the operation item in the Operation column of the task list. Deactivation is only valid for tasks "in scheduling". After deactivating a task, its status will be set to "Offline" and it will no longer support Generation Instance Execution. To re-execute, resubmit in the orchestration space.
Delete	Batch operations and single task operations are supported. For batch operations, check the task names and reuse the feature buttons at the top. For single task operations, click the operation item in the Operation column of the task list. Deletion is only applicable to "Offline" tasks. The delete operation removes this task from both the Ops center and orchestration space.
Change the owner	Modify responsible person: Target a task to modify its responsible person, clarify computing task operation and maintenance responsibility attribution, and add multiple responsible persons to the same task once.
Setting Alarms	Setting Alarms: Set alarm monitoring for task running status so that O&M personnel can quickly detect task execution exceptions and respond promptly. For details, see Task Alarm.
Developing Tasks	Navigate to the corresponding compute node configuration interface in the orchestration space. This is a quick access channel for task operations to edit compute task nodes. For details, see Task Development.
View Instance	Navigate to the List Interface of the corresponding computing task's generated instance. You can view the running state, running time, etc. of the instance and perform feature operations on it.
View Details	Navigate to the real-time task details page, support basic task operations, and view task basic information. For the introduction of the task details page, see below.

Operation	Description(Optional)
Filter by task name/ID	Supports fuzzy matching by task name or task ID.
Filter by folder	Filter tasks in operations based on folder name in the orchestration space. Supports unfolding multi-level directory and multiple selections.
Filter by task type	Support by task type, the real-time task list currently contains only DLC Spark Streaming tasks, chosen by default.

Operation	Description(Optional)
Refreshing	Click the icon to view the latest status of the task list.
Download	Click the icon to download task information displayed in the task list. Task information includes content shown on the current dashboard, such as task name, ID, and owner. The downloaded task information includes all pages of data under the selected criteria. After clicking the download icon, the WeData platform prepares data in the backend. Wait for data preparation to complete, then follow the pop-up guide at the top or click to enter the operation record in the left sidebar to download data.
Display column adjustment	Click the icon to adjust the display or hide of columns in the current task list panel as well as the order between columns. Configurable columns include: owner, status, folder, task type, execution resource group, most recent submission time, first execution time, and creation time.

Tab Page	Description(Optional)
Execution History	Show real-time task history instance basic information: Filter: Support by instance data time and start time to filter instances. Statistics: Total number of instances in the filter range, including running, successful, and failed instances. Instance list: Show basic information of instance and perform operations.
Task Information	Show real-time task submission configuration information in the Ops center, including basic information, dependency resources, and resource configuration information.
