Feature Introduction
The Overview page serves as the central control panel for FWM. It centrally displays key information such as Policy Management, Policy Analysis, Manage, and Firewall Specification Info. Additionally, it provides quick operation entry points in each module, enabling you to quickly issue policies, perform policy health checks, and renew or scale up specifications.
Operation Steps
1. Log in to the FWM console. In the left-side navigation pane, select Overview.

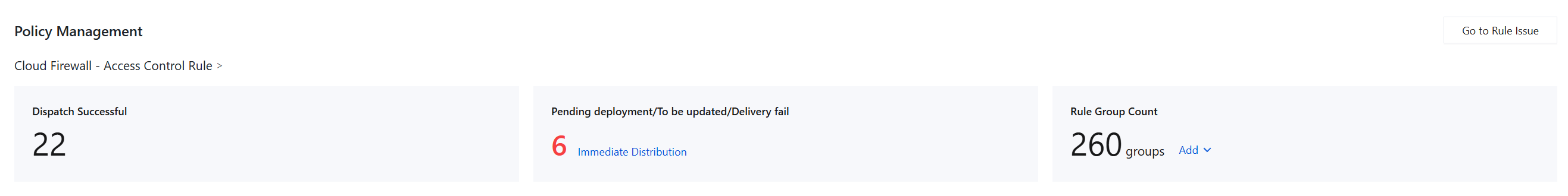

2. In the Policy Management area at the top of the Overview page, you can perform the following operations:
﻿
Check the current deployment status of the CFW access control rules.
Click Go to Rule Issue. You will be redirected to the Rule Management > Create Rule Issue page, where you can quickly create and deploy security rules. For details, see Create Rule Issue.Pending deployment/To be updated/Delivery fail
Click Immediate Distribution on the Pending deployment/To be updated/Delivery fail card. You will be redirected to the Rule Management page to deploy or fix the abnormal rules. For details, see Rule Management.
Click Add on the Rule Group Count card. A drop-down menu will expand. Click the corresponding rule type to quickly create a new rule group of that type. For details, see Add Rule Group.
3. In the Manage area at the top right of the Overview page, you can perform the following operations:
﻿
Check the number of CFW managed accounts.
Click Multi-Account Management. You will be redirected to the Member Management page to manage multiple accounts. For details, see Member Management.

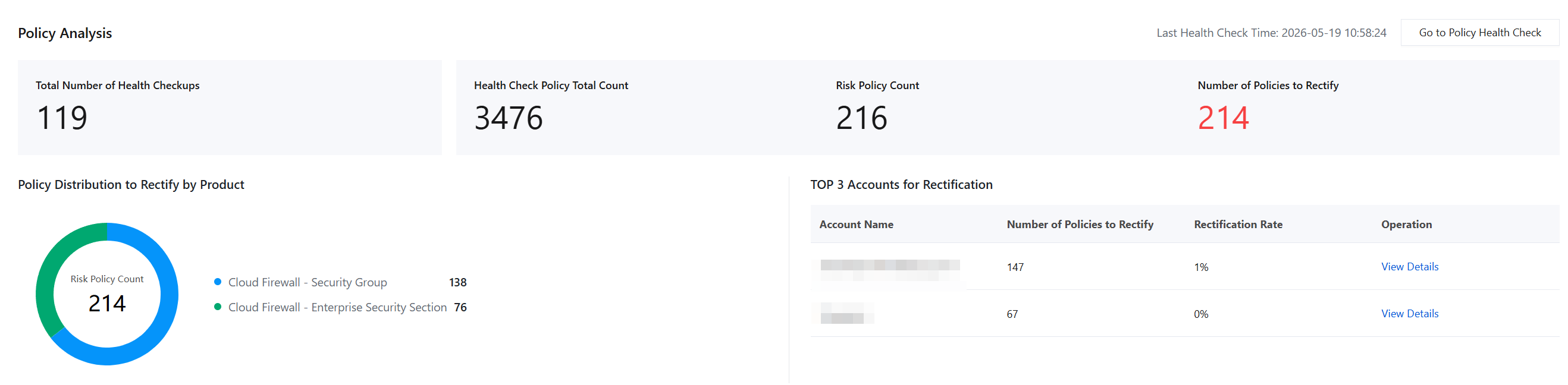

4. In the Policy Analysis area at the bottom of the Overview page, you can perform the following operations:
﻿
Check the execution completion time of the last policy analysis inspection, as well as key results including the Total Number of Health Checkups, Health Check Policy Total Count, Risk Policy Count, Number of Policies to Rectify.
Click Go to Policy Health Check. You will be redirected to the Policy Analysis page, and the Start Inspection window will automatically pop up, allowing you to immediately initiate a new policy health check. For details, see Initiate Health Check.
View the TOP 3 Accounts for Rectification. Click View Details. You will be redirected to the Account Policy Analysis Details page to handle the identified risk items.

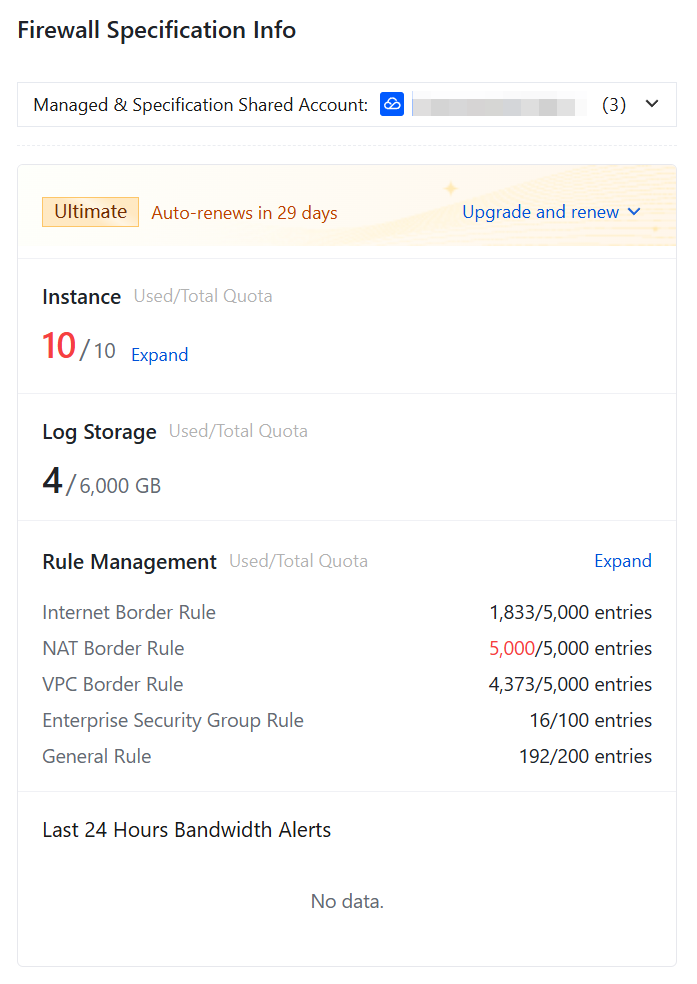

5. In the Firewall Specification Info area at the bottom right of the Overview page, you can perform the following operations:
﻿
View the CFW instance specifications, quota usage, and expiration status under the selected purchase account. The interface also provides Upgrade and renew entry points.
When any quota is approaching or exceeding its limit, promptly click Expand to go to the corresponding purchase page and handle it to avoid affecting usage.
