Creating an Anycast CLB Instance

Last updated: 2022-07-28 16:17:31

    Anycast CLB is a load balancing service that supports multi-region dynamic acceleration. Anycast CLB VIP is published in multiple regions. The client connects to the nearest POP and forwards access traffic to CVM through the high-speed internet of Tencent Cloud IDC.
    Anycast CLB can optimize network transfer and achieve multi-entry nearby access, reducing network jitter and packet loss. It improves the service quality of applications on the cloud, expands the service scope, and streamlines backend deployment.

    Note:

    The feature is currently in beta test. To try it out, please submit a ticket.

    Anycast CLB Architecture

    Anycast CLB VIP is published in multiple regions. The client connects to the nearest POP and forwards the access traffic to CVM through the Tencent Cloud private network at high speed. For Anycast CLB regions, see Purchase Guide.

    Restrictions

    The Anycast capability of Anycast CLB is implemented by binding an Anycast EIP to a private network CLB instance. For restrictions, see Binding Private Network CLB to EIP.

    Prerequisites

    This feature is in beta test. To try it out, please submit a ticket.

    Operation Guide

    1. Log in to the EIP console, select a region in the top-left corner of the EIP page, and click Apply.
    2. In the Apply for EIP pop-up window, select Accelerated IP as the IP address type, set the bandwidth limit cap, click I agree to Tencent Cloud EIP Service Agreement and Overdue Payment Policy, and click OK.

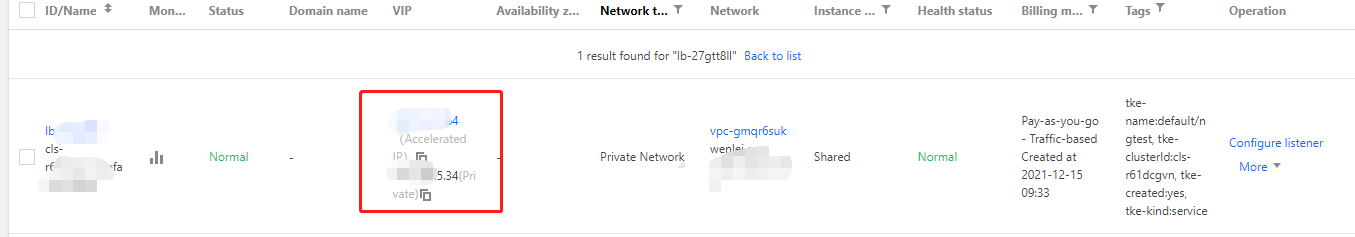

    3. Log in to the CLB console, select a region in the top-left corner of the Instance Management page, select the target private network CLB instance in the instance list, and click More > Bind EIP in the Operation column.

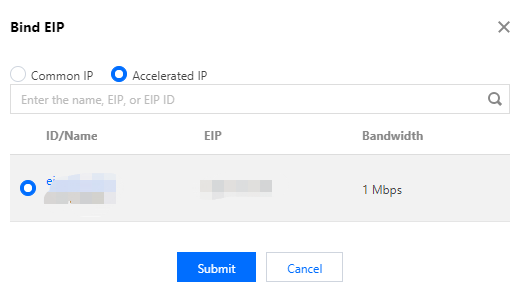

    4. In the Bind EIP pop-up window, select the accelerated IP created just now and click Submit.
    5. The private network CLB instance can provide Anycast CLB service after bound to an Anycast-accelerated IP. For more information on CLB configuration, please see CLB Listener Overview.
