This tool supports batch migration of domain configurations that have been connected to Tencent Cloud Content Delivery Network (CDN) service to Tencent Cloud EdgeOne, including connected CDN/ECDN/SCDN domain names. You can quickly migrate the current domain configuration to EdgeOne service using this tool.
Note:
As a configuration migration assistant tool, after the migration is completed, please check the migration result according to the migration result log and go to the EdgeOne console to confirm whether the relevant configuration has been completely migrated to EdgeOne and takes effective as expected.
This tool does not support the migration of special configurations assisted by Tencent Cloud operations personnel. If you have related special configuration needs, please contact Tencent Cloud after-sales support for reconfiguration after the migration is completed.
Data and logs and other related information will not be migrated. If you have data and log-related retention needs, please save them locally in advance.
3. Refer to the quick access to EdgeOne to create the domain site to be migrated, and it is recommended to create the site using the CNAME access method.
User Guide
Scenario example
Currently, the acceleration domain names www.example.com, test.example.com, and vod.example.com have been connected to Tencent Cloud CDN, and the site example.com has been created in Tencent Cloud EdgeOne Service. It is planned to migrate three domain services in CDN and related configurations to the corresponding sites in the EdgeOne console.

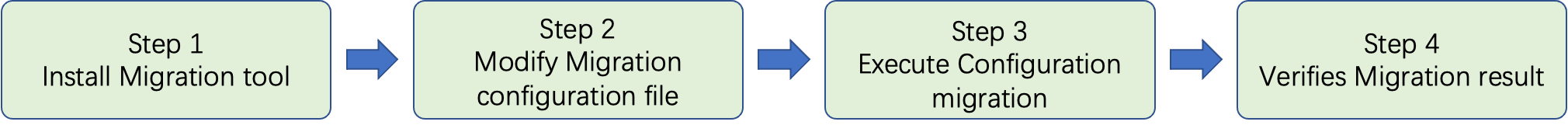

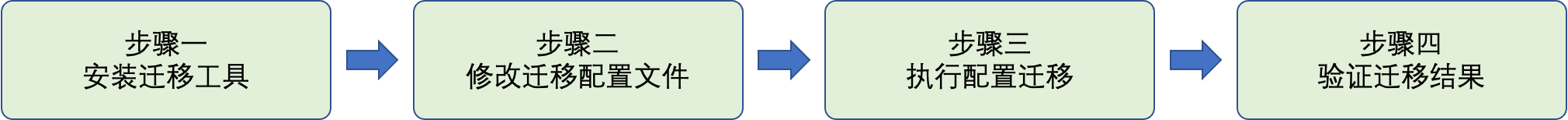

Directions
Step 1: Install the dependency environment and configure the migration tool
1. To Install nodejs, it is recommended to download and install version 18.18.2;
2. After the installation is complete, open the command line tool;
3. (Optional) Execute the following command to check the node installation status. If the version number is returned as shown below, the installation is successful;
node -v
v18.18.2
4. (Optional) Execute the following command to check the npm installation status. If the version number is returned as shown below, the installation is successful;
npm -v
9.6.7
5. Execute the following command to download and install the toolkit.
6. Execute the following command to enter the toolkit installation directory.
cd ./node_modules/tencentcloud-edgeone-migration-nodejs-v2
Step 2: Migrate configuration
1. After the installation is complete, enter the root directory of the toolkit installed in Step 1 (i.e.,:/node_modules/tencentcloud-edgeone-migration-nodejs/) and find the configuration file config.json. Open the configuration file and modify the relevant migration configuration. The parameter configuration description is as follows:
ZoneId: String format, the corresponding ID of the site to be migrated to Tencent Cloud EdgeOne. It can be obtained from Tencent Cloud EdgeOne > Site List, as shown below:
NeedCreateDomain: Boolean value, whether to automatically create a new domain after migration to EdgeOne, the default is true. If the current domain name already exists, you can pass false to only migrate the configuration, which is convenient for multiple operations of the same domain name configuration migration.
Configuration examples are as follows:
Single site migration
Multiple site migration
{
"SecretId": "xxx",
"SecretKey": "xxx",
"List": [
{
"Domains": [
"www.example.com",
"test.example.com",
"vod.example.com"
],
"ZoneId": "zone-2nrr03d36xmk"
}
],
"NeedCreateDomain": true
}
{
"SecretId": "xxx",
"SecretKey": "xxx",
"List": [
{
"Domains": [
"www.example.com",
"test.example.com",
"vod.example.com"
],
"ZoneId": "zone-2nrr03d36xmk"
},
{
"Domains": [
"www.site.com",
"test.site.com",
"vod.site.com"
],
"ZoneId": "zone-2dqi0sbt6gk2"
}
],
"NeedCreateDomain": true
}
Note:
1. Before using this tool, you need to create the corresponding site on the EdgeOne console, otherwise, the migration cannot be performed. This tool cannot create sites, it can only create domain names under the site.
2. EdgeOne products manage domain names by the main domain name as the site dimension. If you have multiple domain names and the main domain names are not consistent, you need to create multiple sites.
1. Execute the command: node task.js to start the configuration migration. This command is used to migrate CDN/ECDN acceleration-related configurations.
Execute the command: node check.js to verify whether the current domain has been deployed in EdgeOne.
node check.js
Wait for the domain name deployment to complete, then execute the command: node access.js to migrate related access control configuration items.
node access.js
Note:
The default output of the command is in Chinese log. If you need to switch to English, you can add "en" after the command, for example: node task.js en, node check.js en, node access.js en.
Step 4: Post-migration verification
Note:
After using this tool to complete the domain name migration, please go to the Tencent Cloud EdgeOne console to check whether the site acceleration configuration, rule engine configuration, and security protection configuration of the domain name are as expected. After the configuration verification is completed, switch the related domain name acceleration service to Tencent Cloud EdgeOne.
View configuration migration results
After the migration tool has run, a csv file (report-${timestamp}.csv) will be generated in the local directory of the migration tool, recording the results. You can refer to this file to see if the migration was successful or the specific reasons for any exceptions.
Verify the effectiveness of the configuration
After the migration is completed, it is recommended that you verify whether the domain name access meets the expectations. After the verification is completed, switch the related services to EdgeOne.
Note:
If your current site is accessed via Cname, you can refer to the following methods for verification. If it is accessed via NS, you can directly switch the NS server for verification.
1. Go to the EdgeOne console, click the site list in the console, and enter the site of the domain that has been migrated;

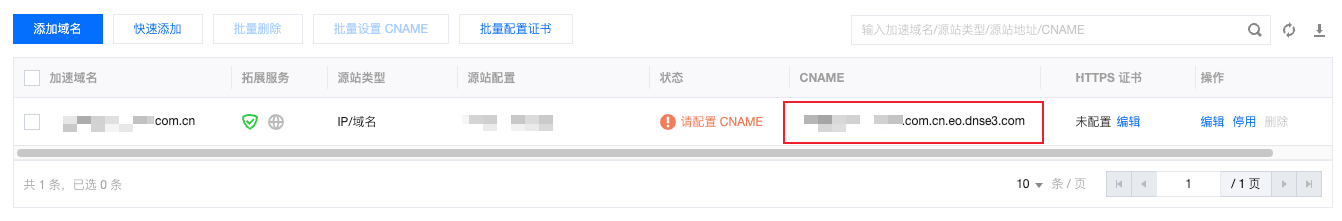

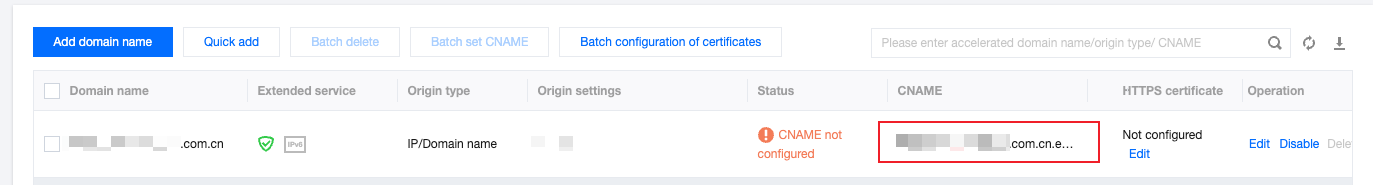

2. Click Domain Name Service > Domain Management, find the migrated domain, and view the CNAME information assigned by EdgeOne for the domain name. For example: www.example.com.eo.dnse3.com.
3. Get the node IP information assigned by EdgeOne for the domain name by entering ping www.example.com.eo.dnse3.com in the command line tool and viewing the corresponding node IP returned.

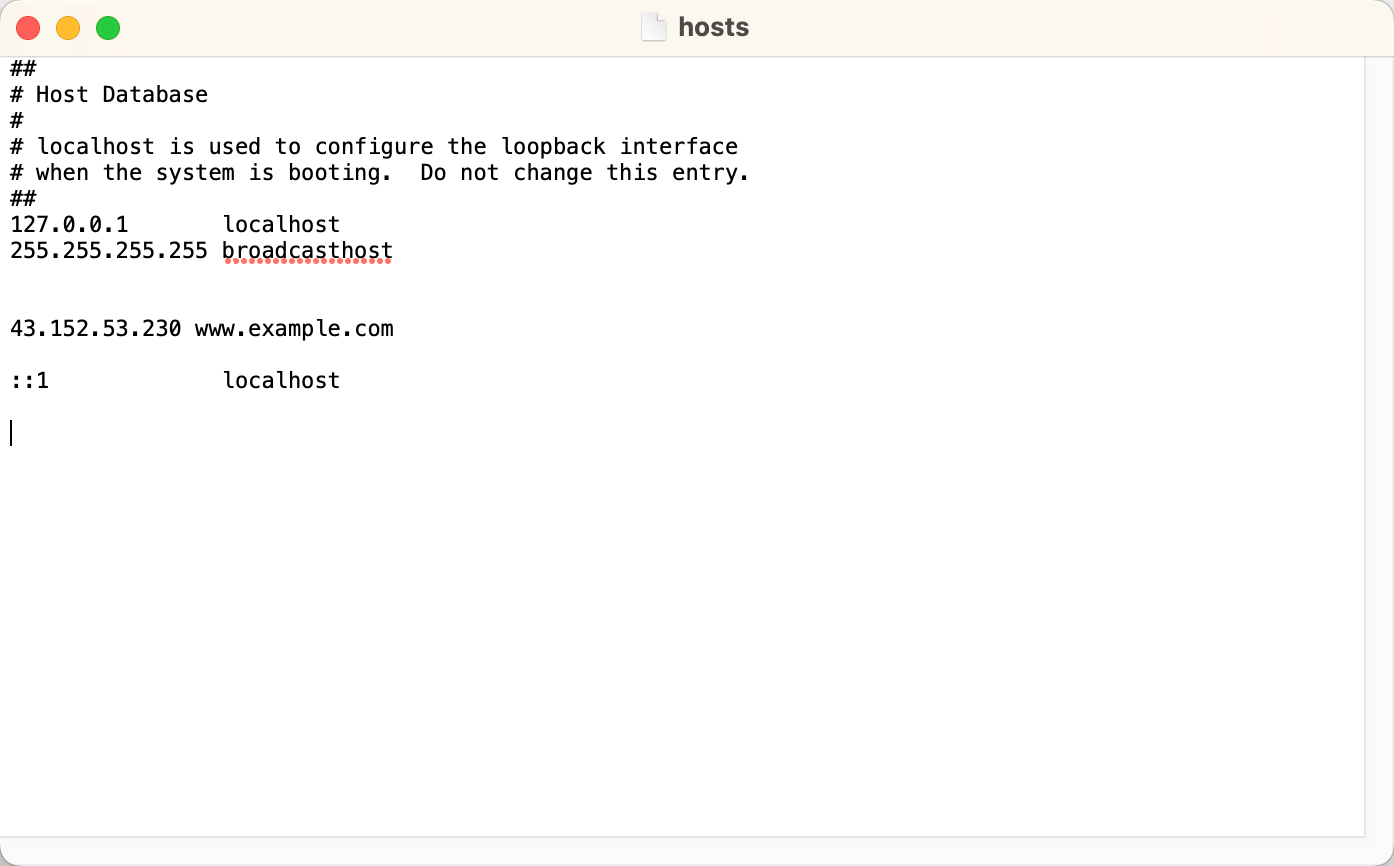

4. Bind the node IP (43.152.53.230) obtained in step 3 and the acceleration domain name (www.example.com) to the local hosts file on the computer, as shown below:
Note:
The Path of the Hosts file in the Windows system is C:\\Windows\\System32\\drivers\\etc\\hosts.
The Path of the Hosts file in the Mac system is /etc/.
5. Access the popular URL content under the domain name and verify whether the corresponding domain name service meets the migration configuration comparison of the pre-migration tool.
Related References
Dependable tool migration configuration items for CDN/ECDN acceleration
CDN configuration
Configuration migrated to EdgeOne
Basic Information
Acceleration type
No need to migrate, EdgeOne no longer distinguishes acceleration types.
IPv6 access
Tool automatic migration is not supported, please enable it manually after migration.
Tag
Tool automatic migration is not supported, please configure tags when creating a site or in the site list.
If the current domain name is an ECDN acceleration domain name and dynamic acceleration is required, how to configure it after migrating to EdgeOne?
For domain names with ECDN dynamic acceleration or ECDN dynamic and static acceleration, after the migration is completed, you need to manually enable smart acceleration to enable dynamic acceleration for the domain name. This feature is a value-added service capability. For related billing standards, please refer to VAU Fee (Pay-as-You-Go).
How to deal with the failure of HTTPS related configuration migration prompted by the tool?
The following HTTPS related configurations depend on the domain name hosting certificate that has been uploaded in Tencent Cloud SSL console. If you have not uploaded the certificate, you cannot complete the automatic migration. You need to upload the HTTPS certificate to Tencent Cloud SSL console and manually configure it after the migration. Or change the parameter NeedCreateDomain in Step 2 to false and execute the migration again.
The domain name is being resolved during domain name migration, and if you need to enable acceleration, please go to the DNS record page to enable acceleration. What should I do?
If your current site is accessed by NS and the original DNS records have been imported, you may encounter this problem when adding a new domain name with an existing A record or CNAME record. If you need to use the tool for migration, you can delete the corresponding domain name resolution record on the EdgeOne console and then execute the migration.
Note:
If you have already switched the NS server to EdgeOne, deleting the DNS record may cause your domain name access to be interrupted. You can switch the resolution back to the original domain name resolution service provider, wait for all migrations to be ready, and then switch the NS server to EdgeOne to officially enable the service.
How to use the image optimization function of the current domain name on EdgeOne?
The current domain name has the regional independent configurations in some Chinese Mainland and outside the Chinese Mainland. How to configure it on EdgeOne?
Regional independent configuration is not supported for migration using this tool. If you have related configuration needs for the current domain name, please refer to the manual configuration migration using the rule engine.
Product and billing
What are the advantages of EdgeOne compared to CDN products?
CDN
EdgeOne
Feature richness
Pure acceleration, no security capabilities.
In addition to providing content distribution acceleration for domain names, it has DDoS attack and CC attack capabilities, and also provides rich capabilities such as edge functions, L4 proxy, DNS resolution, etc.
Configuration flexibility
Each domain name is configured on the console according to the configuration items and cannot be flexibly combined.
Supports rule engine, edge functions, and other flexible configuration methods, and can customize edge origin-pull rules and response rules according to your needs.
Operation difficulty
Update the certificate manually and and maintain the configuration according to the domain name dimension.
Supports free certificate auto-renewal, provides site-level dimension configuration, and can deliver configuration to multiple domain names through a single rule.
Risk avoidance
Attacks will generate excess traffic charges, high risk of attack.
Billing based on cleaned traffic, no need to worry about high bills caused by attacks.
What is the difference between EdgeOne's billing method and CDN? What is the payment method for migrating to EdgeOne?
