TencentDB Security Group Management

Last updated: 2022-11-22 15:43:29


    A security group is a stateful virtual firewall capable of filtering. As an important means for network security isolation provided by Tencent Cloud, it can be used to set network access controls for one or more TencentDB instances. Instances with the same network security isolation demands in one region can be put into the same security group, which is a logical group. TencentDB and CVM share the security group list and are matched with each other within the security group based on rules. For specific rules and limitations, please see Security Group Overview.


    • TencentDB for MySQL security groups currently only support network access control for VPCs and public networks but not the classic network.
    • As TencentDB does not have active outbound traffic, outbound rules are not applicable to TencentDB.
    • Security groups are supported for source, read-only, and disaster recovery TencentDB for MySQL instances.

    Configuring Security Groups for TencentDB

    Step 1. Create a security group

    1. Log in to the CVM console.
    2. Select Security Group on the left sidebar, select a region, and click New.
    3. In the pop-up dialog window, configure the following items, and click OK.
    • Template: select a template based on the service to be deployed on the TencentDB instance in the security group, which simplifies the security group rule configuration, as shown below:
      Open all portsAll ports are open. May present security issues.-
      Open ports 22, 80, 443, and 3389 and the ICMP protocolPorts 22, 80, 443, and 3389 and the ICMP protocol are opened to the internet. All ports are opened to the private network.This template does not take effect for TencentDB.
      CustomYou can create a security group and then add custom rules. For detailed directions, please see "Step 2. Add a security group rule" below.-
    • Name: name of the security group.
    • Project: select a project for easier management. By default, DEFAULT PROJECT is selected.
    • Notes: a short description of the security group for easier management.

    Step 2. Add a security group rule

    1. On the Security Group page, click Modify Rule in the Operation column on the row of the security group for which to configure a rule.
    2. On the security group rule page, click Inbound rule > Add Rule.
    3. In the pop-up dialog box, set the rule.
    • Type: Custom is selected by default. You can also choose another system rule template. MySQL(3306) is recommended.
    • Source or Target: traffic source (inbound rules) or target (outbound rules). You need to specify one of the following options:
      Source or TargetDescription
      A single IPv4 address or an IPv4 rangeIn CIDR notation, such as, or, where indicates all IPv4 addresses will be matched.
      A single IPv6 address or an IPv6 rangeIn CIDR notation, such as FF05::B5, FF05:B5::/60, ::/0 or 0::0/0, where ::/0 or 0::0/0 indicates all IPv6 addresses will be matched.
      ID of referenced security group. You can reference the ID of:
      • Current security group
      • Other security group
      • To reference the current security group, please enter the ID of security group associated with the CVM.
      • You can also reference another security group in the same region and the same project by entering the security group ID.
      Reference an IP address object or IP address group object in a parameter template.-
    • Protocol Port: enter the protocol type and port range or reference a protocol/port or protocol/port group in a parameter template.

      To connect to a TencentDB for MySQL instance, its port must be opened. You can log in to the TencentDB for MySQL console, click an instance ID in the instance list, and view its port number on the instance details page.

      • TencentDB for MySQL uses private network port 3306 by default and supports customizing the port. If the default port is changed, the new port should be opened in the security group.
      • TencentDB for MySQL uses public network port 60719 by default. After TencentDB for MySQL public network access is enabled, it will be controlled by the security group, so both port 60719 and 3306 should be opened.
      • The security group rules displayed on the Security Group page in the TencentDB for MySQL console take effect for private and public (if enabled) network addresses of the TencentDB for MySQL instance.
    • Policy: Allow or Reject. Allow is selected by default.
      • Allow: traffic to this port is allowed.
      • Reject: data packets will be discarded without any response.
    • Notes: a short description of the rule for easier management.
    1. Click Complete.

    Use case

    Scenario: you have created a TencentDB for MySQL instance and want to access it from a CVM instance.
    Solution: when adding security group rules, select MySQL(3306) in Type to open port 3306.
    You can also set Source to all or specific IPs (IP ranges) as needed to allow them to access TencentDB for MySQL from a CVM instance.

    Inbound or Outbound Type Source Protocol and Port Policy
    Inbound MySQL(3306) All IPs:
    Specific IPs: specify IPs or IP ranges
    TCP:3306 Allow

    Step 3. Configure a security group

    A security group is an instance-level firewall provided by Tencent Cloud for controlling inbound traffic of TencentDB. You can associate a security group with an instance when purchasing it or later in the console.


    Currently, security groups can be configured only for TencentDB for MySQL instances in VPC.

    1. Log in to the TencentDB for MySQL console, click an instance ID in the instance list, and enter the instance management page.

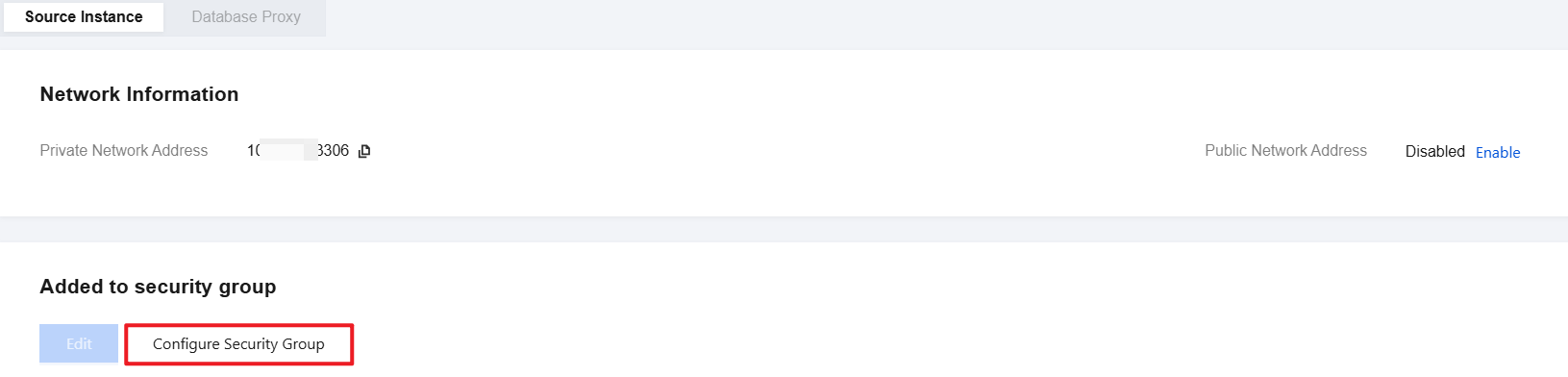

    2. On the Security Group tab, click Configure Security Group.
    3. In the pop-up dialog box, select the security group to be bound and click OK.

    Importing Security Group Rules

    1. On the Security Group page, click the ID/name of the desired security group.
    2. On the inbound rule or outbound rule tab, click Import Rule.
    3. In the pop-up dialog box, select an edited inbound/outbound rule template file and click Import.

      As existing rules will be overwritten after importing, we recommend that you export the existing rules before importing new ones.

    Cloning Security Groups

    1. On the Security Group page, locate the desired security group and click More > Clone in the Operation column.
    2. In the pop-up dialog box, select the target region and target project, enter the new security group name, and click OK. If the new security group needs to be associated with a CVM instance, do so by managing the CVM instances in the security group.

    Deleting Security Groups

    1. On the Security Group page, locate the security group to be deleted and click More > Delete in the Operation column.
    2. Click OK in the pop-up dialog box. If the current security group is associated with a CVM instance, it must be disassociated before it can be deleted.
