This article introduces the details of various metrics in the monitoring module and how to view these metrics in the console.
Android

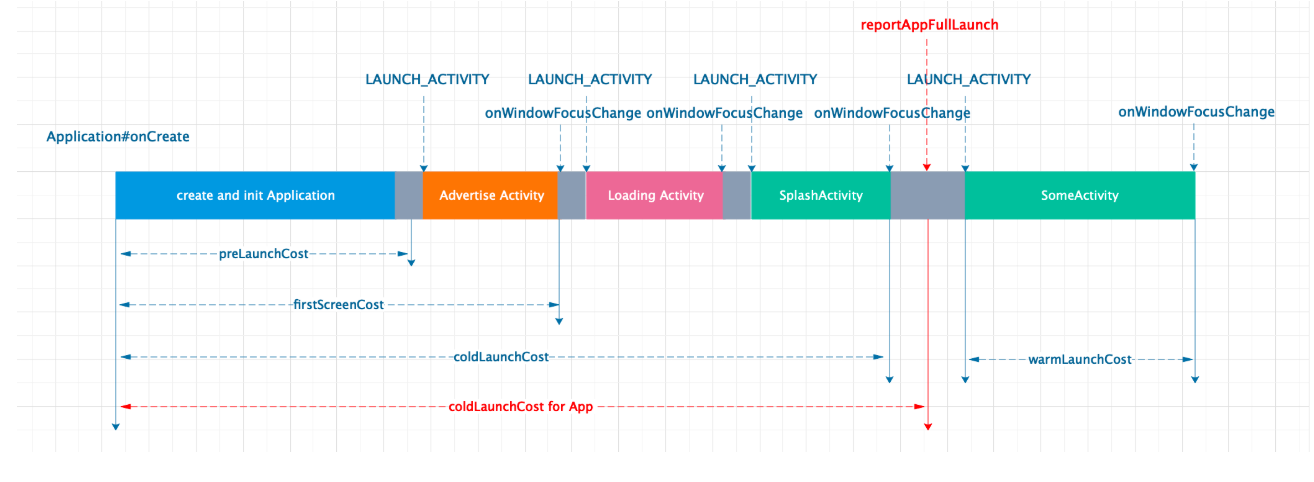

The time consumption per stage of Android launch monitoring is illustrated in the figure below:
Default cold launch
The time from process creation to the completion of the first frame rendering of the initial Activity. It is calculated as follows:
default cold launch time = completion time of the first frame rendering of the initial Activity - process creation time
Cold Launch
The time consumption from process creation to the completion of the first frame rendering of the landing page, or from process creation to the business-customized launch completion point. It is calculated as follows:
cold launch time = completion time of the first frame rendering of the landing page or business-customized launch completion point - process creation time
The following are scenarios for Cold Launch:
"first_launch": A special case of [Cold Launch], which refers to the first [Cold Launch] after the application is installed, distinguished via the tag "tag_first_launch".
"pre_launch": A special case of [Cold Launch], where the process is triggered by non-launch Activity events. This phase is called pre-launch, and after pre-launch, it directly enters the warm launch phase, distinguished via the tag "tag_pre_launch".
"cold_launch": Indicates a cold launch, from the creation of the application process to the completion of the first rendering of the launch page. Apart from the two special cold launch mentioned earlier, other ordinary cold launch are distinguished via the tag "tag_normal_launch".
Warm Launch
The time consumption from the opening of an Activity to the completion of its first frame rendering when no Active Activity exists. It is calculated as follows:
Warm launch time = completion time of the first frame rendering of the initial Activity - onCreate time of the initial Activity
"warm_launch": Indicates the configuration item for Warm Launch.
iOS
Default cold launch
The time taken from process creation to the first frame UI of the initial VC being displayed on screen. It is calculated as follows:
default cold launch time = first frame UI display time of the initial VC - App process creation time
Cold Launch
The time taken from process creation to the first frame UI display of the initial VC, or from process creation to the business-customized launch completion point. It is calculated as follows:
Cold launch time = first frame UI display time of the initial VC or business-customized launch completion point - App process creation time
App process creation time: Obtain the process launch time from the process's processInfo.
main function execution time: business calls related APIs to actively instrument.
First frame UI display time: Obtain an approximation via the execution time of the first CA::Transaction::commit.
The launch report includes three tracking points (Span) by default.
_RM_Cold_Launch: From process creation to launch completion, consistent with the cold launch metric scope.
_RM_Before_Main: The time from process creation to global variable initialization.
_RM_After_Main: The time from the execution of the main function to the launch completion point.
Note:
Due to the (prewarming) feature introduced in iOS 15, the system preloads certain resources before a user launches the app to improve launch speed. However, this may cause the app launch time data obtained by the platform to appear abnormal, as the prewarming process does not reflect the actual time required for a user-initiated launch. Therefore, to ensure data accuracy, the platform filters out such data. For details about iOS prewarming, refer to About the App Launch sequence.
switching between foreground and background
The application foreground/background switching time refers to the duration from when a user performs an operation (e.g., clicking the icon to bring the app to the foreground or pressing the Home button to send the app to the background) until the application completes the corresponding interface rendering and data processing, reaching an interactive state. The calculation method is as follows:
Foreground/Background Switching Time = applicationBecomeActive - applicationWillEnterForeground
applicationWillEnterForeground: The time when the UIApplicationWillEnterForegroundNotification is received.
applicationBecomeActive: The time when the UIApplicationDidBecomeActiveNotification is received. The foreground/background switching report includes one tracking point (Span) by default.
_RM_App_Resume: Equivalent to foreground/background switching, that is, the time from applicationWillEnterForeground to applicationBecomeActive.
Data analysis
The following content takes iOS app launch time analysis as an example. For Android, you can refer to the content below.
Metric Analysis

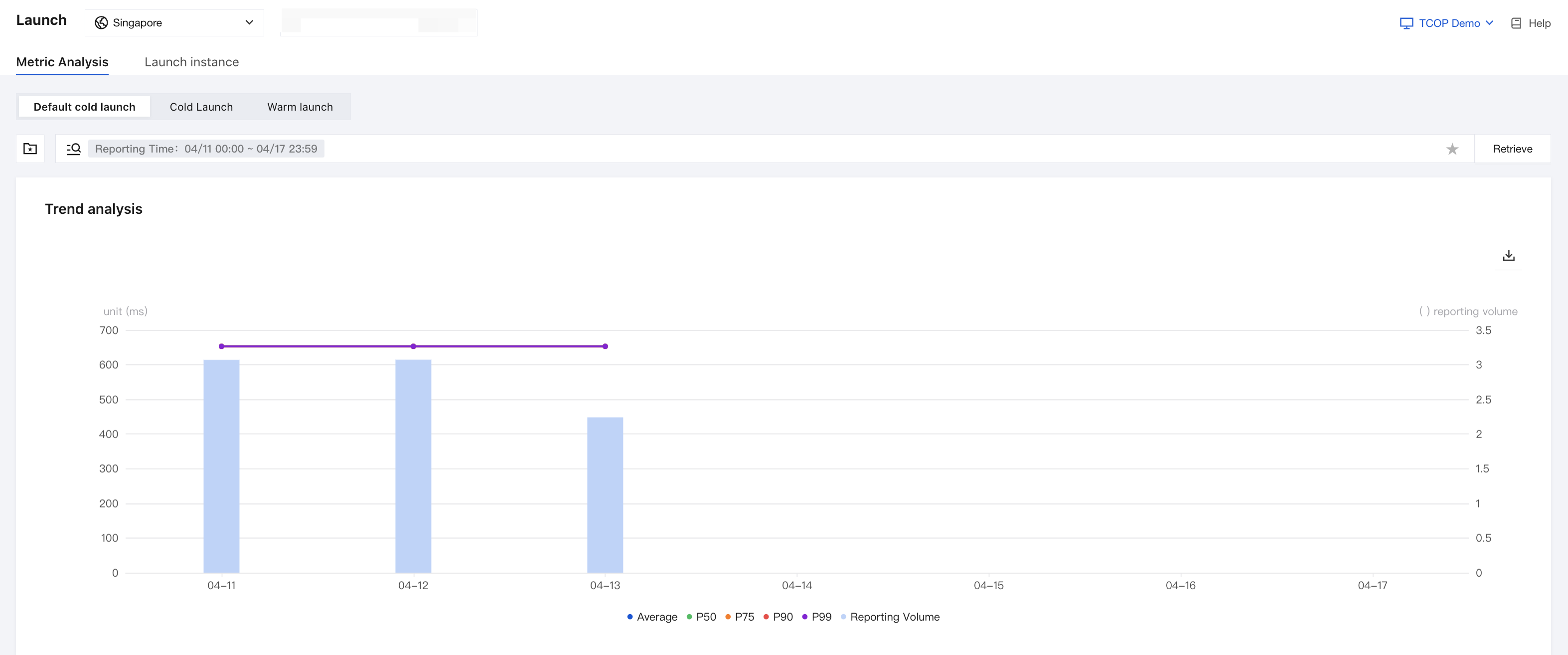

The platform supports viewing and drill-down analysis of metrics such as average, P50, P90, and P99. You can view them on the Launch > Metric Analysis page.
Span Duration Analysis

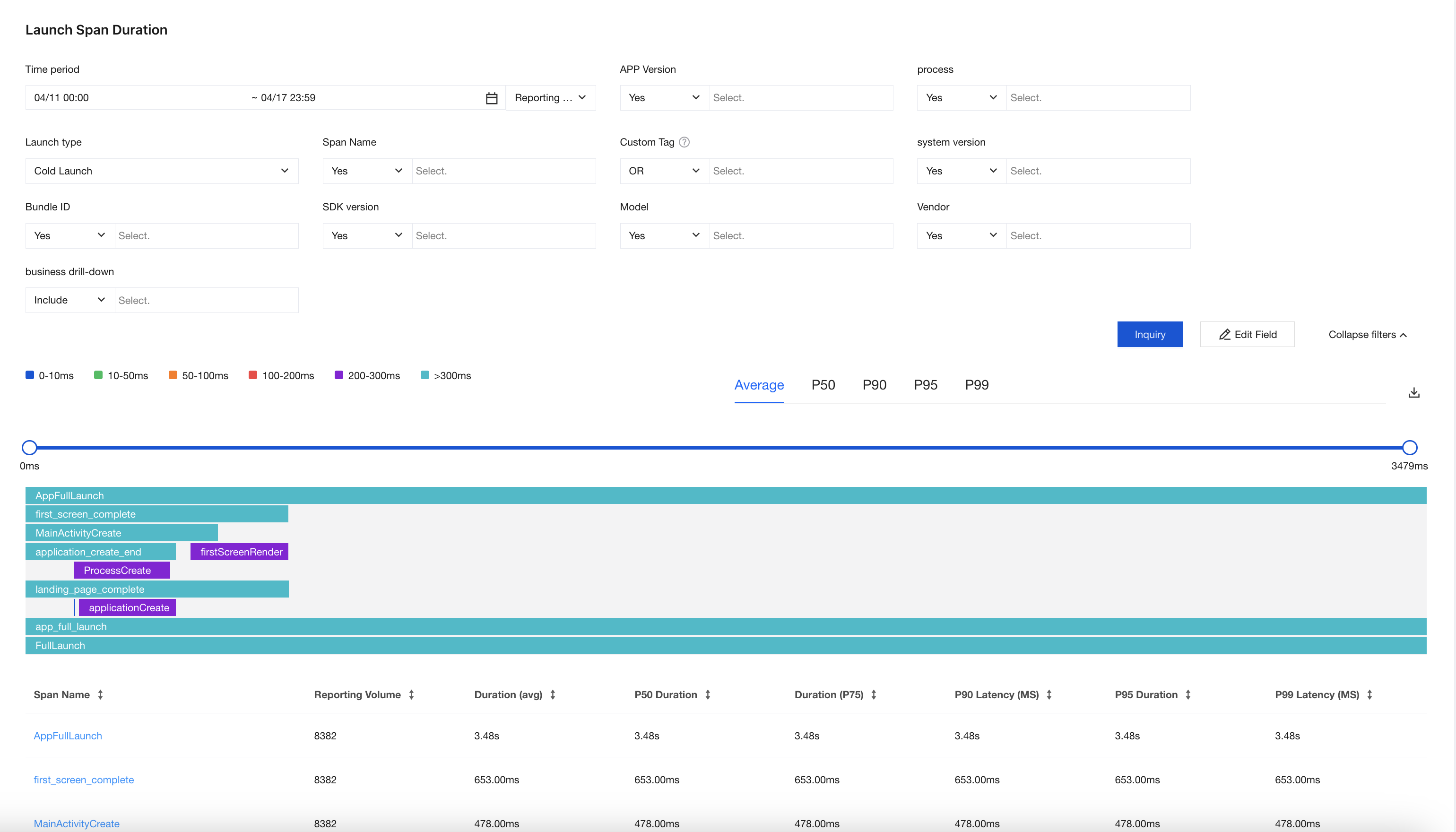

Users can add some Span information via the tracking API in the SDK during the launch phase for monitoring and troubleshooting the launch duration logic.
Query Launch instance

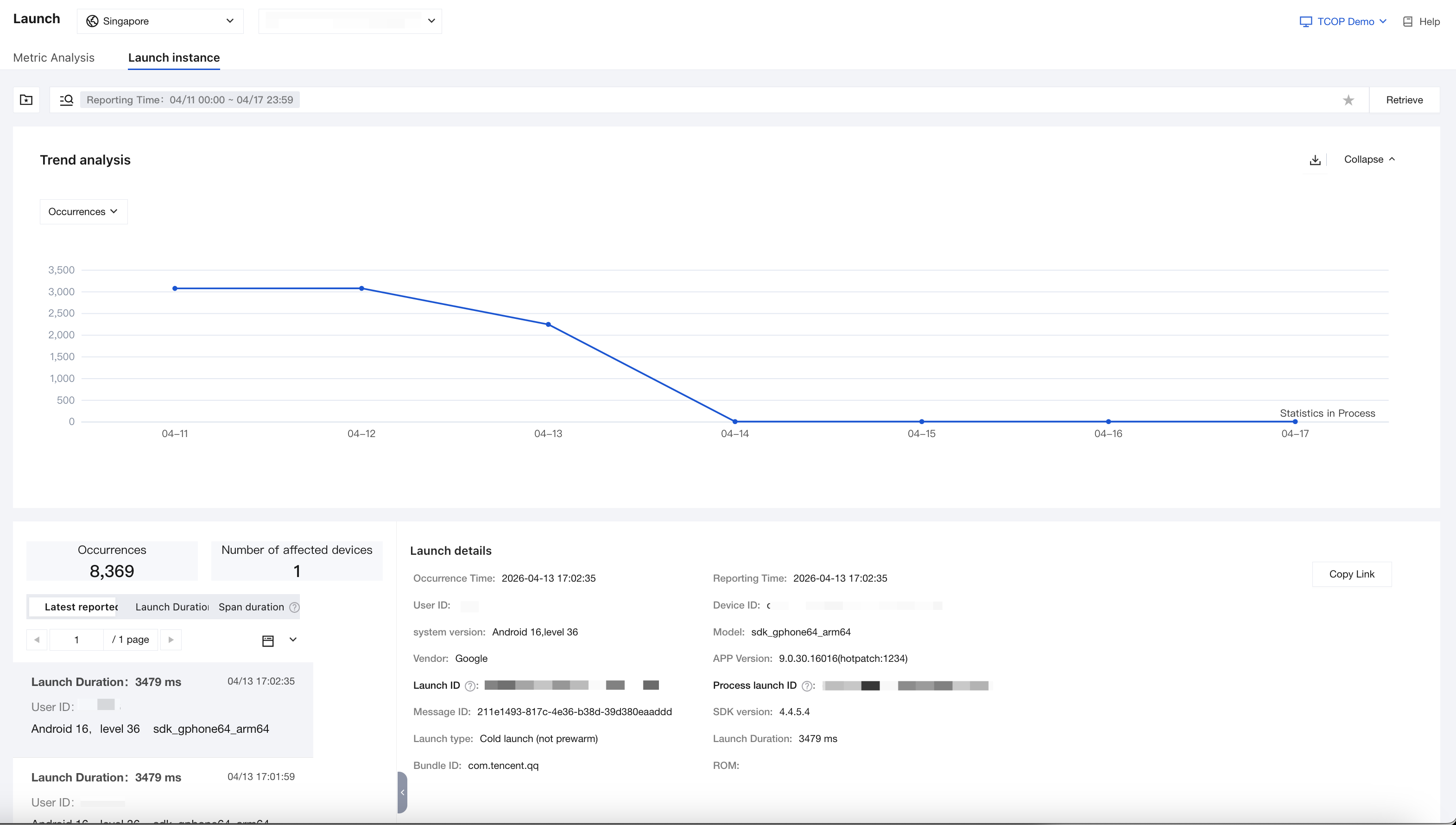

The launch instance dashboard supports searching for specific launch instances through defined filter criteria for detailed time analysis. You can view it on the Launch > Launch instances page.
