Abnormal Recording Event Notification
Last updated: 2025-12-03 17:56:30
Download PDF
The abnormal recording event callback is mainly used to call back the specific information on abnormal events that occurred during the recording process. You need to configure a URL for receiving abnormal recording event callback notifications. The Tencent CSS backend will call back the results and send them to the target server you set.
This document describes fields in callback notifications sent by Tencent CSS to users after the abnormal recording event callback is triggered.

Must-Knows

Before reading this document, you should know how to configure the callback feature of Tencent CSS and how to receive callback notifications. For details, see How to Receive Event Notifications.

Abnormal Recording Event Parameters

Event Type

Event Type
Value
Abnormal recording event
event_type = 341

Common Callback Parameter

Parameter
Type
Description
t
int64
Expiration time, which is the Unix timestamp when the event notification signature expires.
The default validity period of a callback notification from Tencent Cloud is 10 minutes. If the time specified by the t value in a notification has elapsed, then this notification is considered invalid. This prevents network replay attacks.
The value of t is a decimal Unix timestamp, that is, the number of seconds that have elapsed since 00:00:00 (UTC/GMT time), January 1, 1970.
sign
string
Security signature. sign = MD5(key + t).
Note: Tencent Cloud splices the encryption key and t, generates the MD5 hash of the spliced string, and embeds it in callback messages. Your backend server can perform the same calculation when it receives a callback message. If the signature matches, it indicates the message is from Tencent Cloud.
Note:

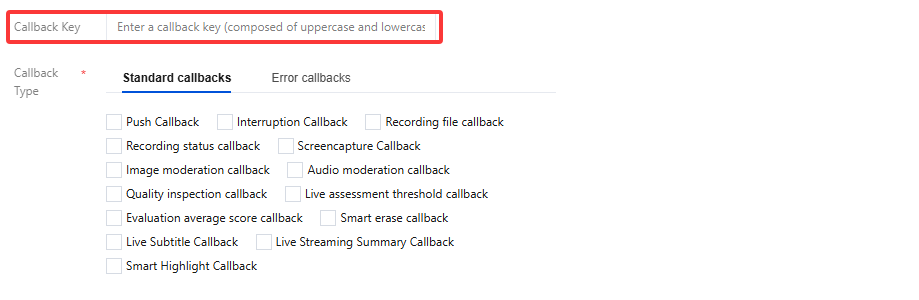

You can set the callback key in Feature Configuration > Live Stream Callback, which is used for authentication. We recommend you set this field to ensure data security.


Callback parameters

Parameter
Type
Description
appid
int
User APPID.
stream_id
string
Live stream name.
session_id
string
ID of the live streaming recording session. It is used to distinguish different recording tasks.
file_format
string
Recording file format, including FLV, TS, MP4, and AAC.
timestamp
int
Callback time of an abnormal recording event (unit: seconds).
exception_level
string
Exception level, including info, warning, and error.
exception
json
Detailed abnormal event description.

Parameters of exception

Parameter
Type
Description
type
int
occurs
int
Number of occurrences within the statistical cycle of abnormal events.
desc
string
Abnormal event description.

Abnormal event type.

Type
Description
-8
The audio timestamp changes greatly.
-9
The video timestamp changes greatly.
-10
The audio and video timestamps differ greatly.
-11
The video timestamp is invalid.
-16
Failed to pull the stream.
-17
No audio is pushed when audio recording is set for streaming.
-18
No video is pushed when video recording is set for streaming.
-22
The audio timestamp does not change.
-23
The video timestamp does not change.
-24
The audio timestamp is invalid.
-100
The resolution for streaming pushing has changed.
-104
An error occurred while writing audio/video frames to containers (files).
-120
The recording file is truncated due to a video encoding method change.
-130
Abnormal video frames are dropped.
-131
Abnormal audio frames are dropped.
-132
The GOP length is abnormal.
-200
The audio timestamp does not increase evenly.
-201
The video timestamp does not increase evenly.
Note:
Currently, the abnormal recording event callback does not support configuration for individual events and only performs callbacks for currently occurring abnormal events. If no abnormal event occurs, no callback is performed.
The abnormal recording event callback performs statistics only on current abnormal recording events. To avoid frequent callbacks, the same abnormal events occurred in a short time will be merged for processing. Therefore, abnormal event callbacks may have a delay (not exceeding 2 minutes). No other operations will be performed in the recording backend except abnormal event detection and abnormal event callback.

Callback Example

{
    "interface":"general_callback",
    "event_type":341,
    "appid":1234567,
    "domain":"1234567.livepush.myqcloud.com",
    "path":"live",
    "stream_id":"test_stream_35b4a6e6d4261",
    "session_id":"1855245773800540059",
    "file_format":"ts",
    "timestamp":1739934527,
    "exception_level":"info",
    "exception":
    {
        "type":-201,
        "desc":"video ts deviation: 100.000000",
        "occurs":4
    },
    "sign": "ca3e25e5dc17a6f9909a9ae7281e300d",
  "t": 1754623810
}
