Smart Erasing Event Notification
Last updated: 2025-12-03 17:56:29
Download PDF
This document primarily elucidates the callback notification fields transmitted by Tencent Cloud Streaming Services (CSS) to users upon triggering the smart erasing event.

Note

You need to understand how to configure callbacks and how you will receive messages via Tencent Cloud CSS before reading this document. For more information, see How to Receive Event Notifications.

Event Message Notification Protocol

Network Protocols
Request: Utilize an HTTP POST request with the body content in JSON format. The specific body content for each message type is detailed in the subsequent sections.
Response: The HTTP status code is 200. While the server disregards the specific content of the response packet, for protocol compatibility, it is recommended that the client includes a JSON payload in the response: `{"code":0}`.
Message Reliability
The Event Notification Service incorporates a retry mechanism with a total of 3 attempts. To prevent potential impact on your server performance and network bandwidth due to retries, please ensure proper response packets are returned. The conditions triggering retries are as follows:
No response packet received for an extended duration.
The HTTP status code returned is not 200.

Smart Erasing Event Parameters

Event Type Parameter

Event Type
Field Value Description
Smart erase
event_type = 347

Common callback parameters

Parameter
Type
Description
t
int64
Expiration time, which is the UNIX timestamp when the event notification signature expires.
The default validity period of a message notification from Tencent Cloud is 10 minutes. If the time specified by the t value in a message notification has elapsed, then this notification is considered invalid, thereby preventing network replay attacks.
The format of t is a decimal UNIX timestamp, i.e., the number of seconds that have elapsed since 00:00:00 (UTC/GMT time), January 1, 1970.
sign
string
Event notification security signature sign = MD5(key + t).
Note: Tencent Cloud concatenates the encryption key and t, calculates the sign value through MD5, and places it in the notification message. When your backend server receives the notification message, it can confirm whether the sign is correct based on the same algorithm and then determine whether the message is indeed from the Tencent Cloud backend.
Note：

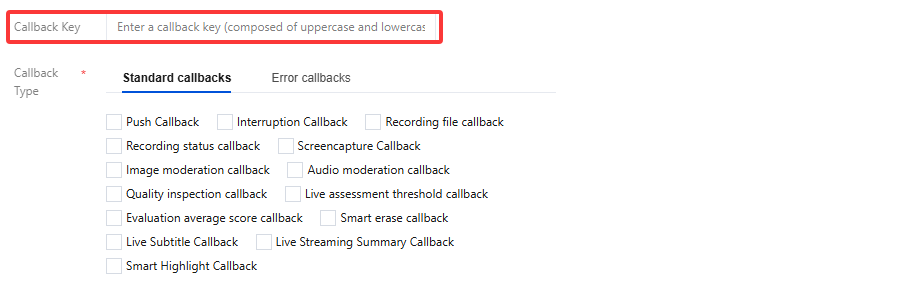

You can set the callback key in Event Center > Live Stream Callback, which is used for authentication. We recommend you set this field to ensure data security.Callback message parameters.


Callback message parameters

Parameter
Type
Description
appid
int
User APPID.
stream_id
string
Live stream name.
channel_id
string
Same as the live stream name.
task_id
string
Task ID for Smart Erasing.
data
Process the results.

data

Parameter
Type
Description
subtitle_tmp_res

Text results.

subtitle_tmp_res

Parameter
Type
Description
src_txt
string
Original audio recognition text.
start_pts
int64
src_txt corresponds to the timestamp starting point of the audio stream, in milliseconds (ms).
end_pts
int64
src_txt corresponds to the timestamp end point of the audio stream, in milliseconds (ms).
start_unix_time
int64
src_txt corresponds to the UNIX time starting point of the live broadcast.
end_unix_time
int64
src_txt corresponds to the UNIX time end point of the live broadcast.
keywords_info
List of keywords that silence hits.

keywords_info

Parameter
Type
Description
word
string
Hit keywords.
begin_time
int64
The keyword corresponds to the timestamp starting point of the audio stream, in milliseconds (ms).
end_time
int64
The keyword corresponds to the end point of the audio stream timestamp in milliseconds (ms).

Sample callback

{
  "event_type": 347,
  "stream_id": "teststream",
  "channel_id": "teststream",
  "task_id": "7735333",
  "data": {
    "subtitle_tmp_res": [
      {
				"end_pts": 964464,
				"end_unix_time": 1750402597,
				"keywords_info": [
					{
						"begin_time": 957759,
						"end_time": 959424,
						"word": "Central Commission for Discipline Inspection"
					}
				],
				"src_txt": "The list of alternate members for the Central Committee and candidates for the Central Commission for Discipline Inspection was carefully deliberated.",
				"start_pts": 954864,
				"start_unix_time": 1750402588,
      }
    ]
  },
  "sign": "ca3e25e5dc17a6f9909a9ae7281e300d",
  "t": 1754623810
}
