SSL Encryption Settings
Download PDF
Last updated: 2025-02-13 17:02:07
SSL Encryption Settings
Last updated: 2025-02-13 17:02:07
Download PDF

SSL Encryption Overview

Secure Sockets Layer (SSL) authentication is a process that authenticates the connection from the client to the cloud database server. It is performed for both the user and server. You can obtain a CA certificate after you enable SSL encryption and upload it to the server. When users access the database from the client, the SSL protocol will be activated to establish a secure channel between the client and the database server to realize encrypted data transmission. This prevents data interception, tampering, and eavesdropping during transmission and ensures data transmission security for both parties.
The SSL protocol is required to run over a reliable transport layer protocol (such as TCP). SSL is independent of application layer protocols, and high-layer application layer protocols (such as HTTP, FTP, and TELNET) can transparently run over the SSL protocol. The SSL protocol has completed data encryption, communication key negotiation, and server authentication before application layer protocols transmit data. In this way, the data transmitted by application layer protocols is encrypted, which ensures communication privacy.

Background

If encryption is not performed during database access, all data transmitted over the network is in plaintext. As a result, data may be eavesdropped, tampered with, and intercepted by users with malicious purposes. The SSL protocol is designed to address such risks. In theory, it has the following capabilities:
The information is encrypted and cannot be eavesdropped by third parties.
There is a verification mechanism. Once the information is tampered with, both the communicating parties will detect it promptly.
The identity certificate is equipped to prevent identity impersonation.
TencentDB for PostgreSQL supports enabling SSL encryption to enhance linkage security. It also supports downloading the SSL CA certificate and installing it on application services.
Note:
To ensure the traffic security between the database and the server, SSL encryption does not protect data. You can encrypt network connections at the transport layer to improve communication data security and integrity, but the response time of network connections will increase.

Must-Knows

The instance version is PostgreSQL 11 or later.
TLS 1.0, TLS 1.1, TLS 1.2, and TLS 1.3 are supported.
SSL encryption is not enabled by default for instances cloned from existing ones. You can enable it manually.
If you need to enable SSL encryption for a read-only instance, it is strongly recommended that you enable SSL encryption for all read-only instances in the read-only group. Otherwise, some requests may fail because the protected connection address is the VIP of the read-only group.
When you enable SSL encryption, your database instance will be restarted to load the SSL certificate. Make sure that your businesses are configured with a reconnection mechanism.

Enabling SSL Encryption

1. Log in to the TencentDB for PostgreSQL console. In the instance list, click Instance ID or Manage in the Operation column to go to the Instance Management page.

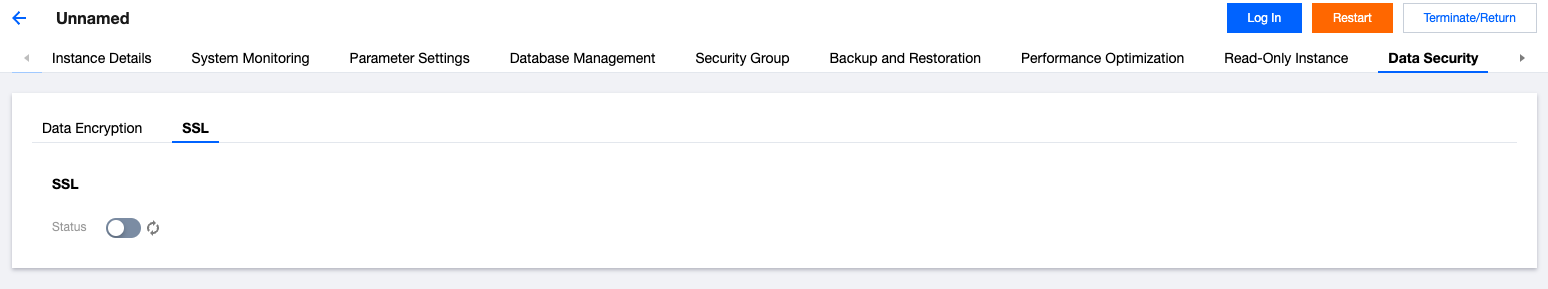

2. Go to Data Security on the Instance Management page and click the SSL tab.

3. This feature is disabled by default. Click the switch and then click Confirm to enable SSL encryption.

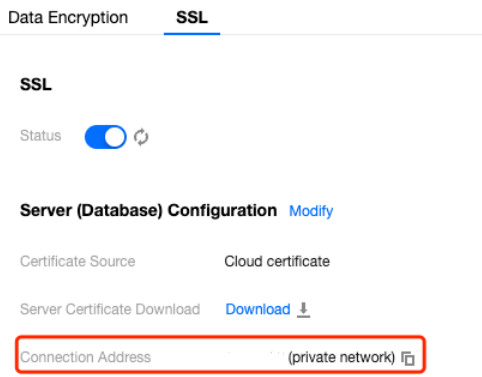

The area for enabling SSL encryption is as follows:

The system supports specifying a VIP or public network domain name as the protected connection address when you enable SSL encryption. If the instance has two VIPs, select one of the VIPs. Each time you enable SSL encryption, you can select only one VIP or public network domain name.
Click Download to download the SSL CA certificate, which is valid for 20 years. The downloaded package (Tencent-PG-SSL-CA.zip) contains the following three files:
.p7b file: It is used to import the CA certificate to Windows systems.
.jks file: It is a Java KeyStore/TrustStore file with the password set to tencentdb_pg and is used to import the CA certificate chain to Java programs.
.pem file: It is used to import the CA certificate to other operating systems or applications.

Connecting to a Database via SSL

Using psql for Connection via SSL

Note:
This method requires the command line tool psql of the local PostgreSQL client. Make sure that you have installed the PostgreSQL client. For details, see the PostgreSQL official documentation.
1. Create a .postgresql folder under the /usr/local/pgsql/ directory.
mkdir -p /usr/local/pgsql/.postgresql
2. Copy the downloaded server certificate ca.pem to the .postgresql folder.
[root@VM-0-6-tencentos .postgresql]# ll
total 4
-rw------- 1 postgres postgres 2681 Feb  6 11:13 ca.pem
3. Modify the permissions of the .postgresql folder.
chown postgres:postgres /usr/local/pgsql/.postgresql/*
chmod 600 /usr/local/pgsql/.postgresql/*
4. Set the environment variables for the postgres user.
[root@VM-0-6-tencentos .postgresql]# export PGSSLROOTCERT="/usr/local/pgsql/.postgresql/ca.pem"
[root@VM-0-6-tencentos .postgresql]# echo $PGSSLROOTCERT
/usr/local/pgsql/.postgresql/ca.pem
5. Set the authentication method for the client to connect to the database.
[root@VM-0-6-tencentos .postgresql]# export PGSSLMODE="require"
[root@VM-0-6-tencentos .postgresql]# echo $PGSSLMODE
require
Note:
For the description of the PGSSLMODE parameter, see the official documentation.
6. Connect to the database.
[root@VM-0-6-tencentos .postgresql]# psql -h10.6.0.20 -p5432 -Udbadmin -dpostgres
Password for user dbadmin:
psql (16.4, server 11.22)
SSL connection (protocol: TLSv1.3, cipher: TLS_AES_256_GCM_SHA384, compression: off)
Type "help" for help.

postgres=>
As shown above, if the output contains SSL connection, it indicates that the current connection uses SSL encryption.

Using JDBC for Connection via SSL

Note:
This method requires that you have installed the JDK and downloaded the JDBC driver.
1. Create a .postgresql folder under the /usr/local/pgsql/ directory.
mkdir -p /usr/local/pgsql/.postgresql
2. Copy the downloaded server certificate ca.pem to the .postgresql folder.
[root@VM-0-6-tencentos .postgresql]# ll
total 8
-rw------- 1 postgres postgres 2840 Feb  6 19:55 ca.jks
-rw------- 1 postgres postgres 2681 Feb  6 11:13 ca.pem
3. Modify the permissions of the .postgresql folder.
chown postgres:postgres /usr/local/pgsql/.postgresql/*
chmod 600 /usr/local/pgsql/.postgresql/*
4. Configure the business code to use SSL to connect to PostgreSQL and run the program.
The configuration example for the .pem certificate is as follows. Specific parameters are configured based on your business details.
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.Statement;
import java.util.Properties;

public class Main {
    public static void main(String[] args) {
        try {
            Class.forName("org.postgresql.Driver");

            Properties props = new Properties();
            props.setProperty("user", "dbadmin");
            props.setProperty("password", "xxxxxxxx");
            props.setProperty("ssl", "true");
            props.setProperty("sslmode", "verify-ca");
            props.setProperty("sslrootcert", "/usr/local/pgsql/.postgresql/ca.pem");

            Connection conn = DriverManager.getConnection(
                "jdbc:postgresql://10.6.0.10:5432/postgres",
                props
            );

            Statement stmt = conn.createStatement();

            ResultSet rs = stmt.executeQuery("SELECT * FROM mytable");

            while (rs.next()) {
                System.out.println(rs.getString("id"));
            }

            conn.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}
The configuration example for the .jks certificate is as follows. Specific parameters are configured based on your business details.
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.Statement;
import java.util.Properties;

public class Main1 {
    public static void main(String[] args) {
        try {
            Class.forName("org.postgresql.Driver");

            System.setProperty("javax.net.ssl.trustStore", "/usr/local/pgsql/.postgresql/ca.jks");
            System.setProperty("javax.net.ssl.trustStorePassword","tencentdb_pg");
            System.setProperty("javax.net.ssl.keyStore","/usr/local/pgsql/.postgresql/ca.jks");
            System.setProperty("javax.net.ssl.keyStorePassword","tencentdb_pg");
            Properties props = new Properties();
            props.setProperty("user", "dbadmin");
            props.setProperty("password", "xxxxx");
            props.setProperty("ssl", "true");
            props.setProperty("sslmode", "require");
            props.setProperty("sslfactory", "org.postgresql.ssl.DefaultJavaSSLFactory");
            Connection conn = DriverManager.getConnection(
                "jdbc:postgresql://10.6.0.10:5432/postgres",
                props
            );

            Statement stmt = conn.createStatement();

            ResultSet rs = stmt.executeQuery("SELECT * FROM mytable");

            while (rs.next()) {
                System.out.println(rs.getString("id"));
            }

            conn.close();
        } catch (Exception e) {
            e.printStackTrace();
        }

Using Go for Connection via SSL

Note:
This method requires that you have installed Go and completed the driver configuration.
1. Create a .postgresql folder under the /usr/local/pgsql/ directory.
mkdir -p /usr/local/pgsql/.postgresql
2. Copy the downloaded server certificate ca.pem to the .postgresql folder.
[root@VM-0-6-tencentos .postgresql]# ll
total 4
-rw------- 1 postgres postgres 2681 Feb  6 11:13 ca.pem
3. Modify the permissions of the .postgresql folder.
chown postgres:postgres /usr/local/pgsql/.postgresql/*
chmod 600 /usr/local/pgsql/.postgresql/*
4. Configure the business code to use SSL to connect to PostgreSQL and run the program. The configuration example is as follows. Specific parameters are configured based on your business details.
package main

import (
	"database/sql"
	"fmt"
	"log"

	_ "github.com/lib/pq"
)

func main() {
	connStr := "user=dbadmin password=Lxh202405! dbname=postgres host=10.6.0.20 port=5432 sslmode=verify-full sslrootcert=/usr/local/pgsql/.postgresql/ca.pem"
	db, err := sql.Open("postgres", connStr)
	if err != nil {
		log.Fatal(err)
	}

	err = db.Ping()
	if err != nil {
		log.Fatal(err)
	}

	fmt.Println("Successfully connected!")
}

Refreshing the Server Certificate

If you want to change the VIP protected through SSL encryption in the following scenarios, you can refresh the server certificate.
Adding a network for an instance
A new VIP will be added after you add a network for an instance. If the instance has enabled SSL encryption and the selected protected address is the original VIP, an error is reported when you use the new VIP to connect to the instance from the client and enable SSL encryption. In this case, you need to refresh the server certificate and re-select a VIP you want to protect.
Deleting a network for an instance
The corresponding VIP will be deleted after you delete a network for an instance. If the instance has enabled SSL encryption and the selected protected address is the deleted VIP, an error is reported when you use the deleted VIP or other VIPs of the instance to connect to the instance from the client and enable SSL encryption. In this case, you need to refresh the server certificate and re-select a VIP you want to protect.
Enabling public network access for an instance
A public network connection address will be added after you enable public network access for an instance. If the instance has enabled SSL encryption but the selected protected address is not the public network address, an error is reported when you use the public network address to connect to the instance from the client and enable SSL encryption. In this case, you need to refresh the server certificate and select the public network address as the protected address.
Disabling public network access for an instance
The public network address will be reclaimed after you disable public network access for an instance. If the instance has enabled SSL encryption and the selected protected address is the public network address, an error is reported when you use the public network address to connect to the instance from the client and enable SSL encryption. In this case, you need to refresh the server certificate and select a VIP that you want to protect.
Adding read-only instances to a read-only group
All read-only instances in the read-only group have enabled SSL encryption, and a new read-only instance is added to the group. This instance has not enabled SSL encryption or has enabled SSL encryption but the selected protected address is not the VIP of the read-only group. As a result, some requests may fail when you use the VIP of the read-only group to connect to instances from the client. In this case, you need to enable SSL encryption for all read-only instances in the read-only group and select the VIP of the read-only group as the protected address.
Changing the protected address for a read-only instance
When you enable SSL encryption for a read-only instance, you can select the VIP of the read-only group or the read-only instance as the protected address. If you want to change the protected address, you need to refresh the server certificate.
The steps for refreshing the server certificate are as follows:
1. Log in to the TencentDB for PostgreSQL console. In the instance list, click Instance ID or Manage in the Operation column to go to the Instance Management page.
2. Go to Data Security on the Instance Management page and click the SSL tab.
3. Check the current protected connection address on the SSL tab.

4. Click the Modify to modify the address.


Disabling SSL Encryption

Note:
When you disable SSL encryption, your database instance will be restarted to uninstall the SSL certificate. Make sure that your businesses are configured with a reconnection mechanism.
1. Log in to the TencentDB for PostgreSQL console. In the instance list, click Instance ID or Manage in the Operation column to go to the Instance Management page.
2. Go to Data Security on the Instance Management page and click the SSL tab.

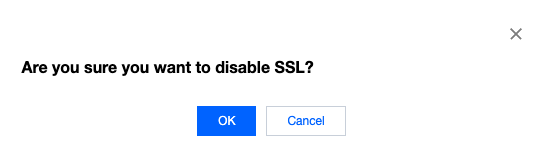

3. Click the switch and then click OK in the dialog box.
