This document describes how to create a registered node.

Notes

• To ensure the stability of registered nodes, registered nodes can be accessed only through Direct Connect or CCN (VPN is currently not supported).
• The registered node feature is only available for TKE clusters of v1.18 or later versions.
• Registered nodes must use [TencentOS Server 3.1] or [TencentOS Server 2.4 (TK4)].
• To use registered nodes, a cluster must contain cloud nodes. A cluster cannot host registered nodes only.
• For scenarios where nodes on and off the cloud are deployed, the TKE team launched a hybrid cloud container network scheme based on Cilium-Overlay.

Directions

Installing the OS for the registered node

Currently, registered nodes must use [TencentOS Server 3.1] or [TencentOS Server 2.4 (TK4)]. Details are as follows:

Note：

TencentOS Server is Tencent's Linux operating system designed for cloud scenarios. With specific features and optimized performance, it provides a high-performance, secure, and reliable operating environment for applications in CVM instances.

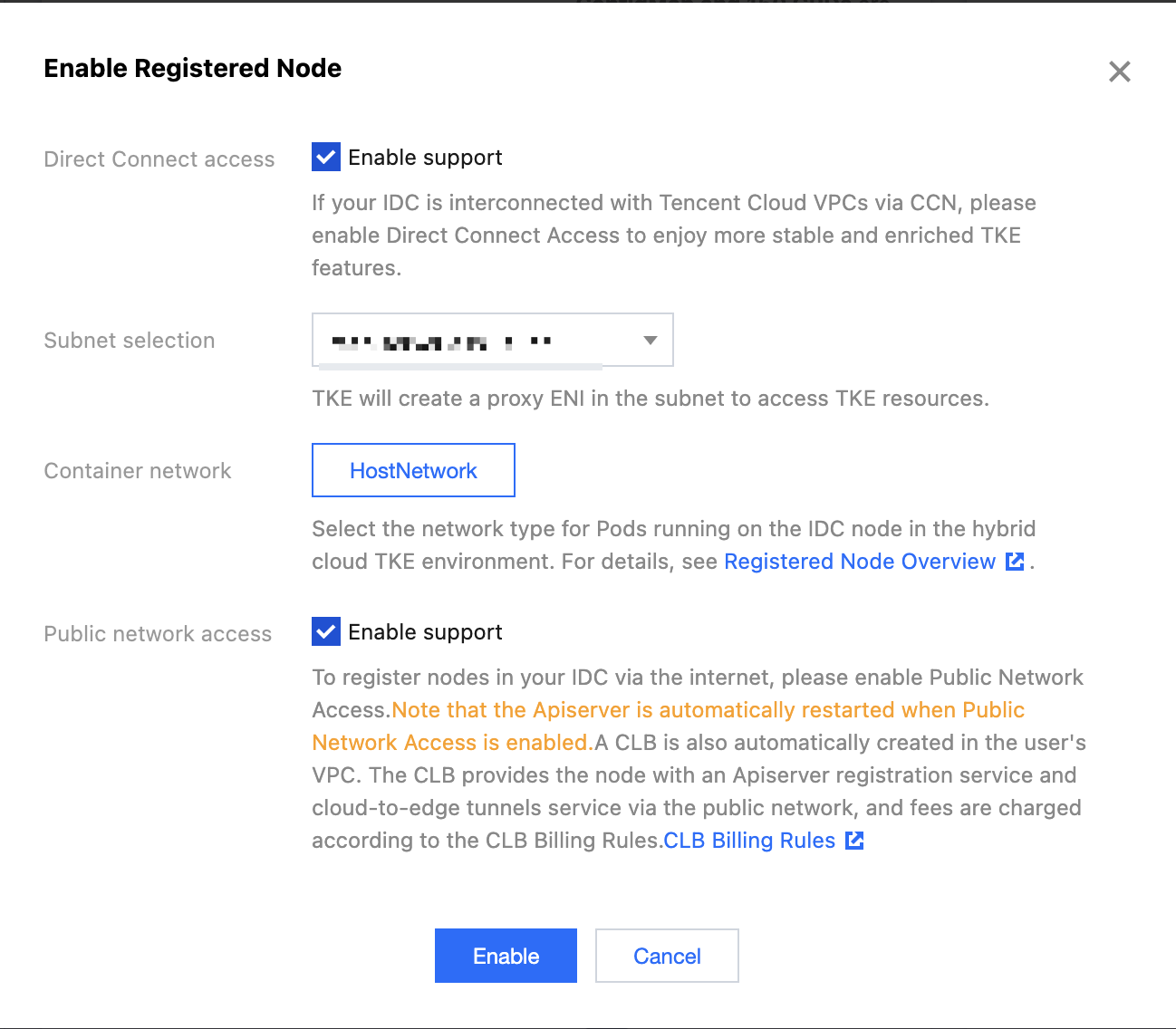

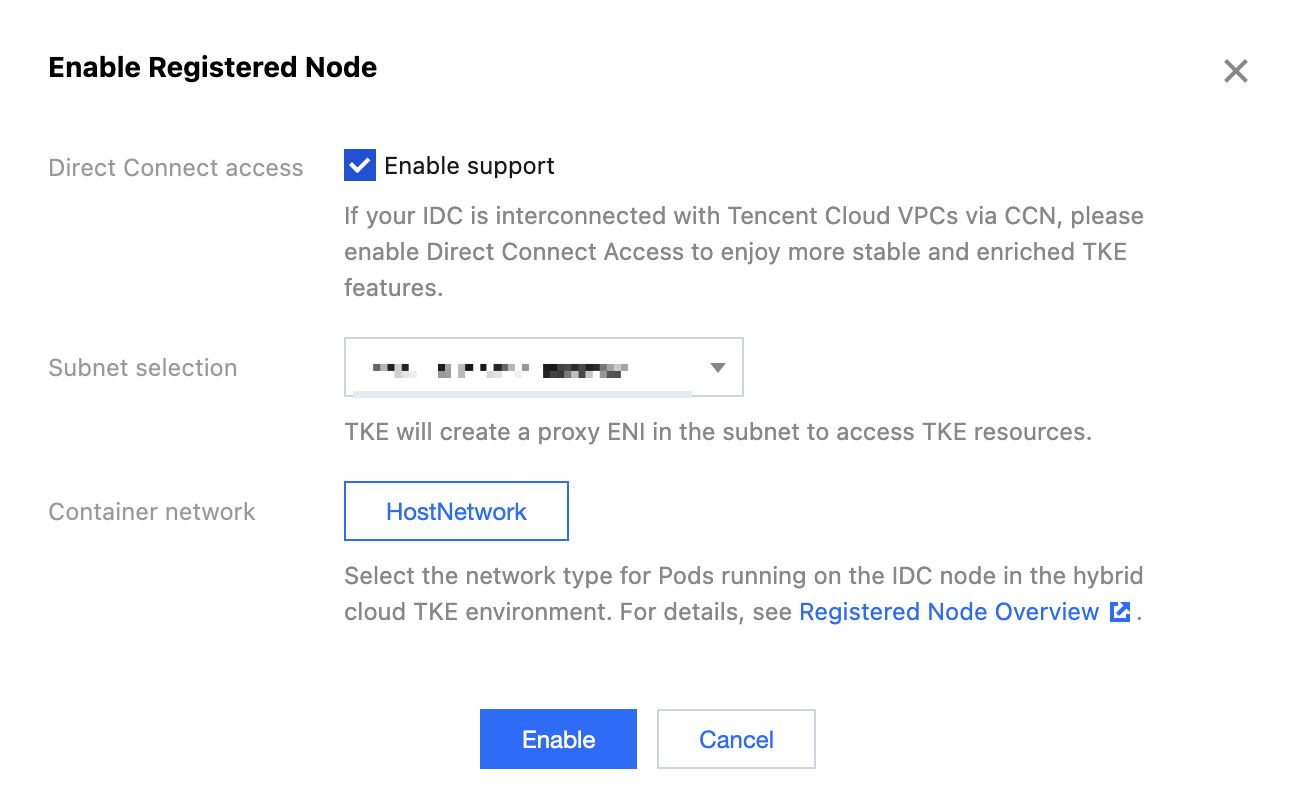

Enabling support for registered nodes

For a network where nodes on and off the cloud use Cilium-Overlay, you can add registered nodes to only clusters whose network model is Cilium-Overlay. You can select an existing Cilium-Overlay cluster or create one.

• Container network add-on: Select Cilium Overlay.
• Subnet: TKE will create a proxy ENI in the selected subnet for the registered node to access cloud resources.

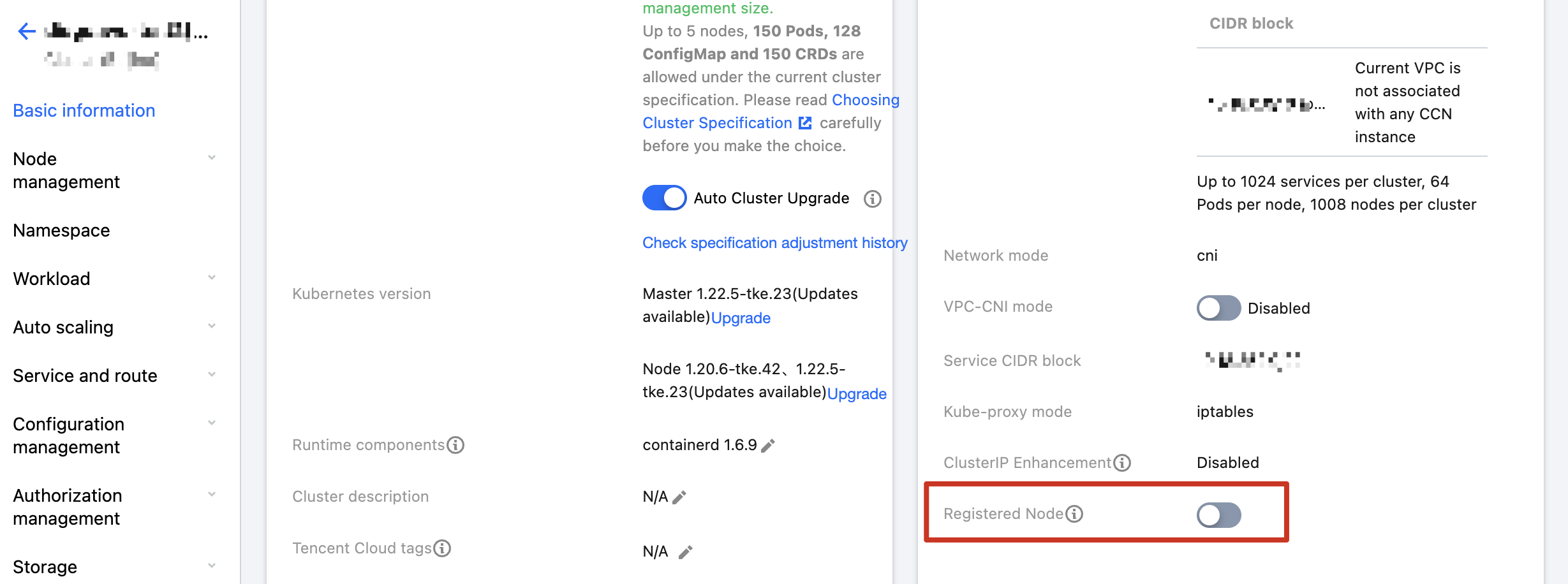

After the Cilium-Overlay cluster is created, the registered node feature is enabled by default. To query related information, go to the TKE console and choose Basic Information > Node and Network Information.

Adding a registered node

Creating a registered node pool

Note：

Registered nodes can be managed only through a node pool.

1. Log in to the TKE console and click Cluster in the left sidebar.
2. On the Cluster management page, click the desired cluster ID to go to the Basic information page.
3. Click Node management > Node pool in the left sidebar to go to the Node pool list page.

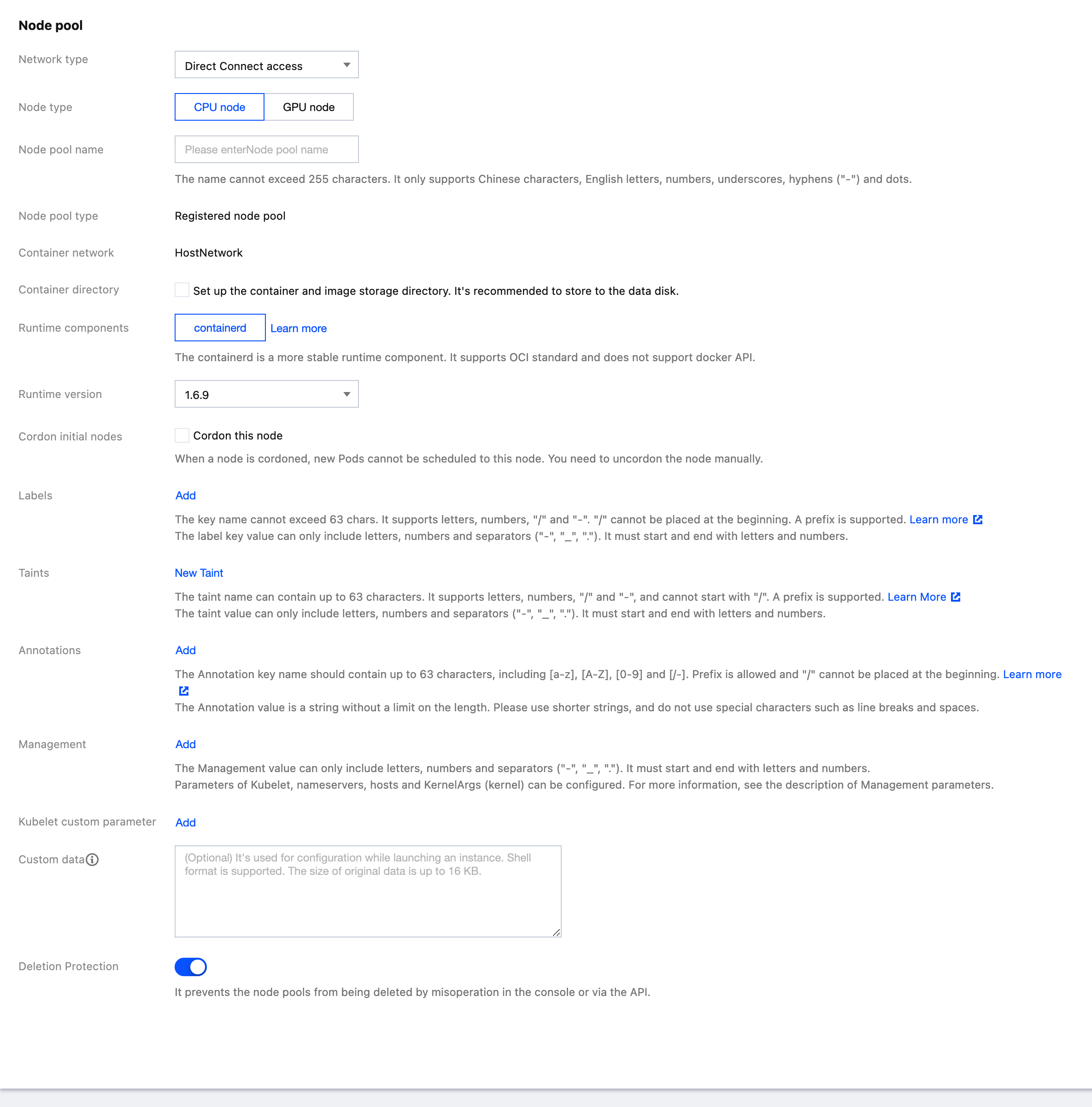

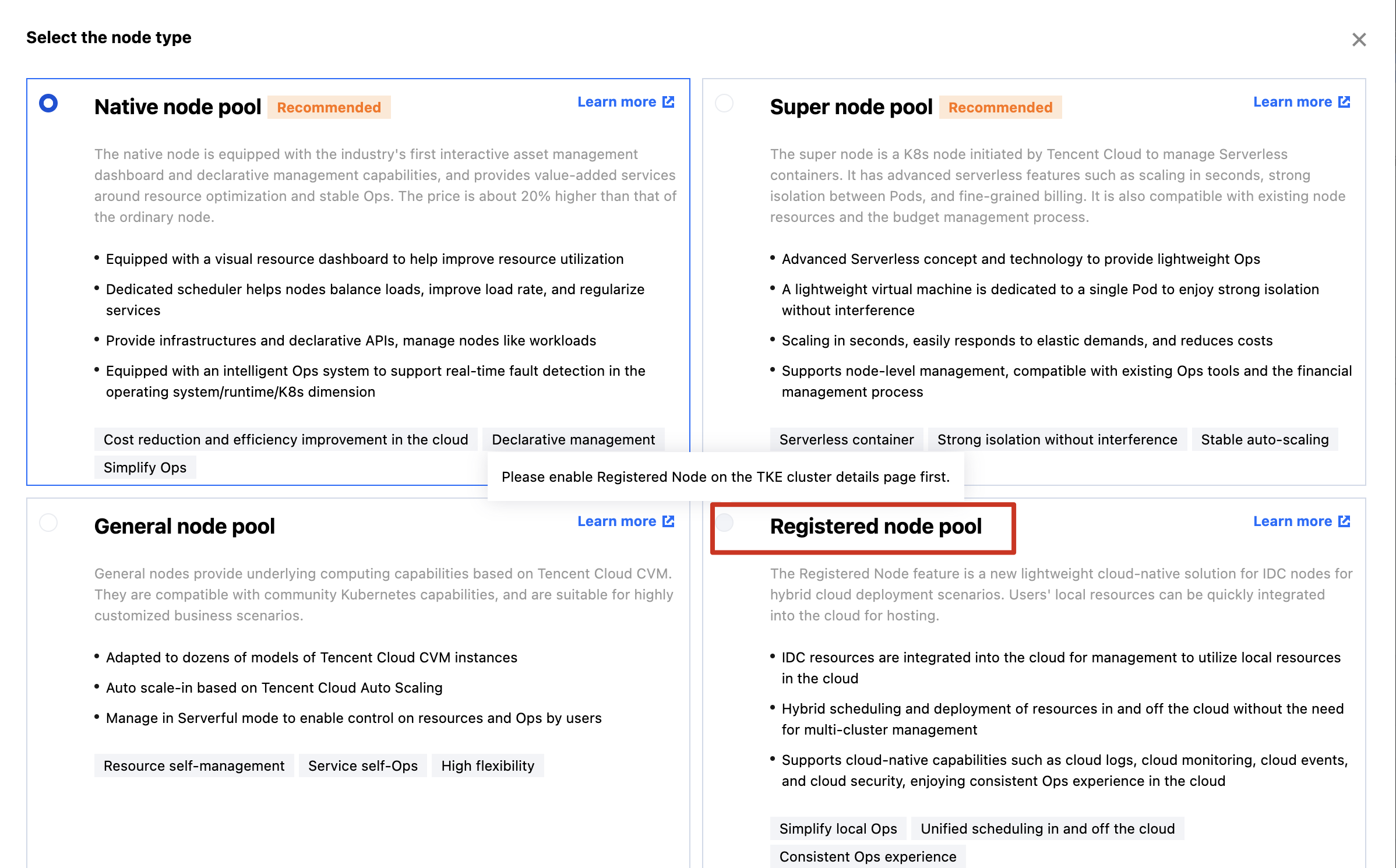

4. Click Create node pool to open the Create node pool page. Specify the configurations.

• Node pool name: Enter a custom pool name.
  • Node pool type: Select Registered node pool.
  • Container Directory: Select this option to set up the container and image storage directory. We recommend that you store to the data disk, such as /var/lib/docker.
  • Runtime component: The runtime component of the container. docker and containerd are supported.
  • Runtime version: The version of the runtime component.
  • Cordon initial nodes: If Cordon this node is selected, new Pods cannot be scheduled to this node. You can uncordon the node manually, or execute the uncordon command in custom data as needed.
  • Label: Click New label and customize the settings of the label. The specified label here will be automatically added to nodes created in the node pool to help filter and manage external nodes using labels.
  • Taints: This is a node-level attribute and is usually used with Tolerations. You can specify this parameter for all the nodes in the node pool, so as to stop scheduling Pods that do not meet the requirements to these nodes and drain such Pods from the nodes.
    The value of Taints usually consists of key, value, and effect. Valid values of effect:
    • PreferNoSchedule: Optional. Try not to schedule a Pod to a node with a taint that cannot be tolerated by the Pod.
    • NoSchedule: When a node contains a taint, a Pod without the corresponding toleration must not be scheduled.
    • NoExecute: When a node contains a taint, a Pod without the corresponding toleration to the taint are not be scheduled to the node and any such Pods already on the node are drained.
  • Custom Data: Specify custom data to configure the node, that is, to run the configured script when the node is started up. You need to ensure the reentrant and retry logic of the script. The script and its log files can be viewed at the node path: /usr/local/qcloud/tke/userscript.

5. Click Create node pool.

Adding a registered node

Do the following to add registered nodes to the node pool:

1. On the node pool page, click the desired node pool ID.
2. On the node pool details page, click Create node to get the script.
3. In the Initialize script window, select the download mode for node initialization, and copy or download the script.

• Public network: Selected by default. For an IDC node, directly download the installation script file (31 KB in size) over the public network.
  • Private network: If your IDC node cannot access the public network, access the private network through a Direct Connect line to download the installation script file.

4. Execute the script on your server.

   Note

   The script downloading link is valid for one hour. Since the script is downloaded via COS, you need to ensure that the IDC node can access COS through private/public network.

5. Run the following command to add the node:

   ./ add2tkectl-cls-m57oxxxp-np-xxxx install


Note

If the node fails to be added because the related Docker and containerd add-ons are installed on the external node, run the following command to delete the add-ons and add the node again:

./add2tkectl-cls-m57oxxxp-np-xxxx clear
