The Tencent Cloud console URL for Cloud Log Service (CLS) and the independent DataSight console URL contain page resource information and feature entry controls, supporting opening specified page resources or showing/hiding corresponding feature entries.
CLS search and analysis page URL parameter description:
Parameter Name
Required
Type
Description
region
Yes
String
Region abbreviation. For example, ap-shanghai represents the Shanghai region. For other available region abbreviations, see Available Regions.
topic_id
No
String
Log topic ID.
logset_name
No
String
Logset name.
topic_name
No
String
Log topic name.
multiple
No
String
When set to true, it indicates using the multi-topic search feature; when not specified, it indicates searching for a single topic.
topicType
No
String
When set to metric, it indicates querying a metric topic; when not specified, it indicates querying a log topic.
time
No
String
Time range for log search, from start time to end time. Format example: 2021-07-15T10:00:00.000,2021-07-15T12:30:00.000.
queryBase64
No
String
Search and analysis statement, encoded in base64Url. For search and analysis syntax rules, see Syntax Rules.
hideWidget
No
Boolean
Hides the Support/Document button in the lower right corner. Default is not hidden, and true means hidden.
hideTopNav
No
Boolean
Hides the top menu of the Tencent Cloud console. Default is not hidden, and true means hidden.
hideLeftNav
No
Boolean
Hides the left sidebar of the Tencent Cloud console. Default is not hidden, and true means hidden.
hideTopicSelect
No
Boolean
Hides the topic selection list. Default is not hidden, and true means hidden.
collapseTopicSelect
No
Boolean
Collapses the topic selection list. Default is not collapsed, and true means collapsed.
hideTopTips
No
Boolean
Hides the top product announcement prompt. Default is not hidden, and true means hidden.
hideConfigMenu
No
Boolean
Hides the Log Topic Configuration Management menu. Default is not hidden, and true means hidden.
hideDashboardMenu
No
Boolean
Hides the Dashboard menu in the Log Topic Configuration Management menu. Default is not hidden, and true means hidden.
hideAlertMenu
No
Boolean
Hides the Alarm menu in the Log Topic Configuration Management menu. Default is not hidden, and true means hidden.
hideCollectionMenu
No
Boolean
Hides the Collection Configuration menu in the Log Topic Configuration Management menu. Default is not hidden, and true means hidden.
hideIndexMenu
No
Boolean
Hides the Index Configuration menu in the Log Topic Configuration Management menu. Default is not hidden, and true means hidden.
hideMoreMenu
No
Boolean
Hides the More menu in the Log Topic Configuration Management menu. Default is not hidden, and true means hidden.
hideDashboard
No
Boolean
Hides the Add to Dashboard button. Default is not hidden, and true means hidden.
hideAlert
No
Boolean
Hides the Add to Alarm button. Default is not hidden, and true means hidden.
hideLogDownload
No
Boolean
Hides the Download Original Logs button. Default is not hidden, and true means hidden.
hideScheduleSql
No
Boolean
Hides the Save as Scheduled SQL Analysis button. Default is not hidden, and true means hidden.
hideFavorite
No
Boolean
Hides the Favorites button. Default is not hidden, and true means hidden.
hideHistory
No
Boolean
Hides the History button. Default is not hidden, and true means hidden.
Note:
You can specify the log topics for search in the URL parameters using either of the following two methods:
topic_id: Specify the log topic by log topic ID.
logset_name + topic_name: Specify the log topic by logset name and log topic name. Note that if the name of the logset or log topic changes, any URL using this method will become invalid.
Note: If both topic_id and the combination of logset_name + topic_name are provided, the topic_id parameter will take precedence.
When using the multi-topic search feature (multiple=true), you can specify up to 20 topics simultaneously:
Using topic_id: Concatenate multiple topic IDs using commas.
Using logset_name + topic_name: Concatenate multiple topic names and logset names using commas. Topic names should correspond to their respective logset names, such as topic_name=WAF Log topic of access logs,Log topic of CCN flow logs&logset_name=Demo logset,Demo logset.

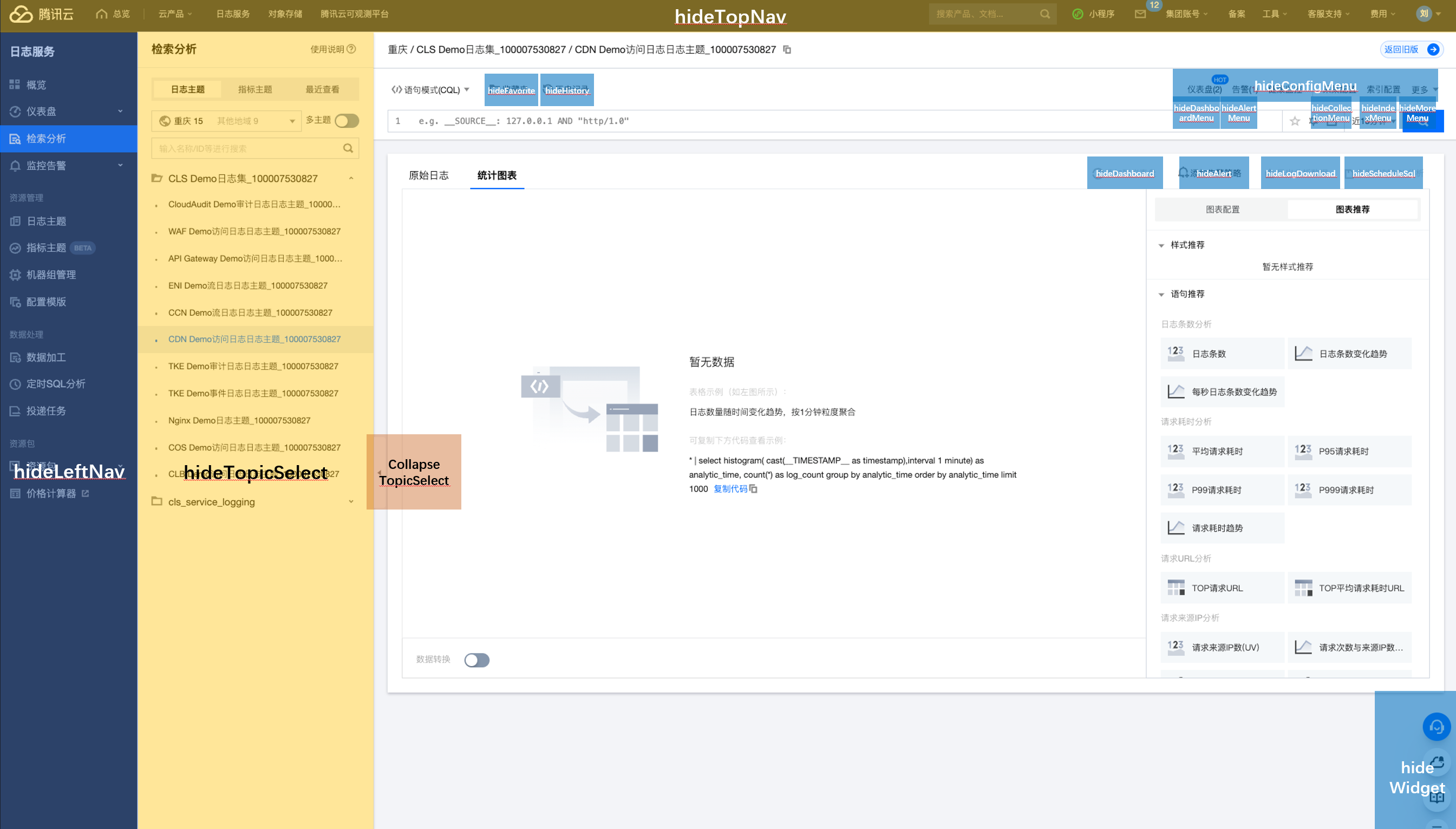

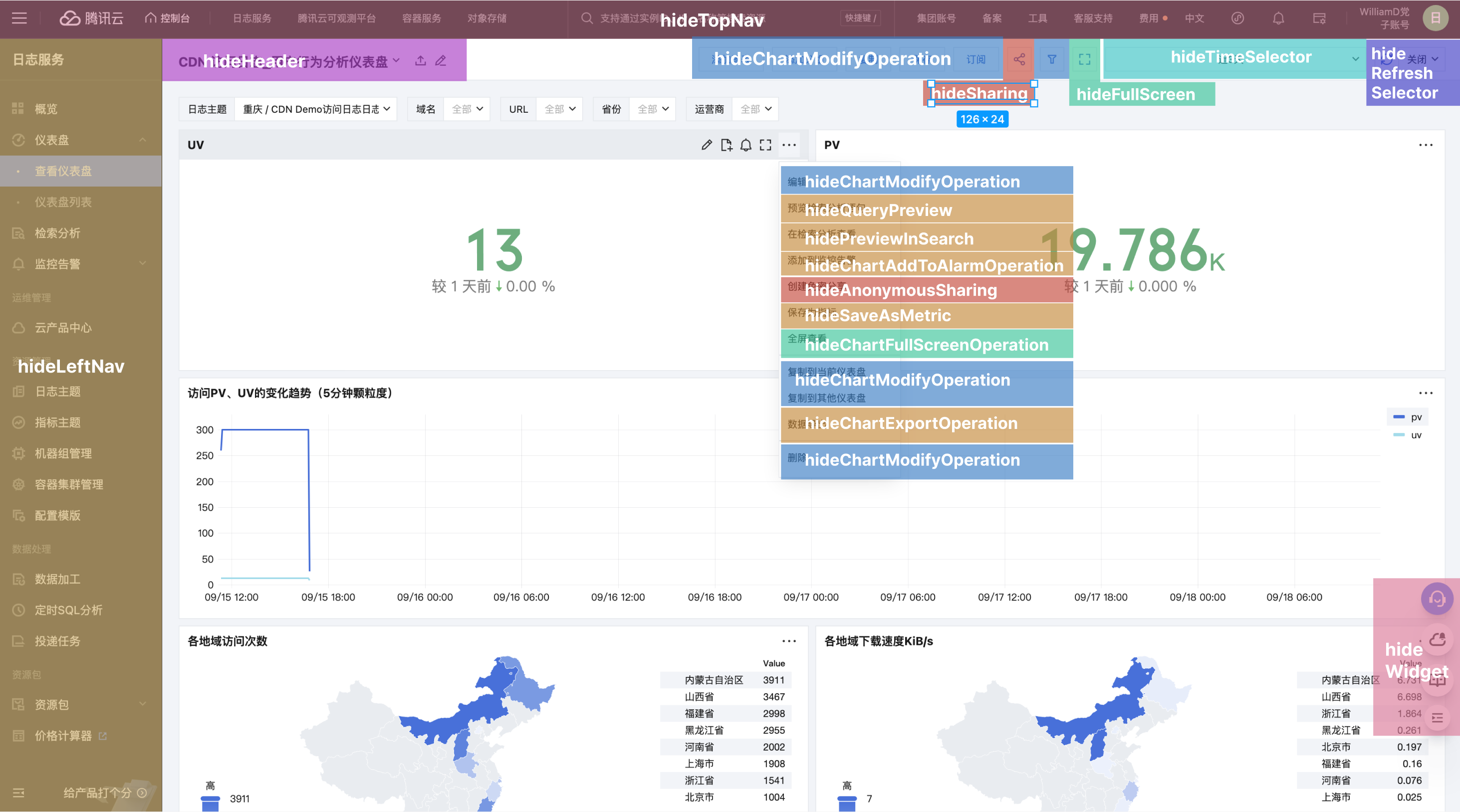

Correspondence between hidden parameters and page modules:
