Interaction mode has partial support for functions. When the Target Log Topic is a Dynamic log topic, interaction mode is unsupported.
Managing Visualization Functions

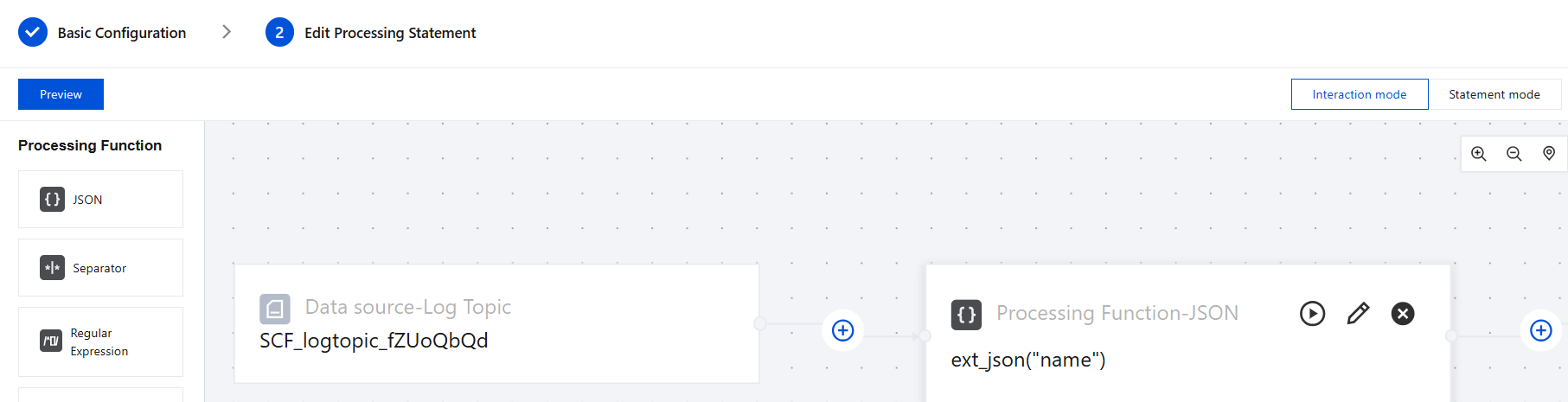

You may switch to Interaction mode on the Edit Processing Statement page.
Add a visualization function:
and select the visualization function category and name you need to add.
Debug a visualization function: Click ▶️ in the top-right corner of the visualization function.
Delete a visualization function: Click X in the top-right corner of the visualization function.
Edit a visualization function: Click
in the top-right corner of the visualization function.
The currently supported visualization functions are as follows:
Function Category
Visualization Function Name
Applicable Scenario
Extract Key Value
Extract fields and field values from JSON nodes.
Separator: Extract field values based on the separator. Users are advised to enter the field name.
Regular Expression: Extract field values using a regular expression. User input is required for the field name.
log structuring
Log Processing
Filter Logs: Configure conditions for filtering logs (multiple conditions are in an OR relationship). For example, if field A exists or field B does not exist, filter out the log.
Distribute Logs: Configure conditions for distributing logs.
For example, distribute logs with status="error" and message containing "404" to topic A.
For example, distribute logs with status="running" and message containing "200" to topic B.
Retain Logs: Configure conditions for preserving logs.
Delete/Preserve logs
Process Field
Delete Fields
Rename Field
Delete/Rename Field
Processing Case
Log Structuring
Raw Log
There are two fields, log and message, in logs that can be further structured.
Fill in your description of the processing function
Field
content
Yes
Select the original field to process
Separator
:
Yes
Split logs into multiple field values
new field name
module,delay_time,msg
Yes
New field extracted using a delimiter
Original field auto-delete
☑️
No
Process and delete the original field
Processing Result
Extract new field and field value as follows:
{
"dates":"2024-10-11 15:32:10.003",
"delay_time":"1.06s",
"level":"DEBUG",
"module":"cls_ETL",
"msg":"fields_renamed",
"offset":"281",
"path":"/logs/gate.log",
"traceid":"gateway3036810e0c33b"
}
Log Distribution
Raw Log
Distribute logs based on loglevel.
{
"__FILENAME__":"python.log",
"__SOURCE__":"127.0.0.1",
"log_level":"ERROR",
"status":"404",
"time":"2024-07-21 05:17:30.421"
}
Configuring a Processing Function for Data Visualization
Visualization Function
Configure Project
Value in Example
Required
Description
Processing function - Distribute Logs
Description
-
No
Fill in your description of the processing function
Groups
log_level="info"
Yes
Configure your distribution conditions. When conditions are met, logs will be sent to the corresponding log topic. The example shows a log topic named info.
Group 2
log_level="warning"
No
Configure your distribution conditions. When conditions are met, logs will be sent to the corresponding log topic. The example shows a log topic named warning.
Group 3
log_level="error" and status="400"
No
Configure your distribution conditions. When conditions are met, logs will be sent to the corresponding log topic. The example shows a log topic named error.
