This document will guide you on how to integrate the AIConversationKit component in a short time. Following this guide, you will complete the following key steps within 20 minutes and implement a conversational AI project with a complete UI.

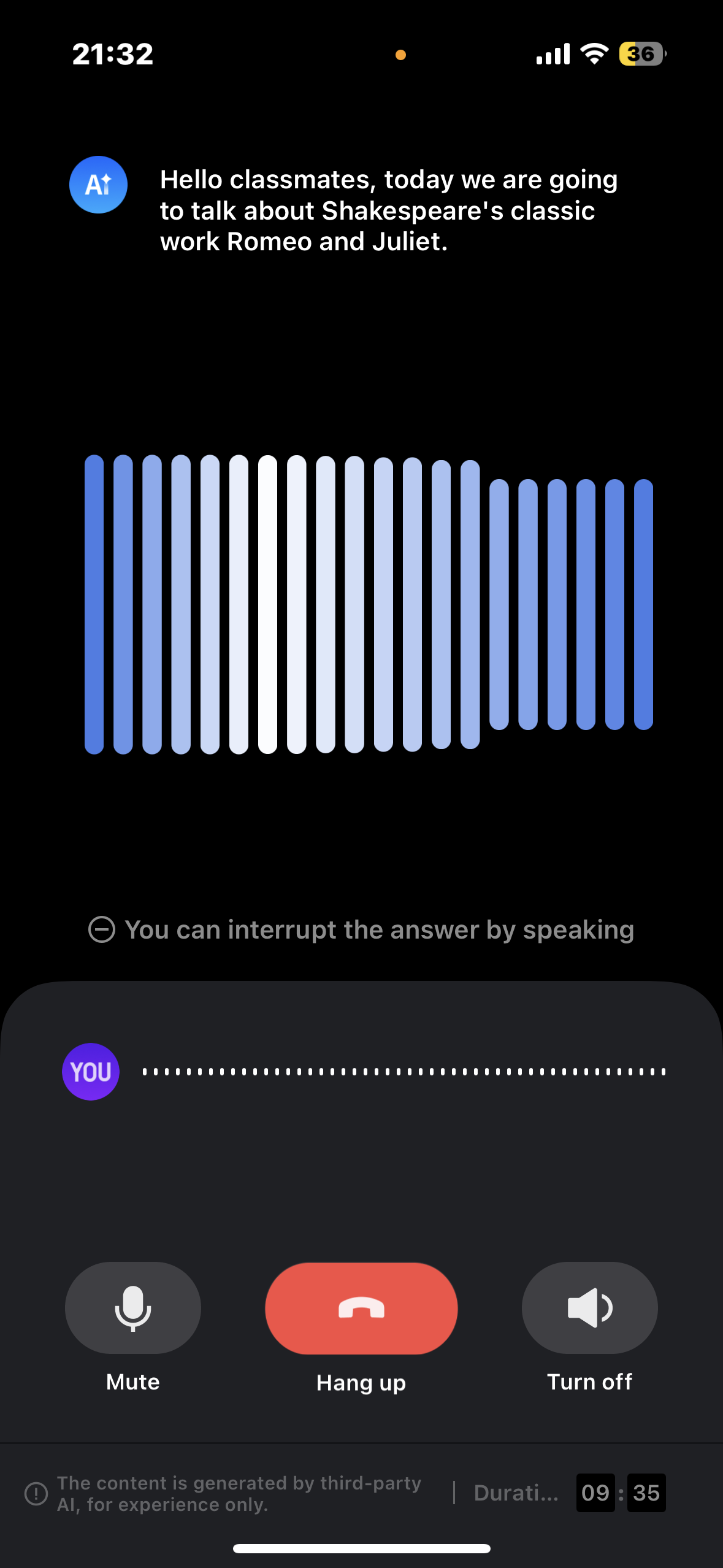

Conversational AI Interface




Environment Preparation

Minimum compatibility with iOS 13. Recommend using iOS 13 and above versions.
Xcode 13 and above versions.

Step One: Activating Service

Before initiating a conversation using AiConversationKit, you need to go to the console to activate conversational AI service for AiConversationKit. For specific steps, please refer to Activate Service.

Step Two: Download the AIConversationKit Component

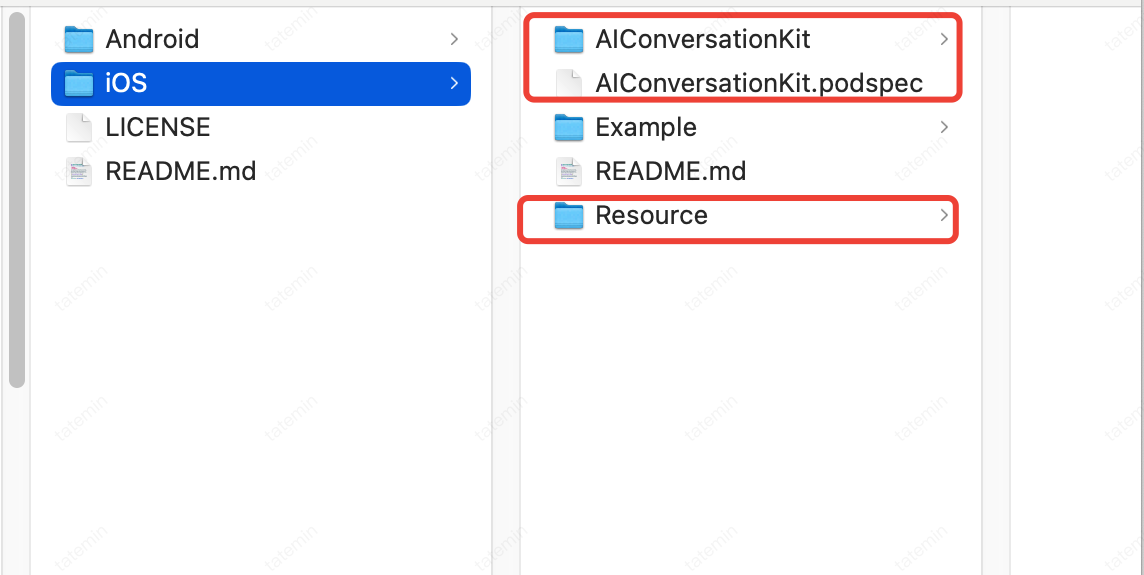

Go to Github to download the zip file. After decompressing it, you will see the AIConversationKit directory, the AIConversationKit.podspec file, and the Resource directory.


Step Three: Configuration

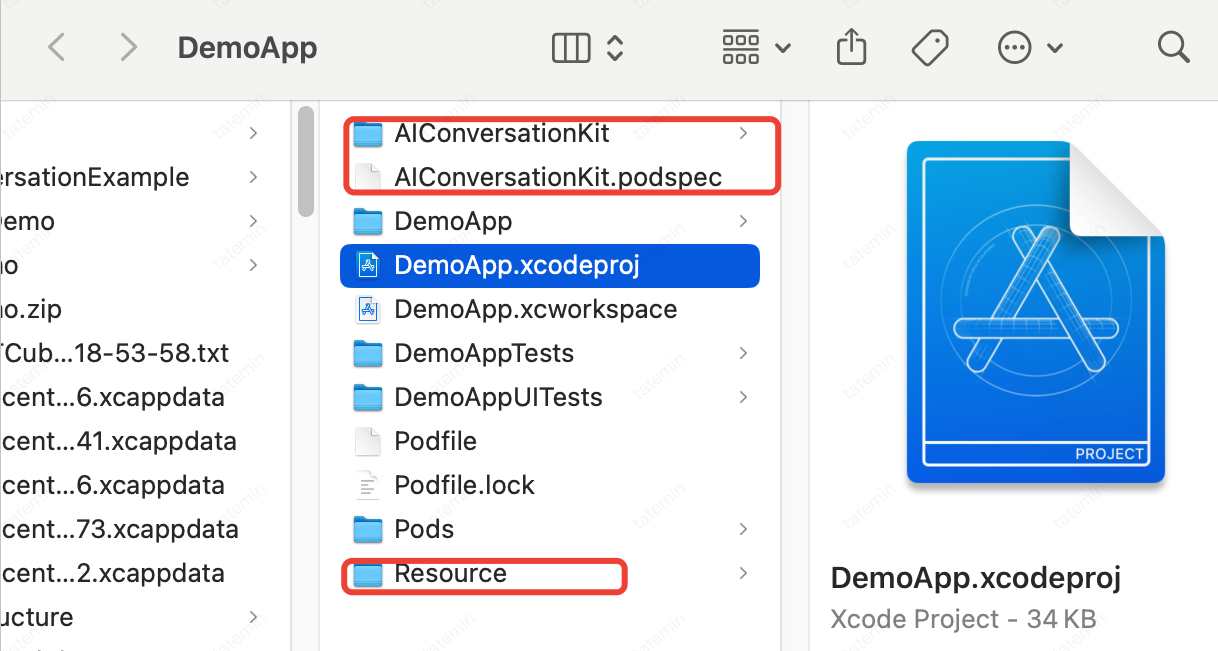

1. Copy the AIConversationKit, podspec and Resource in the directory decompressed in the above step two to your project:

2. Then, in the Podfile of your project, add the following dependencies:
   pod 'AIConversationKit',:path => 'AIConversationKit.podspec':
3. Once the configuration completed, execute pod install to complete the installation of dependencies;
4. Use XCode to open .xcworkspace and configure the certificate information:


Step Four: Sign In

Add the following code to your project. It enables the component to log in by calling relevant APIs in TUILogin. This step is critical because only after logging in can AIConversationkit features be used properly. Please patiently check if the relevant parameters are configured correctly.
swift
import TUICore
import AIConversationKit

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
        let sdkAppId = 1600000001  // Please replace with your sdkAppId
        let userId = "people"      // Please replace with your UserID
        let secretKey = "xxx"      // Please replace with your sdkSecretKey
        let userSig = GenerateTestUserSig.genTestUserSig(sdkAppId: sdkAppId, identifier: userId, secrectkey: secretKey)
        TUILogin.login(Int32(sdkAppId), userID: userId, userSig:userSig){
            print("login success")
        } fail: { code, message in
            print("login failed, code: \\(code), error: \\(message ?? "nil")")
        }
    return true
}


Parameter
Type
Description
userID
String
Customers customize their Custom User IDs according to their own business, only allowing a combination of uppercase and lowercase letters (a-z A-Z), numbers (0-9), underline, and hyphen.
sdkAppID
Int32
The unique identifier SDKAppID of the audio and video application created in Tencent RTC console.
secretKey
String
The SDKSecretKey of the audio and video application created in Tencent RTC console.
userSig
String
A security protection signature used for user login authentication, confirming the authenticity of the user, and preventing malicious attackers from misappropriating your cloud service usage rights.
Note:
Development environment: If you are in the local development and debugging stage, you can use the local GenerateTestUserSig.genTestSig function to generate userSig. Note that the SDKSecretKey in this method may be easily decompiled and reverse engineered. Once the key is leaked, attackers may misappropriate your Tencent Cloud traffic.
Production environment: If you want to launch your project, use UserSig generation by the server.

Step Five: Start Your First Conversational AI project

Upon success of TUILogin.login, see the following code to initiate conversational AI.
Swift
New Option
let startParams = StartAIConversationParams()

let sdkAppId = 1600000001  // 1,Replace your sdkAppId
let secretKey = "xxx"      // 2,Replace your sdkSecretKey
let aiRobotId = "robot_\\(TUILogin.getUserID() ?? "")"
let aiRobotSig = GenerateTestUserSig.genTestUserSig(sdkAppId: sdkAppId, identifier: aiRobotId, secrectkey: secretKey)
startParams.agentConfig = AIConversationDefine.AgentConfig.generateDefaultConfig(aiRobotId: aiRobotId, aiRobotSig: aiRobotSig)

startParams.secretId = "xxx"           // 3,Replace your secretId
startParams.secretKey = "xxx"          // 4,Replace your secretKey

// 5,Replace your llmConfig
startParams.llmConfig = "{\\"LLMType\\":\\"openai\\",\\"Model\\":\\"hunyuan-turbo-latest\\",\\"SystemPrompt\\":\\"You are a personal assistant\\",\\"APIUrl\\":\\"https://hunyuan.cloud.tencent.com/openai/v1/chat/completions\\",\\"APIKey\\":\\"xxxx\\",\\"History\\":5,\\"Streaming\\":true}"
// 6,Replace your ttsConfig
startParams.ttsConfig = "{\\"TTSType\\":\\"tencent\\",\\"AppId\\":\\"xxx\\",\\"SecretId\\":\\"xxx\\",\\"SecretKey\\":\\"xxx\\",\\"VoiceType\\":\\"502001\\",\\"Speed\\":1.25,\\"Volume\\":5,\\"PrimaryLanguage\\":1,\\"FastVoiceType\\":\\"\\"}"

let aiViewController = AIConversationViewController(aiParams: startParams)
navigationController?.pushViewController(aiViewController, animated: true)

1. Use the data obtained in step four for sdkAppId and sdkSecretKey.

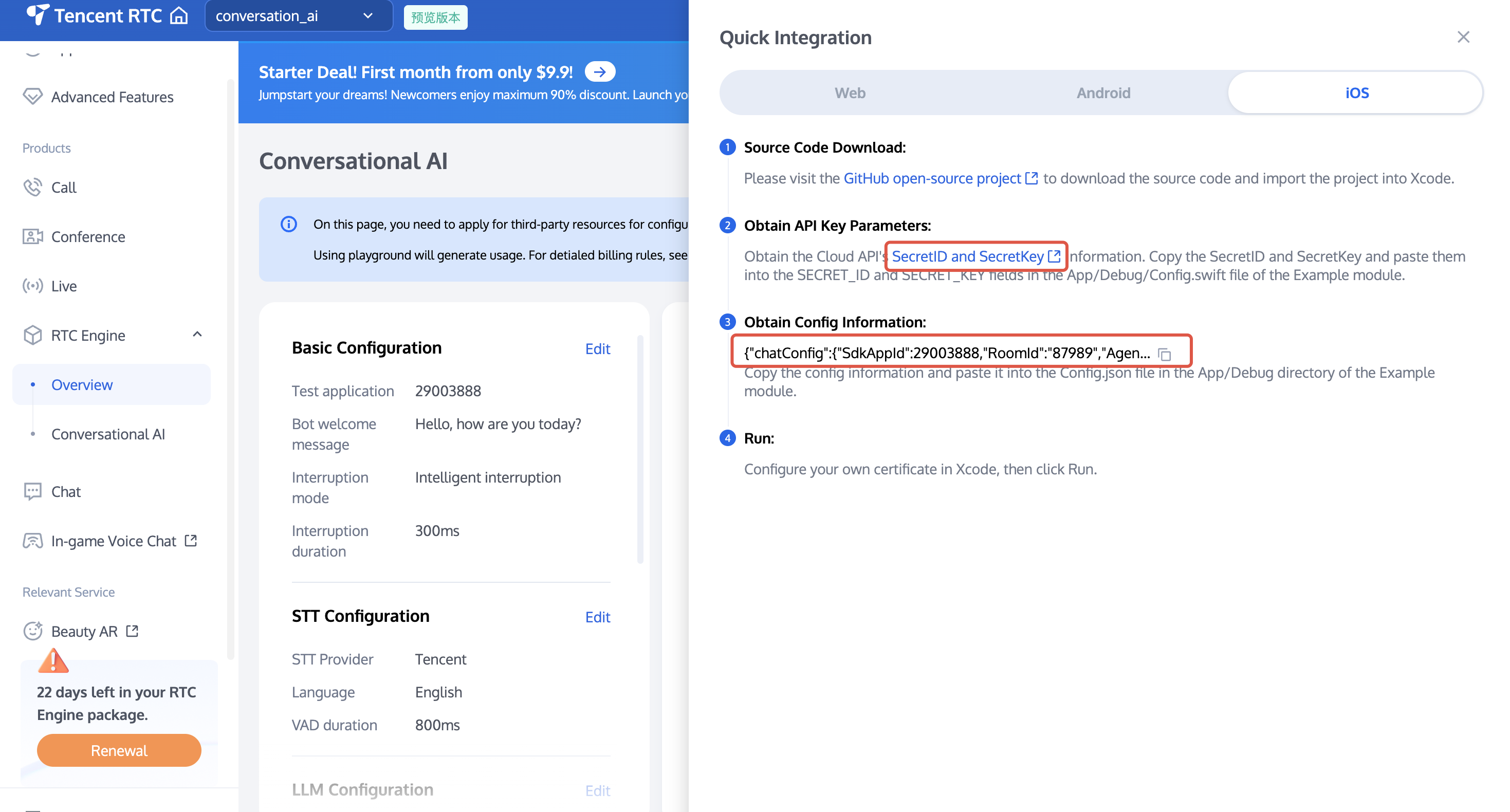

2. On the application details page, select RTC-Engine > Conversational AI, refer to No-Code Quick Integration Of Conversational AI Feature configure conversational AI service parameters, including basic configuration, STT, LLM, TTS, click lower right corner Quick Interation, switch to iOS, obtain SecretId, SecretKey and Config parameters.

3. Copy the SecretId and SecretKey of TencentCloud API to startParams.secretId and startParams.secretKey.
4. Copy the Config information to a JSON parsing tool, such as JsonUtil. Copy the string value corresponding to LLMConfig to startParams.llmConfig, and copy the string value corresponding to TTSConfig to startParams.ttsConfig.
Note:
Development environment: If you are in the local development and debugging stage, you can quickly integrate AI conversation by adopting the above method. In this method, account information is very easy to be decompiled and reverse cracked. Once your key is leaked, attackers can misappropriate your Tencent Cloud traffic.
Live production environment: If your project is going to be launched, please save the above account information to the server to avoid misappropriation of traffic; related dialogue configurations can also be saved to the server for convenient dynamic adjustment of the AI dialogue effect.

Contact us

If you have any questions or suggestions during the integration process, you are welcome to contact: info_rtc@tencent.com .
