AudienceListView
Last updated: 2025-09-22 21:12:30
Download PDF

Component Overview

The audience list component mainly provides following features: display the real-time number of participants in the live broadcast, and show the online audience list in the live broadcast.
Audience List Component

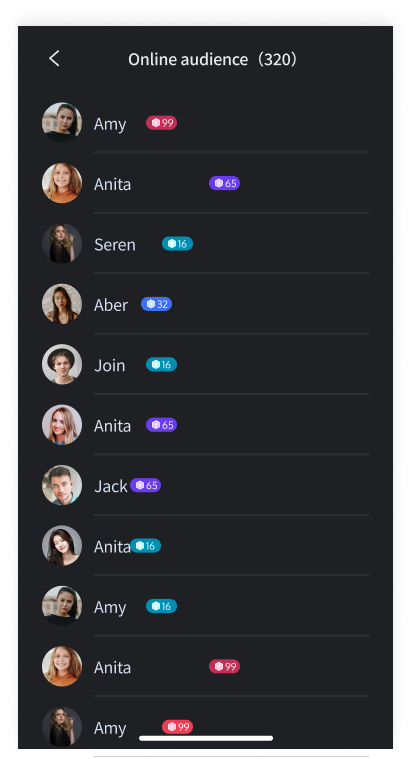

Click Component to Display Online Audience Details Panel

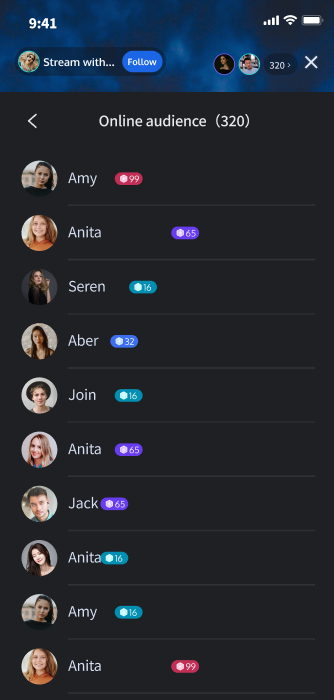

Effect Display after Integration







Component Integration

Android
iOS
Flutter
step 1:Download the TUILiveKit component

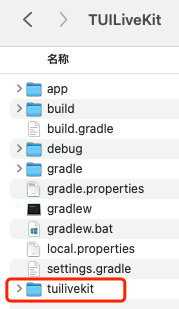

Clone/download the code from GitHub, then copy the tuilivekit subdirectory under the Android directory to the same-level directory as your app in the current project, as shown in the figure below:



step 2:Project Configuration
1. Add the jitpack repository address in the settings.gradle.kts (or settings.gradle) file in the project root directory: add the jitpack repository dependency (to download the SVGAPlayer third-party library for playing gift svg animations).
settings.gradle.kts
settings.gradle
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()

        // Add jitpack repository url
        maven { url = uri("https://jitpack.io") }
    }
}
dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()

        // Add jitpack repository url
        maven { url 'https://jitpack.io' }
    }
}
2. Add the following code in the settings.gradle.kts (or settings.gradle) file in the project root directory. It enables importing the downloaded tuilivekit component into your current project:
settings.gradle.kts
settings.gradle
include(":tuilivekit")
include ':tuilivekit'
3. Locate the build.gradle.kts (or build.gradle) file under the app directory and add the following code in it. It enables declaring the current app's dependency on the newly joined tuilivekit component:
build.gradle.kts
build.gradle
api(project(":tuilivekit"))
api project(':tuilivekit')
Note:
Note: The TUILiveKit project internally depends on TRTC SDK, IM SDK, tuiroomengine, and the public library tuicore by default. Developers do not need to separately configure them. If needed, just modify the tuilivekit/build.gradle file to upgrade.
4. Since we use Java reflection features internally in the SDK, some classes in the SDK need to be added to the non-obfuscation list. Therefore, you need to add the following code in the proguard-rules.pro file:
-keep class com.tencent.** { *; }
-keep class com.trtc.uikit.livekit.livestreamcore.** { *; }
-keep class com.trtc.uikit.livekit.component.gift.store.model.** { *; }
-keep class com.squareup.wire.** { *; }
-keep class com.opensource.svgaplayer.proto.** { *; }

-keep class com.tcmediax.** { *; }
-keep class com.tencent.** { *; }
-keep class com.tencent.xmagic.** { *; }
-keep class androidx.exifinterface.** {*;}
-keep class com.google.gson.** { *;}
# Tencent Effect SDK - beauty
-keep class com.tencent.xmagic.** { *;}
-keep class org.light.** { *;}
-keep class org.libpag.** { *;}
-keep class org.extra.** { *;}
-keep class com.gyailib.**{ *;}
-keep class com.tencent.cloud.iai.lib.** { *;}
-keep class com.tencent.beacon.** { *;}
-keep class com.tencent.qimei.** { *;}
-keep class androidx.exifinterface.** { *;}
5. Find the AndroidManifest.xml file under the app directory, add tools:replace="android:allowBackup" and android:allowBackup="false" in the application node, overwrite the setting within component, and use your own setting.
  // app/src/main/AndroidManifest.xml

  <application
    ...

    // add the following configuration to overwrite the configuration in the dependent sdk
    android:allowBackup="false"
    tools:replace="android:allowBackup">
Import components using CocoaPods. The specific steps for importing components are as follows:

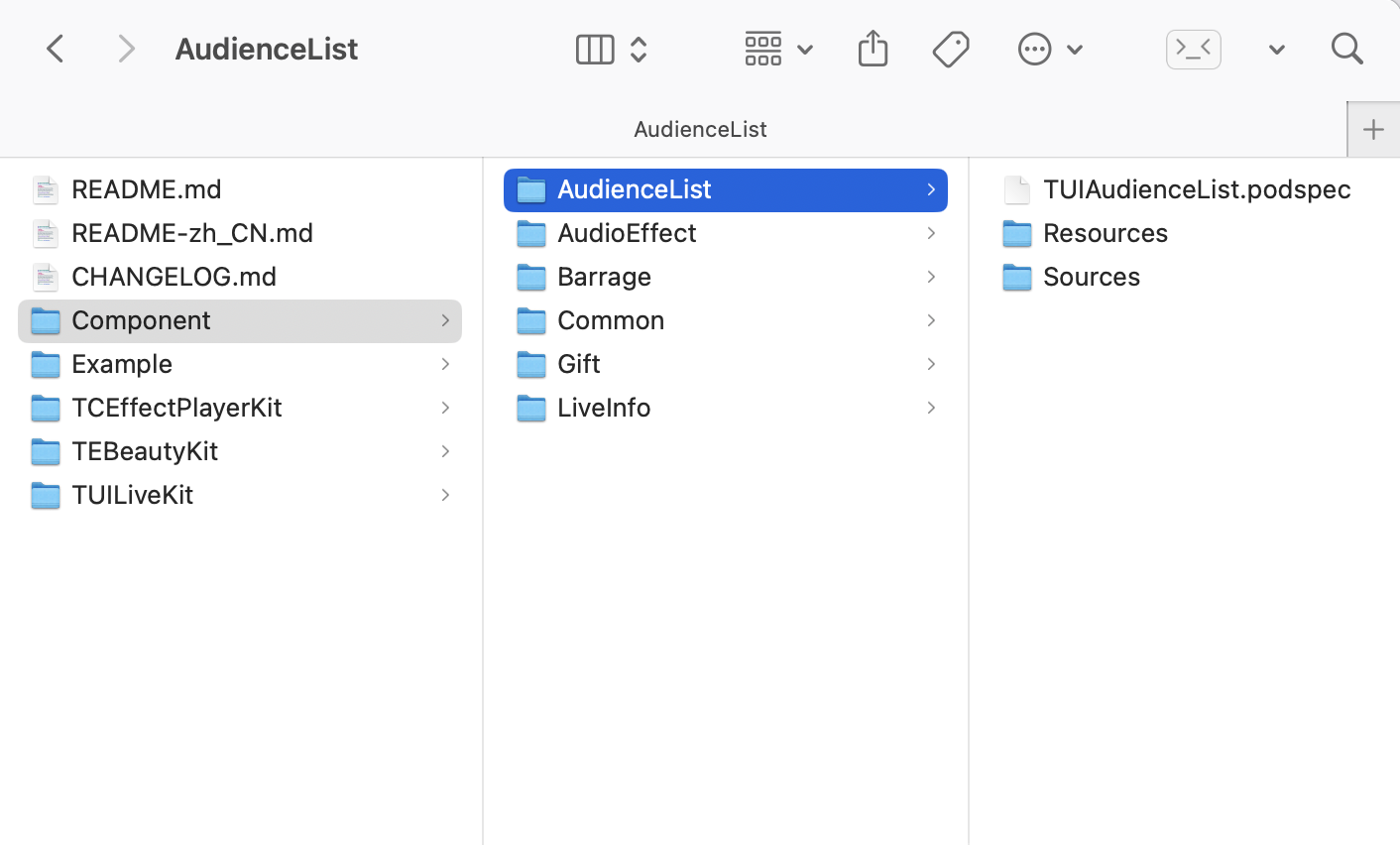

1. You need to download the AudienceList and Common folders on GitHub to your local system.

2. Add dependencies of pod 'TUIAudienceList' and pod 'TUILiveResources' in your Podfile.
Swift
target 'xxxx' do
  ...
  ...
  pod 'TUILiveResources', :path => '../Component/Common/TUILiveResources.podspec'
  // The path is the relative path between your Podfile file and TUILiveResources.podspec file.
  pod 'TUIAudienceList', :path => '../Component/AudienceList/TUIAudienceList.podspec'
  // The path is the relative path between your Podfile file and TUIAudienceList.podspec file.
end
If you don't have a Podfile file, first use the terminal to cd into the xxxx.xcodeproj directory, then create it with the following command:
pod init
3. In the terminal, first cd to the Podfile directory, then execute the following commands to install components.
pod install
4. Any issues you encounter during integration and use, feel free to give feedback.
1. reate a directory named livekit_component under the lib directory in your project, and copy the common directory and component/audience_list directory from the livekit/lib directory on github to the livekit_component directory you created.
2. Adjust the import directory and change the import path to a relative path within your own project.

Component Usage

Notes:
Since online audience information can only be obtained in the live streaming room. When using the audience list component, note the use limits and reuse it after successfully entering the live streaming room.

Creating Components

Android
iOS
Flutter
You have two ways to create a live streaming room information component, as follows:
1. Create in code
AudienceListView audienceListView = new AudienceListView(getContext());
2. Define in xml:
<com.trtc.uikit.livekit.component.audiencelist.AudienceListView
    android:id="@+id/audience_list_view"
    android:layout_width="135dp"
    android:layout_height="24dp"
    android:layout_gravity="end" />
import TUIAudienceList

let audienceListView = AudienceListView()
// ...Add audienceListView to your parent view here and adjust the layout
Note：
This operation needs to be executed after successfully entering the room. You need to set enterRoomSuccessNotifier.value to true after success.
final enterRoomSuccessNotifier = ValueNotifer(false);
// change enterRoomSuccessNotifier.value to true after enter room success

ValueListenableBuilder(
    valueListenable: enterRoomSuccessNotifier,
    builder: (context, enterRoomSuccess, _) {
      return Visibility(
        visible: enterRoomSuccess,
        child: AudienceListWidget(
          roomId: 'replace with your roomId',
        ),
      );
    }),

Component Initialization

Android
iOS
Flutter
After successfully entering the room, you can call the init method of the AudienceListView to bind data and events for the component.
Note:
This operation needs to be executed after successful room entry. The callback for room entry success will return a TUIRoomDefine.RoomInfo object.
audienceListView.init(roomInfo);
After successfully entering the room, you can call the initialize method of the AudienceListView to bind data and events for the component.
Note:
Note: This operation needs to be executed after successful room entry. The callback for room entry success will return a TUIRoomInfo object.
audienceListView.initialize(roomInfo: roomInfo)
For details, see Creating Components
