Message Sending Component allows users to input emojis and text messages in the bullet screen and send the message to the live streaming room. Users in the live streaming room can receive the message through the Live Streaming Rendering Component and display it on the screen, thereby enhancing the fun of the live stream and making the interaction experience more enjoyable and vivid.
Android
iOS
Flutter
BarrageInputView: Message Sending Component that allows users to input emojis and text messages in the barrage and send the message to the live streaming room.
BarrageInputView: Message Sending Component, which allows users to input emojis and text messages in the barrage and send the message to the live streaming room.
BarrageSendWidget: Message Sending Component, which enables users to input emojis and text messages in the barrage and send the message to the live streaming room.

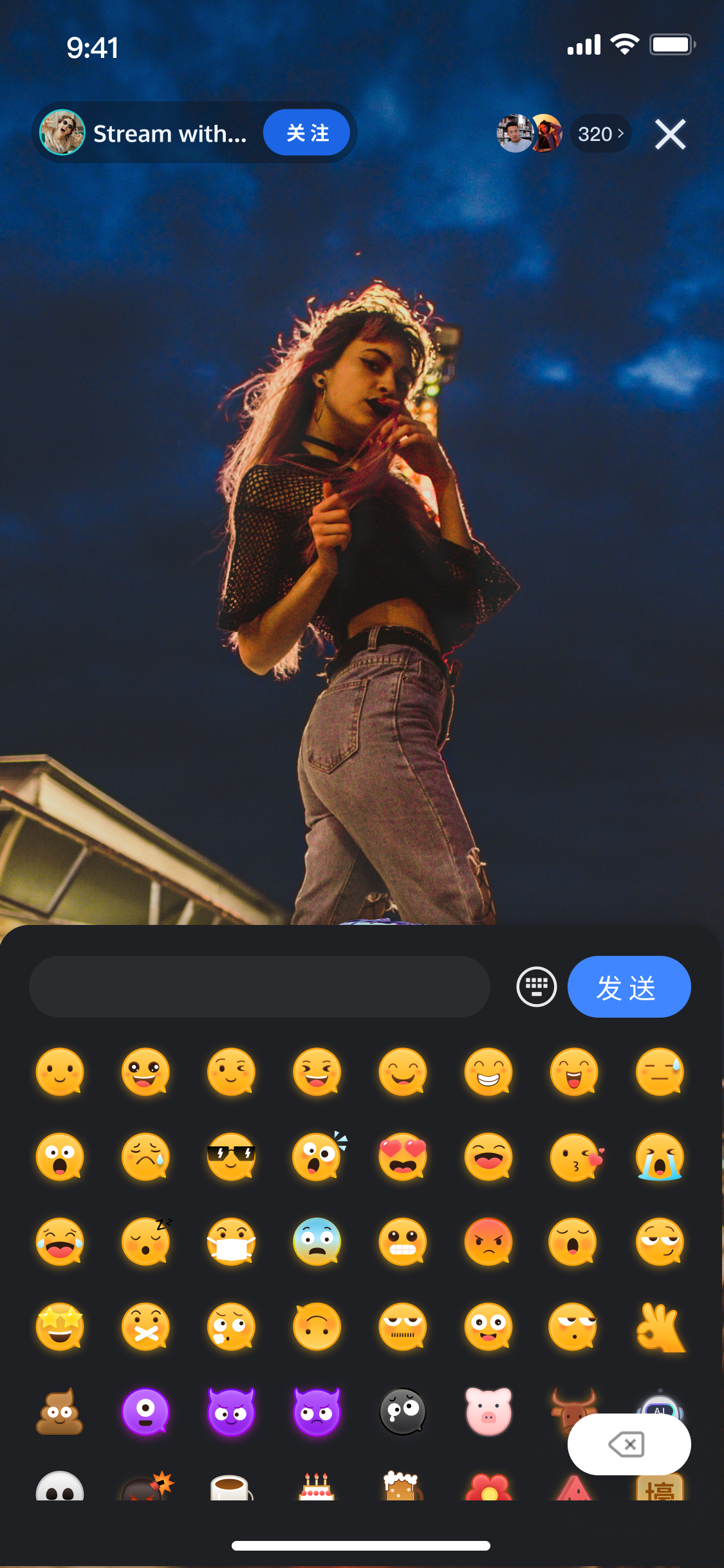

Rendering display:
Notes:
1. Support switching between system keyboard and emoji keyboard.
2. To respect emoji design copyright, large emoji element slicing is not included in the TUILiveKit project. Before official commercial launch, please replace it with other emoji packs designed or owned by yourself. The default little yellow face emoji pack copyright belongs to Tencent Cloud, and it can be licensed for a fee. If you need to obtain authorization, you can submit a ticket to contact us.
Component Integration
Android
iOS
Flutter
step 1:Download the TUILiveKit component

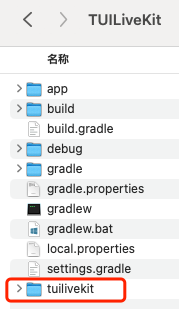

Clone/download the code from GitHub, then copy the tuilivekit subdirectory under the Android directory to the same-level directory as your app in the current project, as shown in the figure below:
step 2:Project Configuration
1. Add the jitpack repository address in the settings.gradle.kts (or settings.gradle) file in the project root directory: add the jitpack repository dependency (to download the SVGAPlayer third-party library for playing gift svg animations).
2. Add the following code in the settings.gradle.kts (or settings.gradle) file in the project root directory. It enables importing the downloaded tuilivekit component into your current project:
settings.gradle.kts
settings.gradle
include(":tuilivekit")
include ':tuilivekit'
3. Locate the build.gradle.kts (or build.gradle) file under the app directory and add the following code in it. It enables declaring the current app's dependency on the newly joined tuilivekit component:
build.gradle.kts
build.gradle
api(project(":tuilivekit"))
api project(':tuilivekit')
Note:
Note: The TUILiveKit project internally depends on TRTC SDK, IM SDK, tuiroomengine, and the public library tuicore by default. Developers do not need to separately configure them. If needed, just modify the tuilivekit/build.gradle file to upgrade.
4. Since we use Java reflection features internally in the SDK, some classes in the SDK need to be added to the non-obfuscation list. Therefore, you need to add the following code in the proguard-rules.pro file:
-keep class com.tencent.**{*;}
-keep class com.trtc.uikit.livekit.livestreamcore.**{*;}
-keep class com.trtc.uikit.livekit.component.gift.store.model.**{*;}
-keep class com.squareup.wire.**{*;}
-keep class com.opensource.svgaplayer.proto.**{*;}
-keep class com.tcmediax.**{*;}
-keep class com.tencent.**{*;}
-keep class com.tencent.xmagic.**{*;}
-keep class androidx.exifinterface.**{*;}
-keep class com.google.gson.**{*;}
# TencentEffect SDK - beauty
-keep class com.tencent.xmagic.**{*;}
-keep class org.light.**{*;}
-keep class org.libpag.**{*;}
-keep class org.extra.**{*;}
-keep class com.gyailib.**{*;}
-keep class com.tencent.cloud.iai.lib.**{*;}
-keep class com.tencent.beacon.**{*;}
-keep class com.tencent.qimei.**{*;}
-keep class androidx.exifinterface.**{*;}
5. Find the AndroidManifest.xml file under the app directory, add tools:replace="android:allowBackup" and android:allowBackup="false" in the application node, overwrite the setting within component, and use your own setting.
// app/src/main/AndroidManifest.xml
<application
...
// add the following configuration to overwrite the configuration in the dependent sdk
android:allowBackup="false"
tools:replace="android:allowBackup">
Import components using CocoaPods. The specific steps to import components are as follows:

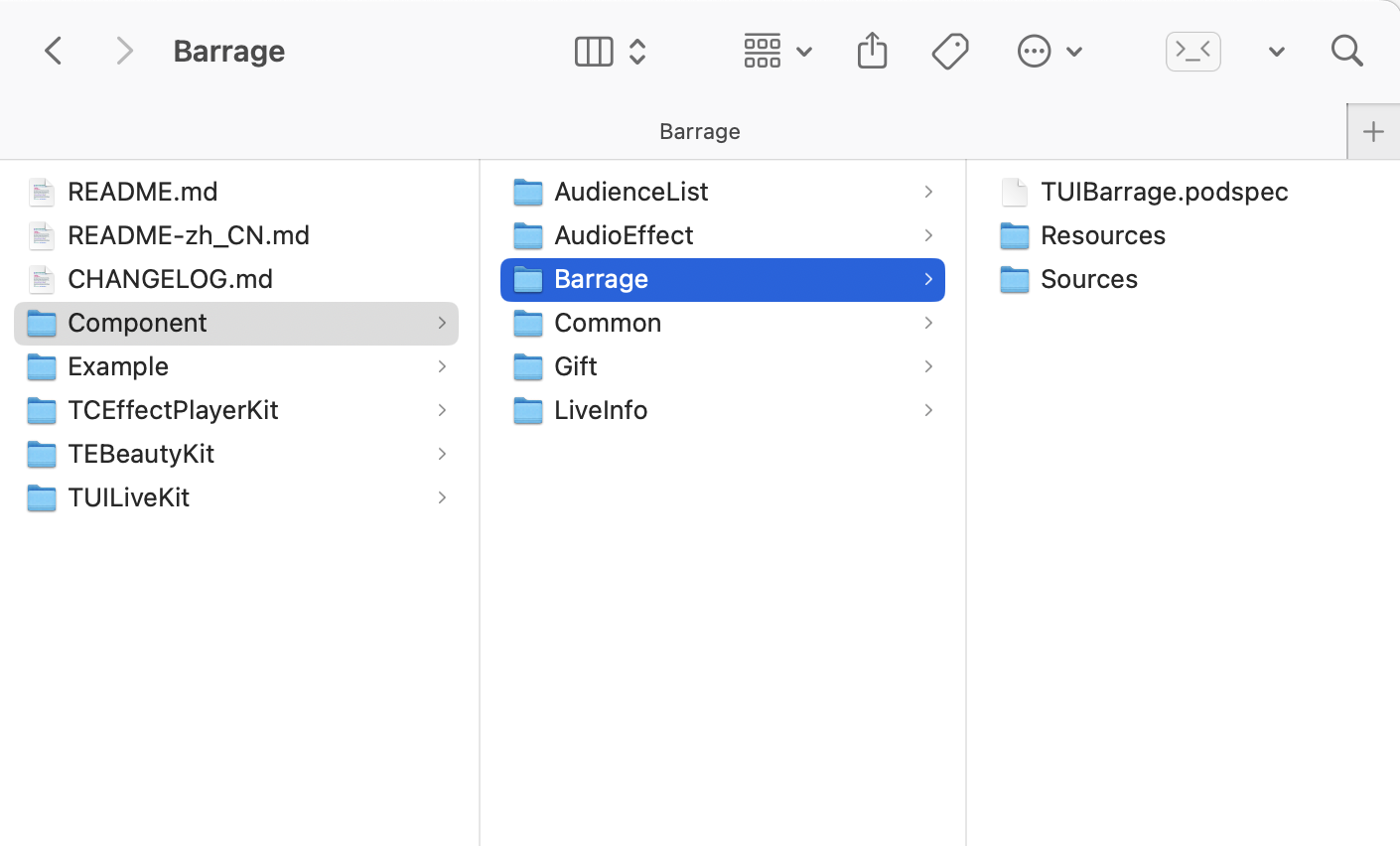

1. You need to download the Barrage folder from GitHub to your local system.
2. Add pod 'TUIBarrage' dependency in the Podfile file of your project.
Swift
target 'xxxx'do
...
...
pod 'TUIBarrage', :path =>'../Component/Barrage/TUIBarrage.podspec'
// The path is the relative path between your Podfile file and TUIBarrage.Podspec file.
end
If you don't have a Podfile file, first use the terminal to cd into the xxxx.xcodeproj directory, then create it with the following command:
pod init
3. In the terminal, first cd to the Podfile directory, then execute the following commands to install components.
pod install
4. Any issues you encounter during integration and use, feel free to give feedback.
1. In the dependencies node of the pubspec.yaml file in the project engineering, add a dependency on barrage.
dependencies:
flutter:
sdk: flutter
flutter_localizations:
sdk: flutter
intl: ^0.19.0
# Add barrage dependency
live_uikit_barrage: ^1.0.0
1. Execute the
2. flutter pub get command.
3. Configure multilingual support. Add multilingual support for the gift component to the localizationsDelegates and supportedLocales properties of your application's MaterialApp.
MaterialApp(localizationsDelegates: const [
...BarrageLocalizations.localizationsDelegates,
], supportedLocales: const [
...BarrageLocalizations.supportedLocales,
],
// ...
);
Component Usage
Notes:
Since the barrage component requires live room information parameters, it is necessary to load the barrage component after Audience Entering the Live Room or Anchor Create Live Room.
Integration of Sending Barrage Message Component
Android
iOS
Flutter
At the position to send barrage, create BarrageInputView. Click to bring up the input interface.
At the position to send barrage, create BarrageInputView. Click to bring up the input interface.
importTUIBarrage
let barrageInputView =BarrageInputView(roomId: roomId)
// ...Add barrageInputView to your parent view here and adjust the layout.
Notes:
You can only send danmaku into the room successfully after successfully entering the room.
Construct the BarrageSendController and BarrageSendWidget objects where you need to connect to send barrage messages. Add the constructed BarrageSendWidget object to your Widget tree. Sample code:
