Media Source Configuration Panel（Web Desktop Browser）
Last updated: 2025-10-20 17:35:52
Download PDF

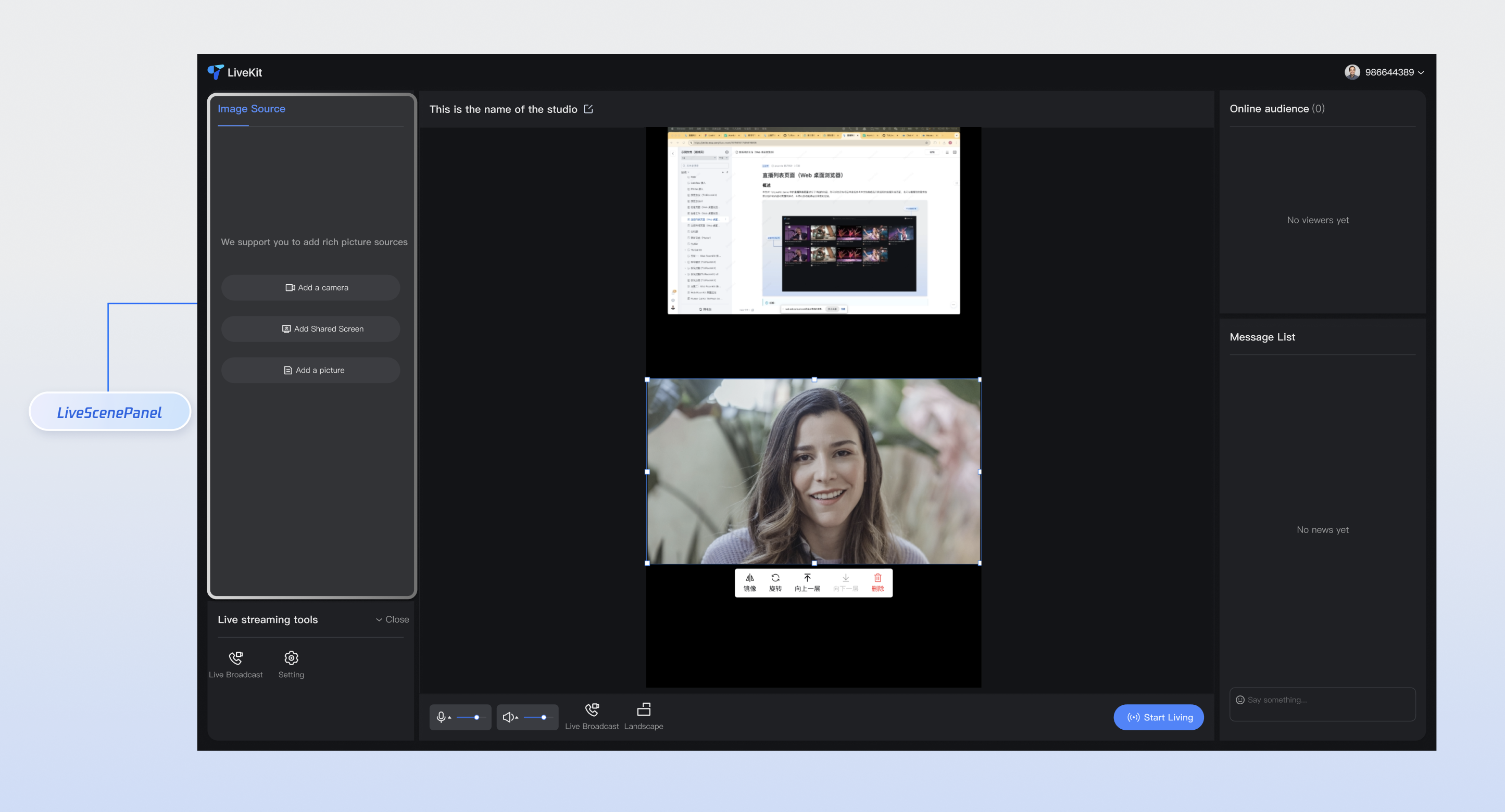

This document provides a detailed introduction to the Media Source Configuration Panel (LiveScenePanel). You can refer to the sample code in this document for seamless integration of our pre-developed components in your existing project, or customize the style and layout according to your needs by following the component customization section in the document.


Core Features

Feature Category
Specific Capability
Multi-material type support
Camera, screen sharing, image, video, text and multiple material types, support device selection and parameter configuration.
Intelligent display mode
Display the full panel when no material is present, and automatically switch to compact button mode when material is available, with responsive layout adaptation.
Material management operations
Complete material management features including addition, editing, rename, deletion, and sorting, with support for batch operations.
Real-time preview configuration
Camera configuration pop-up provides real-time preview, supports parameter adjustment and device testing.
Permission and Error Handling
Automated permission check, Friendly error prompt and retry mechanism to guarantee user experience.

Component Integration

Step 1: Configuring the Environment and Activating the Service

Before performing quick integration, you need to refer to preparations to meet the related environment configuration and activate the corresponding service.

Step 2: Dependency Installation

npm
pnpm
yarn
npm install tuikit-atomicx-vue3 @tencentcloud/uikit-base-component-vue3 --save
pnpm add tuikit-atomicx-vue3 @tencentcloud/uikit-base-component-vue3
yarn add tuikit-atomicx-vue3 @tencentcloud/uikit-base-component-vue3

Step 3: Integrating the Media Source Configuration Panel

Add Media Source Configuration Panel to your project and use it. Copy the following example code directly into your project to show the media source configuration panel.
<template>
  <UIKitProvider theme="dark" language="en-US">
    <div class="app-container">
      <LiveScenePanel class="live-scene-panel" />
    </div>
  </UIKitProvider>
</template>

<script setup lang="ts">
import { onMounted } from 'vue';
import { UIKitProvider } from '@tencentcloud/uikit-base-component-vue3';
import { LiveScenePanel, useLoginState } from 'tuikit-atomicx-vue3';

const { login } = useLoginState();

async function initLogin() {
  try {
    await login({
      sdkAppId: 0,        // SDKAppID, see Step 1 to get it
      userId: '',         // UserID, see Step 1 to get it
      userSig: '',        // userSig, see Step 1 to get it
    });
  } catch (error) {
    console.error('login error:', error);
  }
}

onMounted(async () => {
  await initLogin();
});
</script>

<style scoped>.app-container{width:100vw;height:100vh;display:flex;justify-content:center;align-items:center;padding:20px;box-sizing:border-box}.live-scene-panel{width:20%;height:80vh;background:rgba(0,0,0,0.8);border-radius:16px}</style>

Customize Component

The media source configuration panel provides users with various and dimensional feature APIs for user customization, allowing users to customize material types, operation behavior, style themes, etc. After completing Step 3 above, see the following example to adjust the UI of the media source configuration panel, or directly copy the sample code incrementally into the component to generate the effect example.

Style Customization

Customize component appearance via CSS class names and variables, supporting comprehensive customization of theme colors, layout styles, animation effects, and more.
<template>
  <LiveScenePanel class="custom-live-scene-panel" />
</template>

<style>.app-container{width:100vw;height:100vh;display:flex;justify-content:center;align-items:center;padding:20px;box-sizing:border-box}.custom-live-scene-panel{width:100%;max-width:300px;height:80vh;background:linear-gradient(135deg,#667eea 0%,#764ba2 100%);border:2px solid #4c63d2;border-radius:16px;padding:24px;box-shadow:0 8px 32px rgba(0,0,0,0.1);color:white}.custom-live-scene-panel .add-material-item{background-color:#147fcb!important;color:white;border:none;border-radius:0!important;padding:12px 24px;font-weight:600;transition:all 0.3s ease}.custom-live-scene-panel .materials-list{margin-top:20px;gap:16px;display:grid;grid-template-columns:repeat(auto-fill,minmax(200px,1fr))}.custom-live-scene-panel .material-item{background:rgba(255,255,255,0.1);border:1px solid rgba(255,255,255,0.2);border-radius:12px;padding:16px;backdrop-filter:blur(10px);transition:all 0.3s ease}.custom-live-scene-panel .material-item:hover{background:rgba(255,255,255,0.2);transform:scale(1.02)}</style>

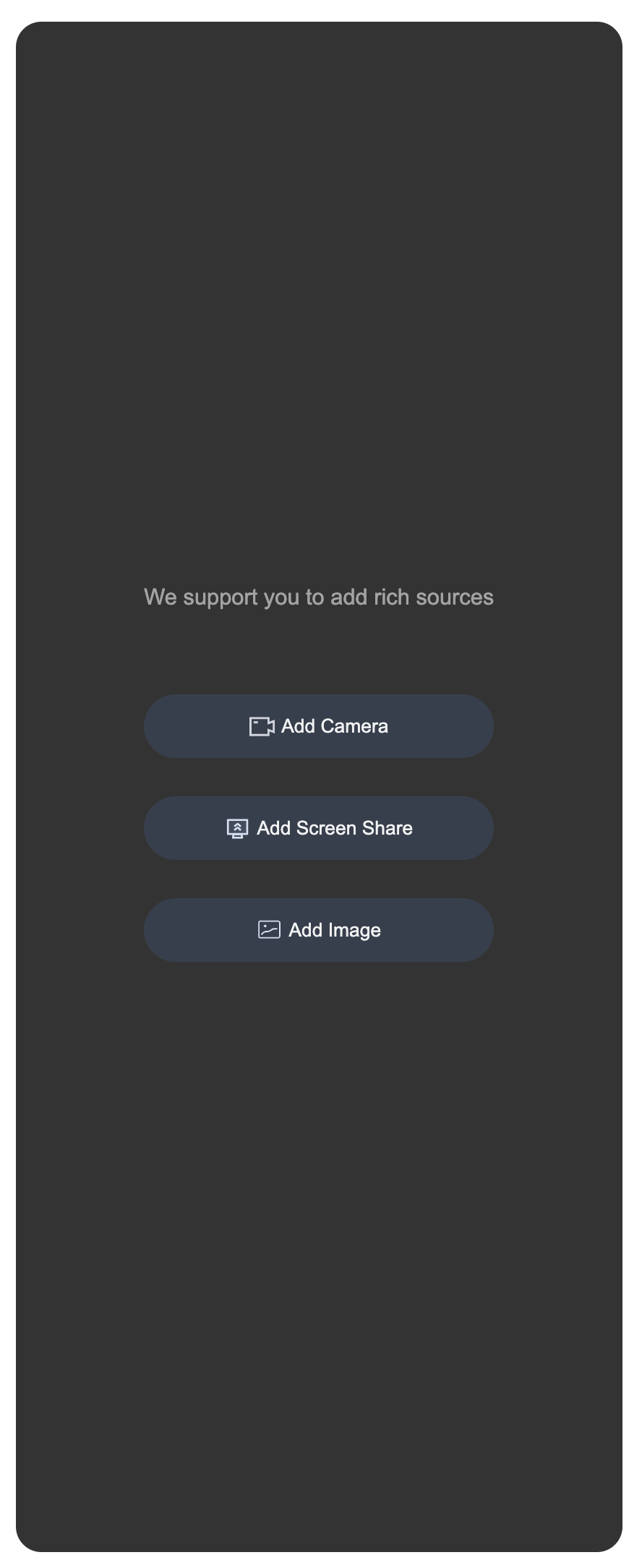

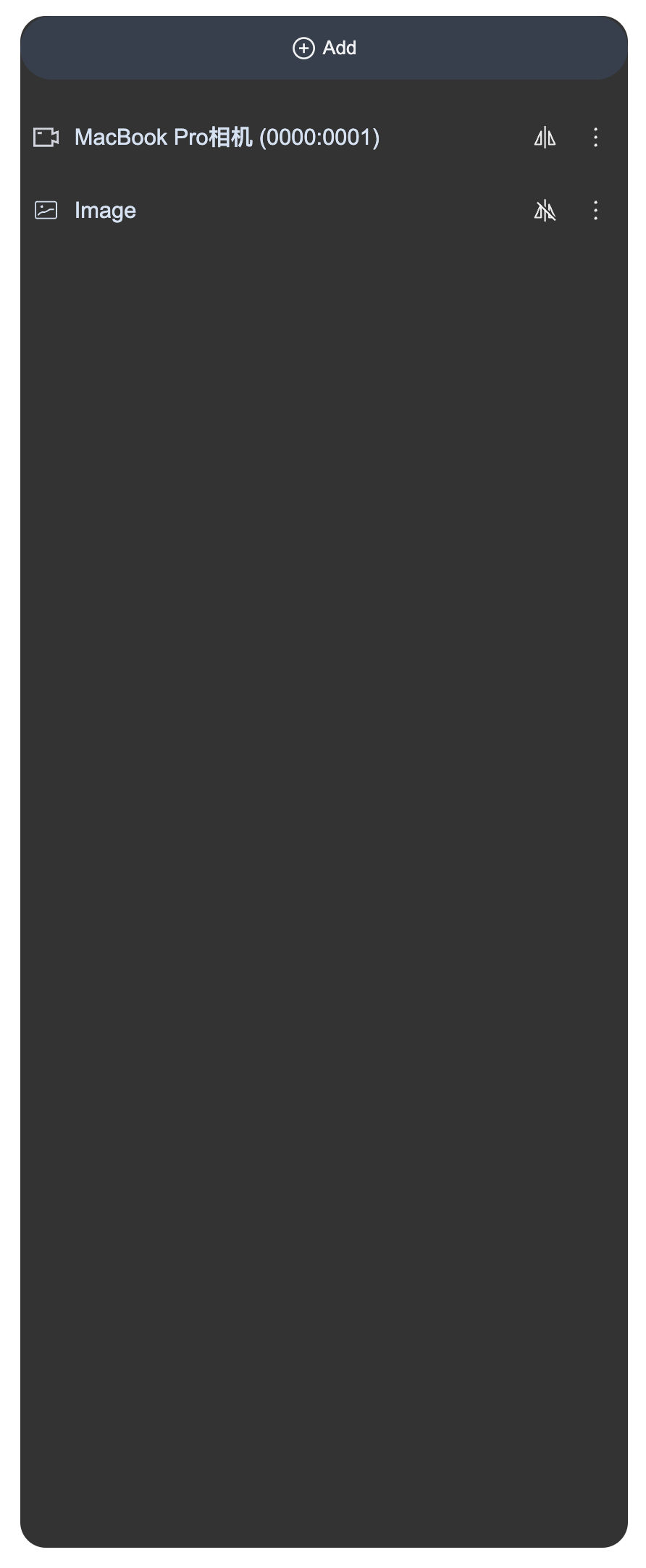

Before modification

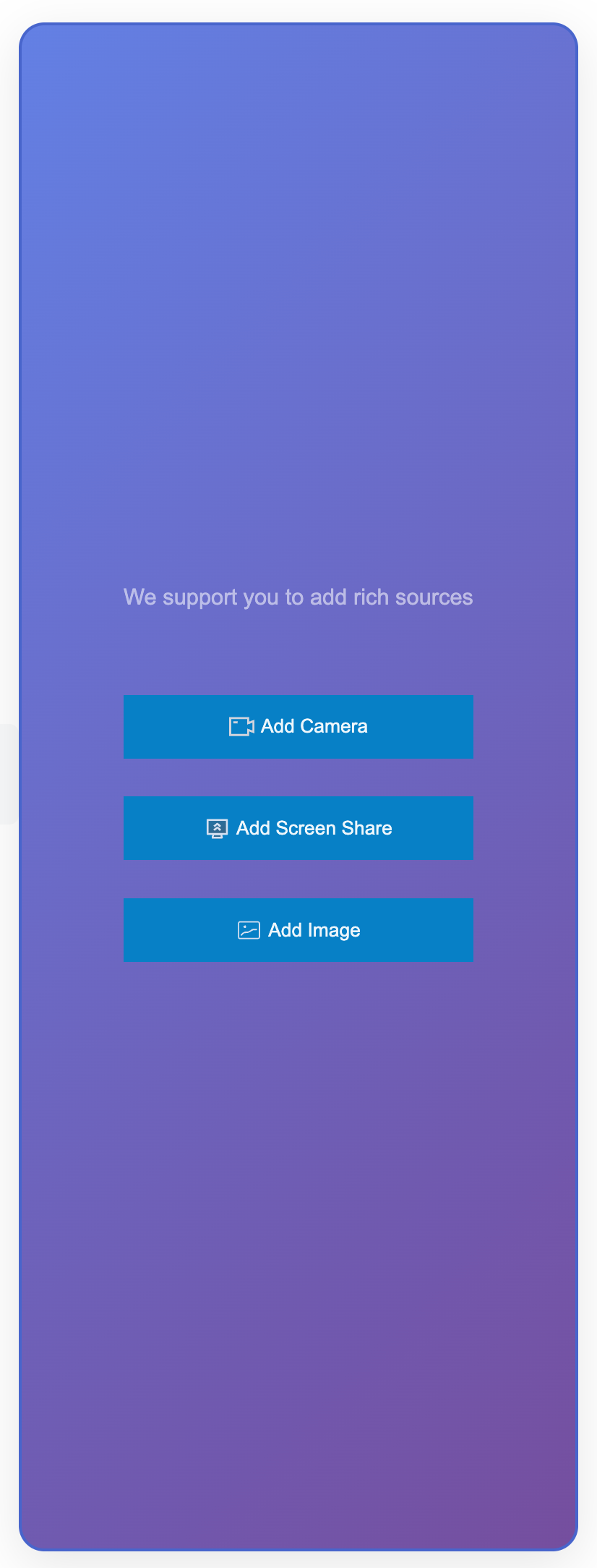

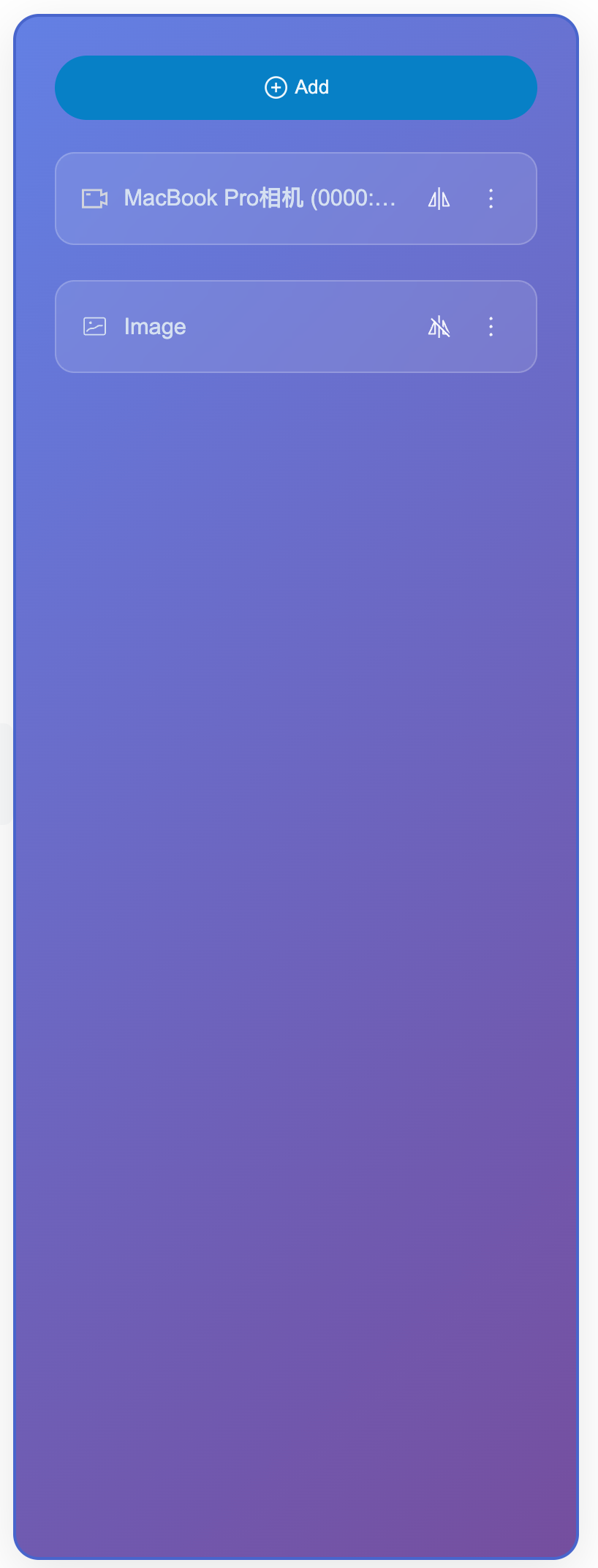

After modification
Add Media Source Interface
Media Source Setting Interface
Add Media Source Interface
Media Source Setting Interface









Listening for Status and Scaling

Using status management Hooks, you can listen to internal state changes in the media source configuration panel and implement responsive processing for external business logic. This approach allows you to monitor and respond to operations like adding, deleting, and updating materials without modifying the component's internal code, thereby achieving data synchronization, service statistics, user prompts, and other extended features.
<template>
    <!-- status display -->
    <div class="status-info">
      <span>Number of materials: {{ materialCount }}</span>
      <span>Last operation: {{ lastOperation }}</span>
    </div>
    <LiveScenePanel />
    <LiveScenePanel />
    <StreamMixer />
</template>

<script setup lang="ts">
import { ref, computed, watch } from 'vue';
import { LiveScenePanel, useVideoMixerState, StreamMixer } from 'tuikit-atomicx-vue3';
