Guest Connection (Android)
Last updated: 2025-12-04 14:47:29
AtomicXCore provides the CoGuestStore module, purpose-built to manage the complete audience co-hosting workflow. You do not need to handle complex state synchronization or signaling logic—simply call a few intuitive methods to add robust audio and video interaction between viewers and hosts in your live stream.

Core Features

CoGuestStore supports the two most common co-hosting scenarios:
Audience Request to Join: An audience member initiates a co-hosting request, and the host can accept or reject it.
Host Invites to Join: The host can invite any audience member in the live room to co-host.

Core Concepts

Core Concept
Core Responsibilities
Key APIs / Properties
CoGuestStore
Manages the entire signaling workflow for viewer-host interaction (Apply, Invite, Accept, Reject, Disconnect) and maintains real-time state of related user lists.
coGuestState: A read-only StateFlowcontaining connected (current co-guests), applicants (pending applications), and invitees (pending invitations).
applyForSeat(): Viewer applies to become a co-guest.
inviteToSeat(): Host invites a viewer to take a seat.
acceptApplication(): Host accepts a link mic application.
disconnect(): Terminates the connection.
HostListener
Used by the UI layer to respond to events such as "Received viewer application" or "Viewer accepted invitation".
onGuestApplicationReceived(): Triggered when a viewer applies for a seat.
onHostInvitationResponded(): Triggered when a viewer responds to an invitation.
GuestListener
Used by the UI layer to respond to events such as "Received host invitation", "Application approved", or "Kicked off seat".
onHostInvitationReceived(): Triggered when the host sends an invitation.
onGuestApplicationResponded(): Triggered when the host processes an application (Accept/Reject).
onKickedOffSeat(): Triggered when kicked off the seat by the host.

Implementation

Step 1: Component Integration

Refer to Quick Start to integrate AtomicXCore and complete the setup of LiveCoreView.

Step 2: Implement Audience Request to Join

Audience-Side Implementation

As an audience member, your primary tasks are to initiate a request, handle the host's response, and leave the seat when desired.
1. Initiate a Co-hosting Request
When the user taps the "Request to Join" button, call the applyForSeat method.
import io.trtc.tuikit.atomicxcore.api.live.CoGuestStore
import io.trtc.tuikit.atomicxcore.api.CompletionHandler

val liveId = "Room ID"
val guestStore = CoGuestStore.create(liveId)

// User clicks "Request to Join"
fun requestToConnect() {
    // timeout: Request timeout in seconds, e.g., 30
    guestStore.applyForSeat(
        seatIndex = 0,
        timeout = 30,
        extraInfo = null,
        completion = object : CompletionHandler {
            override fun onSuccess() {
                println("Co-hosting request sent, waiting for host response...")
            }

            override fun onFailure(code: Int, desc: String) {
                println("Failed to send request: $desc")
            }
        }
    )
}
2. Listen for Host Response
Add a GuestListener to receive the host's response.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.device.DeviceStore
import io.trtc.tuikit.atomicxcore.api.live.CoGuestStore
import io.trtc.tuikit.atomicxcore.api.live.GuestListener
import io.trtc.tuikit.atomicxcore.api.live.LiveUserInfo

class YourActivity : AppCompatActivity() {
    val liveId = "Room ID"
    val guestStore = CoGuestStore.create(liveId)
    val deviceStore = DeviceStore.shared()
    private val guestListener = object : GuestListener() {
        override fun onGuestApplicationResponded(isAccept: Boolean, hostUser: LiveUserInfo) {
            if (isAccept) {
                println("Host ${hostUser.userName} accepted your request. Preparing to join the seat.")
                // Co-hosting request accepted; enable camera and microphone
                DeviceStore.shared().openLocalCamera(true, completion = null)
                DeviceStore.shared().openLocalMicrophone(completion = null)
                // Update UI, e.g., disable request button and show co-hosting status
            } else {
                println("Host ${hostUser.userName} rejected your request.")
                // Show rejection notification
            }
        }
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        guestStore.addGuestListener(guestListener)
    }

    override fun onDestroy() {
        super.onDestroy()
        guestStore.removeGuestListener(guestListener)
    }
}
3. Leave the Seat
When the co-hosting audience member wants to end the interaction, call disconnect to return to audience status.
// User clicks "Leave Seat"
fun leaveSeat() {
    guestStore.disconnect(object : CompletionHandler {
        override fun onSuccess() {
            println("Successfully left the seat")
        }

        override fun onFailure(code: Int, desc: String) {
            println("Failed to leave seat: $desc")
        }
    })
}
4. (Optional) Cancel Request
To withdraw a pending request before the host responds, call cancelApplication.
// User clicks "Cancel Request"
fun cancelRequest() {
    guestStore.cancelApplication(object : CompletionHandler {
        override fun onSuccess() {
            println("Request cancelled")
        }

        override fun onFailure(code: Int, desc: String) {
            println("Failed to cancel request: $desc")
        }
    })
}

Host-Side Implementation

As a host, your main responsibilities are to receive requests, display the applicant list, and process requests.
1. Listen for New Co-hosting Requests
Add a HostListener to be notified when a new audience request arrives.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.live.CoGuestStore
import io.trtc.tuikit.atomicxcore.api.live.HostListener
import io.trtc.tuikit.atomicxcore.api.live.LiveUserInfo

class YourActivity : AppCompatActivity() {
    val liveId = "Room ID"
    val guestStore = CoGuestStore.create(liveId)
    val hostListener = object : HostListener() {
        override fun onGuestApplicationReceived(guestUser: LiveUserInfo) {
            println("Received co-hosting request from ${guestUser.userName}")
            // Update UI, e.g., show a badge on the "Request List" button
        }
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // Add listener
        guestStore.addHostListener(hostListener)
    }

    override fun onDestroy() {
        super.onDestroy()
        // Remove listener
        guestStore.removeHostListener(hostListener)
    }
}
2. Display Request List
CoGuestStore maintains the current list of applicants in real time. Subscribe to this list to update your UI.
class YourActivity : AppCompatActivity() {
    val liveId = "Room ID"
    val guestStore = CoGuestStore.create(liveId)

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        // Subscribe to applicant list updates
        lifecycleScope.launch {
            guestStore.coGuestState.applicants.collect { applicants ->
                println("Current number of applicants: ${applicants.size}")
                // Update your "Applicant List" UI here
                // updateApplicantListView(applicants)
            }
        }
    }
}
3. Process Co-hosting Requests
When you select an audience member and choose "Accept" or "Reject", call the corresponding method.
// Host taps "Accept" for a given userId
fun accept(userId: String) {
    guestStore.acceptApplication(userId, object : CompletionHandler {
        override fun onSuccess() {
            println("Accepted $userId's request. They are joining the stage.")
        }

        override fun onFailure(code: Int, desc: String) {
            println("Failed to accept request: $desc")
        }
    })
}

// Host taps "Reject"
fun reject(userId: String) {
    guestStore.rejectApplication(userId, object : CompletionHandler {
        override fun onSuccess() {
            println("Rejected $userId's request")
        }

        override fun onFailure(code: Int, desc: String) {
            println("Failed to reject request: $desc")
        }
    })
}

Step 3: Implement Host Inviting Audience to Join the Stage

Host-Side Implementation

1. Send Invitation to Audience
When the host selects an audience member and taps "Invite to Co-host", call the inviteToSeat method.
// Host selects an audience member and sends an invitation
fun invite(userId: String) {
    // timeout: Invitation timeout duration in seconds
    guestStore.inviteToSeat(
        inviteeID = userId,
        seatIndex = 0,
        timeout = 30,
        extraInfo = null,
        completion = object : CompletionHandler {
            override fun onSuccess() {
                println("Invitation sent to $userId. Waiting for response...")
            }

            override fun onFailure(code: Int, desc: String) {
                println("Failed to send invitation: $desc")
            }
        }
    )
}
2. Listen for Audience Response
Listen for the onHostInvitationResponded event via HostListener.
// In HostListener implementation
override fun onHostInvitationResponded(isAccept: Boolean, guestUser: LiveUserInfo) {
    if (isAccept) {
        println("Audience member ${guestUser.userName} accepted your invitation")
    } else {
        println("Audience member ${guestUser.userName} rejected your invitation")
    }
}

Audience-Side Implementation

1. Receive Host Invitation
Listen for the onHostInvitationReceived event via GuestListener.
// In GuestListener implementation
override fun onHostInvitationReceived(hostUser: LiveUserInfo) {
    println("Received co-hosting invitation from host ${hostUser.userName}")
    // Show a dialog to let the user choose "Accept" or "Reject"
    // showInvitationDialog(hostUser)
}
2. Respond to Invitation
After the user makes a selection, call the corresponding method.
val inviterId = "Inviting Host ID" // Obtained from onHostInvitationReceived

// User taps "Accept"
fun accept() {
    guestStore.acceptInvitation(inviterId, object : CompletionHandler {
        override fun onSuccess() {
            // Enable camera and microphone
            DeviceStore.shared().openLocalCamera(true, completion = null)
            DeviceStore.shared().openLocalMicrophone(completion = null)
        }

        override fun onFailure(code: Int, desc: String) {
            println("Failed to accept invitation: $desc")
        }
    })
}

// User taps "Reject"
fun reject() {
    guestStore.rejectInvitation(inviterId, object : CompletionHandler {
        override fun onSuccess() {
            println("Invitation rejected")
        }

        override fun onFailure(code: Int, desc: String) {
            println("Failed to reject invitation: $desc")
        }
    })
}

Run and Test

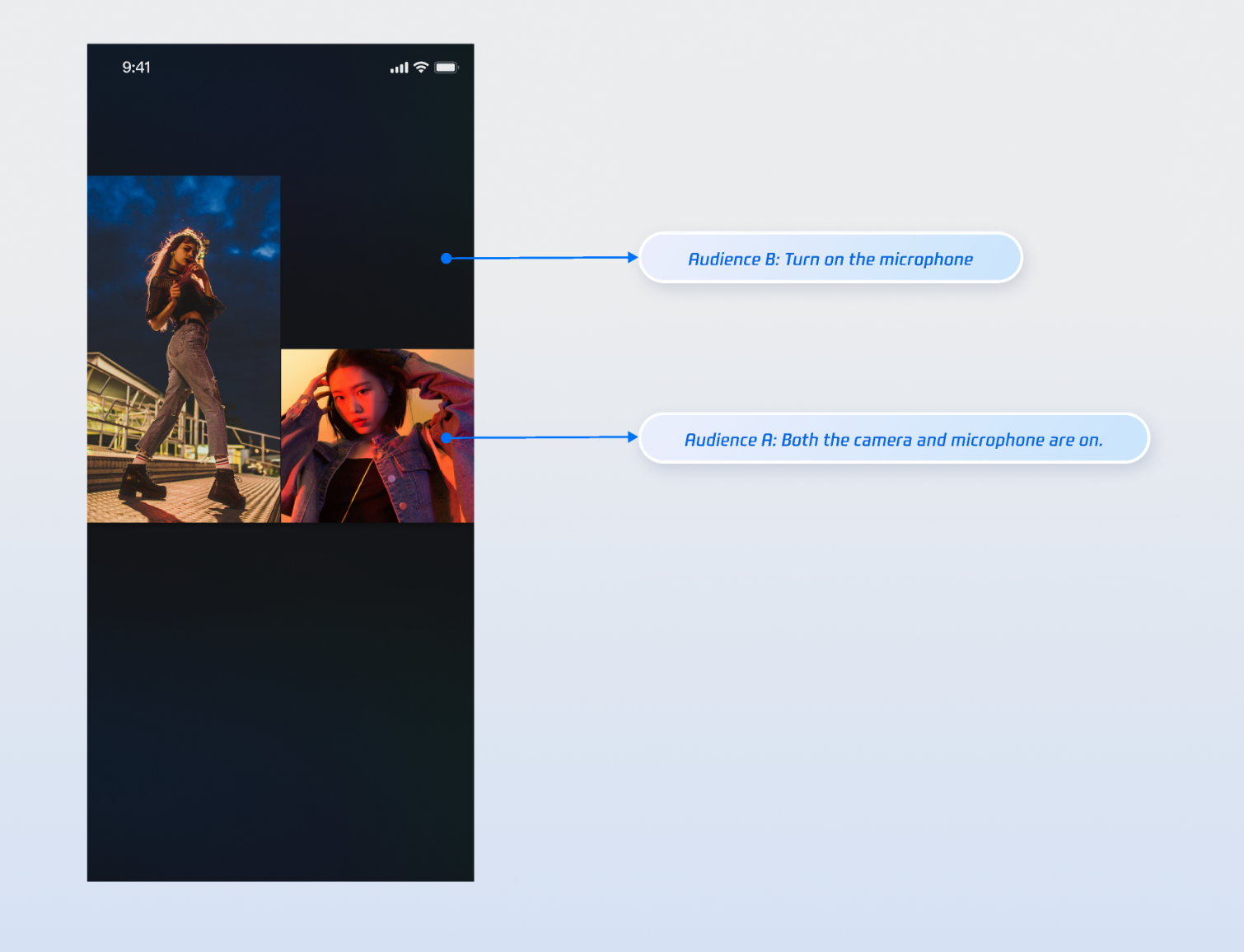

After integrating the above features, use two audience members and a host to test co-hosting. For example, Audience A enables both camera and microphone, while Audience B enables only the microphone. The result is shown below. For UI customization, see Refining UI Details.


Refining UI Details

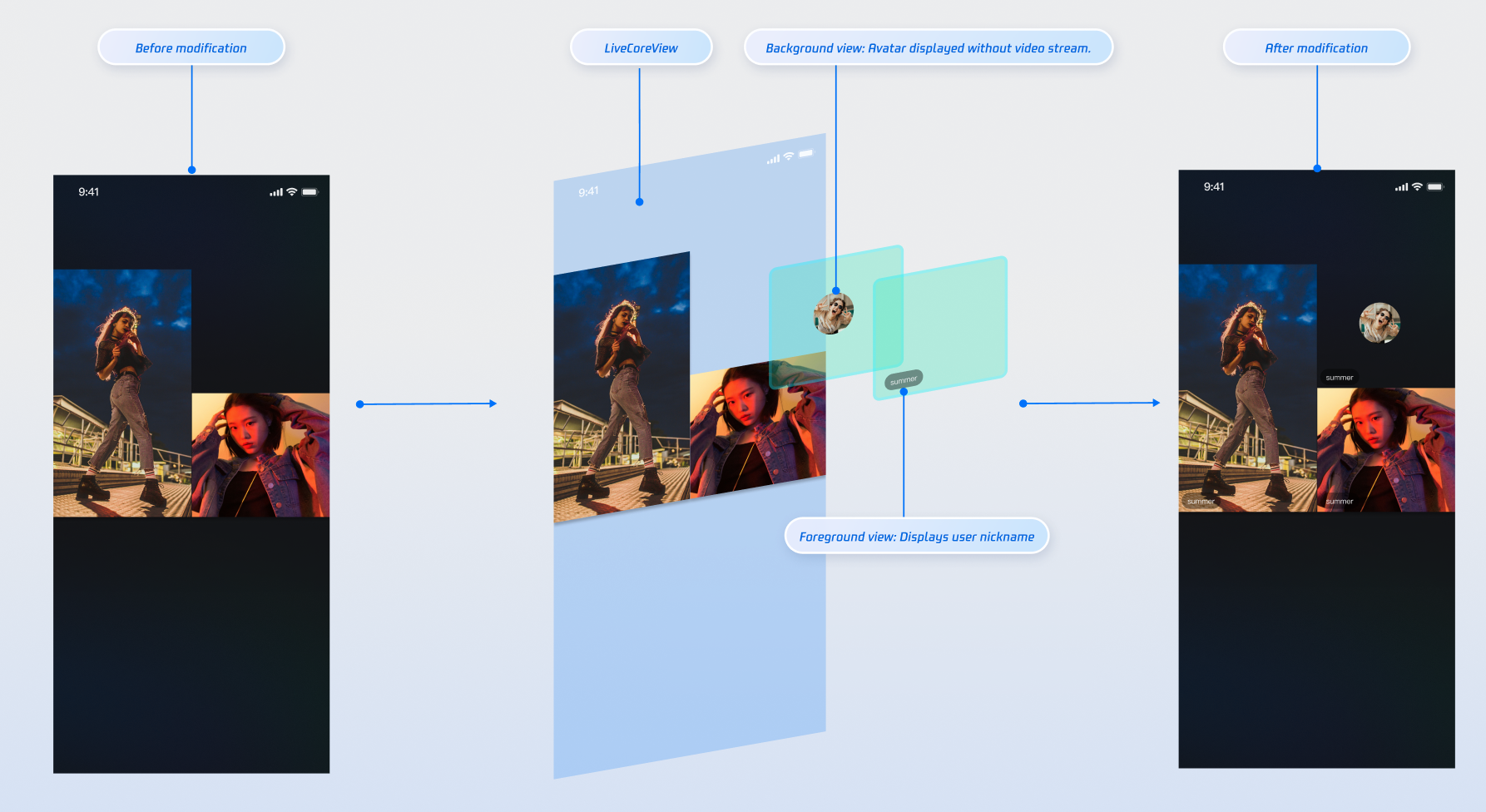

Use the "slot" feature provided by the VideoViewAdapter interface to add custom views on top of audience co-hosting video streams. For example, display nicknames, avatars, or show a placeholder image when the camera is off to enhance the user experience.

Displaying Nicknames on Video Streams

Implementation Example



Implementation

Note：
You can also refer to the widgets directory in the open-source TUILiveKit project for a complete implementation.
Step 1: Create the foreground view CustomSeatView to display user info above the video stream.
import android.content.Context
import android.graphics.Color
import android.view.Gravity
import android.view.ViewGroup
import android.widget.LinearLayout
import android.widget.TextView

// Custom floating user info view (foreground)
class CustomSeatView(context: Context) : LinearLayout(context) {
    private val nameLabel: TextView

    init {
        orientation = VERTICAL
        gravity = Gravity.BOTTOM or Gravity.START
        setBackgroundColor(Color.parseColor("#80000000")) // Semi-transparent black background

        nameLabel = TextView(context).apply {
            setTextColor(Color.WHITE)
            textSize = 14f
        }

        addView(nameLabel, LayoutParams(
            ViewGroup.LayoutParams.WRAP_CONTENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        ).apply {
            setMargins(20, 0, 0, 20) // Left margin 20, bottom margin 20
        })
    }

    fun setUserName(userName: String) {
        nameLabel.text = userName
    }
}
Step 2: Create the background view CustomAvatarView to serve as a placeholder when the user has no video stream.
import android.content.Context
import android.graphics.Color
import android.view.Gravity
import android.view.ViewGroup
import android.widget.ImageView
import android.widget.LinearLayout

// Custom avatar placeholder view (background)
class CustomAvatarView(context: Context) : LinearLayout(context) {
    private val avatarImageView: ImageView

    init {
        orientation = VERTICAL
        gravity = Gravity.CENTER
        setBackgroundColor(Color.TRANSPARENT)

        avatarImageView = ImageView(context).apply {
            setColorFilter(Color.GRAY)
            scaleType = ImageView.ScaleType.CENTER_CROP
        }

        addView(avatarImageView, LayoutParams(120, 120)) // 60dp * 2 = 120px
    }

    fun setUserAvatar(avatarUrl: String) {
        // Load user avatar here, e.g., using Glide
        // Glide.with(context).load(avatarUrl).into(avatarImageView)
    }
}
Step 3: Implement the VideoViewAdapter.createCoGuestView interface. Return the appropriate view based on the viewLayer value.
import android.os.Bundle
import android.view.View
import androidx.appcompat.app.AppCompatActivity
import com.tencent.cloud.tuikit.engine.room.TUIRoomDefine
import io.trtc.tuikit.atomicxcore.api.view.VideoViewAdapter
import io.trtc.tuikit.atomicxcore.api.view.ViewLayer

// Implement VideoViewAdapter in your Activity
class YourActivity : AppCompatActivity(), VideoViewAdapter {

    // ... other code ...

    // Implement the interface method for both viewLayer types
    override fun createCoGuestView(userInfo: TUIRoomDefine.SeatFullInfo?, viewLayer: ViewLayer?): View? {
        userInfo ?: return null
        val userId = userInfo.userId
        if (userId.isNullOrEmpty()) return null

        return when (viewLayer) {
            ViewLayer.FOREGROUND -> {
                // Show foreground view when camera is on
                val seatView = CustomSeatView(this)
                seatView.setUserName(userInfo.userName ?: "")
                seatView
            }
            ViewLayer.BACKGROUND -> {
                // Show background view when camera is off
                val avatarView = CustomAvatarView(this)
                userInfo.userAvatar?.let { avatarView.setUserAvatar(it) }
                avatarView
            }
            else -> null
        }
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // Set the adapter
        liveCoreView.setVideoViewAdapter(this)
    }
}

Parameter Description:

Parameter
Type
Description
seatInfo
SeatFullInfo?
Seat information object, containing detailed information about the user on the seat
seatInfo.userId
String
ID of the user on the seat
seatInfo.userName
String
Nickname of the user on the seat
seatInfo.userAvatar
String
Avatar URL of the user on the seat
seatInfo.userMicrophoneStatus
DeviceStatus
Microphone status of the user on the seat
seatInfo.userCameraStatus
DeviceStatus
Camera status of the user on the seat
viewLayer
ViewLayer
View layer enum:
- FOREGROUND: Foreground widget view, always displayed on top of the video
- BACKGROUND: Background widget view, displayed below the foreground view, only shown when the user has no video stream (e.g., camera is off); typically used for the user's avatar or a placeholder image

API Documentation

For detailed information on all public interfaces, properties, and methods of CoGuestStore and related classes, refer to the official API documentation included with the AtomicXCore framework. The relevant stores used in this guide include:
Store/Component
Function Description
API Documentation
LiveCoreView
Core view component for live video stream display and interaction. Handles video rendering and widget management, supporting host streaming, audience co-hosting, host connections, and more.
DeviceStore
Audio and video device control: microphone (on/off, volume), camera (on/off, switch, quality), screen sharing, real-time device status monitoring.
CoGuestStore
Audience co-hosting management: request/invite/accept/reject co-hosting, permission control (microphone/camera), state synchronization.

FAQs

How do I manage the lifecycle and events of custom views added via VideoViewAdapter?

LiveCoreView automatically manages the addition and removal of views returned by your adapter methods. You do not need to handle this manually. To support user interactions (such as click events) in your custom view, add the appropriate event listeners when creating the view.

What is the purpose of the viewLayer parameter in VideoViewAdapter?

The viewLayer parameter distinguishes between foreground and background widgets:
FOREGROUND: Foreground layer, always displayed on top of the video.
BACKGROUND: Background layer, displayed only when the user has no video stream (e.g., camera is off); typically used to show the user's avatar or a placeholder image.

Why is my custom view not showing up?

Check adapter settings: Ensure you have called liveCoreView.setVideoViewAdapter(this) and set the adapter successfully.
Check implementation method: Confirm that you have correctly implemented the relevant adapter method (such as createCoGuestView).
Check return value: Make sure your adapter method returns a valid View instance at the appropriate time, not null. Add logs in the adapter method for debugging if needed.
Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
No

Feedback
