Seat Management (Android)
Last updated: 2025-12-04 15:09:53
Seat Management (Android)
Last updated: 2025-12-04 15:09:53

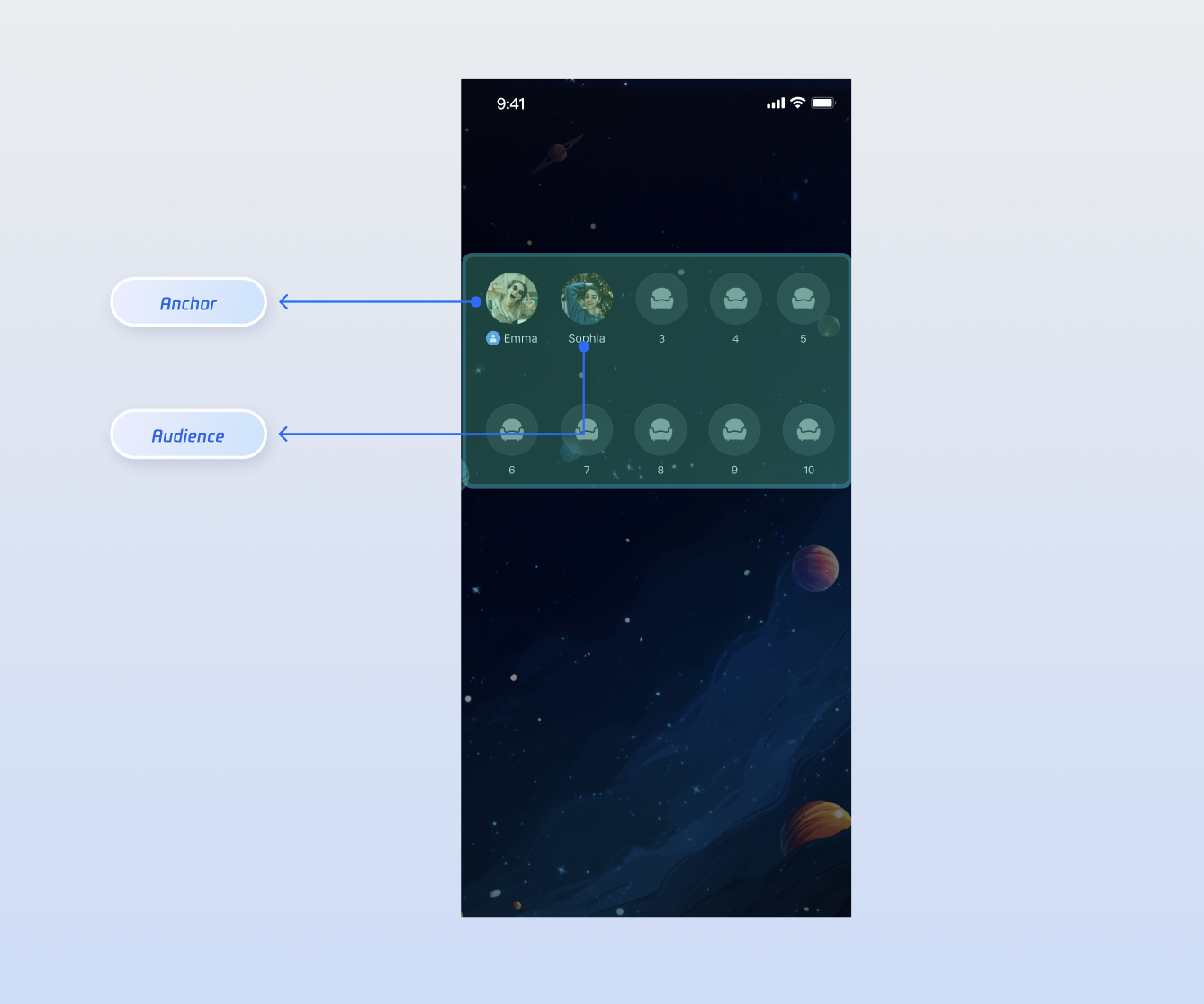

AtomicXCore provides the CoGuestStore and LiveSeatStore modules, which are designed to streamline the entire audience co-hosting workflow for live streaming scenarios. You do not need to manage complex state synchronization or signaling logic—simply invoke a few intuitive methods to enable seamless audio and video interactions between hosts and audience members. This guide explains how to quickly implement voice co-hosting features in your Android app using CoGuestStore and LiveSeatStore.


Core Scenarios

CoGuestStore and LiveSeatStore support the following primary live streaming scenarios:
Audience Request to Join Mic: Audience members can request to join the mic; hosts can approve or reject these requests.
Host Invites Audience to Mic: The host can proactively invite any viewer in the live room to join the mic.
Host Manages Mic Seats: Hosts can manage mic seat users, including removing users, muting, and locking mic seats.

Implementation

Step 1: Component Integration

Refer to the Quick Start guide to integrate AtomicXCore into your project.

Step 2: Implement Audience Mic-Link Request

Audience Side Implementation

As an audience member, your main tasks are initiating a request, handling the response, and leaving the mic proactively.
1. Initiate Mic-Link Request
When the user taps the "Request to Co-host" button, call the applyForSeat method:
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.live.CoGuestStore

val liveId = "Room ID"
val guestStore = CoGuestStore.create(liveId)

// User taps "Request to Co-host"
fun requestToConnect() {
    // timeout: request timeout, e.g., 30 seconds
    guestStore.applyForSeat(-1, 30, null, object : CompletionHandler {
        override fun onSuccess() {
            print("Co-hosting request sent, waiting for host to respond...")
        }

        override fun onFailure(code: Int, desc: String) {
            print("Failed to send request: $desc")
        }
    })
}
2. Listen for Host Response
Subscribe to GuestListener to handle the host’s approval or rejection:
import io.trtc.tuikit.atomicxcore.api.device.DeviceStore
import io.trtc.tuikit.atomicxcore.api.live.GuestListener
import io.trtc.tuikit.atomicxcore.api.live.LiveUserInfo

// Add listener during Activity/Fragment initialization
fun subscribeGuestEvents() {
    val guestListener = object : GuestListener() {
        override fun onGuestApplicationResponded(isAccept: Boolean, hostUser: LiveUserInfo) {
            if (isAccept) {
                print("Host ${hostUser.userName} approved your request. Preparing to join mic.")
                // 1. Enable camera and microphone
                DeviceStore.shared().openLocalCamera(true, null)
                DeviceStore.shared().openLocalMicrophone(null)
                // 2. Update UI, e.g., disable request button, show co-hosting status
            } else {
                print("Host ${hostUser.userName} rejected your request.")
                // Notify user of rejection
            }
        }
    }
    guestStore.addGuestListener(guestListener)
}
3. Leave Mic Proactively
To leave the mic seat and revert to audience status, call disconnect:
// User taps "Leave Mic"
fun leaveSeat() {
    guestStore.disconnect(object : CompletionHandler {
        override fun onSuccess() {
            print("Successfully left the mic")
        }

        override fun onFailure(code: Int, desc: String) {
            print("Failed to leave mic: $desc")
        }
    })
}
4. (Optional) Cancel Request
If the audience member wishes to withdraw their request before the host responds, call cancelApplication:
// User taps "Cancel Request" while waiting
fun cancelRequest() {
    guestStore.cancelApplication(object : CompletionHandler {
        override fun onSuccess() {
            print("Request cancelled")
        }

        override fun onFailure(code: Int, desc: String) {
            print("Failed to cancel request: $desc")
        }
    })
}

Host Side Implementation

As the host, your main tasks are receiving requests, displaying the request list, and handling requests.
1. Listen for New Mic-Link Requests
Subscribe to HostListener to receive notifications when an audience member requests to join the mic:
import io.trtc.tuikit.atomicxcore.api.live.CoGuestStore
import io.trtc.tuikit.atomicxcore.api.live.HostListener
import io.trtc.tuikit.atomicxcore.api.live.LiveUserInfo

val liveId = "Room ID"
val guestStore = CoGuestStore.create(liveId)

// Subscribe to host events
val hostListener = object : HostListener() {
    override fun onGuestApplicationReceived(guestUser: LiveUserInfo) {
        print("Received co-hosting request from ${guestUser.userName}")
        // Update UI, e.g., show notification on "Request List" button
    }
    // ... Override other needed callback methods
}
guestStore.addHostListener(hostListener)
2. Display Request List
Subscribe to the applicants property in CoGuestStore’s state to update the UI in real time:
import kotlinx.coroutines.CoroutineScope
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.launch

// Subscribe to state changes
fun observeApplicants() {
    CoroutineScope(Dispatchers.Main).launch {
        guestStore.coGuestState.applicants.collect { applicants ->
            print("Current number of applicants: ${applicants.size}")
            // Update "Applicant List" UI
        }
    }
}
3. Handle Mic-Link Requests
Approve or reject requests using the following methods:
// Host taps "Approve"
fun accept(userId: String) {
    guestStore.acceptApplication(
        userId,
        object : CompletionHandler {
            override fun onSuccess() {
                print("Approved $userId's request. They are joining the mic.")
            }

            override fun onFailure(code: Int, desc: String) {
                print("Failed to approve request: $desc")
            }
        }
    )
}

// Host taps "Reject"
fun reject(userId: String) {
    guestStore.rejectApplication(
        userId,
        object : CompletionHandler {
            override fun onSuccess() {
                print("Rejected $userId's request")
            }

            override fun onFailure(code: Int, desc: String) {
                print("Failed to reject request: $desc")
            }
        }
    )
}

Step 3: Implement Host-Initiated Mic-Link Invitation

Host Side Implementation

1. Invite Audience Mic
To invite an audience member, call inviteToSeat:
// Host selects audience and sends invitation
fun invite(userId: String) {
    // timeout: invitation timeout
    guestStore.inviteToSeat(userId, -1, 30, null, object : CompletionHandler {
        override fun onSuccess() {
            print("Invitation sent to $userId, waiting for response...")
        }

        override fun onFailure(code: Int, desc: String) {
            print("Failed to send invitation: $desc")
        }
    })
}
2. Listen for Audience Response
Handle the audience member’s response via HostListener:
// Add to hostListener implementation
override fun onHostInvitationResponded(isAccept: Boolean, guestUser: LiveUserInfo) {
    if (isAccept) {
        print("Audience ${guestUser.userName} accepted your invitation")
    } else {
        print("Audience ${guestUser.userName} rejected your invitation")
    }
}

Audience Side Implementation

1. Receive Host Invitation
Listen for invitations via GuestListener:
// Add to guestListener implementation
override fun onHostInvitationReceived(hostUser: LiveUserInfo) {
    print("Received co-hosting invitation from host ${hostUser.userName}")
    // Show dialog for user to accept or reject
}
2. Respond to Invitation
Invoke the appropriate method based on the user’s choice:
val inviterId = "Host ID who sent the invitation" // From onHostInvitationReceived

// User taps "Accept"
fun accept() {
    guestStore.acceptInvitation(inviterId, object : CompletionHandler {
        override fun onSuccess() {
            // Enable microphone
            DeviceStore.shared().openLocalMicrophone(null)
        }

        override fun onFailure(code: Int, desc: String) {
            print("Failed to accept invitation: $desc")
        }
    })
}

// User taps "Reject"
fun reject() {
    guestStore.rejectInvitation(inviterId, object : CompletionHandler {
        override fun onSuccess() {
            // ...
        }
        override fun onFailure(code: Int, desc: String) {
            // ...
        }
    })
}

Advanced Features

Once a user is on mic, the host may need to manage mic seats. The following features are primarily provided by LiveSeatStore, which functions with CoGuestStore.

On-Mic Users Control Their Own Microphone

On-mic users (including the host) can control their own microphone mute status via the LiveSeatStore interface.

Implementation

Mute: Call muteMicrophone(). This is a one-way request with no callback.
Unmute: Call unmuteMicrophone(completion).

Example Code

import io.trtc.tuikit.atomicxcore.api.live.LiveSeatStore

val seatStore = LiveSeatStore.create(liveId)

seatStore.muteMicrophone() // Mute

seatStore.unmuteMicrophone(null) // Unmute

unmuteMicrophone Parameters

Parameter
Type
Description
completion
CompletionHandler?
Callback after operation completes.

Host Remotely Controls Mic Seat User’s Microphone

Hosts can forcibly mute or invite mic seat users to unmute.

Implementation

1. Force Mute (Lock): Hosts call closeRemoteMicrophone to mute and lock a user’s microphone. The user receives the onLocalMicrophoneClosedByAdmin event in LiveSeatListener, and their "Unmute Microphone" button should be disabled.
2. Invite to Unmute (Unlock): Hosts call openRemoteMicrophone to unlock mic permissions. The user receives the onLocalMicrophoneOpenedByAdmin event and can unmute themselves.
3. User Unmutes Themselves: After receiving an unlock notification, the user must call unmuteMicrophone() to resume audio transmission.

Example Code

Host Side
import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.live.DeviceControlPolicy

val targetUserId = "userD"

// 1. Force mute and lock
seatStore.closeRemoteMicrophone(targetUserId, object : CompletionHandler {
    override fun onSuccess() {
        print("$targetUserId has been muted and locked")
    }
    override fun onFailure(code: Int, desc: String) {
        print("Operation failed: $desc")
    }
})

// 2. Unlock mic permissions (userD remains muted)
seatStore.openRemoteMicrophone(targetUserId, DeviceControlPolicy.UNLOCK_ONLY, object : CompletionHandler {
    override fun onSuccess() {
        print("Invited $targetUserId to unmute (unlocked)")
    }
    override fun onFailure(code: Int, desc: String) {
        print("Operation failed: $desc")
    }
})
Audience Side
import io.trtc.tuikit.atomicxcore.api.live.DeviceControlPolicy
import io.trtc.tuikit.atomicxcore.api.live.LiveSeatListener

// userD listens for host actions
val seatListener = object : LiveSeatListener() {
    override fun onLocalMicrophoneClosedByAdmin() {
        print("Muted by host")
    }

    override fun onLocalMicrophoneOpenedByAdmin(policy: DeviceControlPolicy) {
        print("Host has unlocked mute")
    }
}
seatStore.addLiveSeatEventListener(seatListener)

closeRemoteMicrophone Parameters

Parameter
Type
Description
userID
String
The user ID of the target user.
completion
CompletionHandler?
Callback after request completes.

openRemoteMicrophone Parameters

Parameter
Type
Description
userID
String
The user ID of the target user.
completion
CompletionHandler?
Callback after request completes.

Host Removes On-Mic User from the Seat

Implementation

1. Remove User from Mic Seat: Hosts call kickUserOutOfSeat to forcibly remove a user from a mic seat.
2. Event Notification: The removed user receives the onKickedOffSeat event in GuestListener.

Example Code

// Remove "userB" from mic seat
val targetUserId = "userB"
seatStore.kickUserOutOfSeat(targetUserId, object : CompletionHandler {
    override fun onSuccess() {
        print("$targetUserId has been removed from the mic seat")
    }
    override fun onFailure(code: Int, desc: String) {
        print("Failed to remove user: $desc")
    }
})

// "userB" receives the event in GuestListener
override fun onKickedOffSeat(seatIndex: Int, hostUser: LiveUserInfo) {
    // Show notification
}

kickUserOutOfSeat Parameters

Parameter
Type
Description
userID
String
The user ID of the user to remove.
completion
CompletionHandler?
Callback after request completes.

Host Locks and Unlocks Mic Seats

Hosts can lock or unlock specific mic seats.

Implementation

1. Lock Mic Seat: Call lockSeat to lock a mic seat at the specified index. Locked seats cannot be occupied via applyForSeat or takeSeat.
2. Unlock Mic Seat: Call unlockSeat to make the seat available again.

Example Code

// Lock mic seat 2
seatStore.lockSeat(2, object : CompletionHandler {
    override fun onSuccess() {
        print("Mic seat 2 locked")
    }
    override fun onFailure(code: Int, desc: String) {
        print("Failed to lock: $desc")
    }
})

// Unlock mic seat 2
seatStore.unlockSeat(2, object : CompletionHandler {
    override fun onSuccess() {
        print("Mic seat 2 unlocked")
    }
    override fun onFailure(code: Int, desc: String) {
        print("Failed to unlock: $desc")
    }
})

lockSeat Parameters

Parameter
Type
Description
seatIndex
Int
Index of the mic seat to lock.
completion
CompletionHandler?
Callback after request completes.

unlockSeat Parameters

Parameter
Type
Description
seatIndex
Int
Index of the mic seat to unlock.
completion
CompletionHandler?
Callback after request completes.

Move Mic Seats

Hosts and mic seat users can call moveUserToSeat to move users between mic seats.

Implementation

1. Host Moves User to Mic Seat: The host can use this API to move any user to a specified mic seat. Provide the target user's userID, the target seat index as targetIndex, and use the policy parameter to specify the seat movement strategy if the target seat is occupied (see parameter details below).
2. On-Mic User Moves Themselves: On-mic users can also call this API to move themselves. In this case, userID must be the user's own ID, targetIndex is the desired new seat index, and the policy parameter is ignored. If the target seat is occupied, the move fails with an error.

Example Code

import io.trtc.tuikit.atomicxcore.api.CompletionHandler
import io.trtc.tuikit.atomicxcore.api.live.MoveSeatPolicy

seatStore.moveUserToSeat("userC",
    newSeatIndex,
    MoveSeatPolicy.ABORT_WHEN_OCCUPIED,
    object : CompletionHandler {
        override fun onSuccess() {
            print("Successfully moved to mic seat $newSeatIndex")
        }
        override fun onFailure(code: Int, desc: String) {
            print("Failed to switch seat, seat may be occupied: $desc")
        }
})

moveUserToSeat Parameters

Parameter
Type
Description
userID
String
The user ID of the user to move.
targetIndex
Int
Target mic seat index.
policy
MoveSeatPolicy?
Seat movement policy if the target seat is occupied:<br>- abortWhenOccupied: Abort move if seat is occupied (default)<br>- forceReplace: Force replace the user on the target seat; replaced user will be removed<br>- swapPosition: Swap positions with the user on the target seat.
completion
CompletionHandler?
Callback after request completes.

API Documentation

For detailed information about all public interfaces, properties, and methods of CoGuestStore, LiveSeatStore, and related classes, refer to the official AtomicXCore framework API documentation. The relevant stores used in this guide are as follows:
Store/Component
Feature Description
API Documentation
CoGuestStore
Audience co-hosting management: co-hosting requests/invitations, approval/rejection, co-host member permission control (microphone/camera), state synchronization.
LiveSeatStore
Mic seat management: mute/unmute, lock/unlock mic seat, remove user from mic, remote microphone control, mic seat list state monitoring.

FAQs

What are the differences between voice room co-hosting and video live co-hosting?

The main differences are in business logic and UI design:
Video Live Streaming: The video feed is central. Use LiveCoreView to render host and co-host video streams. The UI focuses on video layout, sizing, and overlays (such as nickname or placeholder images) via VideoViewAdapter. Both camera and microphone can be enabled.
Voice Room (Audio Chat Room): The mic seat grid is central. Do not use LiveCoreView; instead, build a grid UI (e.g., RecyclerView) based on LiveSeatStore.state (especially seatList). The UI displays each mic seat’s SeatInfo—occupied, muted, locked, or speaking—in real time. Only the microphone needs to be enabled.

How do I update mic seat information (such as occupancy and mute status) in the UI in real time?

Subscribe to the seatList property in LiveSeatState, which is a reactive List<SeatInfo>. When the array changes, update your mic seat UI. For each seat:
Use seatInfo.userInfo for user details.
Use seatInfo.isLocked to check if the seat is locked.
Use seatInfo.userInfo.microphoneStatus for the user’s microphone status.

What is the difference between microphone interfaces in LiveSeatStore and DeviceStore?

DeviceStore manages the physical microphone device, while LiveSeatStore manages mic seat business logic (audio stream).
DeviceStore:
openLocalMicrophone: Requests system permission and starts the microphone device for audio capture. This is a resource-intensive operation.
closeLocalMicrophone: Stops audio capture and releases the microphone device.
LiveSeatStore:
muteMicrophone: Mutes the audio stream sent to remote users; the microphone device remains active.
unmuteMicrophone: Unmutes the audio stream.
Recommended workflow: "Open the device once, control mute/unmute while on mic"
1. When joining mic: When an audience member successfully joins the mic, call openLocalMicrophone once to start the device.
2. While on mic: All "mute" and "unmute" actions while on mic should use muteMicrophone and unmuteMicrophone to control the audio stream.
3. When leaving mic: When leaving mic (e.g., calling disconnect), call closeLocalMicrophone to release the device.

Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
No

Feedback
