StatefulSet Management

Terakhir diperbarui:2022-04-22 11:03:12

    Overview

    A StatefulSet is used to manage stateful applications. A Pod created by a StatefulSet has a persistent identifier that is created according to the specifications. The identifier will be retained after the Pod is migrated, terminated, or restarted. When using persistent storage, you can map storage volumes to identifiers. If your application does not require any persistent identifier, we recommend that you use a Deployment to deploy the application.

    Operation Guide for StatefulSets in the Console

    Creating a StatefulSet

    1. Log in to the TKE console and select Clusters in the left sidebar.
    2. Click the ID of the cluster where StatefulSet needs to be created to enter the cluster management page.

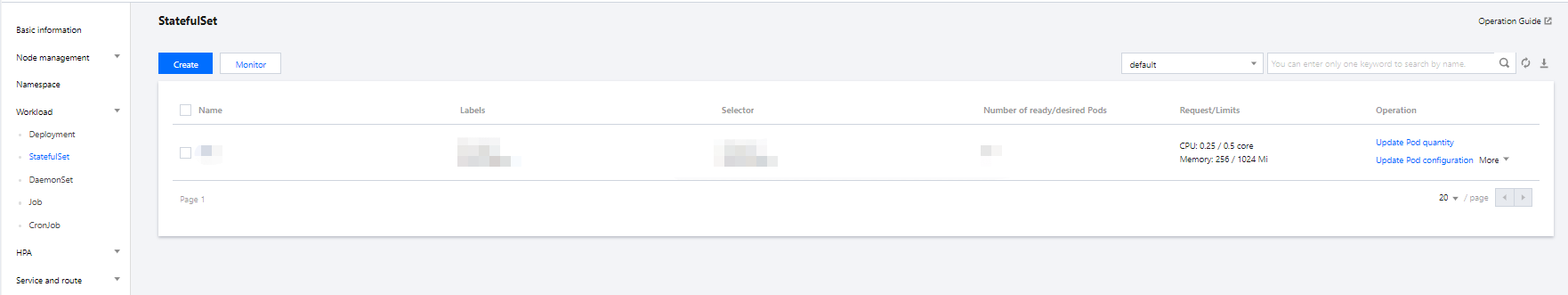

    3. Choose Workload > StatefulSet to go to the StatefulSet management page, as shown below:
    4. Click Create to open the Create Workload page.
      Set the StatefulSet parameters as needed. Key parameters are as follows:
    • Workload: enter the customized name.
    • Label: a key-value pair, which is used for classified management of resources.
    • Namespace: select a namespace based on your requirements.
    • Type: Select StatefulSet (run the Pod in a stateful manner).
    • Volume (optional): provides storage for the container. It can be a temp path, CVM path, CBS volume, file storage NFS, configuration file and PVC, and it must be mounted to the specified path of the container.
    • Containers in the Pod: set one or more different containers for a Pod of the StatefulSet as needed.
      • Name: custom.
      • Image: select as needed.
      • Image tag: fill as needed.
      • Image Pull Policy: the following three policies are available. Select as needed.
        If you do not set any image pull policy and Image Tag is left empty or latest, the Always policy is used. Otherwise, the IfNotPresent policy is used.
        • Always: always pull the image from the remote end.
        • IfNotPresent: a local image is used by default. If no local image is available, the image is pulled remotely.
        • Never: only use a local image. If no local image is available, an exception occurs.
      • CPU/memory limits: set the CPU and memory limit according to Kubernetes' resource limits to improve the robustness of the business.
      • GPU Resource: you can configure the least GPU resource used by the workload.
      • Advanced settings: parameters such as "working directory", "run commands", "run parameters", "container health check", and "privilege level" can be set.
    • Image Access Credential: a container image is private by default. You need to select the image access credential for the TCR instance when creating a workload.
    • Number of Pods: select the adjustment method and set the number of Pods based on actual needs.
    • Node Scheduling Policy: the Pod can be scheduled to the node of the Label that meets the expectation according to the scheduling rules.
    • Access Settings: set Service parameters according to actual needs. For more information, see Service Access.
    1. Click Create Workload to complete the process.

    Updating a StatefulSet

    Updating YAML

    1. Log in to the TKE console and select Clusters in the left sidebar.
    2. Click the ID of the cluster for which to update the YAML to go to the management page of the cluster.
    3. Select Workload > StatefulSet to go to the StatefulSet information page, as shown below:
    4. In the row of the StatefulSet for which YAML should be updated, click More > Edit YAML to go to the StatefulSet updating page.
    5. On the Update a StatefulSet page, edit the YAML and click Done to update the YAML.

    Updating Pod configuration

    1. On the cluster management page, click the ID of the StatefulSet cluster for which the Pod configuration needs to be updated to enter the StatefulSet cluster management page.

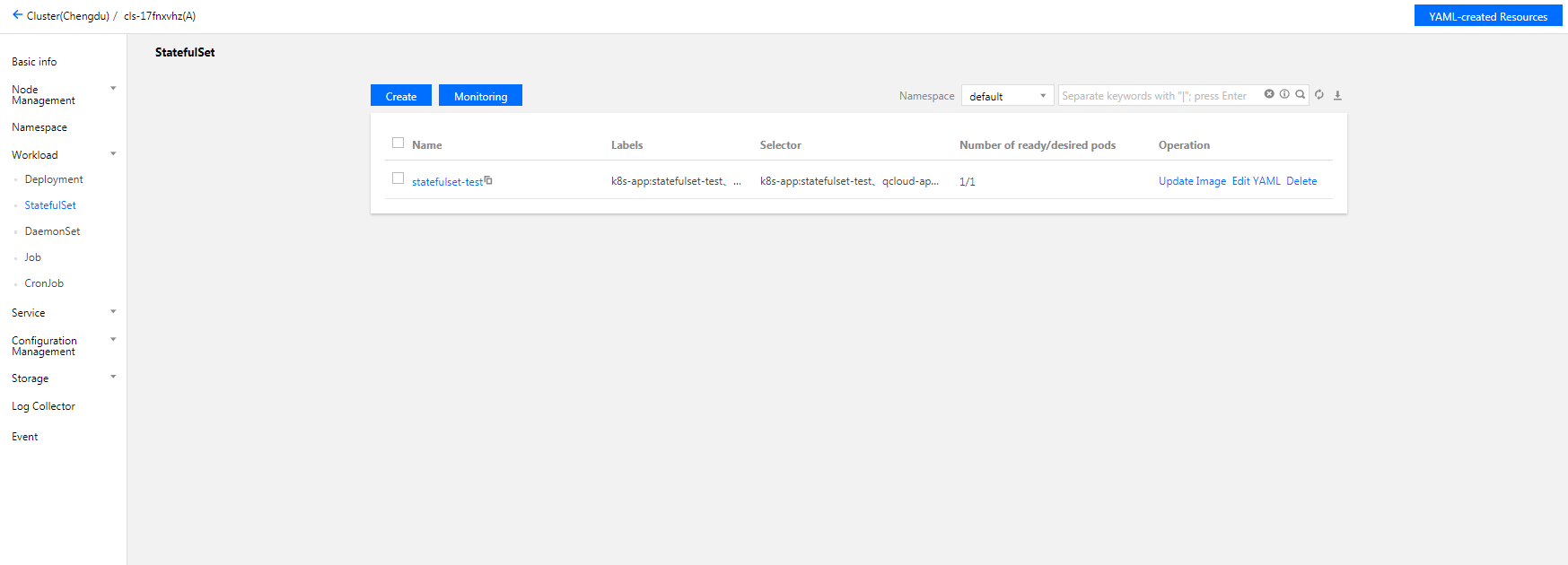

    2. In the StatefulSet row for which Pod configuration needs to be updated, click Update Pod Configuration, as shown below:

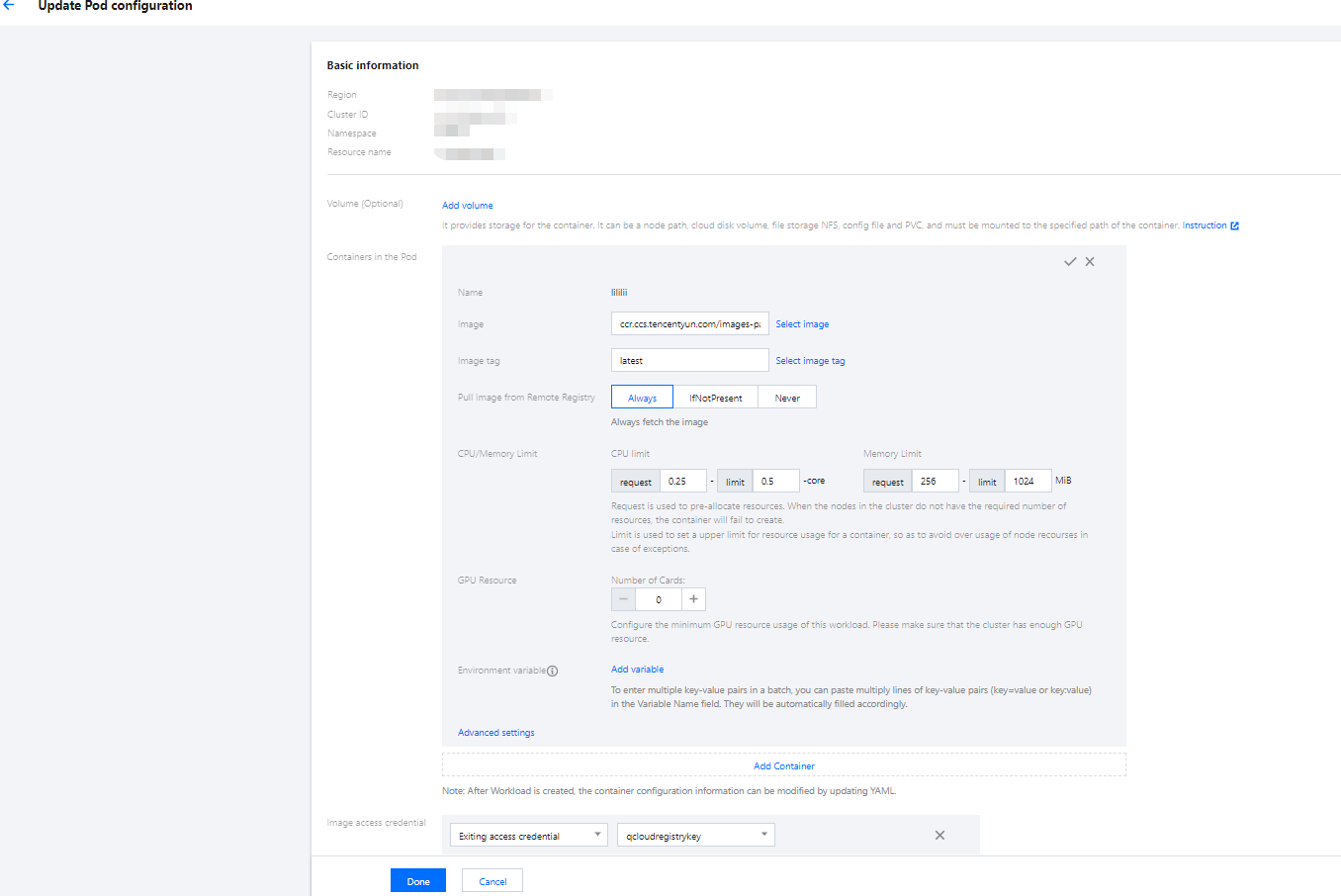

    3. On the Update Pod Configuration page, modify the updating method and set parameters as needed, as shown below:
    4. Click Done to update the Pod configuration.

    Using Kubectl to Manipulate StatefulSets

    YAML sample

    apiVersion: v1
    kind: Service ## Create a Headless Service to control the network domain
    metadata:
    name: nginx
    namespace: default
    labels:
      app: nginx
    spec:
    ports:
    - port: 80
      name: web
    clusterIP: None
    selector:
      app: nginx
    ---
    apiVersion: apps/v1
    kind: StatefulSet ### Create a Nginx StatefulSet
    metadata:
    name: web
    namespace: default
    spec:
    selector:
      matchLabels:
        app: nginx
    serviceName: "nginx"
    replicas: 3 # by default is 1
    template:
      metadata:
        labels:
          app: nginx
      spec:
        terminationGracePeriodSeconds: 10
        containers:
        - name: nginx
          image: nginx:latest
          ports:
          - containerPort: 80
            name: web
          volumeMounts:
          - name: www
            mountPath: /usr/share/nginx/html
    volumeClaimTemplates:
    - metadata:
        name: www
      spec:
        accessModes: [ "ReadWriteOnce" ]
        storageClassName: "cbs"
        resources:
          requests:
            storage: 10Gi

    • kind: this identifies the StatefulSet resource type.
    • metadata: basic information such as StatefulSet name and Label.
    • metadata.annotations: an additional description of the StatefulSet. You can set additional enhancements to TKE through this parameter.
    • spec.template: detailed template configuration of the Pod managed by the StatefulSet.
    • spec.volumeClaimTemplates: provides a templates for creating PVCs and PVs.

    For more details about the parameters, see Kubernetes' official document about StatefulSet.

    Creating a StatefulSet

    1. Prepare the StatefulSet YAML file as instructed by YAML sample.
    2. Install kubectl and connect to a cluster. For detailed operations, see Connecting to a Cluster.
    3. Run the following command to create the StatefulSet YAML file.
      kubectl create -f <StatefulSet YAML filename>


    For example, to create a StatefulSet YAML file named web.yaml, run the following command:

    kubectl create -f web.yaml

    1. Run the following command to check whether the Job is successfully created.
      kubectl get StatefulSet


    If a message similar to the following is returned, the creation is successful.

    NAME      DESIRED   CURRENT   AGE
    test      1         1         10s


    Updating a StatefulSet

    Run the following command to view the update policy type of the StatefulSet.

    kubectl get ds/<daemonset-name> -o go-template='{{.spec.updateStrategy.type}}{{"\n"}}'



    StatefulSet has the following two update policy types:
    –OnDelete: the default upgrade policy. With this policy, after the StatefulSet is updated, you have to manually delete the old StatefulSet Pod to create a new one.

    • RollingUpdate: Kubernetes 1.7 or later is supported. With this policy, after the StatefulSet template is updated, the old StatefulSet Pod will be terminated, and a new StatefulSet Pod will be created in a rolling update manner (only for Kubernetes v1.7 or later).

    Method 1

    Run the following command to update a StatefulSet.

    kubectl edit StatefulSet/[name]


    This method applies to simple debugg verification. It is not recommended to use it in production environments. You can update any StatefulSet parameters in this way.

    Method 2

    Run the following command to update the image of the specified container.

    kubectl patch statefulset <NAME> --type='json' -p='[{"op": "replace", "path": "/spec/template/spec/containers/0/image", "value":"<newImage>"}]'


    It is recommended to keep other StatefulSet parameters unchanged and only update the container image when the business is updated.

    If the StatefulSet is roll updated, you can view the update status by running the following command:

    kubectl rollout status sts/<StatefulSet-name>


    Deleting a StatefulSet

    Run the following command to delete a StatefulSet.

    kubectl delete  StatefulSet [NAME] --cascade=false


    The --cascade=false parameter indicates that Kubernetes only deletes the StatefulSet but not the Pods. Run the following command if you need to delete Pod.

    kubectl delete StatefulSet [NAME]


    For more information about StatefulSet operations, see Kubernetes' official guide.
