The domain name quotas in each edition are as follows: Premium Edition: 1,000 entries/domain name; Enterprise Edition: 5,000 entries/domain name; Ultimate Edition: 20,000 entries/domain name. Each IP address or IP range occupies one entry in the quota.
Manual Addition
1. Log in to the WAF console, in the left sidebar, choose Protection Policy > Blocklist.

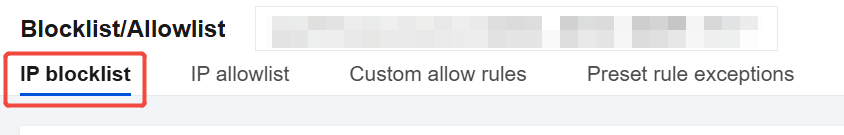

2. On the Blocklist/Allowlist page, select the domain name to be protected in the upper left corner and click IP blocklist.
Note:
When global domain is selected, the added IP addresses or IP address ranges will be added to the global blocklist/allowlist.

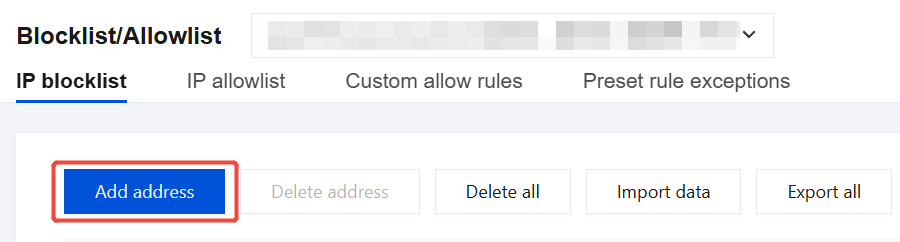

3. On the IP Blocklist page, click Add address to enter the Add to blocklist page.

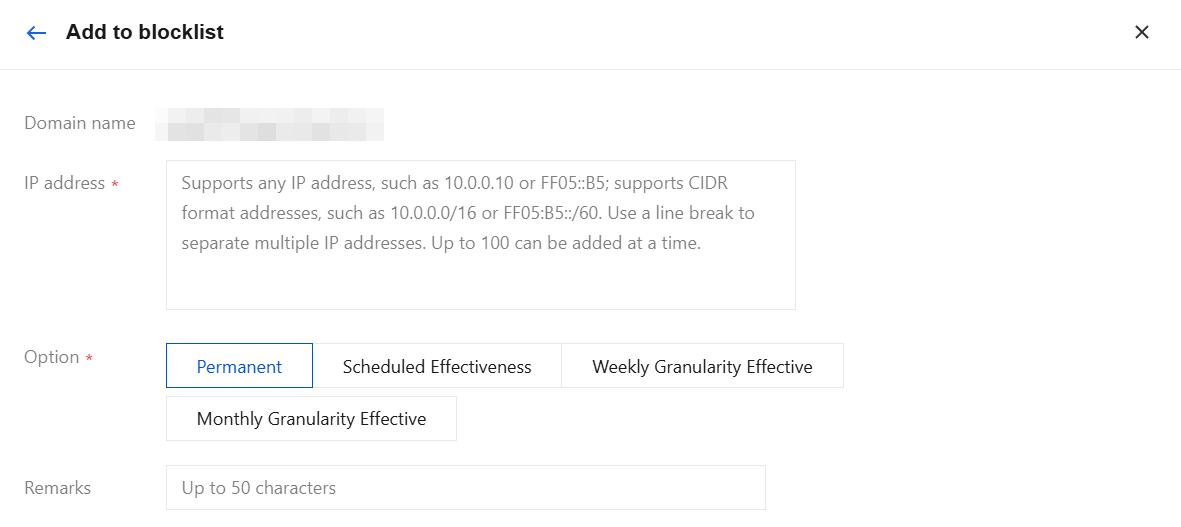

4. On the Add to blocklist page, configure related parameters and click OK.
Field description:
IP address: Supports any IP address, such as 10.0.0.10 or FF05::B5; supports CIDR format addresses, such as 10.0.0.0/16 or FF05:B5::/60. Use a line break to separate multiple IP addresses. Up to 100 can be added at a time.
Option
Option
Description
Permanent
Permanent.
Scheduled Effectiveness
Select time: Set the effective time range, with a maximum of 20 entries.
Time zone selection: Specifies the time zone corresponding to the selected time range.
Weekly Granularity Effective
Selection cycle: Select effective dates by week, supports multiple selections, and set the corresponding time range. Up to 20 records can be added.
Time zone selection: Specifies the time zone corresponding to the selected time range.
Monthly Granularity Effective
Selection cycle: Select effective dates by month, supports multiple selections, and set the corresponding time range. Up to 20 entries can be added.
Time zone selection: Specifies the time zone corresponding to the selected time range.
Remarks: Customized within 50 characters.
Import Data
1. On the Blocklist/Allowlist page, select the domain to be protected in the top-left corner, and click IP blocklist.

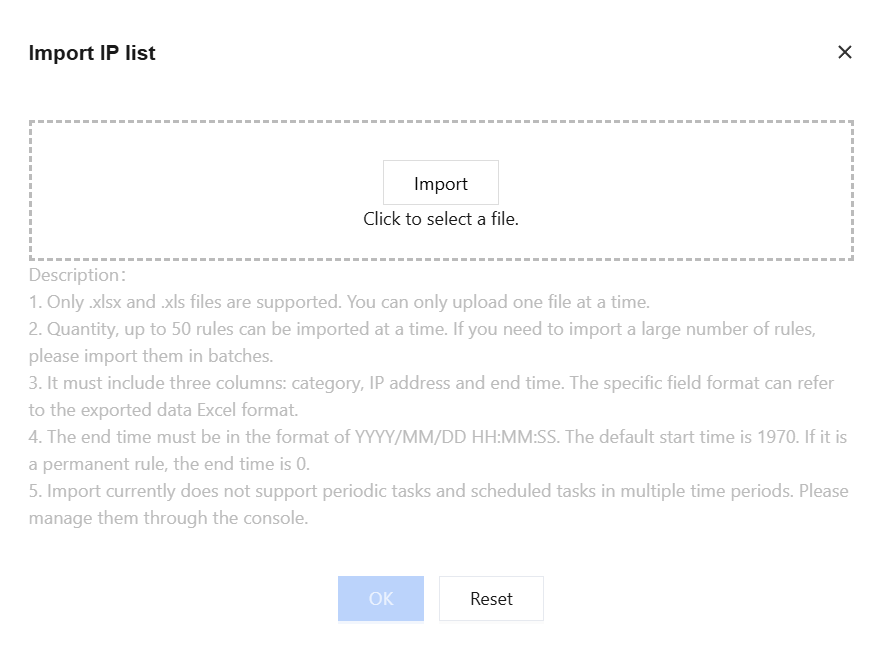

2. On the IP Blocklist page, click Import data > Import. After the data is parsed successfully, click OK.
Editing IP Blocklist
1. On the Blocklist/Allowlist page, select the domain to be protected in the top-left corner, and click IP blocklist.

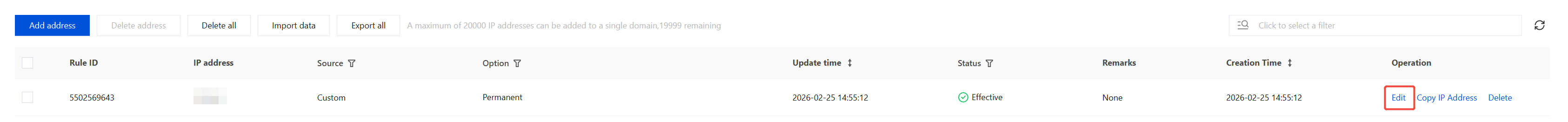

2. On the IP Blocklist page, select the required IP address, click Edit in the operation column, modify the expiration time and remarks, and click OK to save.
Copy IP Address
1. On the Blocklist/Allowlist page, select the domain to be protected in the top-left corner, and click IP blocklist.

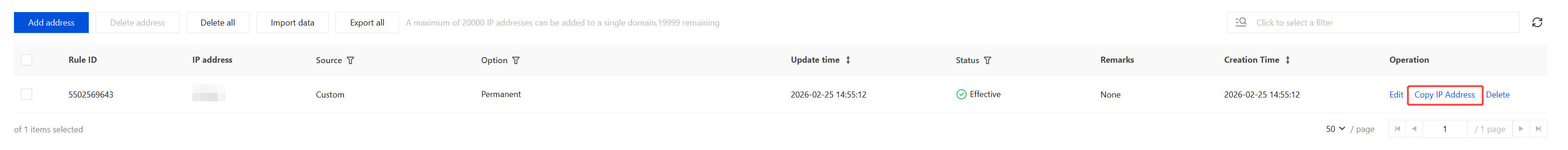

2. On the IP Blocklist page, select the required IP address, click Copy IP Address in the operation column to copy it to the clipboard.
Deleting IP Blocklist
1. On the Blocklist/Allowlist page, select the domain to be protected in the top-left corner, and click IP blocklist.
2. On the IP Blocklist page, you can delete a single address, partial addresses, or all addresses. Specific operations are as follows:

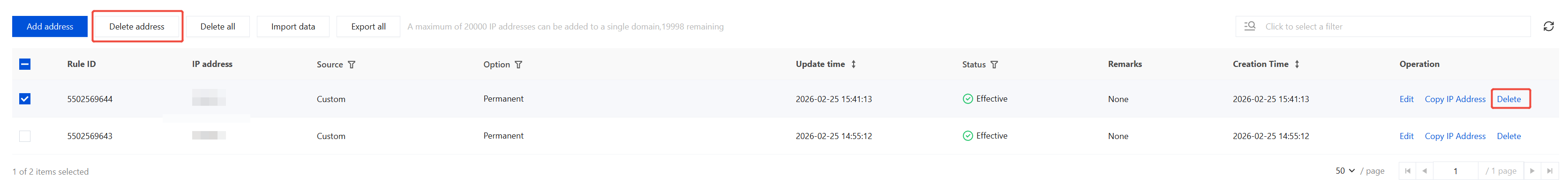

Single: Select a single IP address, click Delete address or Delete in the operation column, and a Confirm Deletion pop-up window will appear.
Note
The deleted IP address cannot be recovered. It should be re-added to take effect.

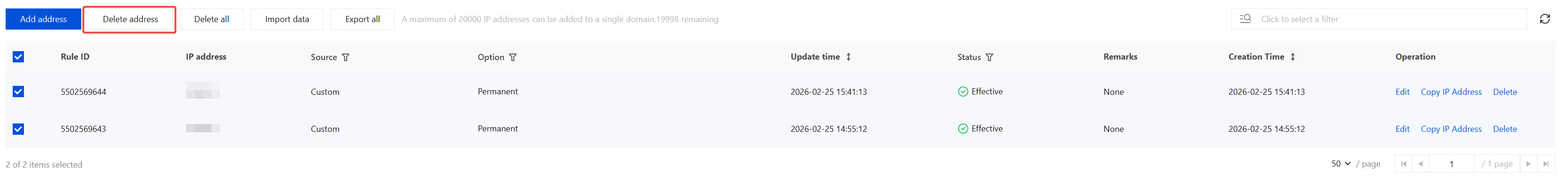

Partial: Select multiple IP addresses, click Delete address, and a Confirm Deletion pop-up window will appear.
Note
The deleted IP address cannot be recovered. It should be re-added to take effect.
All: Click Delete all, and a Confirm Deletion pop-up window will appear.
Note:
This operation will clear all IP address blocklist information under the current domain. Proceed with caution! The deleted data cannot be recovered and will only take effect after being re-added.
3. In the Confirm Deletion pop-up window, click OK to delete the address.
Exporting All Filtered Results
1. On the Blocklist/Allowlist page, select the domain to be protected in the top-left corner, and click IP blocklist.

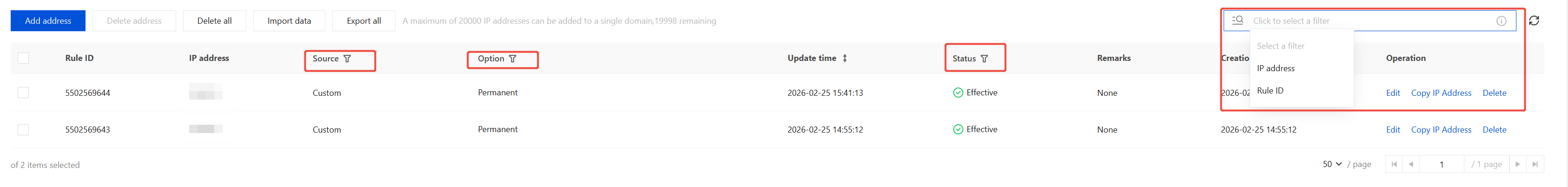

2. On the IP Blocklist page, click the search box, enter IP address or Rule ID to filter IP addresses, or click the Source, Option, Status fields to filter IP addresses according to corresponding classification criteria.

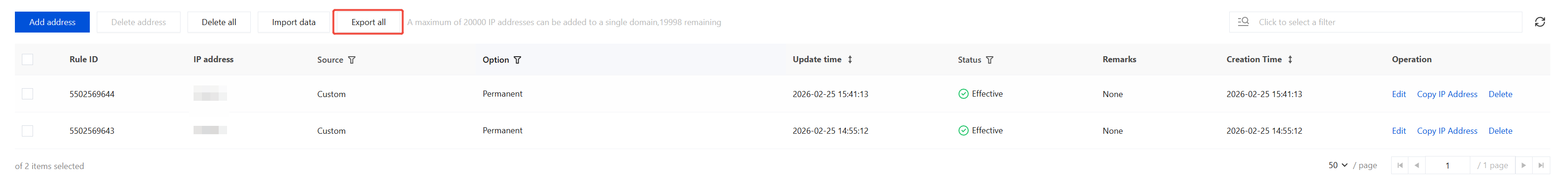

3. After filtering the required IP addresses, click Export all to export the required IP address filtering results.
