本文主要介绍如何快速地将腾讯云 IM SDK（Unreal Engine）集成到您的项目中，只要按照如下步骤进行配置，就可以完成 SDK 的集成工作。

环境要求

建议 Unreal Engine 4.27.1 及以上版本。

集成 SDK

1. 下载 SDK 及配套的 SDK 源码。

2. 把项目中的 IM SDK 文件夹拷贝到您项目中的 Source/[project_name] 目录下，其中 [project_name] 表示你项目的名称。

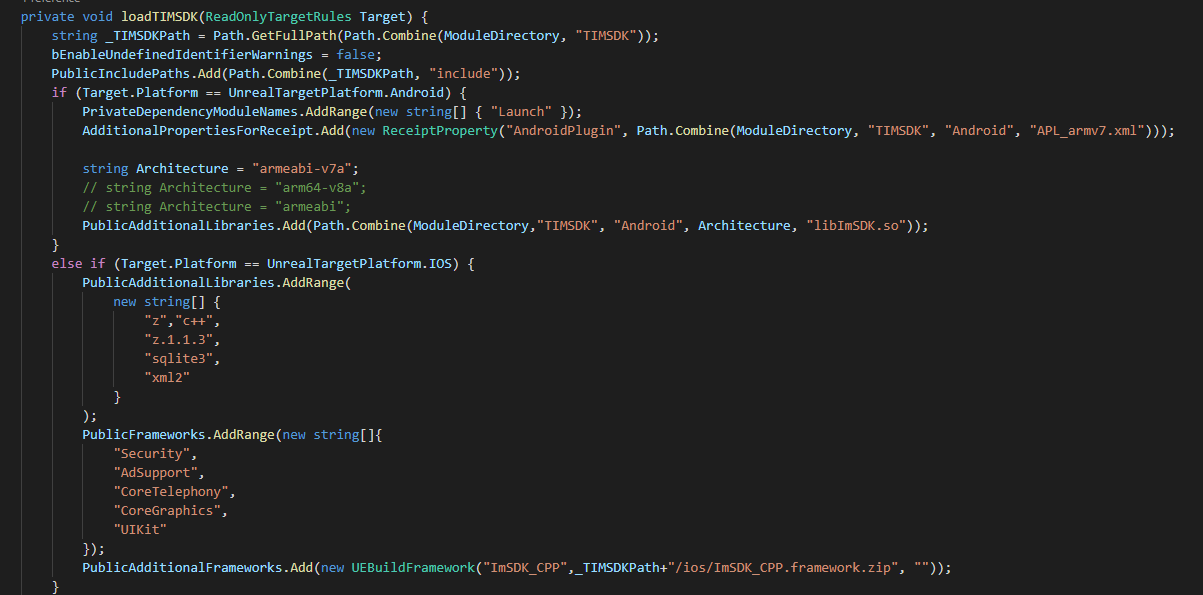

3. 编辑你项目中的 [project_name].Build.cs文件。添加下面函数：

   // 加载各个平台IM底层库
   private void loadTIMSDK(ReadOnlyTargetRules Target) {
   string _TIMSDKPath = Path.GetFullPath(Path.Combine(ModuleDirectory, "TIMSDK"));
   bEnableUndefinedIdentifierWarnings = false;
   PublicIncludePaths.Add(Path.Combine(_TIMSDKPath, "include"));
   if (Target.Platform == UnrealTargetPlatform.Android) {
       PrivateDependencyModuleNames.AddRange(new string[] { "Launch" });
       AdditionalPropertiesForReceipt.Add(new ReceiptProperty("AndroidPlugin", Path.Combine(ModuleDirectory, "TIMSDK", "Android", "APL_armv7.xml")));

       string Architecture = "armeabi-v7a";
       // string Architecture = "arm64-v8a";
       // string Architecture = "armeabi";
       PublicAdditionalLibraries.Add(Path.Combine(ModuleDirectory,"TIMSDK", "Android", Architecture, "libImSDK.so"));
   }
   else if (Target.Platform == UnrealTargetPlatform.IOS) {
       PublicAdditionalLibraries.AddRange(
           new string[] {
               "z","c++",
               "z.1.1.3",
               "sqlite3",
               "xml2"
           }
       );
   PublicFrameworks.AddRange(new string[]{
           "Security",
           "AdSupport",
           "CoreTelephony",
           "CoreGraphics",
           "UIKit"
       });
       PublicAdditionalFrameworks.Add(new UEBuildFramework("ImSDK_CPP",_TIMSDKPath+"/ios/ImSDK_CPP.framework.zip", ""));
   }
   else if(Target.Platform == UnrealTargetPlatform.Mac) {
       PublicAdditionalLibraries.AddRange(new string[] {
           "resolv",
           "z",
           "c++",
           "bz2",
           "sqlite3",
       });
   PublicFrameworks.AddRange(
           new string[] {
               "AppKit",
               "Security",
               "CFNetwork",
               "SystemConfiguration",
           });
       PublicFrameworks.Add(Path.Combine(_TIMSDKPath, "Mac", "Release","ImSDKForMac_CPP.framework"));
   }
   else if (Target.Platform == UnrealTargetPlatform.Win64) {
       PublicAdditionalLibraries.Add(Path.Combine(_TIMSDKPath, "win64", "Release","ImSDK.lib"));
       PublicDelayLoadDLLs.Add(Path.Combine(_TIMSDKPath, "win64", "Release", "ImSDK.dll"));
       RuntimeDependencies.Add("$(BinaryOutputDir)/ImSDK.dll", Path.Combine(_TIMSDKPath, "win64", "Release", "ImSDK.dll"));
   }
   }


4. 在 [project_name].Build.cs 文件调用该函数：


5. 到目前为止你已经集成了 IM SDK。可在你的 cpp 文件中使用 IM 的能力了。#include "V2TIMManager.h"

   // 获取sdk单例对象
   V2TIMManager* timInstance = V2TIMManager::GetInstance();
   // 获取sdk版本号
   V2TIMString timString = timInstance->GetVersion();
   // 初始化sdk
   V2TIMSDKConfig timConfig;
   timConfig.initPath = static_cast<V2TIMString>("D:\\");
   timConfig.logPath = static_cast<V2TIMString>("D:\\");
   bool isInit = timInstance->InitSDK(SDKAppID, timConfig);

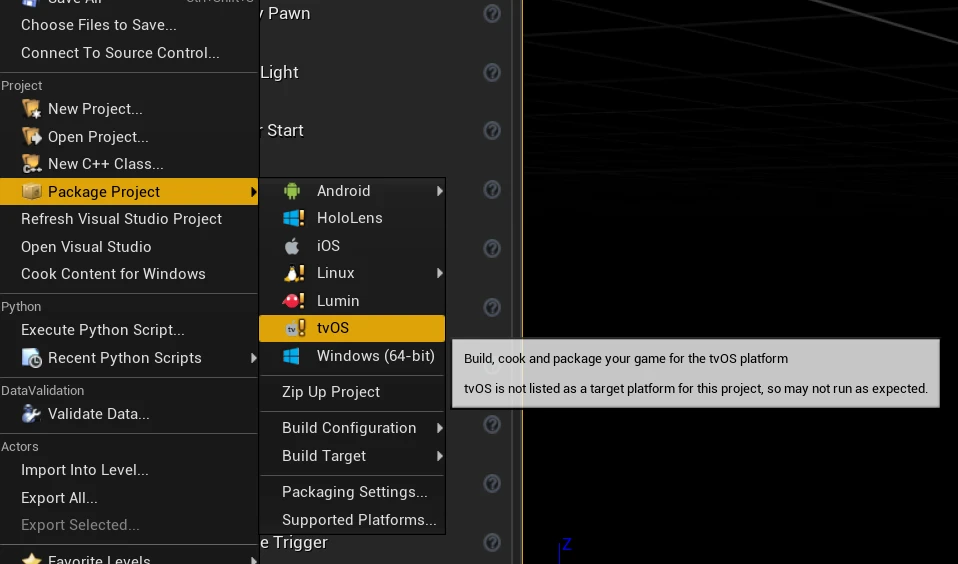

打包

IM Unreal Engine API 文档

更多接口介绍，请参见 API 概览。
