Android 自定义能力

最后更新时间:2023-05-09 11:25:12
    本文主要介绍海外版慧眼 SDK 当前所具备的自定义的能力

    一、自定义 UI

    自定义布局

    慧眼SDK支持自定义UI,主要是通过AuthUiConfig(可以参考接口概述文档)配置参数实现,通过传入Layout resId的方式可自定义UI布局。
    使用方式大致如下:
    AuthUiConfig authConfig = new AuthUiConfig();
    authUiConfig.setAuthLayoutResId(R.layout.demo_huiyan_fragment_authing);
    authUiConfig.setAuthCircleCorrectColor(resources.getColor(R.color.demo_blue));
    huiYanOsConfig.setAuthUiConfig(authUiConfig);

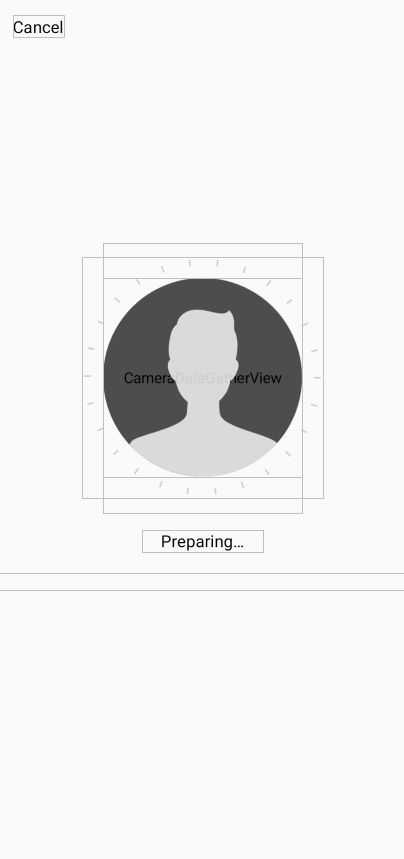

    下图所示属于默认布局:



    默认布局如上图所示,图中的所以控件的位置均可以通过修改布局Layout.xml进行修改。具体的可以参考demo中的
    demo_huiyan_fragment_authing.xml文件。
    注意:
    demo_huiyan_fragment_authing.xml 中的View类型以及对应的 android:id 由于参与的界面事件绑定,请不要修改!。
    这里提供默认的布局如下
    <?xml version="1.0" encoding="utf-8"?>
    <com.tencent.could.huiyansdk.view.HuiYanReflectLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/txy_auth_layout_bg"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <!-- 取消按钮 -->
    <TextView
    android:id="@+id/txy_cancel_txt_btn"
    android:text="@string/txy_cancel"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent"
    android:textColor="@color/txy_black"
    android:textSize="16sp"
    android:layout_marginTop="@dimen/txy_title_margin_top"
    android:layout_marginStart="@dimen/txy_protocol_margin_size"
    />

    <!-- 倒计时的显示控件 -->
    <TextView
    android:id="@+id/txy_count_down_txt_view"
    android:text="@string/txy_count_down_txt"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    android:textSize="16sp"
    android:textColor="@color/txy_black"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_marginTop="@dimen/txy_title_margin_top"
    android:layout_marginRight="@dimen/txy_protocol_margin_size"
    android:visibility="gone"
    />

    <!-- 摄像头预览界面框 720P的话,代码中height会自定乘以1.3 -->
    <com.tencent.could.huiyansdk.view.CameraDateGatherView
    android:id="@+id/txy_camera_gather_view"
    android:layout_width="@dimen/txy_auth_head_size"
    android:layout_height="258dp"
    android:background="@android:color/transparent"
    android:layout_marginBottom="@dimen/txy_auth_view_move"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent" />

    <!-- 通用背景,待竖线的圆环 -->
    <com.tencent.could.huiyansdk.view.CommonAuthBackView
    android:id="@+id/txy_auth_common_background_views"
    android:layout_width="230dp"
    android:layout_height="230dp"
    android:layout_marginBottom="@dimen/txy_auth_view_move"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent"
    />

    <!-- 展示的头像图片 -->
    <ImageView
    android:id="@+id/txy_camera_prepare_img"
    app:srcCompat="@drawable/txy_prepare_face_head_white"
    android:layout_width="@dimen/txy_auth_head_size"
    android:layout_height="@dimen/txy_auth_head_size"
    android:layout_marginBottom="@dimen/txy_auth_view_move"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent" />

    <!-- 前台的动画View -->
    <com.tencent.could.huiyansdk.view.LoadingFrontAnimatorView
    android:id="@+id/txy_auth_loading_front_animator_view"
    android:visibility="gone"
    app:layout_constraintTop_toTopOf="parent"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    android:layout_marginBottom="@dimen/txy_auth_view_move"
    android:layout_width="@dimen/txy_auth_head_size"
    android:layout_height="@dimen/txy_auth_head_size"
    />

    <!-- 提示信息的展示界面 -->
    <TextView
    android:id="@+id/txy_auth_feed_back_txt"
    app:layout_constraintTop_toBottomOf="@id/txy_auth_common_background_views"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    android:textColor="@color/txy_black"
    android:layout_marginTop="@dimen/txy_protocol_line_space"
    android:text="@string/txy_face_preparing3"
    android:textSize="18sp"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"/>

    <!-- 额外的警告信息的提示控件 -->
    <TextView
    android:id="@+id/txy_auth_feed_back_extra_tip_txt"
    android:textSize="14sp"
    android:textColor="@color/txy_black"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:gravity="center_horizontal"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    android:layout_marginTop="20dp"
    app:layout_constraintTop_toBottomOf="@id/txy_auth_feed_back_txt"
    />

    <!-- 核身的内容提示 -->
    <TextView
    android:id="@+id/txy_auth_tips_txt"
    android:textSize="14sp"
    android:textColor="@color/txy_black"
    android:paddingHorizontal="25dp"
    android:layout_marginHorizontal="25dp"
    android:layout_marginBottom="35dp"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"/>

    </com.tencent.could.huiyansdk.view.HuiYanReflectLayout>

    自定义布局的事件绑定

    上一节介绍了如何进行自定义UI布局,本节主要介绍如何对自定义UI布局里新增的控件进行事件绑定,以满足您在使用阶段的各项需求。
    当核身界面被创建时,HuiYanAuthEventCallBack的 onMainViewCreate(View authView)被调用到。当核身界面即将销毁的时候,会回调onMainViewDestroy()方法,您可以在对应的生命周期中自定义处理逻辑。
    // 这里设置慧眼关键事件的回调监听
    HuiYanOsApi.setAuthEventCallBack(new HuiYanAuthEventCallBack() {
    @Override
    public void onAuthTipsEvent(HuiYanAuthTipsEvent tipsEvent) {
    Log.e(TAG, "current is : " + tipsEvent);
    }

    @Override
    public void onMainViewCreate(View authView) {
    if (authView == null) {
    return;
    }
    // 获取自定义添加的控件,并且注册自定义的事件
    Button findBtn = authView.findViewById(R.id.add_view_offer_button);
    if (findBtn != null) {
    findBtn.setOnClickListener(view -> {
    Log.e(TAG, "click test button!");
    });
    }
    }

    @Override
    public void onMainViewDestroy() {
    Log.e(TAG, "onMainViewDestroy");
    }
    });
    根据onMainViewCreate的回调与onMainViewDestroy的回调方式,您可以在完成任意对应您新增UI控件的事件绑定,以实现对应效果。

    二、自定义提示与增加语言

    自定义提示

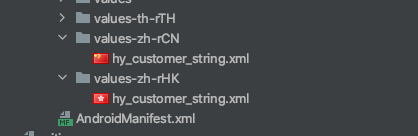

    如果您需要修改提示语,或者新增其他的语言文件的话,可以按照下面的方式取实现。慧眼SDK会提供一个翻译文件hy_customer_string.xml 里面包括了所有慧眼SDK对外可以进行修改的配置文字文件。
    1. 打开在主module(集成慧眼SDK的module)工程。
    2. hy_customer_string.xml添加到对应的语言文件夹下。
    3. 修改其中需要自定义的文字内容即可。
    4. 打包以后,您修改的内容会自动覆盖原有的内容。




    新增语言

    新增语言的话文件,则需要执行以下两部就可以实现:

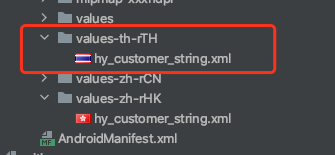

    1. 在主module(集成慧眼SDK的module)工程里新增对应语言文件夹。
    2. hy_customer_string.xml拷贝到改语言文件夹下,并修改对应的value内容。



    3. 在代码里指定对应的语言码即可(以泰文为例)。
    huiYanOsConfig.setLanguageStyle(LanguageStyle.CUSTOMIZE_LANGUAGE);
    huiYanOsConfig.setLanguageCode("th-TH");

    附录 Android 语言码

    这里提供一下 Android 的部分语言码,以供参考。
    语言码
    对应使用的国家或地区
    af-ZA
    公用荷兰语 - 南非
    sq-AL
    阿尔巴尼亚 -阿尔巴尼亚
    ar-DZ
    阿拉伯语 -阿尔及利亚
    ar-BH
    阿拉伯语 -巴林
    ar-EG
    阿拉伯语 -埃及
    ar-IQ
    阿拉伯语 -伊拉克
    ar-JO
    阿拉伯语 -约旦
    ar-KW
    阿拉伯语 -科威特
    ar-LB
    阿拉伯语 -黎巴嫩
    ar-LY
    阿拉伯语 -利比亚
    ar-MA
    阿拉伯语 -摩洛哥
    ar-OM
    阿拉伯语 -阿曼
    ar-QA
    阿拉伯语 -卡塔尔
    eu-ES
    巴斯克 -巴斯克
    be-BY
    Belarusian-白俄罗斯
    bg-BG
    保加利亚 -保加利亚
    ca-ES
    嘉泰罗尼亚 -嘉泰罗尼亚
    zh-HK
    华语 - 中国香港
    zh-MO
    华语 - 中国澳门
    zh-CN
    华语 -中国
    zh-SG
    华语 -新加坡
    zh-TW
    华语 - 中国台湾
    zh-CHS
    华语 (简体化)
    zh-CHT
    华语 (传统的)
    hr-HR
    克罗埃西亚 -克罗埃西亚
    cs-CZ
    捷克 - 捷克
    da-DK
    丹麦文 -丹麦
    div-MV
    Dhivehi-马尔代夫
    nl-BE
    荷兰 -比利时
    nl-NL
    荷兰 - 荷兰
    en-AU
    英国 -澳洲
    en-CA
    英国 -加拿大
    en-ZA
    英国 - 南非
    en-PH
    英国 -菲律宾共和国
    en-NZ
    英国 - 新西兰
    en-GB
    英国 - 英国
    en-US
    英国 - 美国
    fa-IR
    波斯语 -伊朗王国
    fi-FI
    芬兰语 -芬兰
    fr-FR
    法国 -法国
    fr-BE
    法国 -比利时
    fr-MC
    法国 -摩纳哥
    fr-CH
    法国 -瑞士
    gl-ES
    加利西亚 -加利西亚
    ka-GE
    格鲁吉亚州 -格鲁吉亚州
    de-DE
    德国 -德国
    de-LU
    德国 -卢森堡
    de-CH
    德国 -瑞士
    el-GR
    希腊 -希腊
    gu-IN
    Gujarati-印度
    he-IL
    希伯来 -以色列
    hi-IN
    北印度语 -印度
    hu-HU
    匈牙利的 -匈牙利
    is-IS
    冰岛的 -冰岛
    it-IT
    意大利 -意大利
    ja-JP
    日本 -日本
    kk-KZ
    Kazakh-哈萨克
    kn-IN
    卡纳达语 -印度
    ko-KR
    韩国 -韩国
    lv-LV
    拉脱维亚的 -拉脱维亚
    lt-LT
    立陶宛 -立陶宛
    ms-BN
    马来 -汶莱
    ms-MY
    马来 -马来西亚
    mr-IN
    马拉地语 -印度
    mn-MN
    蒙古 -蒙古
    nn-NO
    挪威 (Nynorsk)- 挪威
    pl-PL
    波兰 -波兰
    pt-BR
    葡萄牙 -巴西
    pt-PT
    葡萄牙 -葡萄牙
    ro-RO
    罗马尼亚语 -罗马尼亚
    sa-IN
    梵文 -印度
    ru-RU
    俄国 -俄国
    sk-SK
    斯洛伐克 -斯洛伐克
    es-AR
    西班牙 -阿根廷
    es-ES
    西班牙 -西班牙
    sv-SE
    瑞典 -瑞典
    th-TH
    泰国 -泰国
    tr-TR
    土耳其语 -土耳其
    uk-UA
    乌克兰 -乌克兰
    ur-PK
    Urdu-巴基斯坦
    vi-VN
    越南 -越南
