AI Dubbing (excluding erasure) Integration
Last updated: 2025-12-16 17:49:02
Download PDF

AI Dubbing Feature Overview

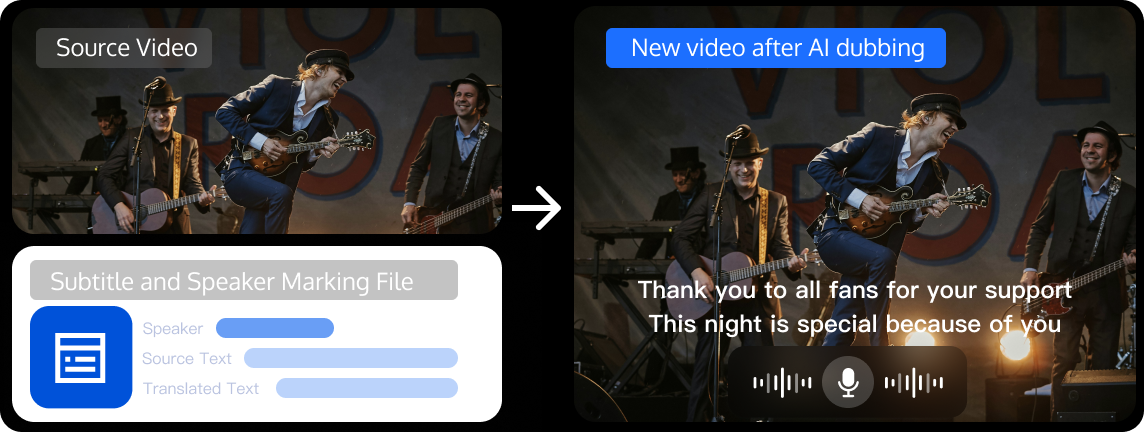

The AI dubbing feature can replace the original dubbing of a video with the AI-generated dubbing in the target language and embed the translated subtitles into the video images. To initiate an AI dubbing task, you need to use the following two files as input:
1. A clean video file with no subtitles in the source language on the video images.
2. A subtitle and speaker tag file (the Speaker file).
You can also directly call the Dubbing-Level Video Translation feature, input a video with original subtitles, and complete subtitle and dubbing translation in one stop to obtain a translated video.
Note:
For details about how to obtain clean videos and the Speaker file, see FAQs.


Billing Instructions

When you initiate an AI dubbing task, you are charged for AI dubbing (cloned timbre) and subtitle embedding. Among them, subtitle embedding is optional.
Note:
The AI dubbing feature uses cloned timbre by default. The standard timbre capability is currently under upgrade and available only for beta testing. If you need to use the standard timbre, you can contact sales for support.
When you use the standard timbre, you are charged for AI dubbing (standard timbre) and subtitle embedding. Among them, subtitle embedding is optional.

Initiating a Video Translation Task

Pre-integration Prerequisites

Before integrating AI dubbing, you need to complete the following prerequisites for using Media Processing Service (MPS): Register and log in to a Tencent Cloud account, activate MPS, and grant permissions to service roles.
For detailed guidance, see Quick Start. For account authorization issues, see Account Authorization.

Method 1: Initiating a Task in the Console

1. Go to the Create a Task page in the console, specify the input file path, orchestration workflow, and output path in sequence.
2. In the orchestration configuration, select the Media AI - Intelligent Analysis node.

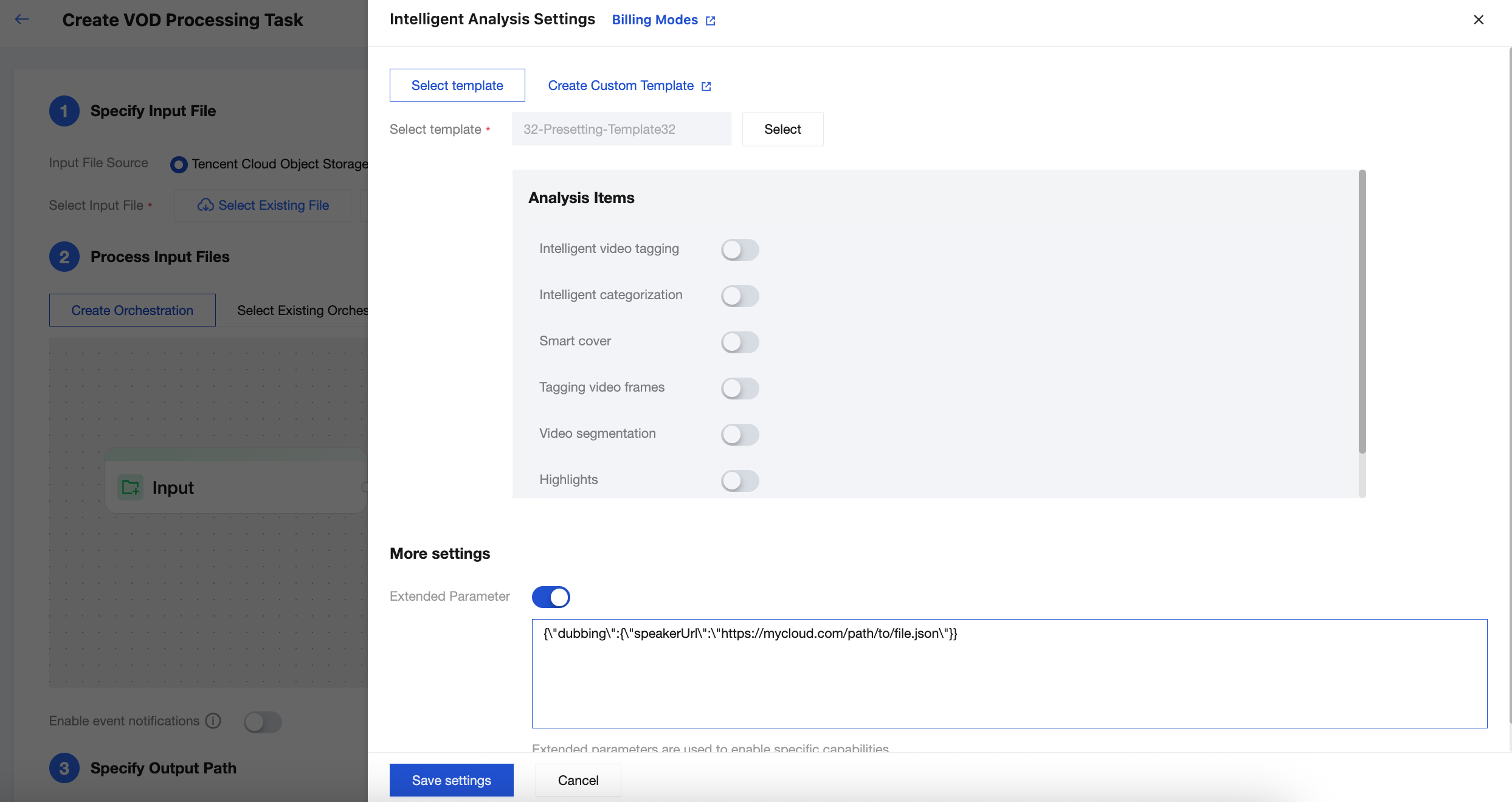

3. On the pop-up page on the right, select the preset template 32, enable Extended Parameters in the More Settings section, and then input the required parameters in ExtendedParameter based on Description of ExtendedParameter in the following section.
Note:
To initiate an AI dubbing task, you must input the subtitle file path or the Speaker file path in ExtendedParameter; otherwise, the task will fail.
The MPS console automatically escapes the JSON data. Input the data directly and do not input escaped strings. Otherwise, the task will fail.


Method 2: Initiating a Task by Calling an API

Call the ProcessMedia API, select the AiAnalysisTask task, set Definition to 32 (ID of the preset template), and fill in ExtendedParameter, which is the parameter that enables the AI Dubbing capability. For parameter values, see Description of ExtendedParameter in the following section. The JSON example for ProcessMedia is as follows:
{
   "InputInfo":{ //Input video path. Replace it with the path of your original video.
      "Type":"URL",
      "UrlInputInfo":{
         "Url":"https://test-1234567.cos.ap-nanjing.myqcloud.com/mps_test/myvideo.mp4"
      }
   },
   "OutputStorage":{ //Output Cloud Object Storage (COS) bucket. Replace it.
      "Type":"COS",
      "CosOutputStorage":{
         "Bucket":"test",
         "Region":"ap-nanjing"
      }
   },
   "OutputDir":"/mps_test/output/",//Output folder path. Replace it.
   "AiAnalysisTask":{
      "Definition":32, //Preset template ID. Enter 32.
      "ExtendedParameter":"{\\"dubbing\\":{\\"speakerUrl\\":\\"https://mycloud.com/path/to/file.json\\"}}" //Required extension parameter. It is used to specify the speaker file path, subtitle style, and other parameters.
   },
   "TaskNotifyConfig":{ //Event callback notification configuration, which is optional.
      "NotifyType":"URL",
      "NotifyUrl":"http://www.qq.com/callback"
   }
}
It is recommended that you use API Explorer for rapid verification. You can copy the above JSON data to the JSON mode in API Explorer, switch to the Form mode for automatic parsing, adjust required parameters such as input and output paths, and then click Initiate Call.

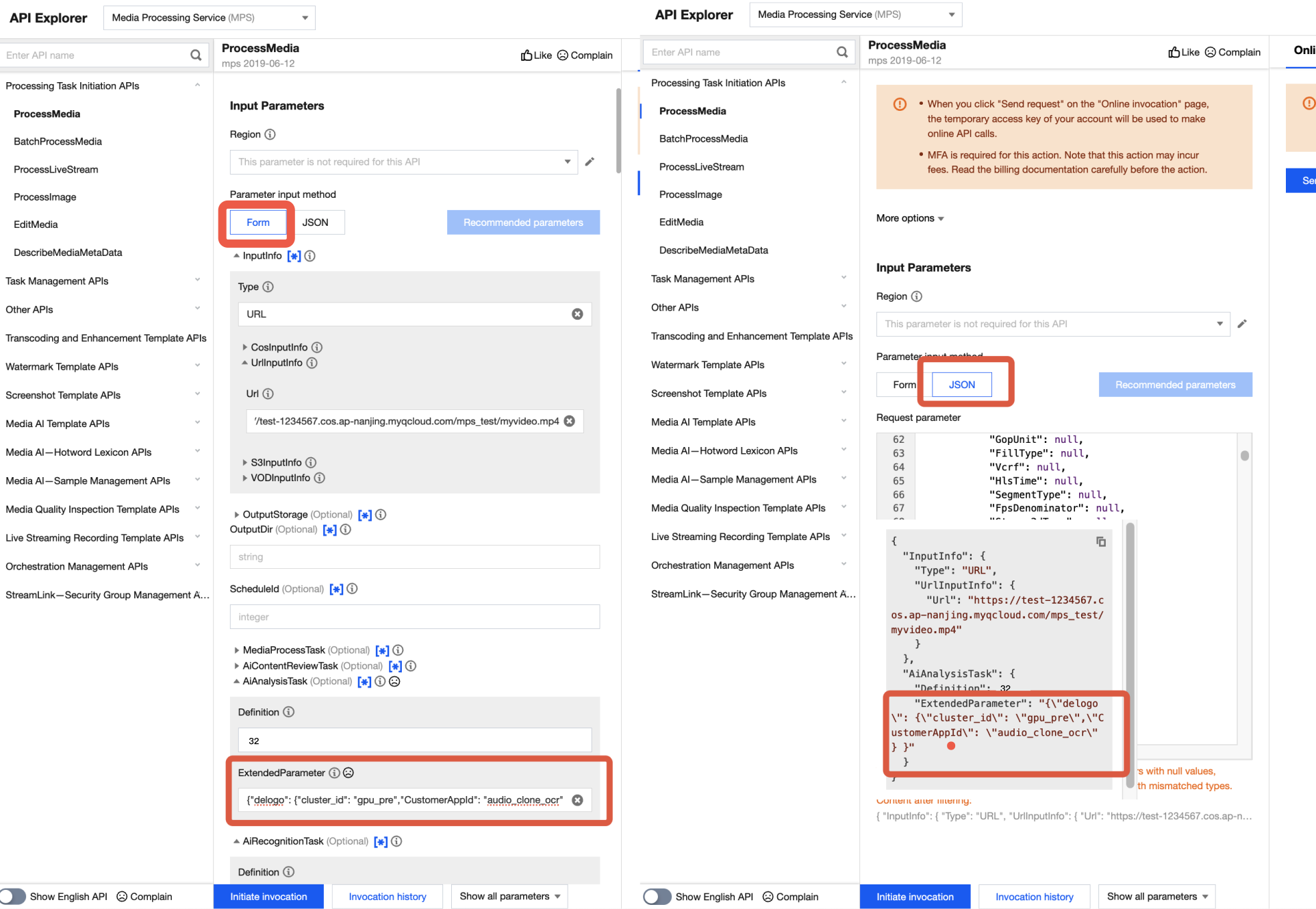

In API Explorer, the positions of ExtendedParameter in Form and JSON input modes are as follows:

Note:
When you fill in values in the ExtendedParameter field in the Form mode of API Explorer, you need to directly input the JSON data instead of escaping it to a string. However, when you use the JSON mode of API Explorer or directly use the API, you should input an escaped string.

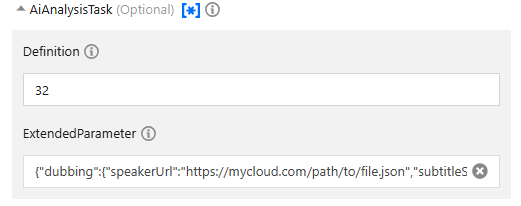

In the Form mode of API Explorer, input the JSON data in ExtendedParameter:

In the JSON mode of API Explorer, input an escaped string in the ExtendedParameter field. Example:
{\\"dubbing\\":{\\"speakerUrl\\":\\"https://mycloud.com/path/to/file.json\\"}}

Additional Notes

ExtendedParameter Description

ExtendedParameter is used for customizing settings of AI dubbing tasks. All optional parameters and their descriptions are as follows:
Parameter
Type
Required
Description
speakerUrl
string
否
Either Speaker File URL or Subtitle URLs must be provided. For details, please refer to the Speaker Data Format.
srcLang
string
否
Source language. Optional when using speakerUrl mode.
dstLangs
list<string>
否
Target dubbing languages. Optional when using speakerUrl mode.
subtitleUrls
json
否
Input subtitle URLs. Either this or speakerUrl must be provided.
subtitleUrls.srcSubtitleUrl
string
否
Original subtitle URL.
subtitleUrls.dstSubtitleUrls
json
否
Target subtitle URLs, with language as key and subtitle URL as value.
subtitle
json
否
Parameters related to output subtitles.
subtitle.embed
bool
否
Whether to embed subtitles. Enabled by default.
subtitle.style
json
否
Subtitle styling. Takes effect when subtitle embedding is enabled.
subtitle.style.font
string
否
Font family. Uses default font when empty or set to "auto". For supported fonts, refer to SubtitleTemplate Data Structure.
subtitle.style.fontSize
float
否
Font size. Default: 50 px.
subtitle.style.marginV
float
否
Bottom margin. Default: 50 px.
outputPattern
string
否
Output filename prefix. If not specified, defaults to "dub", with full filename as dub_{unixtime}.{format}.
使用 speakerUrl 请求参数示例：
{
  	"dubbing": {
       "speakerUrl": "https://mycloud.com/path/to/file.json",	// Required. The Speaker file URL.
       "subtitle": {
          "embed": true,	 // Specify whether to embed subtitles. true by default.
          "style": {     // The subtitle style. This parameter is valid only when subtitle embedding is enabled.
            "font": "kai.ttf",    // The font. Default value: "kai.tff".
            "fontSize": 50,    // The font size. Default value: 50px.
            "marginV": 50    // The bottom margin. Default value: 50.
          }
       },
       "outputPattern": "filename" // Optional. The prefix of the output file name.
    }
}

使用 subtitleUrls 请求参数示例：
{
  	"dubbing": {
       "srcLang": "zh",
       "dstLangs": ["ja"],
       "subtitleUrls": {
          "srcSubtitleUrl": "https://test/zh.vtt", // Original-language subtitle URL.
          "dstSubtitleUrls": {
            "ja": "https://test/ja.vtt" // Target-language subtitle URL.
          }
       },
       "subtitle": {
          "embed": true,	// Specify whether to embed subtitles. true by default.
          "style": {     // The subtitle style. This parameter is valid only when subtitle embedding is enabled.
            "font": "auto", // The font. auto means automatic matching based on subtitle language.
            "fontSize": 0.04, // The font size. A value less than 1 represents a percentage.
            "marginV": 0.15 // The bottom margin. A value less than 1 represents a percentage.
          }
       },
       "outputPattern": "filename" // Optional. The prefix of the output file name.
    }
}
Note:
The duration of a single subtitle in the Speaker file or subtitle file must be no less than 0.15 seconds.

Speaker Files Description

Data Format

The Speaker file is a JSON-formatted file containing subtitles and corresponding speaker information. Its data format is as follows:
{
  	"SrcLang": "zh",
    "DstLangs": ["en"],
    "Speakers": [
        {
          "Id": "speaker_0",
          "Gender": "male"
        },
        {
          "Id": "speaker_1",
          "Gender": "female"
        }
    ],
    "Clips": [
        {
          "TextStartTime": "00:00:00.100",
          "TextEndTime": "00:00:00.600",
          "SpeakerId": "speaker_0",
          "SrcText": "没谁",
          "DstTexts": {
            "en": "No one"
          }
        },
        {
          "TextStartTime": "00:00:01.0",
          "TextEndTime": "00:00:01.200",
          "SpeakerId": "speaker_1",
          "SrcText": "早上好"
          "DstTexts": {
            "en": "Morning"
          }
        }
    ]
}

Parameter
Required
Type
Description
SrcLang
Yes
string
Source language of the video. For details, see Supported Languages.
DstLangs
Yes
list<string>
Target language for translation. Currently, only a single language can be selected. For details, see Supported Languages.
Speakers[i].Id
Yes
string
Speaker ID.
Speakers[i].Gender
Yes
string
Speaker gender. Valid values: male and female.
Clips[i].TextStartTime
Yes
string
Start timestamp of the subtitle clip. Format: hh:mm:ss.ms.
Clips[i].TextEndTime
Yes
string
End timestamp of the subtitle clip. Format: hh:mm:ss.ms.
Clips[i].SpeakerId
Yes
string
Speaker ID corresponding to the subtitle clip.
Clips[i].SrcText
Yes
string
Source language of the subtitle slice.
Clips[i].DstTexts
Yes
map<string,string>
Target language of the subtitle slice. Currently, only a single language can be selected.

Speaker File Modification Examples

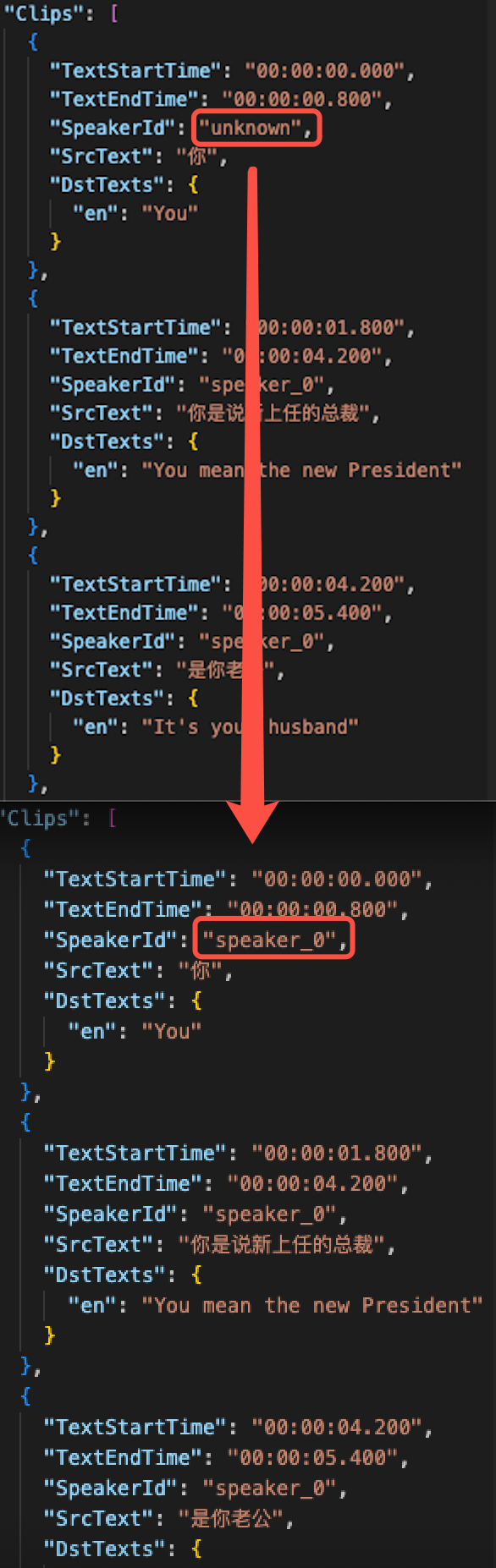

Modify incorrect speaker tags (SpeakerId) to avoid crosstalk.

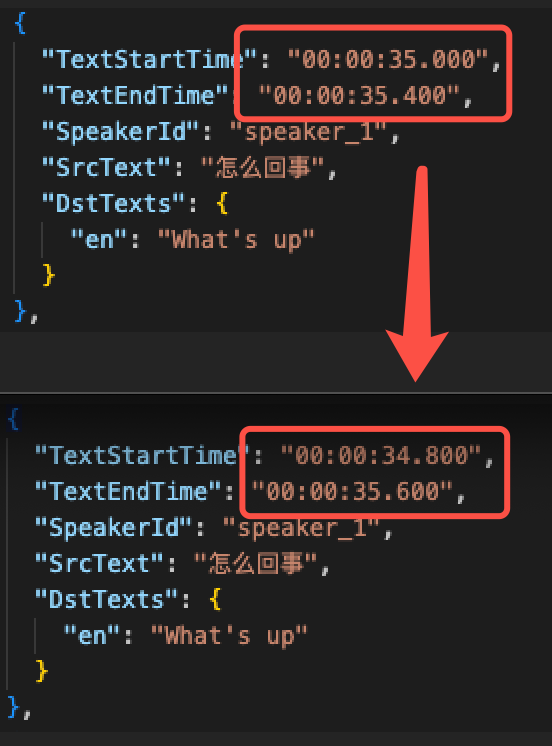

Modify overly short timestamps to avoid excessively fast speech in dubbing.

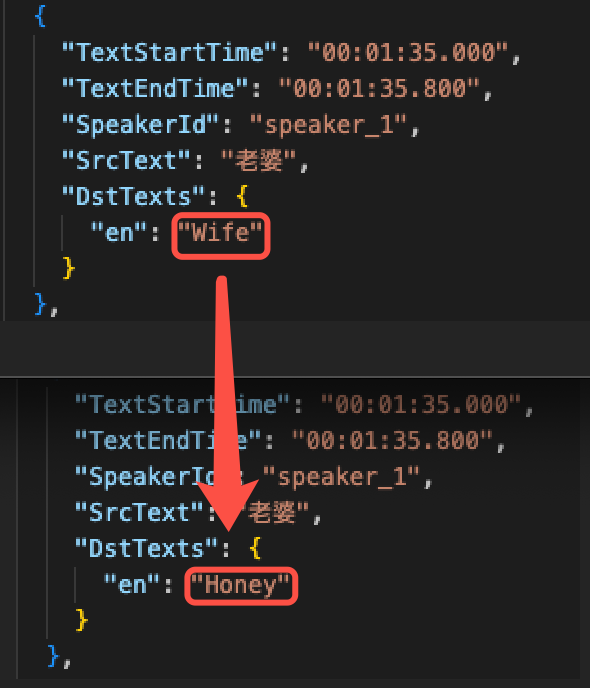

Modify the translation to make it more idiomatic and colloquial.


AI Dubbing Supported Languages

说明：
The AI dubbing feature uses cloned timbre by default.
The standard timbre capability is currently under upgrade and available only for beta testing. If you need to use the standard timbre, you can contact sales for support.
The following languages are supported when AI dubbing with cloned timbre is selected.
Language
Code
Supported as Source Language (SrcLang)
Supported as Target Language (DstLangs)
Chinese
zh
✓
✓
English
en
✓
✓
Japanese
ja
✓
✓
German
de
✓
✓
French
fr
✓
✓
Korean
ko
✓
✓
Russian
ru
✓
✓
Ukrainian
uk
✓
✓
Portuguese
pt
✓
✓
Italian
it
✓
✓
Spanish
es
✓
✓
Indonesian
id
✓
✓
Dutch
nl
✓
✓
Turkish
tr
✓
✓
Filipino
fil
✓
✓
Malay
ms
✓
✓
Greek
el
✓
✓
Finnish
fi
✓
✓
Croatian
hr
✓
✓
Slovak
sk
✓
✓
Polish
pl
✓
✓
Swedish
sv
✓
✓
Hindi
hi
✓
✓
Bulgarian
bg
✓
✓
Romanian
ro
✓
✓
Arabic
ar
✓
✓
Czech
cs
✓
✓
Danish
da
✓
✓
Tamil
ta
✓
✓
Hungarian
hun
✓
✓
Vietnamese
vi
✓
✓

Querying the Task Result

After an AI dubbing task is completed, two types of files are output and saved to the configured output path: the processed video file and the refined Speaker file. During dubbing, the translation in the original Speaker file is simplified to ensure a normal dubbing speed and prevent the speech from sounding too fast, thus generating a new Speaker file.

Querying the Result in the Console

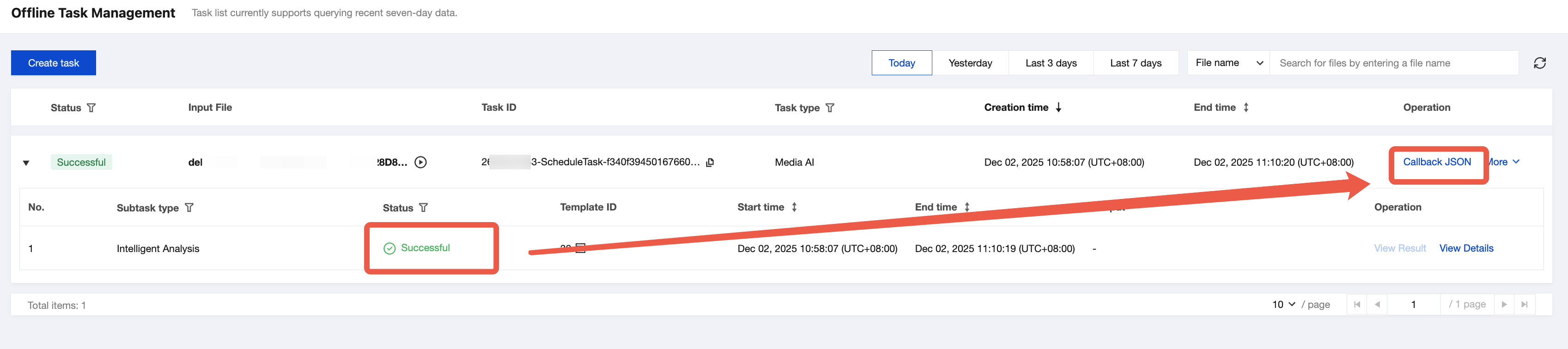

1. You can check the task status on the Task Management page in the console. When the subtask status is Successful, click Callback JSON.

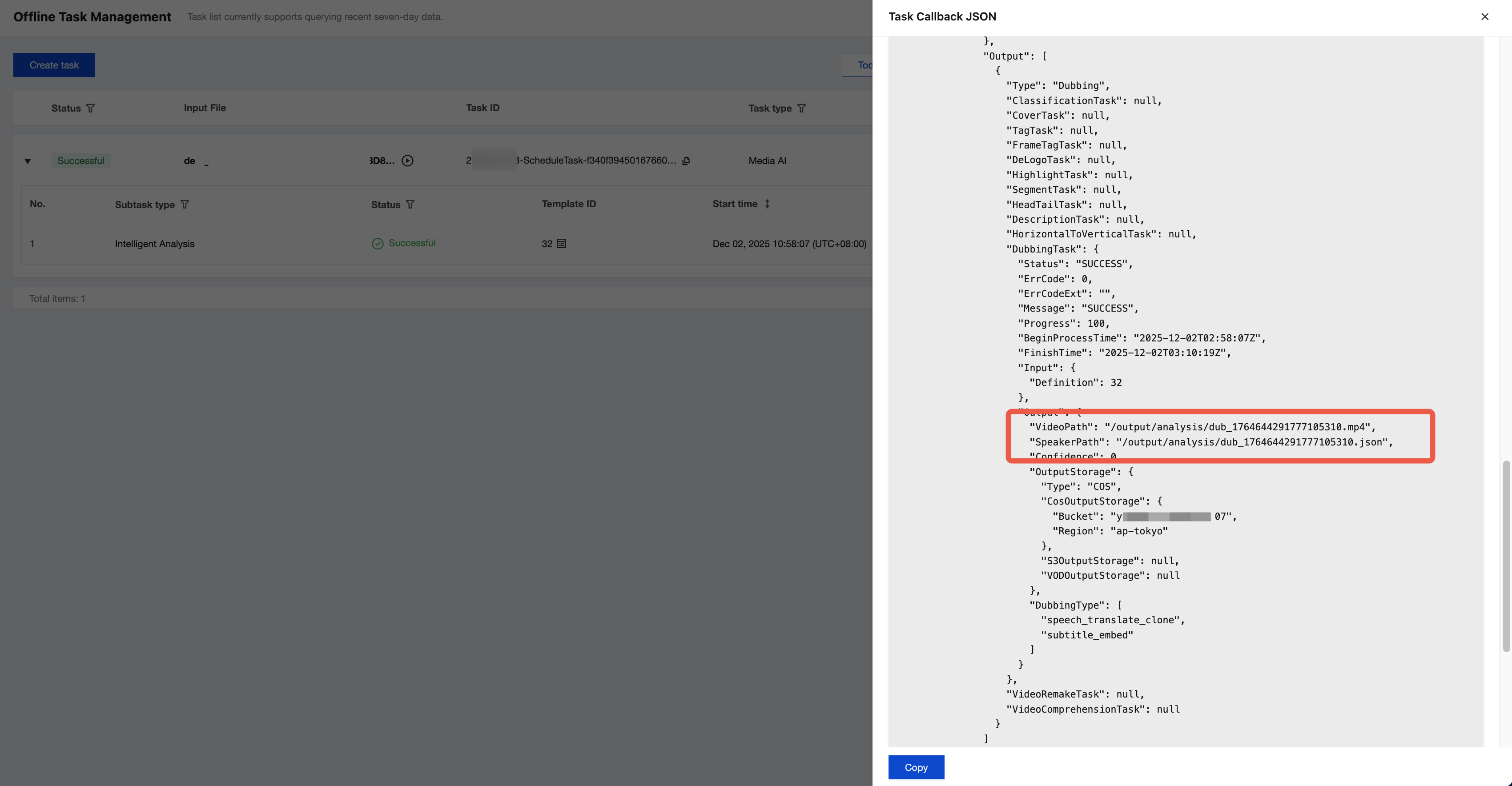

2. You can find the output file path in the output message.

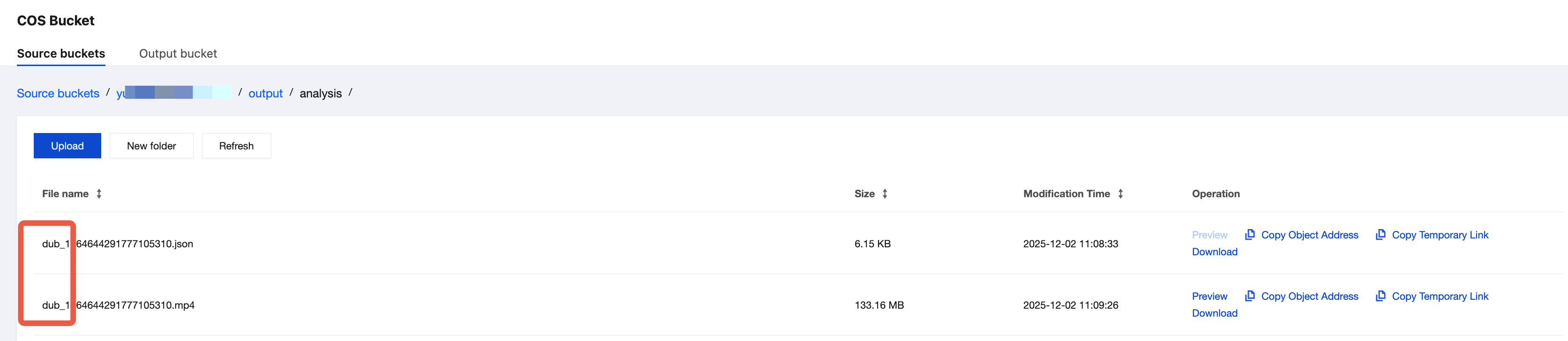

If COS is used as the output path, you can find the output file on the Orchestration Management > COS Bucket > Output Bucket page in the MPS console. The files with names similar to "dub-xxx.mp4" or "dub-xxx.json" are the processed video file and Speaker file generated after AI dubbing.


Event Notification Callback

When using ProcessMedia to initiate a media processing task, you can configure an event callback through the TaskNotifyConfig parameter. After the task processing is completed, the task result will be called back via the configured callback information. You can parse the event notification result through ParseNotification. The related data structure is listed below for reference.

Querying the Task Result by Calling an API

After ProcessMedia is used to initiate a media processing task, a task ID (TaskId) will be returned, such as 24000022-WorkflowTask-b20a8exxxxxxx1tt110253 and 24000022-ScheduleTask-774f101xxxxxxx1tt110253. Call the DescribeTaskDetail API and enter the task ID to obtain the task result. You need to parse the WorkflowTask ->AiAnalysisResultSet > DubbingTask > Output field to obtain the task result. The related data structure is listed below for reference.

Related Data Structure

AiAnalysisTaskDubbingResult
AiAnalysisTaskDubbingInput
AiAnalysisTaskDubbingOutput

FAQs

How Do I Obtain Clean Videos?

You can use the Smart Erase feature to remove subtitles and watermarks from videos to obtain clean videos.

Is It Supported to Input a Video and Perform One-Stop Processing, Including Subtitle Removal, Subtitle Translation, Subtitle Embedding, and AI Dubbing?

Yes, it is supported. For details, see Dubbing-Level Video Translation Integration.

How Do I Generate a Speaker File from an SRT/VTT Subtitle File?

MPS provides the script subtitle2speaker.py for converting subtitle files to the Speaker files.
SRT or VTT subtitle files are supported. Usage examples:
Provide bilingual subtitle files (source-language and translated subtitles in one file).
python3 subtitle2speaker.py input.srt output.json --src_lang "zh" --dst_langs "en"
Provide two monolingual subtitle files (source-language and translated subtitles in separate files).
python3 subtitle2speaker.py input_src.vtt input_dst.vtt output.json --src_lang "zh" --dst_langs "en"
Note:
Speaker files generated from SRT/VTT subtitle files use a default Speaker ID for all speakers. You need to manually modify the Speaker information; otherwise, the dubbing effect may not meet expectations.
