Logging Overview

Terakhir diperbarui: 2025-10-10 09:50:01

Feature Overview
The logging feature allows you to record the access information of a source bucket and save it to a destination bucket as logs.
In the destination bucket, the log path is:
destination bucket/path prefix{YYYY}/{MM}/{DD}/{time}_{random}_{index}
Logs are generated every 5 minutes (one record per line). Each record contains multiple fields, and fields are separated by a space. The file size for a log file is up to 256 MB. If the amount of logs generated within these 5 minutes exceeds 256MB, your logs will be split into multiple log files. The logging fields supported are as follows:
No.
Field
Description
Sample
1
eventVersion
Log version
1.0
2
bucketName
Bucket Name
examplebucket-1250000000
3
qcsRegion
Request region
ap-beijing
4
eventTime
Event time (request end time, which is a timestamp in UTC+0 time zone)
2018-12-01T11:02:33Z
5
eventSource
Access domain name
examplebucket-1250000000.cos.ap-guangzhou.myqcloud.com
6
eventName
Event name, i.e., API operation name. For details, see Operation List.
UploadPart
7
remoteIp
Source IP
192.168.0.1
8
userSecretKeyId
User access KeyId
************************************
9
reservedFiled
Reserved field.
Displayed as -
10
reqBytesSent
Request bytes
83886080
11
deltaDataSize
Change in storage made by the request (in bytes)
808
12
reqPath
Requested file path
/folder/text.txt
13
reqMethod
Request method
put
14
userAgent
User UA
cos-go-sdk-v5.2.9
15
resHttpCode
HTTP response status code
404
16
resErrorCode
Error Codes
NoSuchKey
17
resErrorMsg
Error Message
The specified key does not exist.
18
resBytesSent
Bytes returned
197
19
resTotalTime
Total time used by the request (in milliseconds, i.e., the time between the last byte of the response and the first byte of the request)
4295
20
logSourceType
Source type of the log
USER (user access requests), CDN (CDN origin-pull requests)
21
storageClass
Storage Type
STANDARD，STANDARD_IA，ARCHIVE
22
accountId
Bucket owner ID
100000000001
23
resTurnAroundTime
Time used by the request server (in milliseconds, i.e., the time between the first byte of the response and the last byte of the request)
4295
24
requester
Visitor account.
If the visitor is the root account, the account format is root account UIN:root account UIN;
If the visitor is a sub-account, the account format is root account UIN:sub-account UIN;
If the visitor is a service account, the account format is granted root account UIN:role ID;
If the requester is anonymous, it is displayed as -.
100000000001:100000000001
25
requestId
Request ID
NWQ1ZjY4MTBfMjZiMjU4NjRfOWI1N180NDBiYTY=
26
objectSize
Object size, in bytes
808, if you use multipart upload, the objectSize field will only be displayed upon completion of the upload. During each part's upload, this field will display -.
27
versionId
Object version ID
Random string
28
targetStorageClass
Destination storage class, recorded for replication requests
STANDARD，STANDARD_IA，ARCHIVE
29
referer
HTTP referer of the request
*.example.com or 111.111.111.1
30
requestUri
Request URI
"GET /fdgfdgsf%20/%E6%B5%AE%E7%82%B9%E6%95%B0 HTTP/1.1"
"GET /fdgfdgsf%20/%E6%B5%AE%E7%82%B9%E6%95%B0 HTTP/1.1"
Notes:
If the signature is in the query_string form, it will be shown in the requestUri. Otherwise, the requestUri will not contain the signature information.
31
vpcId
VPC request ID
"0" (non-VPC) / "12345" (VPC, any non-zero string)
Note:
Currently, the log management function of COS supports the following regions: Beijing, Nanjing, Shanghai, Guangzhou, Chengdu, Chongqing, Shenzhen Finance, Shanghai Finance, Hong Kong (China), Singapore, Seoul, Bangkok, Tokyo, Silicon Valley, Virginia, Frankfurt.
The destination bucket and source bucket must reside in the same region.
The destination bucket that stores logs can be the source bucket itself (not recommended).
Currently, logs will be generated only when the bucket is accessed through XML APIs and XML API-based SDKs or tools, not via JSON APIs or JSON API-based SDKs or tools.
Depending on customer needs and business development, COS may add new fields to the access logs. Be sure to prepare for this when parsing the logs.
COS does not guarantee 100% accuracy of log data, for reference only, not as measurement or billing basis.
Enabling Logging
Using the Console
1. Log in to the COS console.
2. In the left navigation bar, click Bucket List to enter the bucket list management page.
3. Find the source bucket for which you want to enable log storage, click the Bucket Name, and enter the bucket management page.
4. On the left sidebar, select Logging > Logging, click Edit, and toggle on the feature.
5. Configure the configuration items of Logging as follows.
Destination Bucket: The destination bucket that stores the source bucket's logs must reside in the same region as the source bucket. We recommend you not set the source bucket itself as the destination bucket.
Path Prefix: A custom path prefix for the logs. If this field is left empty, logs will be delivered to the root directory of the destination bucket.
Service Authorization:  When enabling the log storage feature for the first time, you need to authorize the CLS product service to deliver access logs to your bucket. Follow the prompts to complete the authorization.
6. After confirming that everything is correct, click Save.
Note:
After enabling the log storage feature, it is expected to take 1 hour to complete the first batch of log delivery. Subsequently, logs will be generated every 5 minutes, and the specific time of log delivery depends on the data volume.

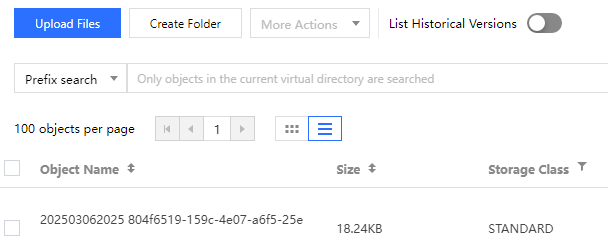

7. Go to the destination bucket configured to view the generated logs.
﻿
8. After downloading the logs, you can view them in detail. For more information, see Logging Overview.
Note:
Currently, only the bucket owner possesses the permission to configure log storage. Other users will not see the Log Storage configuration option when accessing the console.
Notes
To enable Logging, you need to create a log role in the CAM console and grant the role permissions to read/write logs of the source bucket.
If Logging is disabled yet the role is not deleted, the role's read/write permissions on the source bucket's logs still exist.
Using the API
To enable logging for a bucket using APIs, follow the steps below:
1. Create a log role
Create a log role. For more information, see CreateRole.
Here, roleName must be CLS_QcsRole.
policyDocument must be:
{
    "version": "2.0",
    "statement": [{
        "action": "name/sts:AssumeRole",
        "effect": "allow",
        "principal": {
            "service": "cls.cloud.tencent.com"
        }
    }]
}
2. Grant the log role permissions
Grant the log role permissions. For more information about the API, see AttachRolePolicy.
Here, policyName is set to QcloudCOSAccessForCLSRole.roleName is the CLS_QcsRole in step 1, or the roleID returned when roleName was created.
3. Enable Log Management
Call the API to enable logging. For more information about the API, see PUT Bucket logging. Note that the destination bucket to store the logs should be in the same region as the source bucket.
