Enabling Public Network Access for a Native Node
Download PDF
Last updated: 2025-05-26 17:16:47
Enabling Public Network Access for a Native Node
Last updated: 2025-05-26 17:16:47
Download PDF
Note:
Bill-by-CVM accounts cannot be used to enable public network access for native nodes. For more information, see Account Types. If you use a bill-by-CVM account, you can submit a ticket to upgrade your account.
This document describes how to bind a node to an elastic IP (EIP) and enable public network access for the node in the TKE console or using YAML.

Note

In a node pool with public network access enabled, each time a native node is created, an EIP is automatically created and bound to the node.
The EIP bound to a node has the same lifecycle as the node.
When you use native nodes, no fees are charged for EIPs.

Using the Console to Enable Public Network Access for Native Nodes

1. Log in to the TKE console and select Cluster in the left sidebar.
2. On the cluster list page, click the ID of the target cluster to go to the details page.
3. Choose Node management > Node pool in the left sidebar. On the Node pool list page, click Create node pool.
4. On the Create node pool page, click Model configuration. On the Model configuration page, select Create EIP, as shown below:

5. Click Create node pool.

Using YAML to Enable Public Network Access for Native Nodes

Fields

Field Name
Field Value
Description
spec.template.spec.providerSpec.value.internetAccessible
addressType
EIP: If this field is left empty, a standard EIP is used.
HighQualityEIP: A BGP IP (dedicated EIP) is used.
chargeType
Billing mode:
TrafficPostpaidByHour: Postpaid by traffic on an hourly basis.
BandwidthPostpaidByHour: Postpaid by bandwidth on an hourly basis.
BandwidthPackage: Paid by shared bandwidth package. The EIP must be in the allowlist of the bandwidth package.
maxBandwidthOut
Maximum bandwidth in Mbps.
bandwidthPackageID
ID of the shared bandwidth package.
Note
BGP IPs support only bill-by-IP accounts in the Hong Kong (China) region. You can go to the Virtual Private Cloud (VPC) console to create a shared bandwidth package.

YAML sample

apiVersion: node.tke.cloud.tencent.com/v1beta1
kind: MachineSet
spec:
  deletePolicy: Random
  displayName: HighQualityEIP-test
  instanceTypes:
  - SA2.MEDIUM2
  replicas: 1
  scaling:
    createPolicy: ZonePriority
    maxReplicas: 4
  subnetIDs:
  - subnet-xxxxxxx
  template:
    metadata:
      labels:
        node.tke.cloud.tencent.com/machineset: np-ohh7gaek
    spec:
      providerSpec:
        type: Native
        value:
          instanceChargeType: PostpaidByHour
          lifecycle: {}
          management:
            nameservers:
            - 183.60.83.19
            - 183.60.82.98
          metadata:
            creationTimestamp: null
          securityGroupIDs:
          - sg-5lxe2r2p
          systemDisk:
            diskSize: 50
            diskType: CloudPremium
          internetAccessible:
            chargeType: BandwidthPackage
            bandwidthPackageID: bwp-95xr2686
            maxBandwidthOut: 100
            addressType: HighQualityEIP
      runtimeRootDir: /var/lib/containerd
  type: Native

Binding an EIP to a Native Node

Tencent Cloud native nodes support binding to EIPs for public network access. You can configure an EIP for both existing and new nodes in a node pool to meet the network requirements in different scenarios.

Note

Billing: Binding and unbinding EIPs may incur additional fees. For details, see Elastic IP Billing Rules.
EIP ownership: EIPs belong to the corresponding users after unbinding. Users can manage them as needed.
Operation permissions: Make sure that you have the permissions to perform EIP binding and unbinding operations.

Querying the EIP Status

1. Log in to the TKE console, and click Cluster in the left sidebar.
2. On the cluster list page, click the ID of a cluster to enter the cluster details page.
3. Select in the left sidebar Node Management , click the node name on the node page to enter the node detail page.

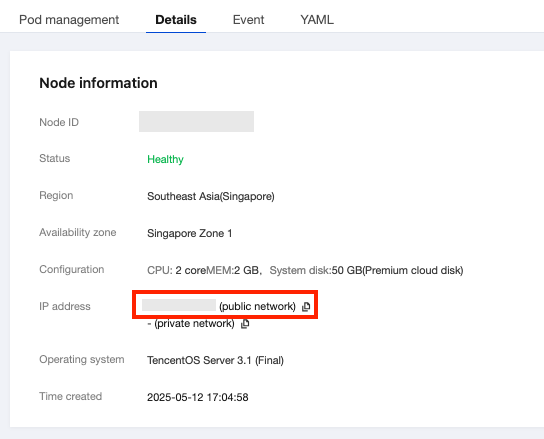

4. In the host information area, view the IP address, and query the status of the EIP bound to the node, as shown below:


Binding an EIP

1. Log in to the TKE console, and click Cluster in the left sidebar.
2. On the cluster list page, click the ID of a cluster to enter the cluster details page.

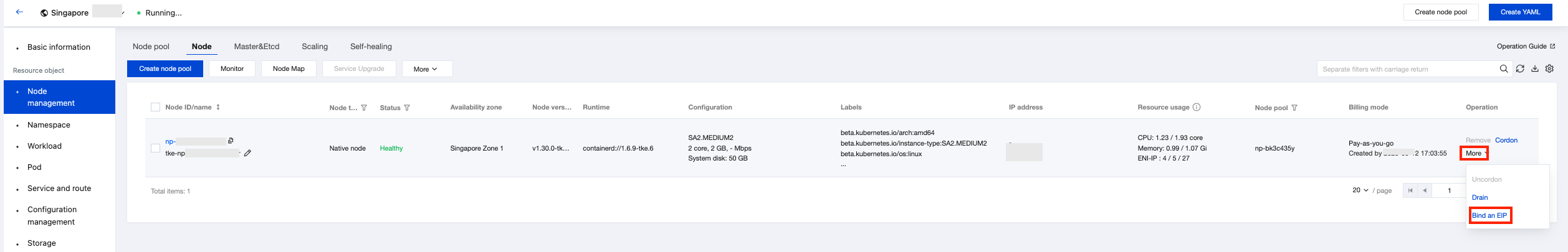

3. Select in the left sidebar Node Management , click More on the right of the node on the node page More , and select Bind EIP . As shown below:

4. In the EIP binding pop-up window, select the EIP to be bound, and click Confirm .

Unbinding an EIP

1. Log in to the TKE console, and click Cluster in the left sidebar.
2. On the cluster list page, click the ID of a cluster to enter the cluster details page.
3. In the left sidebar, select Node Management , and then click More > Unbind EIP on the right of the node.
4. Confirm the information for unbinding, and click Confirm.
