Using Self-Built Prometheus to Collect Control Plane Monitoring Metrics
Last updated: 2025-04-29 10:58:03
This document introduces the configuration for collecting monitoring metrics of control plane component (kube-apiserver, kube-scheduler, and kube-controller-manager) in a TKE managed cluster by using self-built Prometheus.
Prerequisites
Self-built Prometheus can access API Server of the TKE cluster.
Self-built Prometheus can be deployed inside or outside the TKE cluster.
Prometheus Collection Configuration
When self-built Prometheus is used to collect metrics of core control panel components in a TKE cluster, you need to configure metric collection Jobs first in the Prometheus configuration file prometheus.yaml. The configuration file format is as follows:
global:
  scrape_interval:     15s # By default, scrape targets every 15 seconds.
﻿
﻿
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: kube-apiserver
    ......
﻿
  - job_name: kube-controller-manager
    ......
﻿
  - job_name: kube-scheduler
    ......
Each core component corresponds to a Job. For specific configuration, see the metric list of the corresponding core component. For the method of configuring prometheus.yaml of community Prometheus, see Configuration.
Monitoring Metric Collection Inside a TKE Cluster
Prometheus is deployed in a TKE cluster for monitoring.
kube-apiserver
For more information about the kube-apiserver component, see kube-apiserver component metric descriptions.
scrape_configs:
- job_name: kube-apiserver
  honor_timestamps: true
  params:
    component:
    - apiserver
  scrape_interval: 15s
  metrics_path: /master/metrics
  scheme: http
  follow_redirects: true
  enable_http2: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_managed_by,
      __meta_kubernetes_service_labelpresent_app_kubernetes_io_managed_by]
    separator: ;
    regex: (Helm);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_label_qcloud_app, __meta_kubernetes_service_labelpresent_label_qcloud_app]
    separator: ;
    regex: (cluster-monitor);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_label_qcloud_service, __meta_kubernetes_service_labelpresent_label_qcloud_service]
    separator: ;
    regex: (master-metrics-service);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  metric_relabel_configs:
  - source_labels: [pod]
    separator: ;
    regex: (.*)
    target_label: instance
    replacement: $1
    action: replace
  kubernetes_sd_configs:
  - role: endpoints
    kubeconfig_file: ""
    follow_redirects: true
    enable_http2: true
    namespaces:
      own_namespace: false
      names:
      - kube-system
kube-scheduler
For more information about the kube-scheduler component, see kube-scheduler component metric descriptions.
scrape_configs:
- job_name: kube-scheduler
  honor_labels: true
  honor_timestamps: true
  params:
    component:
    - scheduler
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /master/metrics
  scheme: http
  follow_redirects: true
  enable_http2: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_managed_by,
      __meta_kubernetes_service_labelpresent_app_kubernetes_io_managed_by]
    separator: ;
    regex: (Helm);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_label_qcloud_app, __meta_kubernetes_service_labelpresent_label_qcloud_app]
    separator: ;
    regex: (cluster-monitor);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_label_qcloud_service, __meta_kubernetes_service_labelpresent_label_qcloud_service]
    separator: ;
    regex: (master-metrics-service);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  metric_relabel_configs:
  - source_labels: [pod]
    separator: ;
    regex: (.*)
    target_label: instance
    replacement: $1
    action: replace
  kubernetes_sd_configs:
  - role: endpoints
    kubeconfig_file: ""
    follow_redirects: true
    enable_http2: true
    namespaces:
      own_namespace: false
      names:
      - kube-system
kube-controller-manager
For more information about the kube-controller-manager component, see kube-controller-manager component metric descriptions.
scrape_configs:
- job_name: kube-controller-manager
  honor_labels: true
  honor_timestamps: true
  params:
    component:
    - controller-manager
  scrape_interval: 30s
  scrape_timeout: 10s
  metrics_path: /master/metrics
  scheme: http
  follow_redirects: true
  enable_http2: true
  relabel_configs:
  - source_labels: [job]
    separator: ;
    regex: (.*)
    target_label: __tmp_prometheus_job_name
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_managed_by,
      __meta_kubernetes_service_labelpresent_app_kubernetes_io_managed_by]
    separator: ;
    regex: (Helm);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_label_qcloud_app, __meta_kubernetes_service_labelpresent_label_qcloud_app]
    separator: ;
    regex: (cluster-monitor);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_service_label_label_qcloud_service, __meta_kubernetes_service_labelpresent_label_qcloud_service]
    separator: ;
    regex: (master-metrics-service);true
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_port_name]
    separator: ;
    regex: http-metrics
    replacement: $1
    action: keep
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Node;(.*)
    target_label: node
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
    separator: ;
    regex: Pod;(.*)
    target_label: pod
    replacement: ${1}
    action: replace
  - source_labels: [__meta_kubernetes_namespace]
    separator: ;
    regex: (.*)
    target_label: namespace
    replacement: $1
    action: replace
  - source_labels: [__meta_kubernetes_service_name]
    separator: ;
    regex: (.*)
    target_label: service
    replacement: $1
    action: replace
  - separator: ;
    regex: (.*)
    target_label: endpoint
    replacement: http-metrics
    action: replace
  metric_relabel_configs:
  - source_labels: [pod]
    separator: ;
    regex: (.*)
    target_label: instance
    replacement: $1
    action: replace
  kubernetes_sd_configs:
  - role: endpoints
    kubeconfig_file: ""
    follow_redirects: true
    enable_http2: true
    namespaces:
      own_namespace: false
      names:
      - kube-system
Collecting via ServiceMonitor
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: master-metrics-exporter
  namespace: kube-system
spec:
  endpoints:
  - honorLabels: true
    interval: 15s
    metricRelabelings:
    - action: replace
      sourceLabels:
      - pod
      targetLabel: instance
    params:
      component:
      - apiserver
    path: /master/metrics
    port: http-metrics
    relabelings:
    - action: replace
      replacement: kube-apiserver
      targetLabel: job
  - honorLabels: true
    interval: 15s
    metricRelabelings:
    - action: replace
      sourceLabels:
      - pod
      targetLabel: instance
    params:
      component:
      - controller-manager
    path: /master/metrics
    port: http-metrics
    relabelings:
    - action: replace
      replacement: kube-controller-manager
      targetLabel: job
  - honorLabels: true
    interval: 15s
    metricRelabelings:
    - action: replace
      sourceLabels:
      - pod
      targetLabel: instance
    params:
      component:
      - scheduler
    path: /master/metrics
    port: http-metrics
    relabelings:
    - action: replace
      replacement: kube-scheduler
      targetLabel: job
  namespaceSelector: {}
  selector:
    matchLabels:
      app.kubernetes.io/managed-by: Helm
      label_qcloud_app: cluster-monitor
      label_qcloud_service: master-metrics-service
Monitoring Metric Collection Outside a TKE Cluster
This document takes collection outside a cluster under the same VPC as Prometheus as an example.
Prerequisites
Public network or private network access has been enabled for the target cluster.
Enabling Cross-Cluster Metric Collection
1. Log in to the TKE console, and click Cluster in the left sidebar.
2. Click the ID of the target cluster on the Cluster Management page to enter the cluster details page.
3. Click Add-on management in the left sidebar.
4. Click Update Configuration of the clustermonitor component.

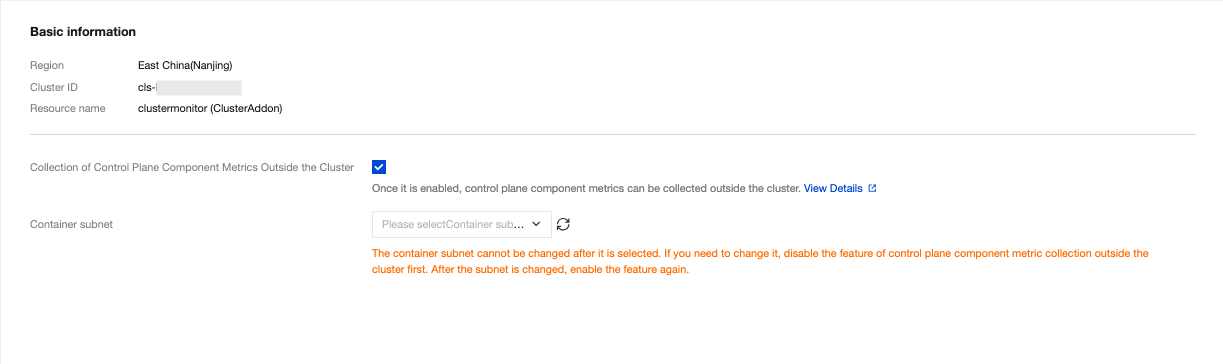

5. Check the option to enable control plane component metric collection outside the cluster on the component configuration update page, and select the container subnet.
﻿
Note:
The container subnet cannot be changed after it is selected. If you need to change it, disable the feature of control plane component metric collection outside the cluster first. After the subnet is changed, enable the feature again.
6. Click Complete.
Collection Configuration
For specific operations, see Configuration and Monitoring kubernetes with prometheus from outside of k8s cluster. Compared with the configuration of collection inside the cluster, the kubernetes_sd_configs settings are modified. The configuration method is as follows:
scrape_configs:
- job_name: out-tke-apiserver
  kubernetes_sd_configs:
  - role: endpoints
    kubeconfig_file: ""
    follow_redirects: true
    enable_http2: true
    namespaces:
      names:
      - kube-system
    namespaces:
      names:
      - kube-system
    api_server: 'https://<KUBERNETES URL>'
    tls_config:
      ca_file: /etc/prometheus/kubernetes-ca.crt
    bearer_token: '<SERVICE ACCOUNT BEARER TOKEN>'
  scrape_interval: 30s
Verification
1. Log in to the console of self-built Prometheus and switch to the Graph page.
2. Enter up to check whether all control plane components can be displayed.
﻿

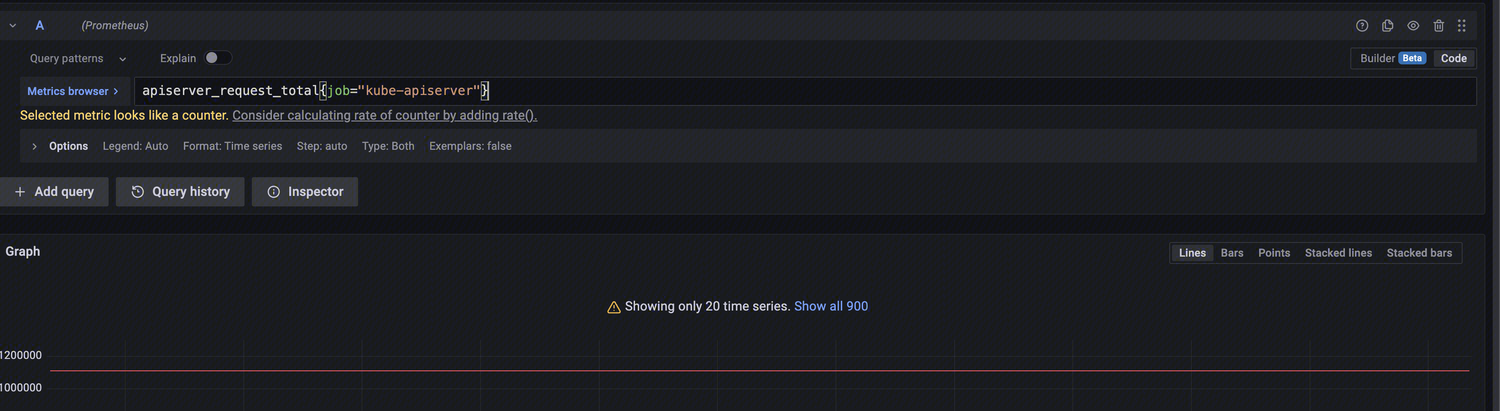

3. Enter the following instruction to verify whether API Server is normal:
apiserver_request_total{job="apiserver"}
﻿

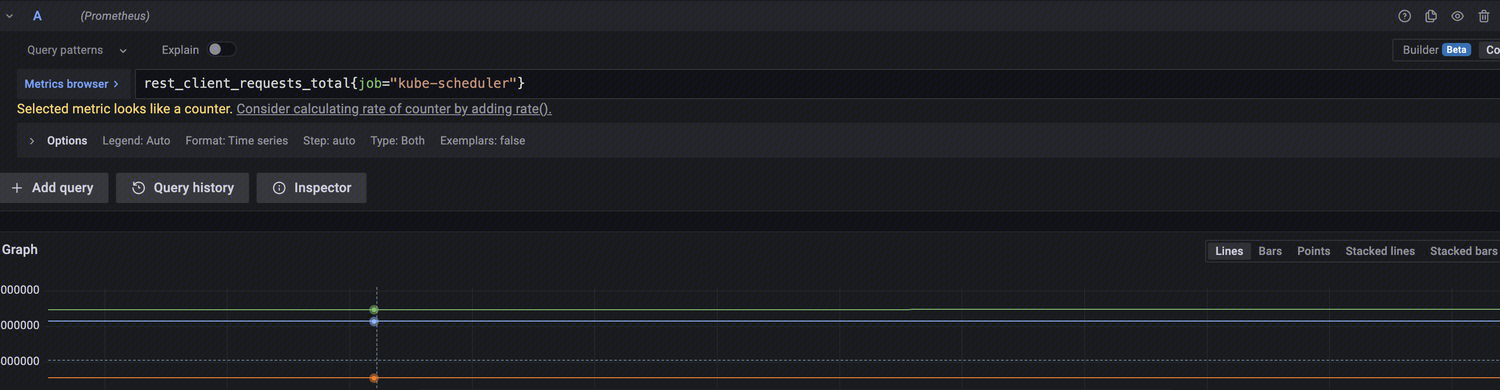

4. Enter the following instruction to verify whether Scheduler is normal:
rest_client_requests_total{job="scheduler"}
﻿

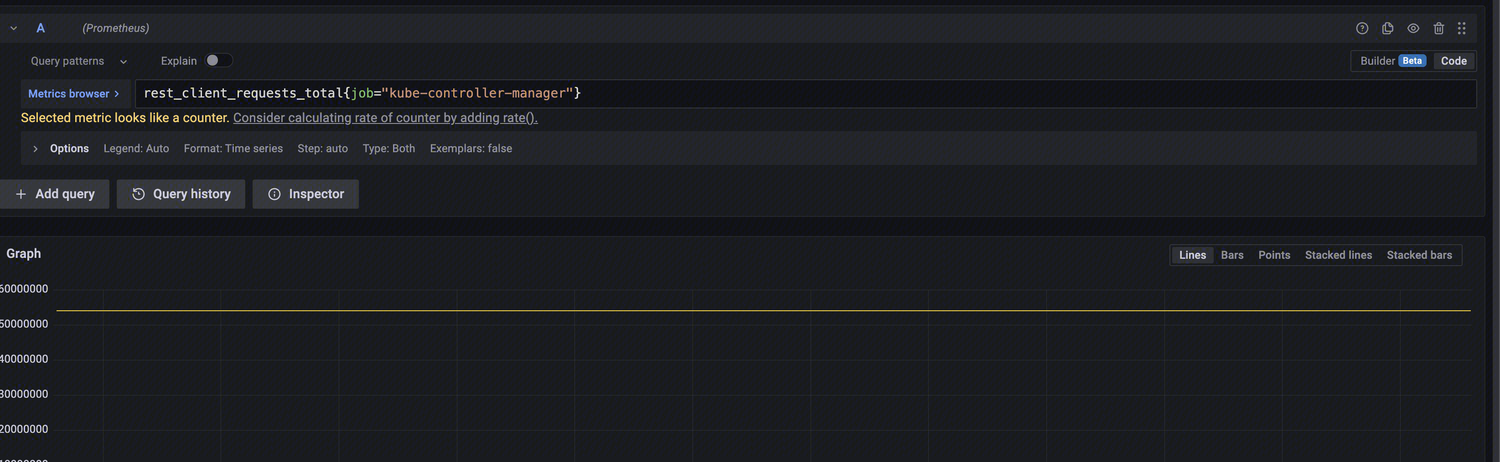

5. Enter the following instruction to verify whether Controller Manager is normal:
rest_client_requests_total{job="controller-manager"}
﻿
﻿
﻿
