Host Live Streaming（Android）
Last updated: 2026-02-24 17:12:32
Download PDF
The TUILiveKit Host Live Streaming Page provides a full-featured UI for live streaming scenarios. It supports the rapid deployment of core host capabilities, allowing you to efficiently integrate the live streaming workflow without worrying about complex UI and logic implementation.

Feature Overview

Pre-stream Setup: Supports various personalized configurations before the host goes live, including room name, background, video preview, beauty filters (beauty effects) debugging, audio effects debugging, and layout templates.

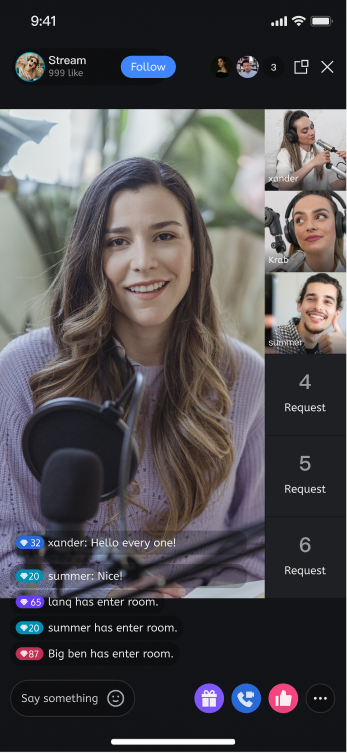

Co-Host Interaction: Supports real-time interaction (co-hosting) with viewers or other hosts during the live stream.
Audience Interaction: Supports rich interaction forms such as barrage (bullet screen) and gifts.
Live Room Management: Supports displaying the online user list and various management operations within the room, such as muting (banning) and kicking users.

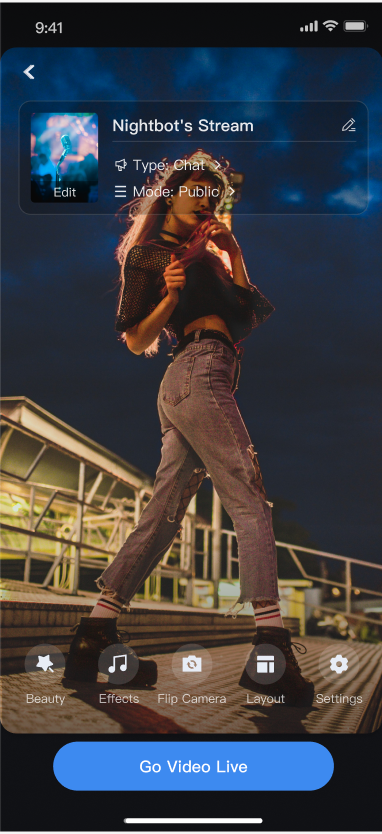

Pre-stream Setup

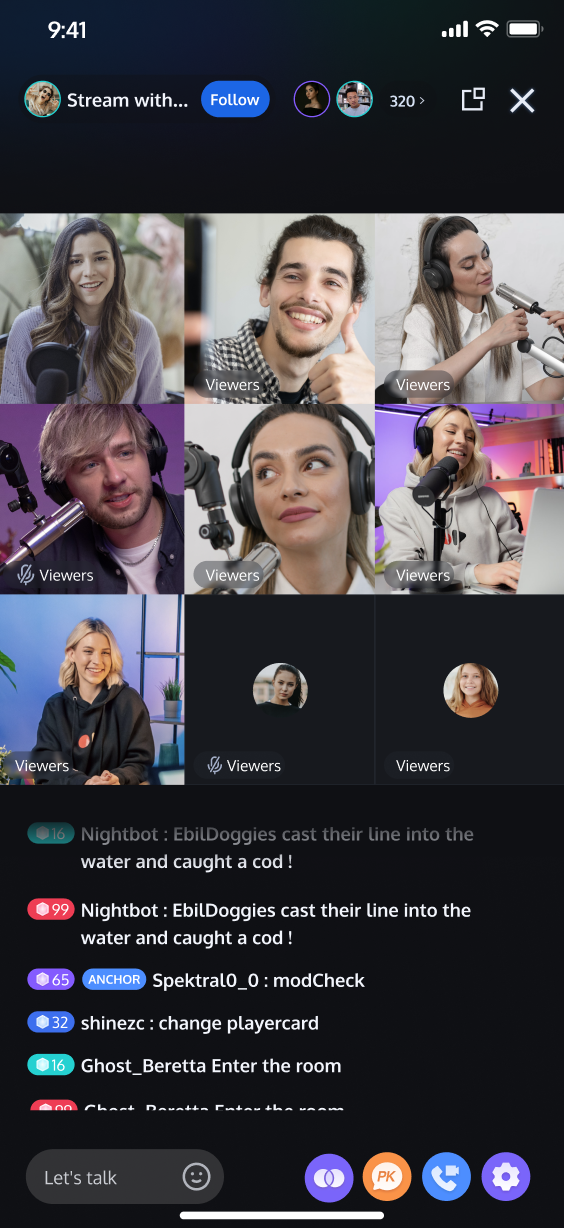

Co-Host Interaction

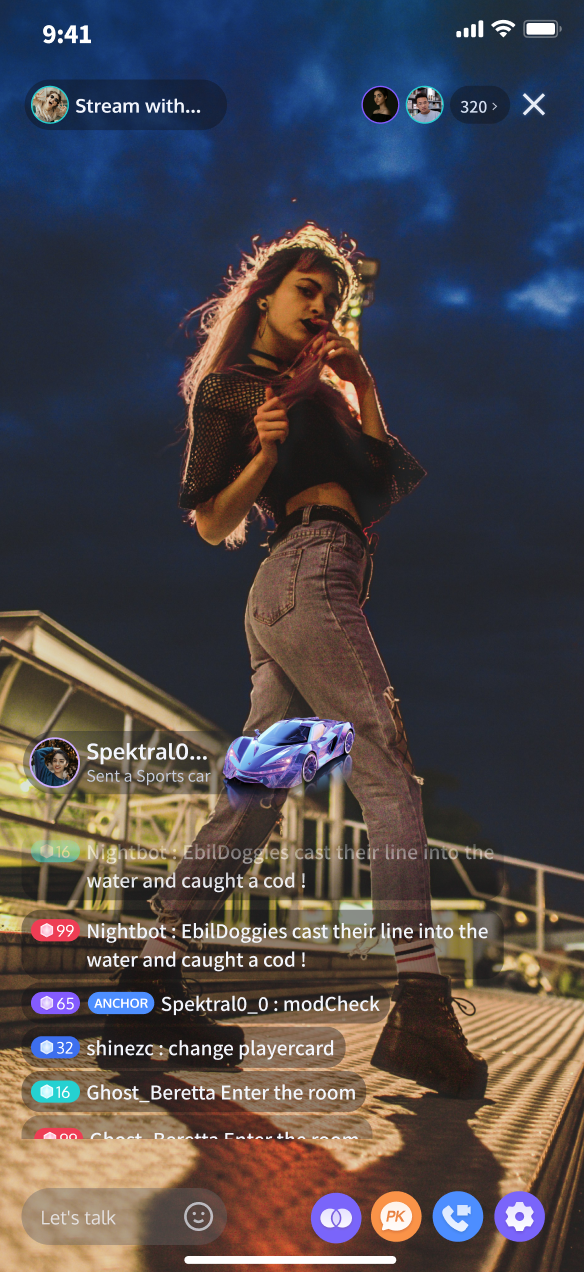

Audience Interaction

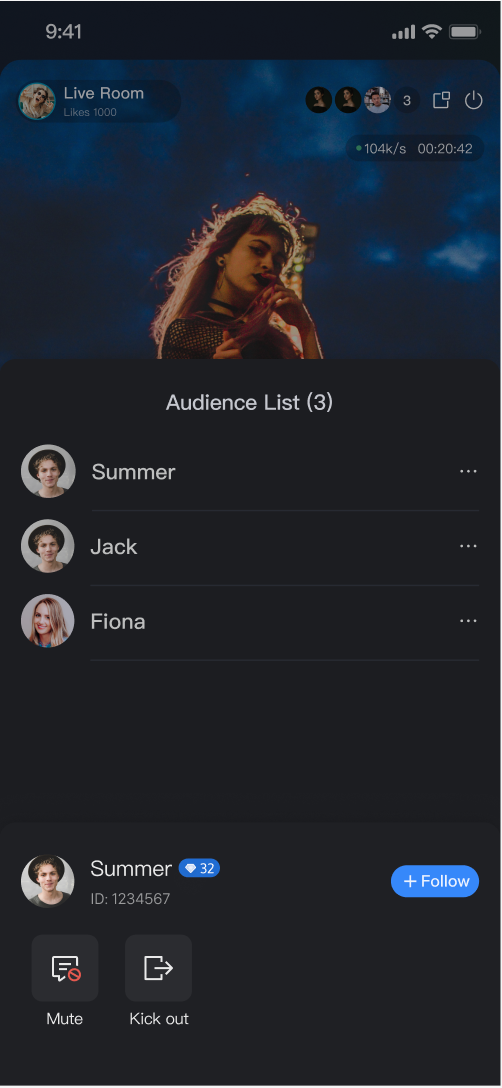

Live Room Management














Quick Start

Step 1. Activate the Service

Refer to the Activate Service document to enable the free trial or paid edition.

Step 2. Code Integration

Refer to Preparations guide to integrate the TUILiveKit SDK.

Step 3. Add the Pre-stream Setup view

The AnchorPrepareView component already has built-in features for camera preview, audio effects settings, layout settings, and other functional configurations. You need to create and load AnchorPrepareView. The specific example code is as follows:
Kotlin
Java
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView

class AnchorActivity : AppCompatActivity() {
    lateinit var anchorPrepareView: AnchorPrepareView
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // 1. Create and initialize AnchorPrepareView
        anchorPrepareView = AnchorPrepareView(this)
        anchorPrepareView.init("live_1235858", null)

        // 2. Add AnchorPrepareView to the UI
        setContentView(anchorPrepareView)
    }
}
import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView;

public class AnchorActivity extends AppCompatActivity {
    private AnchorPrepareView anchorPrepareView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // 1. Create and initialize AnchorPrepareView
        anchorPrepareView = new AnchorPrepareView(this);
        anchorPrepareView.init("live_1235858", null);

        // 2. Add AnchorPrepareView to the interface
        setContentView(anchorPrepareView);
    }
}

Step 4. Add the Host Streaming view

The AnchorView component has built-in features for audio/video pushing (streaming), viewer co-hosting, live interaction, and live room management. You only need to create and load AnchorView. The specific example code is as follows:
Kotlin
Java
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import com.trtc.uikit.livekit.features.anchorboardcast.AnchorView
import com.trtc.uikit.livekit.features.anchorboardcast.RoomBehavior
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView
import com.trtc.uikit.livekit.features.anchorprepare.LiveStreamPrivacyStatus
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo

class AnchorActivity : AppCompatActivity() {

    lateinit var anchorPrepareView: AnchorPrepareView
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // 1. Create and initialize AnchorPrepareView
        anchorPrepareView = AnchorPrepareView(this)
        anchorPrepareView.init("live_1235858", null)

        // 2. Add AnchorPrepareView to the interface
        setContentView(anchorPrepareView)
    }

    fun initAnchorView() {
        // 1. Create AnchorView
        val anchorView = AnchorView(this)

        // 2. Initialize AnchorView, where liveInfo is the live stream information and anchorPrepareView is your preparation page before starting your broadcast.
        val liveInfo = LiveInfo()
        liveInfo.liveID = "live_1236666"
        liveInfo.liveName = anchorPrepareView.getState()?.roomName?.getValue() ?: ""
        liveInfo.isPublicVisible = anchorPrepareView.getState()?.liveMode?.getValue() == LiveStreamPrivacyStatus.PUBLIC
        liveInfo.coverURL = anchorPrepareView.getState()?.coverURL?.getValue() ?: ""
        liveInfo.seatTemplate = SeatLayoutTemplate.VideoDynamicGrid9Seats

        // Entering the room:
        // RoomBehavior.CREATE_ROOM: The host creates the room
        // RoomBehavior.ENTER_ROOM: Viewers enter the room
        anchorView.init(liveInfo, anchorPrepareView.getCoreView(), RoomBehavior.CREATE_ROOM, null)

        // 3. Add AnchorView to the interface
        setContentView(anchorView)
    }
}
import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import com.trtc.uikit.livekit.features.anchorboardcast.AnchorView;
import com.trtc.uikit.livekit.features.anchorboardcast.RoomBehavior;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView;
import com.trtc.uikit.livekit.features.anchorprepare.LiveStreamPrivacyStatus;
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo;

public class AnchorActivity extends AppCompatActivity {

    private AnchorPrepareView anchorPrepareView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // 1. Create and initialize AnchorPrepareView
        anchorPrepareView = new AnchorPrepareView(this);
        anchorPrepareView.init("live_1235858", null);

        // 2.Add AnchorPrepareView to the interface
        setContentView(anchorPrepareView);
    }

    private void initAnchorView() {
        // 1.Create AnchorView
        AnchorView anchorView = new AnchorView(this);

        // 2.Initialize AnchorView
        LiveInfo liveInfo = new LiveInfo();
        liveInfo.setLiveID("live_1236666");
        liveInfo.setLiveName(anchorPrepareView.getState().roomName.getValue());
        liveInfo.setPublicVisible(anchorPrepareView.getState().liveMode.getValue() == LiveStreamPrivacyStatus.PUBLIC);
        liveInfo.setCoverURL(anchorPrepareView.getState().coverURL.getValue());
        liveInfo.setSeatTemplate(SeatLayoutTemplate.VideoDynamicGrid9Seats);

        // Entering the room:
        // RoomBehavior.CREATE_ROOM: The host creates the room
        // RoomBehavior.ENTER_ROOM: Viewers enter the room
        anchorView.init(liveInfo, anchorPrepareView.getCoreView(), RoomBehavior.CREATE_ROOM, null);

        // 3.Add AnchorView to the interface
        setContentView(anchorView);
    }

Step 5. Transition from Pre-stream Setup to Host Streaming

Combine this with Step 3 to implement the delegate events of the AnchorPrepareView component, completing the transition to the host streaming page. The specific example code is as follows:
Kotlin
Java
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewListener

class AnchorActivity : AppCompatActivity() {
    lateinit var anchorPrepareView: AnchorPrepareView
    lateinit var anchorPrepareViewListener: AnchorPrepareViewListener
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // 1. Create and initialize AnchorPrepareView
        anchorPrepareView = AnchorPrepareView(this)
        anchorPrepareView.init("live_1235858", null)

        // 2. Add AnchorPrepareView to the interface
        setContentView(anchorPrepareView)

        anchorPrepareViewListener = object : AnchorPrepareViewListener {
            override fun onClickStartButton() {
                initAnchorView()
            }

            override fun onClickBackButton() {
                finish()
            }
        }
        // 3. Set the callback for AnchorPrepareView
        anchorPrepareView.addAnchorPrepareViewListener(anchorPrepareViewListener)
    }
}
import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewListener;

public class AnchorActivity extends AppCompatActivity {
    private AnchorPrepareView         anchorPrepareView;
    private AnchorPrepareViewListener anchorPrepareViewListener;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // 1. Create and initialize AnchorPrepareView
        anchorPrepareView = new AnchorPrepareView(this);
        anchorPrepareView.init("live_1235858", null);

        // 2. Add AnchorPrepareView to the interface
        setContentView(anchorPrepareView);

        anchorPrepareViewListener = new AnchorPrepareViewListener() {
            @Override
            public void onClickStartButton() {
                initAnchorView();
            }

            @Override
            public void onClickBackButton() {
                finish();
            }
        };

        // 3. Set the callback for AnchorPrepareView
        anchorPrepareView.addAnchorPrepareViewListener(anchorPrepareViewListener);
    }
}

Customize Your UI Layout

TUILiveKit supports flexible customization of the host setup and live pages, allowing you to adjust the layout and hide/show functional modules based on your business requirements.

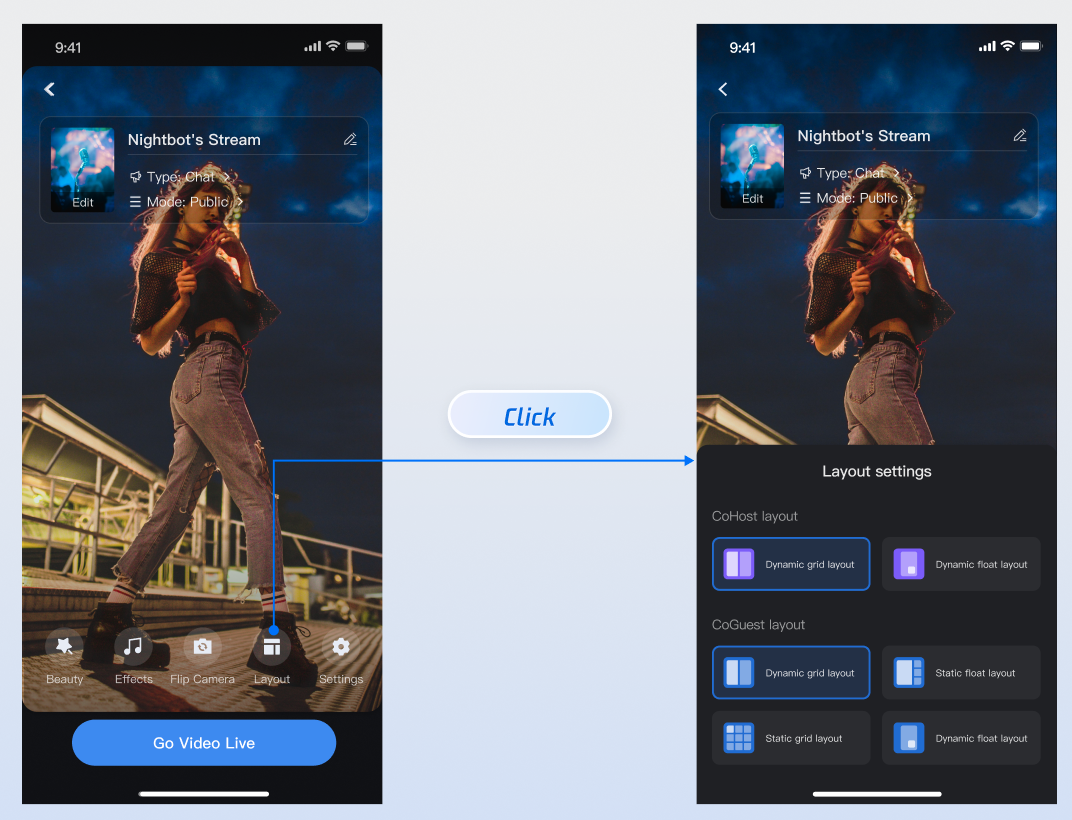

Live Layout Template Selection

TUILiveKit provides 4 live layout templates. You can select the appropriate style in the "Layout" UI interaction entry on the host setup page:


Layout Template Overview

Name

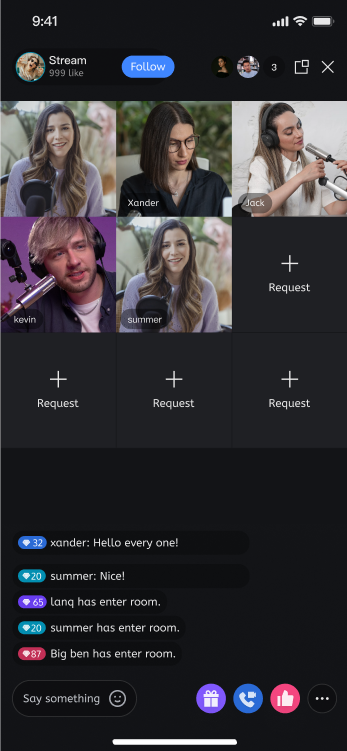

dynamic grid layout

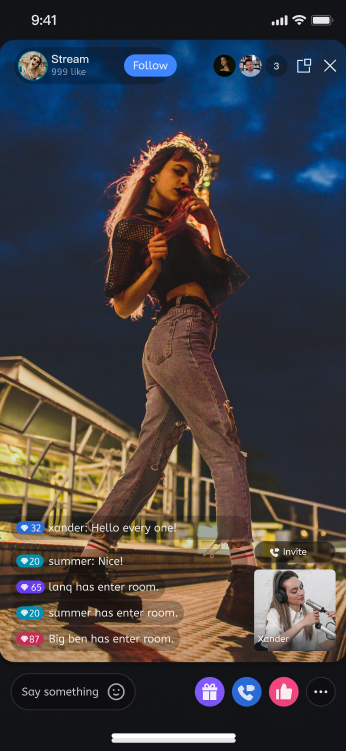

dynamic float layout
static grid layout
static float layout
Template ID
VideoDynamicGrid9Seats
VideoDynamicFloat7Seats
VideoFixedGrid9Seats
VideoFixedFloat7Seats
Description
The default layout; grid size adjusts dynamically based on the number of co-hosts.
Co-hosts are displayed in floating small windows.
The number of co-hosts is fixed, and each co-host occupies a fixed grid cell.
The number of co-hosts is fixed, and co-hosts are displayed in fixed small windows.
Preview













Customize AnchorPrepareView Feature Area

By calling the API of prepareView created in Step 3, you can customize and hide the operation area or specific features on the host setup page:
Kotlin
Java
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView

class AnchorActivity : AppCompatActivity() {

    lateinit var anchorPrepareView: AnchorPrepareView
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        anchorPrepareView = AnchorPrepareView(this)
        anchorPrepareView.init("live_1235858", null)

        // 1. Customize the ribbon - Example: Hide the entire ribbon
        anchorPrepareView.disableFeatureMenu(true)

        setContentView(anchorPrepareView)
    }
}
import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView;

public class AnchorActivity extends AppCompatActivity {
    private AnchorPrepareView anchorPrepareView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // 1. Customize the ribbon - Example: Hide the entire ribbon
        anchorPrepareView = new AnchorPrepareView(this);
        anchorPrepareView.init("live_1235858", null);
        anchorPrepareView.disableFeatureMenu(true);

        setContentView(anchorPrepareView);
    }
}
API
Description
disableFeatureMenu(true)
Hide Entire Feature Area
disableMenuBeautyButton(true)
Hide Beauty Effect Button
disableMenuAudioEffectButton(true)
Hide Sound Effect Button
disableMenuSwitchCameraButton(true)
Hide Camera Toggle Button

Customize AnchorView Feature Area

By calling the API of anchorView created in Step 4, you can customize and hide the operation area or specific features on the host live page:
Kotlin
Java
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import com.trtc.uikit.livekit.features.anchorboardcast.AnchorView
import com.trtc.uikit.livekit.features.anchorboardcast.RoomBehavior
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewListener
import com.trtc.uikit.livekit.features.anchorprepare.LiveStreamPrivacyStatus
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo

class AnchorActivity : AppCompatActivity() {
    ...
    fun initAnchorView() {
        val anchorView = AnchorView(this)
        val liveInfo = LiveInfo()
        liveInfo.liveID = "live_1236666"
        liveInfo.liveName = anchorPrepareView.getState()?.roomName?.getValue() ?: ""
        liveInfo.isPublicVisible = anchorPrepareView.getState()?.liveMode?.getValue() == LiveStreamPrivacyStatus.PUBLIC
        liveInfo.coverURL = anchorPrepareView.getState()?.coverURL?.getValue() ?: ""
        liveInfo.seatLayoutTemplateID = anchorPrepareView.getState()?.coGuestTemplateId?.getValue() ?: 600
        anchorView.init(liveInfo, anchorPrepareView.getCoreView(), RoomBehavior.CREATE_ROOM, null)

        // 1. Customize the ribbon - Example: Hide the streamer connection function
        anchorView.disableFooterCoHost(true)

        setContentView(anchorView)
    }
}
import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import com.trtc.uikit.livekit.features.anchorboardcast.AnchorView;
import com.trtc.uikit.livekit.features.anchorboardcast.RoomBehavior;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareView;
import com.trtc.uikit.livekit.features.anchorprepare.AnchorPrepareViewListener;
import com.trtc.uikit.livekit.features.anchorprepare.LiveStreamPrivacyStatus;
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo;

public class AnchorActivity extends AppCompatActivity {
    ...
    private void initAnchorView() {
        AnchorView anchorView = new AnchorView(this);
        LiveInfo liveInfo = new LiveInfo();
        liveInfo.setLiveID("live_1236666");
        liveInfo.setLiveName(anchorPrepareView.getState().roomName.getValue());
        liveInfo.setPublicVisible(anchorPrepareView.getState().liveMode.getValue() == LiveStreamPrivacyStatus.PUBLIC);
        liveInfo.setCoverURL(anchorPrepareView.getState().coverURL.getValue());
        liveInfo.setSeatLayoutTemplateID(anchorPrepareView.getState().seatTemplate.getValue());
        anchorView.init(liveInfo, anchorPrepareView.getCoreView(), RoomBehavior.CREATE_ROOM, null);

        // 1. Customize the ribbon - Example: Hide the streamer connection function
        anchorView.disableFooterCoHost(true);

        setContentView(anchorView);
    }
API
Description
disableHeaderVisitorCnt(true)
Hide Top Audience List Feature
disableFooterCoGuest(true)
Hide Bottom Audience Mic Connection Feature
disableFooterCoHost(true)
Hide Bottom Anchor Connection Feature
disableFooterBattle(true)
Hide Bottom Anchor PK Function

Text Customization (String Resources)

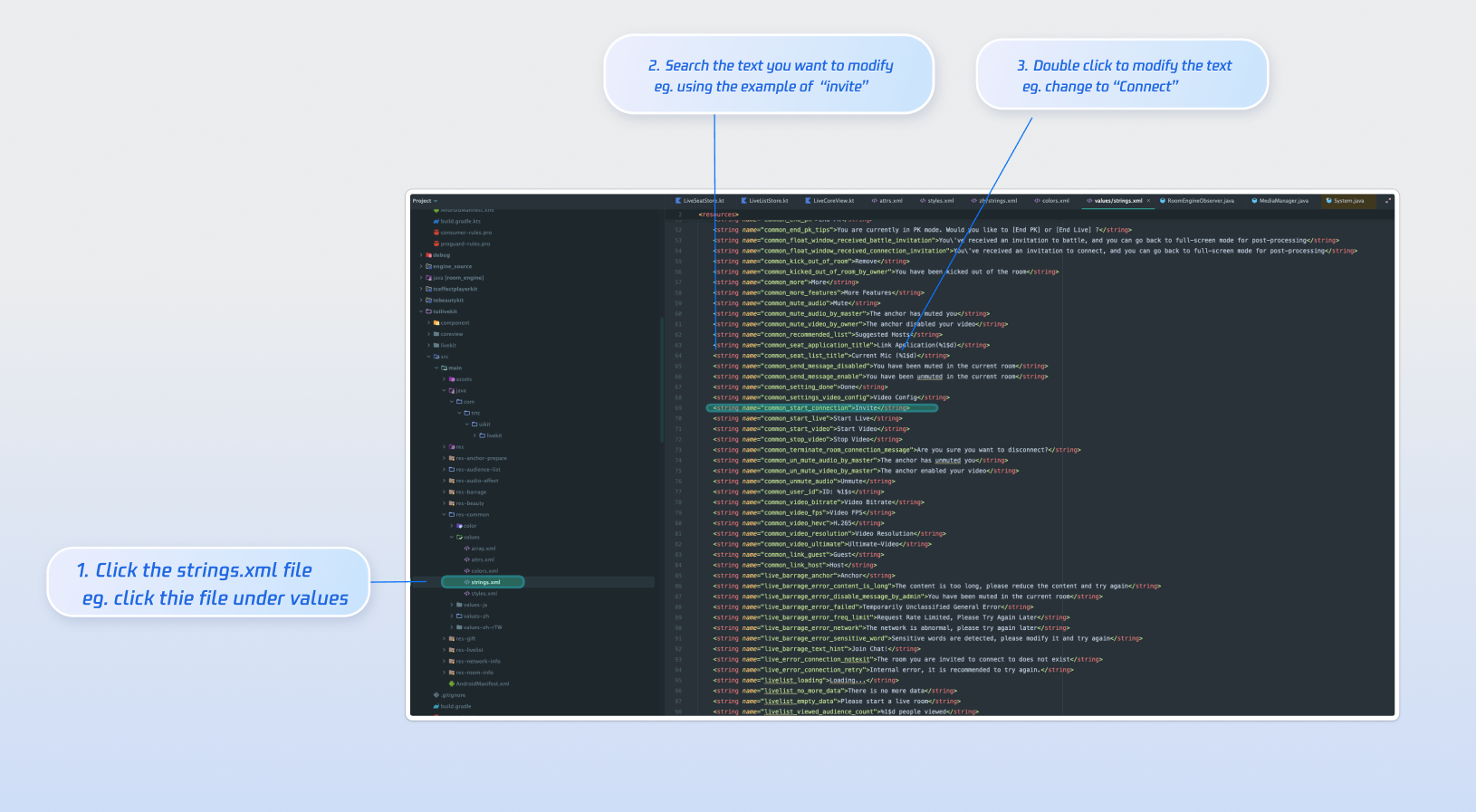

TUILiveKit uses standard Android XML resource files to manage the text displayed in the UI. You can directly modify the strings that need adjustment via the XML file:


Icon Customization (Drawable Resources)

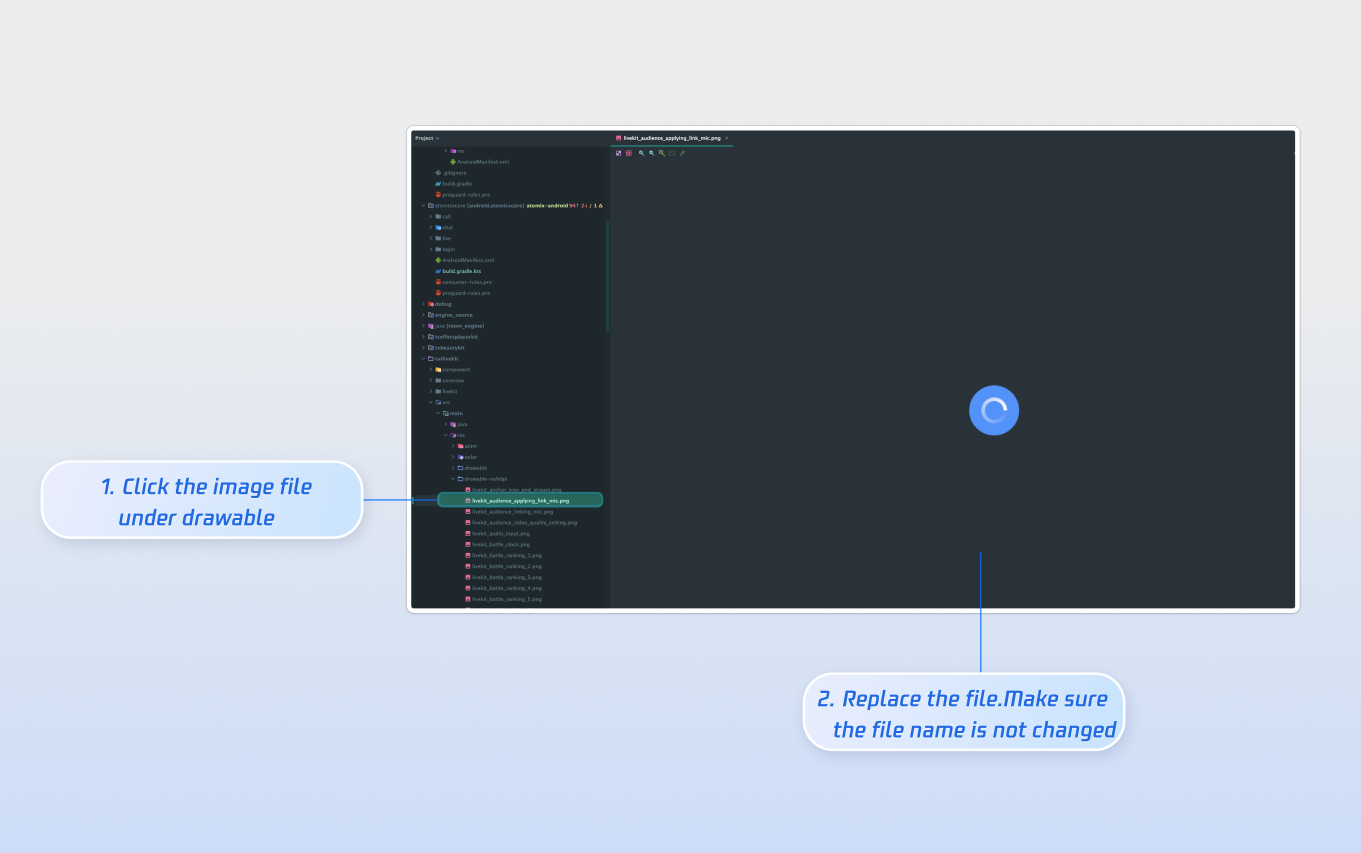

TUILiveKit uses the standard Android drawable resource folder to manage the image resources for the UI. You can quickly change the custom icons by replacing the resource files. When replacing, ensure that the new file names are consistent with the original file names.


Next Steps

Congratulations! You have successfully integrated the Host Live Streaming component. Next, you can implement features such as audience viewing, live stream list and gift system. Please refer to the table below:
Feature
Description
Integration Guide
Audience Viewing
Audience can watch live streaming after entering the anchor's live streaming room, with features like audience mic connection, live room information, online audience, and bullet screen display.
Audience Viewing
Live Stream List
Display the live stream list interface and features, including the live stream list and room information display.
Live Stream List
Gift System
Support custom gift asset configuration, billing system integration, and gift-sending in PK scenarios.

FAQs

Why is there no video feed after starting the stream?

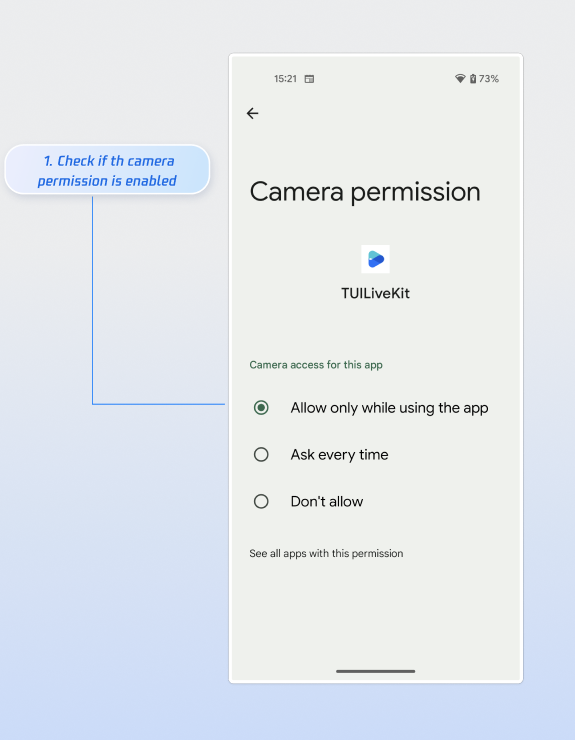

Please go to App Info > Permissions > Camera and check if the camera permission is enabled. Refer to the image below:


Why does clicking the "Start Stream" button fail with a "Not Logged In" prompt?

Refer to Complete Login to confirm that you have completed the login feature integration.

Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
No

Feedback
