TUILiveKit Voice Chat Room is a ready-to-use interface providing all the core functionalities for starting a live stream. It enables you to integrate a host broadcasting flow into your app with simple steps.Pre-Live Preview | Seat Management | Audience Interaction | Live Room Management |
![]() | ![]() | ![]() | ![]() |
VoiceRoomActivity component includes a complete built-in UI and business logic for the host side of the voice chat room. To enable host live streaming, simply launch this Activity. We recommend triggering the following logic in your app's Start Live button click event:import android.content.Intentimport androidx.appcompat.app.AppCompatActivityimport com.tencent.cloud.tuikit.engine.room.TUIRoomDefine.SeatModeimport com.trtc.uikit.livekit.voiceroom.view.TUIVoiceRoomFragment.RoomBehavior.PREPARE_CREATEimport com.trtc.uikit.livekit.voiceroom.view.TUIVoiceRoomFragment.RoomParamsimport com.trtc.uikit.livekit.voiceroom.view.VoiceRoomActivity// YourActivity represents the page from which you start the live streamclass YourActivity : AppCompatActivity() {// Handle the "Start Live" button click eventfun onStartVoiceRoomClicked() {// 1. Configure room parameters (RoomParams)// RoomParams must implement the Parcelable interfaceval params = RoomParams().apply {maxSeatCount = 10 // Maximum number of seatsseatMode = SeatMode.APPLY_TO_TAKE // Seat mode}// 2. Prepare the Intent and pass in the necessary parametersval roomId = "test_voice_room_id"val intent = Intent(this, VoiceRoomActivity::class.java).apply {putExtra(VoiceRoomActivity.INTENT_KEY_ROOM_ID, roomId)// behavior: PREPARE_CREATE means entering the pre-live preview page firstputExtra(VoiceRoomActivity.INTENT_KEY_CREATE_ROOM_PARAMS, params)putExtra(VoiceRoomActivity.INTENT_KEY_ROOM_BEHAVIOR, PREPARE_CREATE.ordinal)}// 3. Navigate to the voice chat room pagestartActivity(intent)}}
Parameter | Type | Description | |
VoiceRoomActivity.INTENT_KEY_ROOM_ID | | string | Globally unique live room ID. |
VoiceRoomActivity.INTENT_KEY_ROOM_BEHAVIOR | | Int | Room entry behavior: AUTO_CREATE: Automatically create the live room and enter.PREPARE_CREATE: Enter the pre-live preview page first; after the user clicks "Start Live", create the live room and enter.JOIN: Audience joins the room. |
roomParams | | RoomParams | Host live stream parameters. See the next section for details. |
Parameter | Type | Description |
maxSeatCount | Int | Maximum number of seats in the live room. |
seatMode | TUIRoomDefine.SeatMode | Audience seat mode: APPLY_TO_TAKE: Audience must apply and be approved by the host before taking a seat.FREE_TO_TAKE: Audience can take a seat without host approval. |

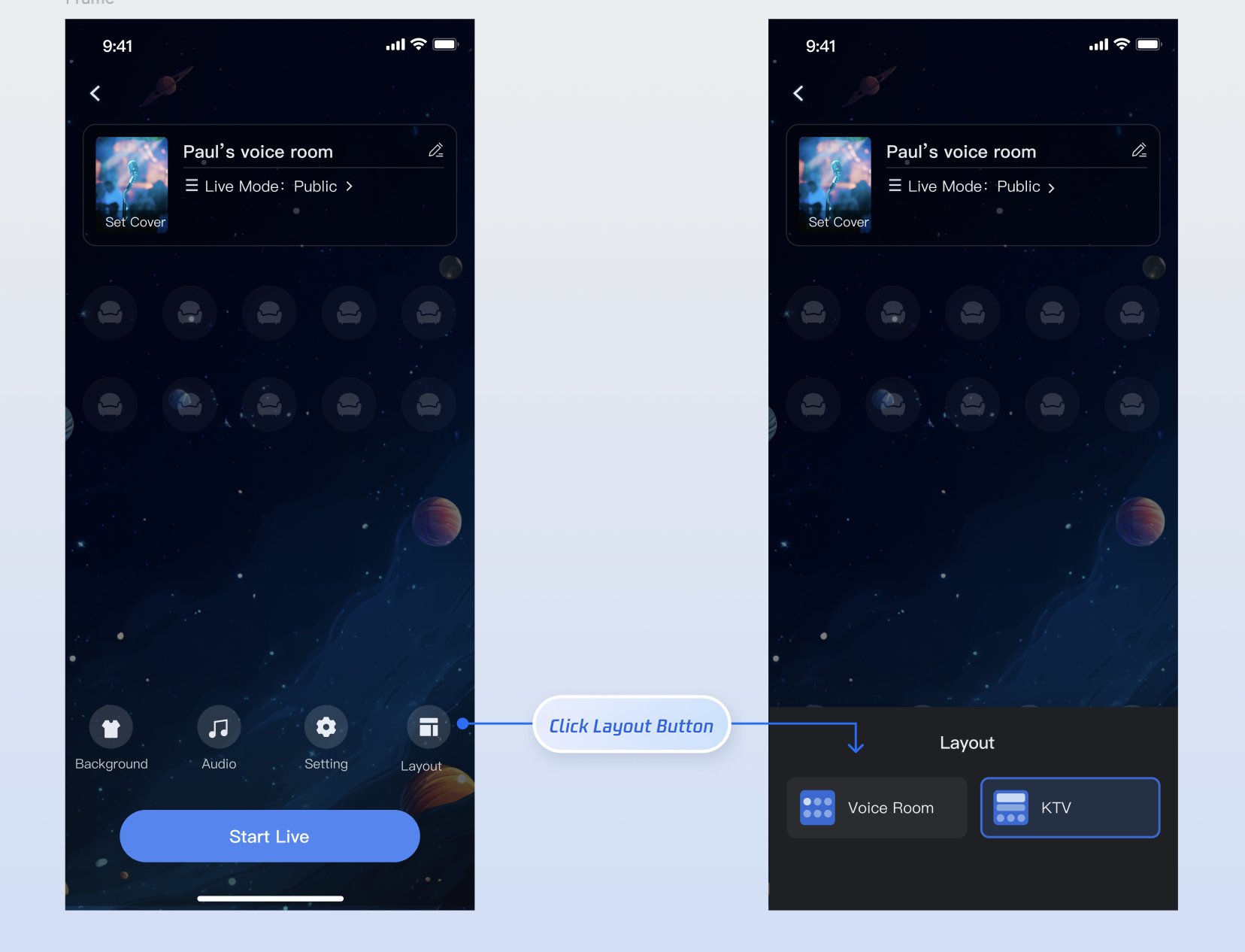

TUILiveKit provides flexible interface customization to meet a variety of business needs. You can choose different layout templates and easily replace UI text and icons.TUILiveKit Voice Chat offers two layout styles. Select your preferred style using the layout button on the pre-live preview page:
| Chat Room | KTV |

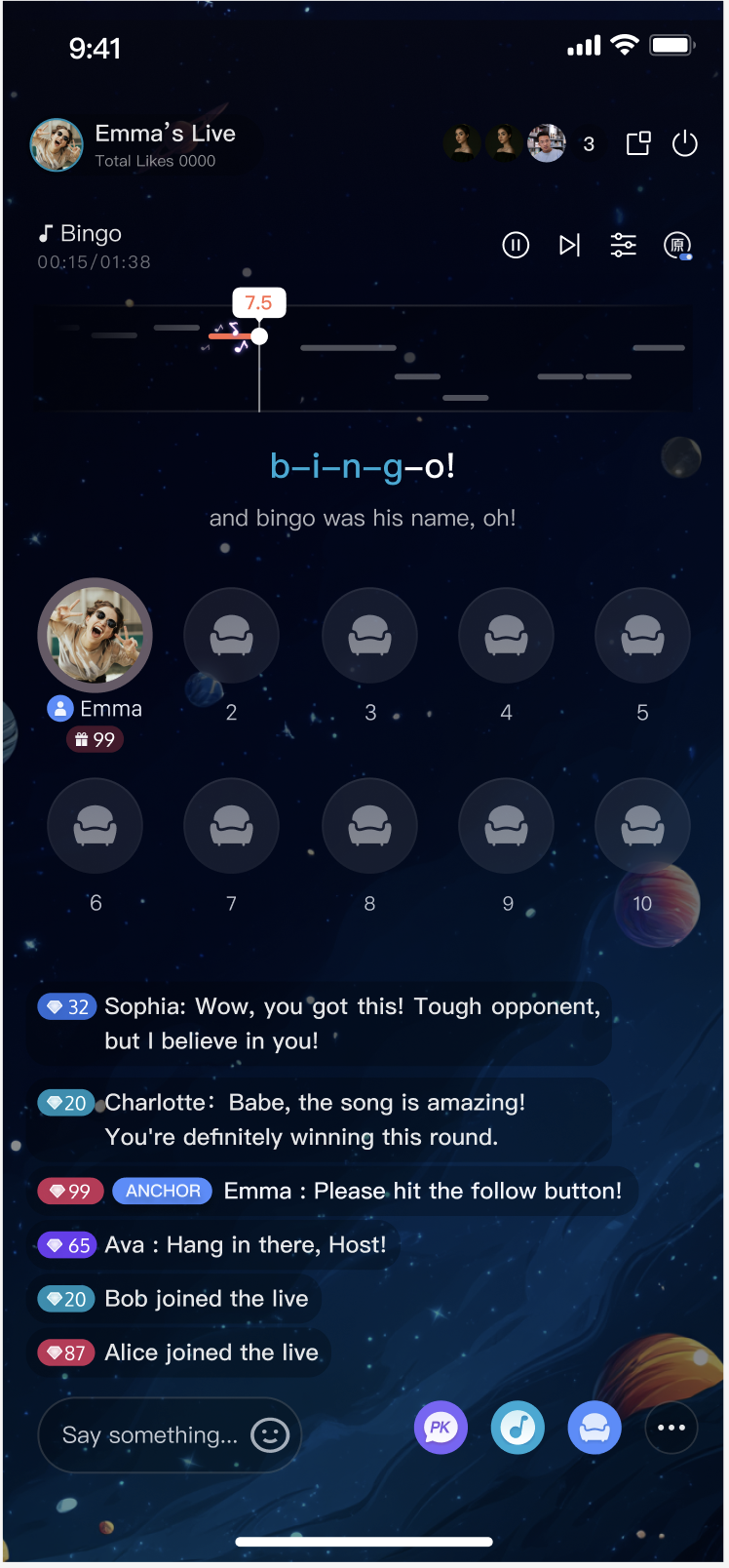

Description | Default layout; displays only the seat grid. | Displays a KTV song player above the seat grid. |
Preview | ![]() | ![]() |

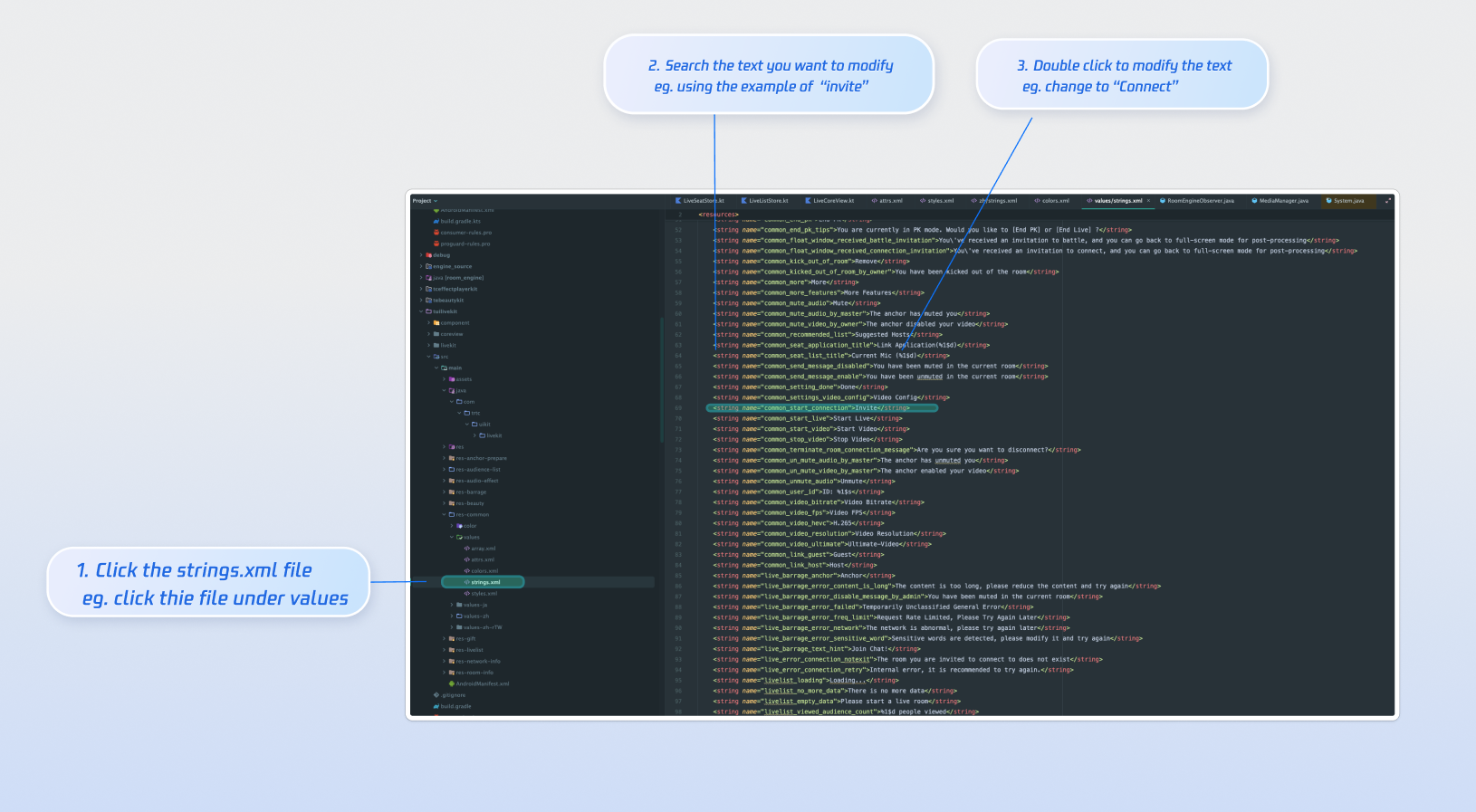

TUILiveKit uses standard Res-Common>Values>Strings.xml files to manage the text displayed in the UI. You can directly modify the strings that need adjustment via the XML file:

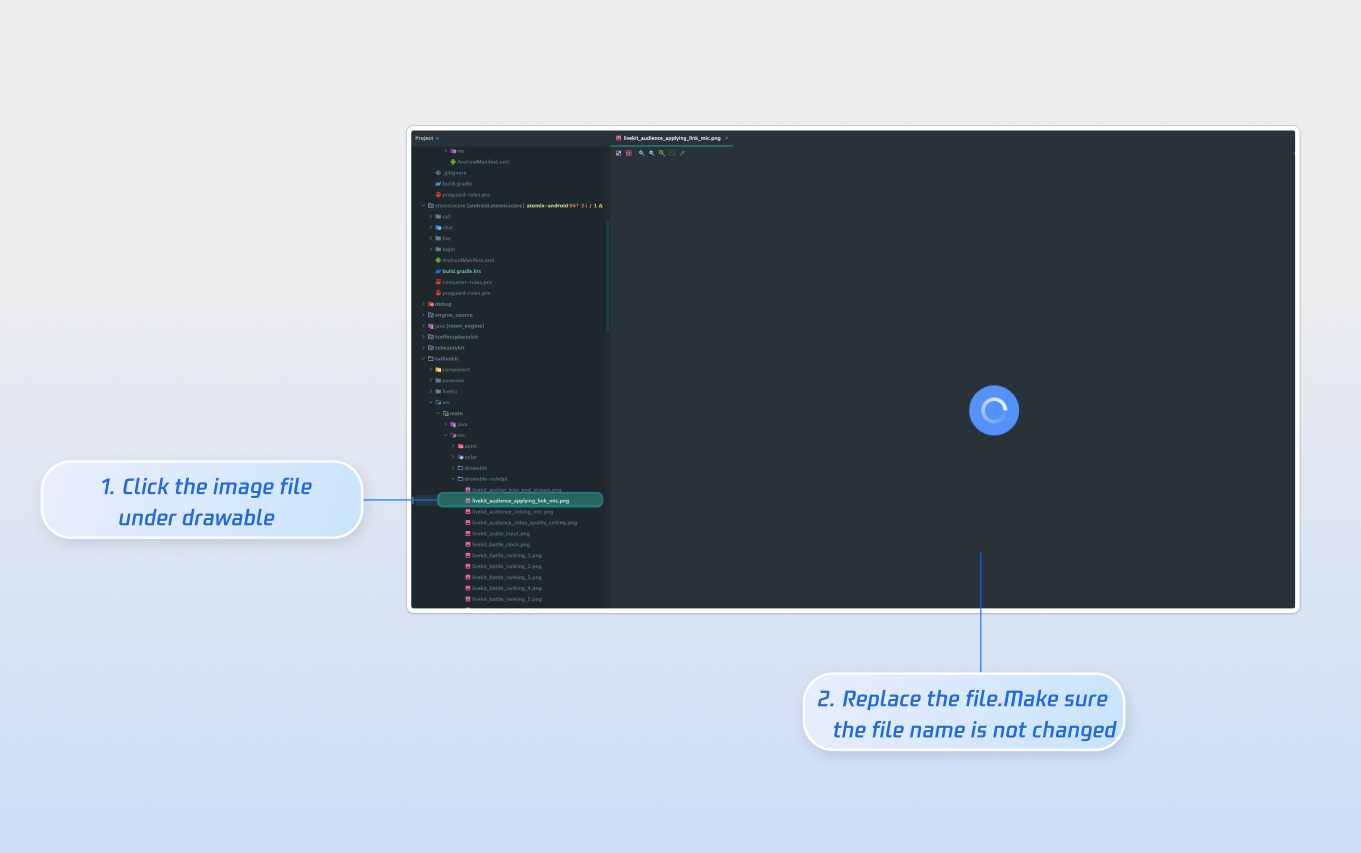

TUILiveKit uses the standard Android drawable resource folder to manage the image resources for the UI. You can quickly change the custom icons by replacing the resource files. When replacing, ensure that the new file names are consistent with the original file names.
Feature | Description | Integration Guide |

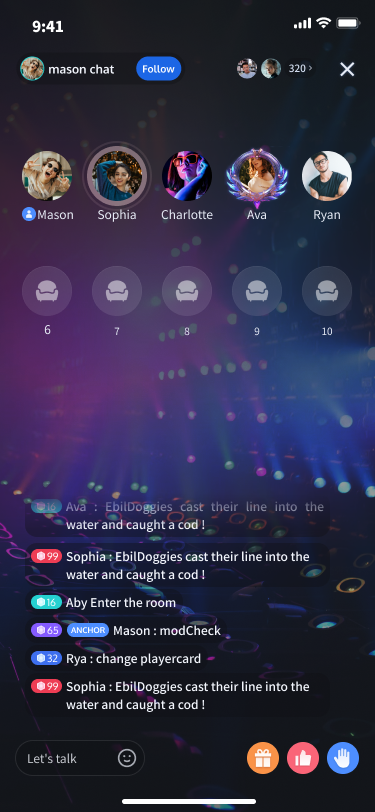

Audience Viewing | Enables users to join as audience members, listen to the host, take seats, and view live chat (bullet comments). | |
Live Stream List | Displays a list of live rooms and their details. |
App Info > Permissions > Microphone and verify that microphone access is enabled.
