Live Streaming Widget Customization (Android)

Unduh
Mode fokus
Ukuran font
Terakhir diperbarui: 2026-06-02 12:03:10
LiveCoreView is a cross-platform core component for video live streaming that provides essential features such as starting a stream, watching, co-hosting, and host PK. With its widget mechanism, you can display real-time custom information—like username, level, and PK progress bar—directly in the video area. This guide shows you how to quickly customize video widget UIs on Android by implementing the required interfaces.

Effect Preview

Co-hosting Video Widget

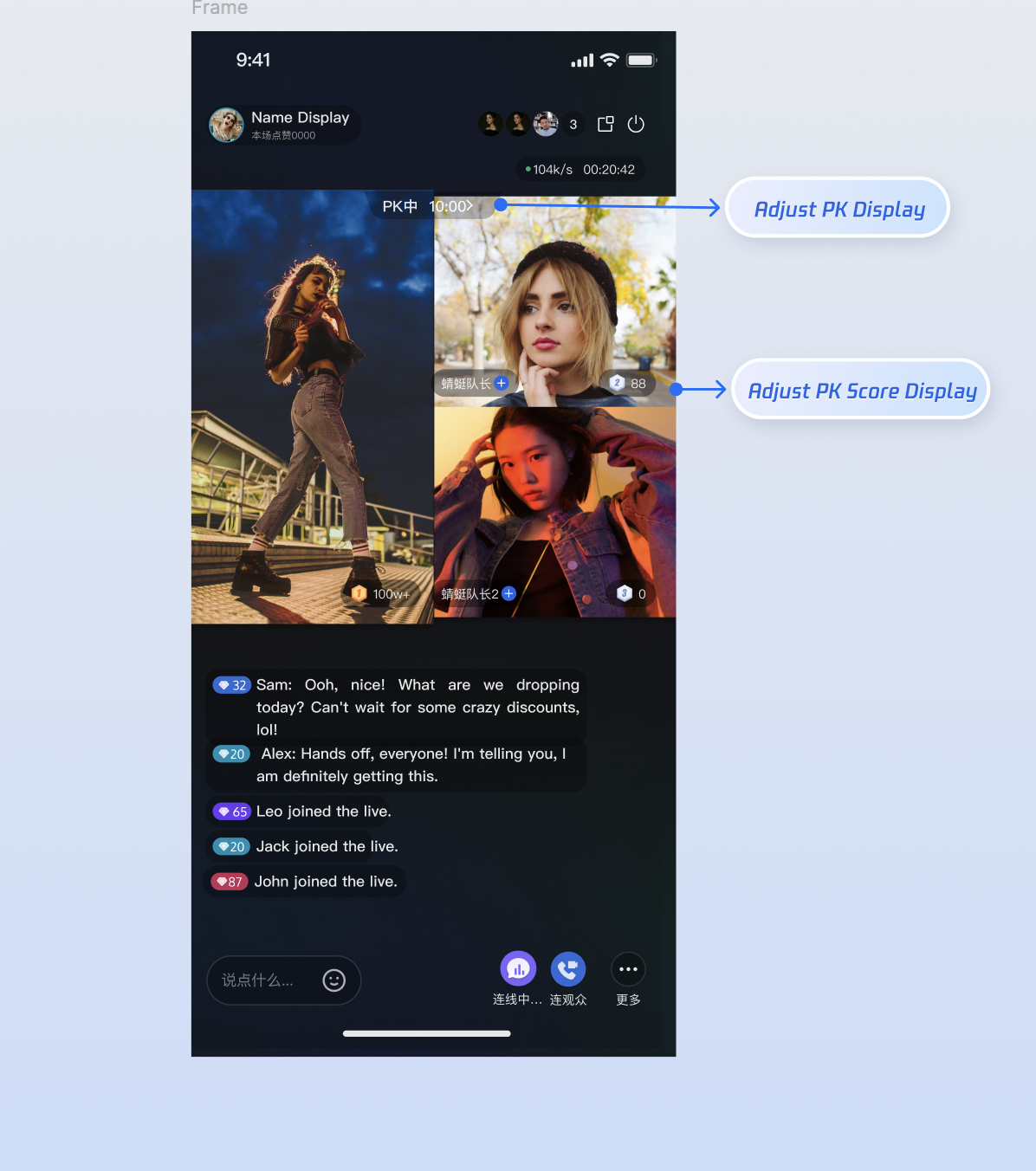

PK Video Widget







Prerequisites

Before customizing video widgets, complete the main workflow setup by following Host Start Streaming and Audience Watching.

Key Concepts

LiveCoreView enables custom view rendering through the VideoViewAdapter delegate. When the live streaming scenario changes (for example, when a user joins the stream or starts a PK), LiveCoreView invokes delegate methods to determine which view to display. Implement the corresponding interface methods and return your custom View instances.
Method
Description
Business Scenario
createCoGuestView
Creates the widget view for audience co-hosting.
Audience co-hosting, invite to co-hosting.
createCoHostView
Creates the widget view for cross-room co-hosting (host co-hosting).
Host co-hosting
createBattleView
Creates the widget view for a single user in the PK scenario (e.g., avatar, score).
Host PK
createBattleContainerView
Creates the overall container view for the PK scenario (e.g., background, PK score bar).
Host PK

Customize Co-hosting Widgets

When an audience member connects with the host(co-guest) or hosts connect across rooms(co-host), the live room UI switches from a single-user layout to a multi-user layout. At this point, you need to display user-specific information—such as nickname, level, or mute status—on each connecting video window to distinguish between seats.

Applicable Scenarios

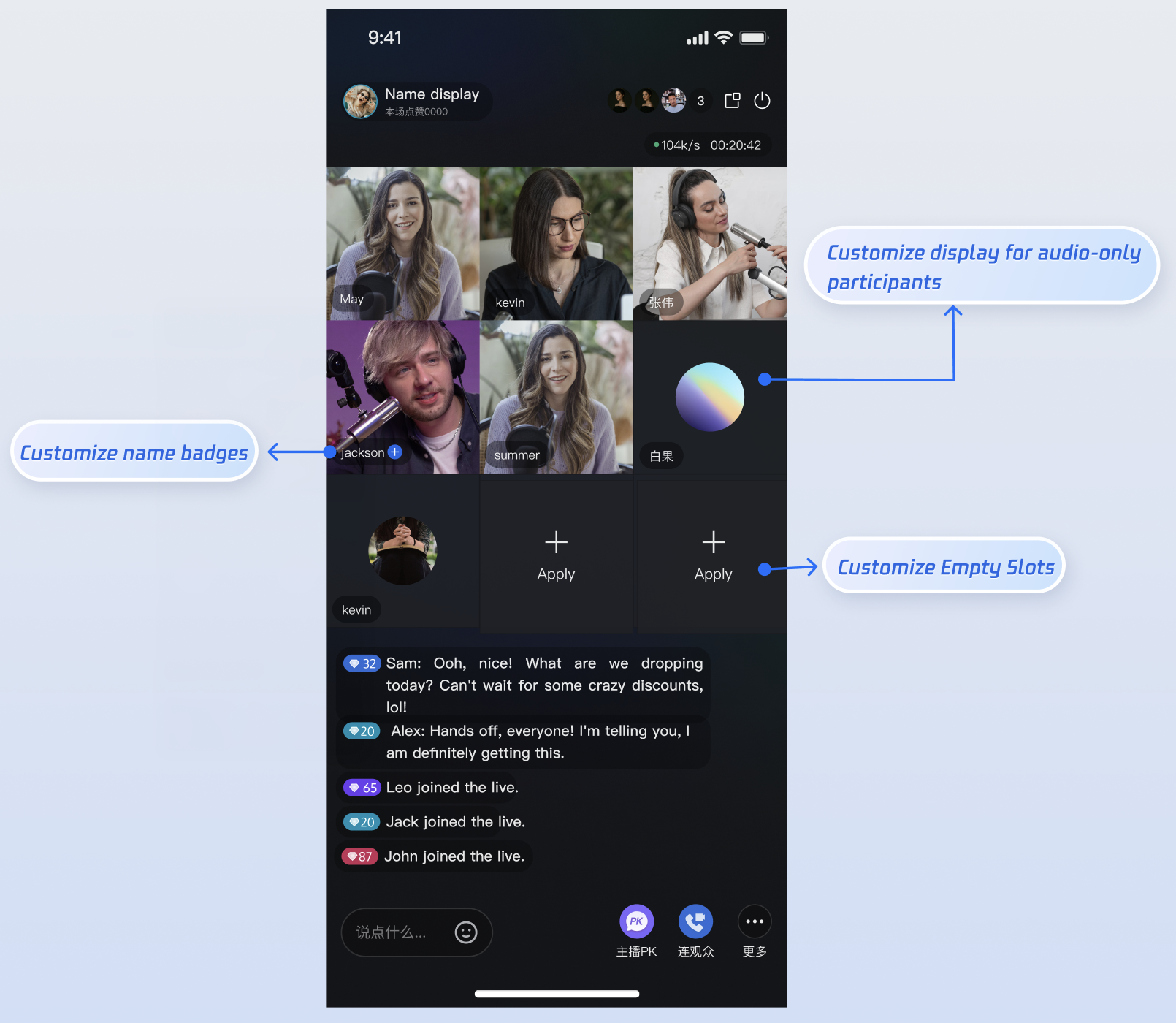

When hosts and audience connect via video, customize the user info displayed on each seat (e.g., nickname, level, mute icon).
When hosts connect across rooms, customize the other host's display style (e.g., nickname, level, mute icon).
Change the default background when there is no video (e.g., show a placeholder avatar).
Customize the view for empty seats.


Implementation Steps

Note:
For complete implementation logic, see the CoGuestWidgets and CoHostWidgets directories in the TUILiveKit open source project.

Step 1. Prepare Custom Widget Views

Define three basic view classes to display user information, empty seat prompts, and backgrounds for when there is no video stream.
Create a custom user info view:
import android.content.Context
import android.view.View
import android.widget.FrameLayout
import android.widget.ImageView
import android.widget.TextView

class CustomInfoView(context: Context, name: String, isMuted: Boolean) : FrameLayout(context) {
    private val nameTextView = TextView(context)
    private val muteIcon = ImageView(context)

    init {
        nameTextView.text = name
        muteIcon.visibility = if (isMuted) View.VISIBLE else View.GONE

        addView(nameTextView)
        addView(muteIcon)
        // Layout parameter setup code omitted here
    }
}
Create a custom empty seat view:
import android.content.Context
import android.widget.FrameLayout
import android.widget.ImageView
import android.widget.TextView

class EmptySeatView(context: Context) : FrameLayout(context) {
    private val addIcon = ImageView(context)
    private val addLabel = TextView(context)

    init {
        addLabel.text = "Invite to co-host"
        // Image resource loading and layout parameter setup code omitted here
    }
}
Create a custom avatar placeholder view for when there is no video stream:
import android.content.Context
import android.widget.FrameLayout
import android.widget.ImageView

class CustomAvatarView(context: Context, avatarURL: String) : FrameLayout(context) {
    private val avatarImageView = ImageView(context)

    init {
        // In actual projects, use an image loading library like Glide to load avatarURL
        addView(avatarImageView)
        // Layout parameter setup code omitted here
    }
}

Step 2. Implement Adapter Logic

Create an adapter class that implements the VideoViewAdapter interface methods createCoGuestView (for audience connecting) and createCoHostView (for host connecting), returning your custom views.
Implement the createCoGuestView method in VideoViewAdapter to return the audience connecting video widget.
import android.content.Context
import android.view.View
import io.trtc.tuikit.atomicxcore.api.device.DeviceStatus
import io.trtc.tuikit.atomicxcore.api.live.SeatInfo
import io.trtc.tuikit.atomicxcore.api.view.VideoViewAdapter
import io.trtc.tuikit.atomicxcore.api.view.ViewLayer

class VideoWidgetAdapter(private val context: Context) : VideoViewAdapter {
    override fun createCoGuestView(seatInfo: SeatInfo, viewLayer: ViewLayer): View? {
        val isUserOnSeat = seatInfo.userInfo.userID.isNotEmpty()

        return when (viewLayer) {
            ViewLayer.FOREGROUND -> {
                if (isUserOnSeat) {
                    // Non-empty seat: return custom foreground view
                    CustomInfoView(context, seatInfo.userInfo.userName, seatInfo.userInfo.microphoneStatus == DeviceStatus.OFF)
                } else {
                    // Empty seat: return custom empty seat view
                    EmptySeatView(context)
                }
            }
            ViewLayer.BACKGROUND -> {
                if (isUserOnSeat) {
                    // Return custom background view (shown when camera is off)
                    CustomAvatarView(context, seatInfo.userInfo.avatarURL)
                } else {
                    null
                }
            }
        }
    }
}
Implement the createCoHostView method in VideoViewAdapter to return the host connecting video widget.
import android.content.Context
import android.view.View
import io.trtc.tuikit.atomicxcore.api.device.DeviceStatus
import io.trtc.tuikit.atomicxcore.api.live.SeatInfo
import io.trtc.tuikit.atomicxcore.api.view.VideoViewAdapter
import io.trtc.tuikit.atomicxcore.api.view.ViewLayer

class VideoWidgetAdapter(private val context: Context) : VideoViewAdapter {

    override fun createCoHostView(seatInfo: SeatInfo, viewLayer: ViewLayer): View? {
        val isUserOnSeat = seatInfo.userInfo.userID.isNotEmpty()

        return when (viewLayer) {
            ViewLayer.FOREGROUND -> {
                if (isUserOnSeat) {
                    // Return custom foreground view; you can use a different style from audience connecting
                    CustomInfoView(context, seatInfo.userInfo.userName, seatInfo.userInfo.microphoneStatus == DeviceStatus.OFF)
                } else {
                    // Return custom empty seat view; you can use a different style from audience connecting
                    EmptySeatView(context)
                }
            }
            ViewLayer.BACKGROUND -> {
                if (isUserOnSeat) {
                    // Return custom background view (shown when camera is off); you can use a different style from audience connect
                    CustomAvatarView(context, seatInfo.userInfo.avatarURL)
                } else {
                    null
                }
            }
        }
    }
}

Parameter Description

Parameter
Type
Description
seatInfo
SeatInfo
Seat information object containing detailed info about the user on the seat.
seatInfo.userInfo.userName
String
Nickname of the user on the seat.
seatInfo.userInfo.avatarURL
String
Avatar URL of the user on the seat.
seatInfo.userInfo.microphoneStatus
DeviceStatus
Microphone status of the user on the seat.
seatInfo.userInfo.cameraStatus
DeviceStatus
Camera status of the user on the seat.
viewLayer
ViewLayer
View layer enum.

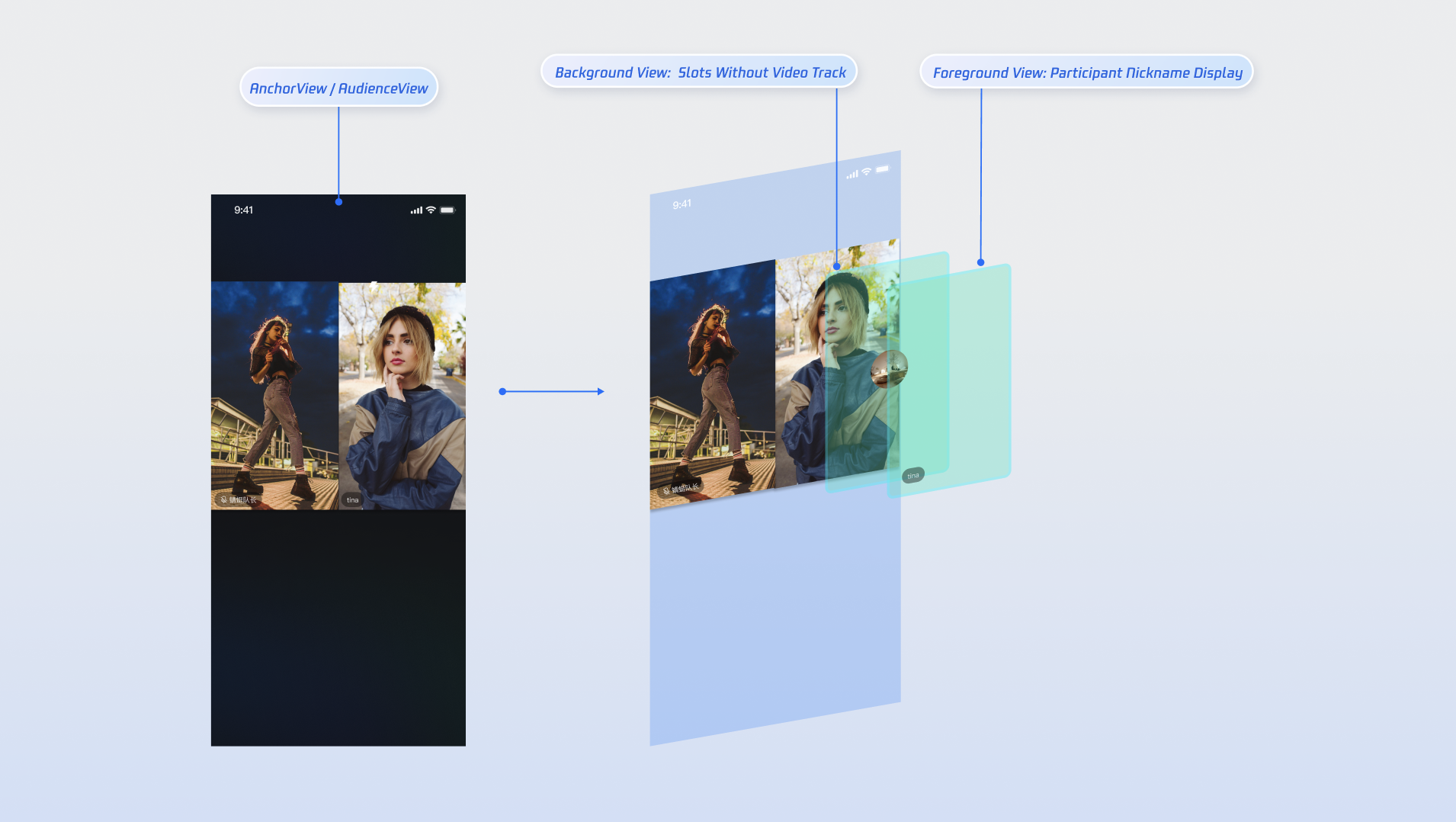

.foreground indicates the foreground widget view, always displayed on top of the video.
.background indicates the background widget view, located beneath the foreground view, only shown when the user has no video stream (e.g., camera is off), typically used to display the user's default avatar or placeholder image.

Customize Host PK Widgets

PK is the most interactive segment in live streaming. During PK, the screen is typically split according to the number of participants. You need to add PK-specific UI elements to the top or center of the screen—such as PK score bars, seat score displays, countdown animations, or "VS" effect icons—to create an intense competitive atmosphere.

Note:
PK functionality depends on co-hosting. Only initiate a PK request after hosts are co-hosted.

Implementation Steps

Step 1. Prepare Custom UI Components

The PK scenario usually requires two types of views:

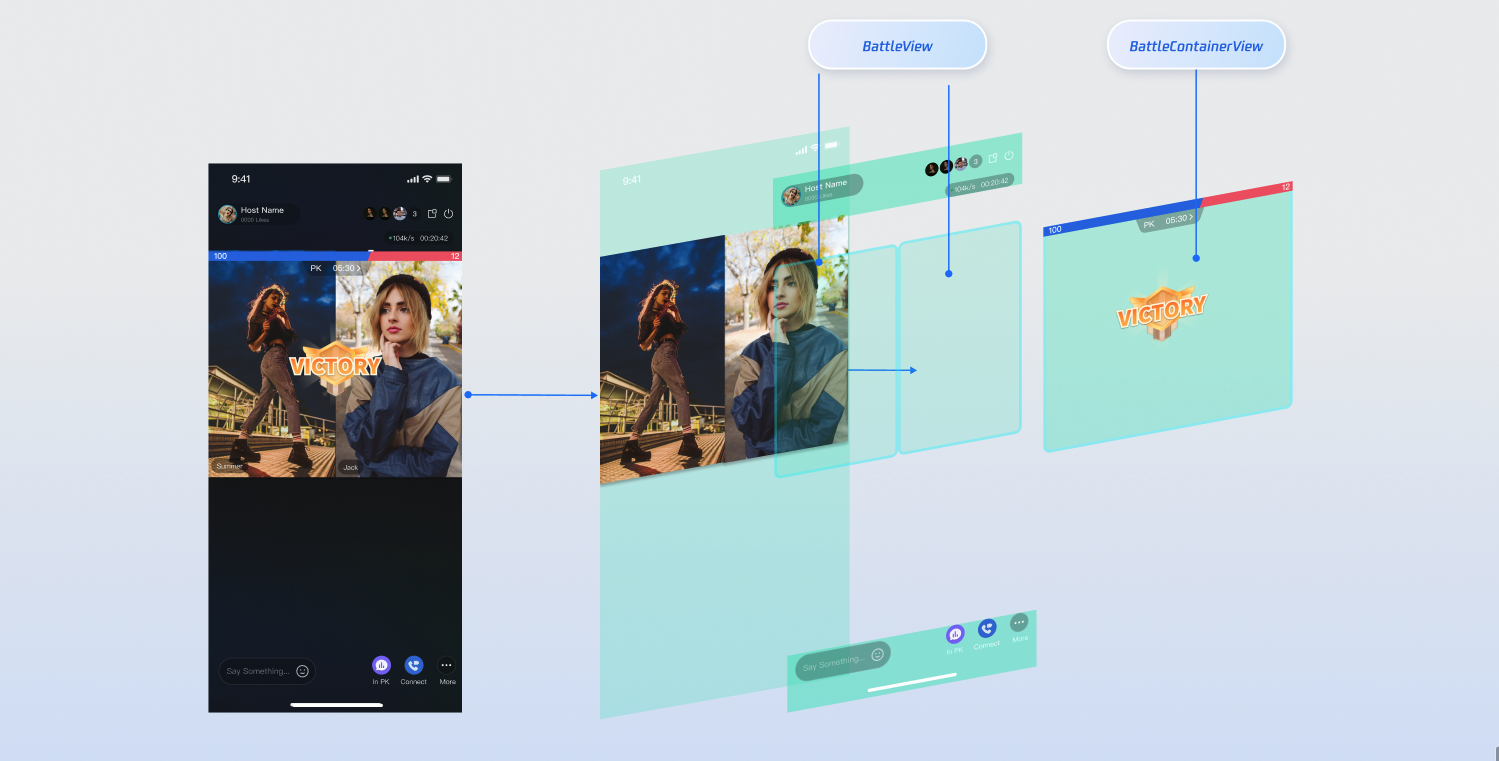

Single User Widget: Displayed on each host's window (e.g., score capsule).
Global Container: Overlays the entire screen (e.g., VS animation, countdown).
Note:
For complete implementation logic, refer to the BattleWidgets directory in the TUILiveKit open source project.
import android.content.Context
import android.widget.FrameLayout
import android.widget.ImageView

// Example: Single user score bar
class MyBattleScoreView(context: Context) : FrameLayout(context) {
    // Internal score display logic
}

// Example: Global VS panel
class MyBattleContainer(context: Context) : FrameLayout(context) {
    private val battleTimeView = ImageView(context)
    // Internal countdown and VS animation logic
}

Step 2. Implement Adapter Logic

In your VideoWidgetAdapter, implement the remaining PK view methods.
class VideoWidgetAdapter(private val context: Context) : VideoViewAdapter {

    // createCoGuestView / createCoHostView implementation omitted...

    // 1. Create PK single user info widget (displayed above each host's video)
    override fun createBattleView(seatInfo: SeatInfo): View? {
        return MyBattleScoreView(context)
    }

    // 2. Create PK global container widget (displayed above the entire video area)
    override fun createBattleContainerView(): View? {
        return MyBattleContainer(context)
    }
}

Integration and Activation

This is the most critical step. Inject your VideoWidgetAdapter with delegate logic into the core live streaming workflow.
Host Side Integration: Before initializing the outer container, initialize LiveCoreView and set the adapter using setVideoViewAdapter.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import android.view.ViewGroup
import com.trtc.uikit.livekit.features.anchorview.AnchorView
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo
import io.trtc.tuikit.atomicxcore.api.view.LiveCoreView

class AnchorActivity : AppCompatActivity() {
    private lateinit var anchorView: AnchorView
    private lateinit var widgetAdapter: VideoWidgetAdapter

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        // Initialize adapter object
        widgetAdapter = VideoWidgetAdapter(this)

        // Assume liveInfo is obtained here
        val liveInfo = LiveInfo()

        // 1. Initialize LiveCoreView with Context only
        val videoView = LiveCoreView(this)
        // 2. Set the custom adapter
        videoView.setVideoViewAdapter(widgetAdapter)

        // 3. Pass the core video component into the outer container
        anchorView = AnchorView(this, liveInfo, videoView)

        setContentView(anchorView, ViewGroup.LayoutParams(
            ViewGroup.LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.MATCH_PARENT
        ))
    }
}
Audience Side Integration: On the audience side, use AudienceContainerViewDelegate to handle the timing for creating the core view.
import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import io.trtc.tuikit.atomicxcore.api.live.LiveInfo
import io.trtc.tuikit.atomicxcore.api.view.LiveCoreView

class AudienceActivity : AppCompatActivity(), AudienceContainerViewDelegate {
    private lateinit var audienceView: AudienceContainerView
    private lateinit var widgetAdapter: VideoWidgetAdapter

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        widgetAdapter = VideoWidgetAdapter(this)

        val roomId = "your_room_id"
        audienceView = AudienceContainerView(this, roomId)
        audienceView.setDelegate(this)

        setContentView(audienceView)
    }

    override fun onCreateCoreView(liveInfo: LiveInfo): LiveCoreView? {
        val view = LiveCoreView(this)
        // Inject adapter
        view.setVideoViewAdapter(widgetAdapter)
        return view
    }
}

Advanced: Access Real-Time Business Data

When building advanced features like PK, you may find that SeatInfo only provides basic seat information. To access real-time countdowns, PK scores, and other business data, connect your custom views to the core data in AtomicXCore.
Store/Component
Function Description
API Documentation
CoGuestStore
Audience connecting data: list of co-guested users, invite list, application list, etc.
CoHostStore
Host connecting data: list of co-hosted users, invite list, application list, etc.
BattleStore
PK data: current PK info, PK user list, PK score list.

FAQs

Adapter is set, but custom views are not displayed?

Check whether the adapter is set too late. In Android's component initialization sequence, you must assign the adapter for LiveCoreView before passing it into AnchorView. If AnchorView is already initialized, it will load the SDK's default widget views internally.
Solution: Follow the correct initialization order: first create LiveCoreView, then call setVideoViewAdapter to inject your custom UI, and finally instantiate AnchorView and pass in the configured CoreView.

I only want to modify the co-guesting views and keep the default PK views. What should I do?

VideoViewAdapter operates in full takeover mode. Once you set a custom delegate, the SDK's default delegate logic inside AnchorView/AudienceView is completely overridden.
Solution: Implement all relevant methods in your delegate class. For parts you don't want to change (such as PK views), you can:
1. Copy source code: Locate the default implementation classes in the LiveKit source code and return instances of these classes in your delegate.
2. Manual implementation: Refer to the default style and quickly write a similar simple view to return.

Custom widgets are displayed, but cannot be clicked?

This is a common Android event dispatch conflict. Because foreground views (.FOREGROUND) are layered above the video rendering layer:
1. Ensure your returned CustomView has isClickable = true or a registered setOnClickListener.
2. If your widget is a nested ViewGroup (such as FrameLayout), check whether its parent container is incorrectly intercepting touch events (for example, the outer control triggers onInterceptTouchEvent and returns true).
