Guest Connection (Web)

PDF
포커스 모드
폰트 크기
마지막 업데이트 시간: 2026-03-10 16:37:51
AtomicXCore provides the CoGuestState module, purpose-built to manage the entire workflow for audience guest connections in live streaming scenarios. You don’t need to handle complex state synchronization or signaling logic yourself—just call a few simple methods to enable seamless audio/video interaction between your hosts and audience.

Core Scenarios

CoGuestState covers the two most common guest connection workflows:
Audience Request to Join: Audience members can actively request to join the stream as a guest. The host can accept or reject these requests.
Host Invites Audience to Join: The host can invite any audience member in the live room to join as a guest.

Sample Project

Check out our CoGuestPanel component on GitHub for a full implementation example.

Implementation

Component Integration

Follow the Quick Start Guide to integrate AtomicXCore and set up LiveCoreView.
Note：
Before proceeding, make sure you have created or joined a room as described in the Quick Start Guide. Then, continue with the steps below.

Audience Request to Join

Audience Implementation

As an audience member, you’ll need to submit a guest request, handle the host’s response, and disconnect when needed.
Initiate a Co-hosting Request
Call the applyForSeat method when the user clicks the "Request to Join" button in your UI.
import { useCoGuestState } from "tuikit-atomicx-vue3";

const { applyForSeat } = useCoGuestState();

// User clicks "Request to Join"
const handleRequestToConnect = async () => {
    try {
        await applyForSeat({
          seatIndex: -1, // -1 assigns a seat randomly
          timeout: 30,   // Timeout in seconds; if TS expects ms, use 30000
        });
        console.log('Request sent');
    } catch (error) {
        console.error('Request failed', error);
    }
}
Handle Host Response
Subscribe to the CoGuestEvent.onGuestApplicationResponded event with subscribeEvent to receive the host’s decision.
import { onMounted, onUnmounted } from 'vue';
import { useCoGuestState, useDeviceState, CoGuestEvent } from "tuikit-atomicx-vue3";

const { subscribeEvent, unsubscribeEvent } = useCoGuestState();
const { openLocalMicrophone, openLocalCamera } = useDeviceState();

const handleGuestApplicationResponded = (eventInfo: any) => {
    if (eventInfo.isAccept) {
        console.log('Guest request accepted');
        // Enable microphone and camera
        openLocalMicrophone();
        openLocalCamera();
        // Update UI to indicate guest connection is active
    } else {
        console.log('Guest request rejected');
        // Notify user that the request was rejected
    }
};

onMounted(() => {
    subscribeEvent(CoGuestEvent.onGuestApplicationResponded, handleGuestApplicationResponded);
});

onUnmounted(() => {
    unsubscribeEvent(CoGuestEvent.onGuestApplicationResponded, handleGuestApplicationResponded);
});
Disconnect from Guest Mode
When a guest wants to leave, call the disConnect method to return to audience status.
import { useCoGuestState } from "tuikit-atomicx-vue3";

const { disConnect } = useCoGuestState();

// User clicks "Leave Seat"
const leaveSeat = async () => {
    try {
        await disConnect();
        console.log('Disconnected successfully');
    } catch (error) {
        console.log('Disconnect failed', error);
    }
}
Cancel a Pending Request (Optional)
If the audience member wants to withdraw their request before the host responds, use cancelApplication.
import { useCoGuestState } from "tuikit-atomicx-vue3";

const { cancelApplication } = useCoGuestState();

// User clicks "Cancel Request" while waiting
const handleCancelRequest = async () => {
    await cancelApplication();
    console.log('Request cancelled successfully');
}

Host Implementation

As the host, you’ll need to listen for incoming requests, display the request list, and handle each request.
Listen for New Guest Requests
Subscribe to the CoHostEvent.onGuestApplicationReceived event to get notified when an audience member requests to join.
import { onMounted, onUnmounted } from 'vue';
import { useCoGuestState, CoHostEvent } from "tuikit-atomicx-vue3";

const { subscribeEvent, unsubscribeEvent } = useCoGuestState();

const handleGuestApplicationReceived = (eventInfo: any) => {
    console.log('Received guest request from audience:', eventInfo.guestUser);
    // Update UI, e.g., show a notification badge on the "Request List" button
};

onMounted(() => {
    subscribeEvent(CoHostEvent.onGuestApplicationReceived, handleGuestApplicationReceived);
});

onUnmounted(() => {
    unsubscribeEvent(CoHostEvent.onGuestApplicationReceived, handleGuestApplicationReceived);
});
Display the Request List
CoGuestState provides a real-time list of applicants via the applicants Vue ComputedRef. Each applicant includes fields like userId and userName. Use this directly in your template:
<template>
    <div v-for="audience in applicants" :key="audience.userId" class="applicant-item">
      <span>{{ audience.userName }}</span>
      <button @click="handleAccept(audience.userId)">Accept</button>
      <button @click="handleReject(audience.userId)">Reject</button>
    </div>
</template>

<script setup lang="ts">
import { useCoGuestState } from "tuikit-atomicx-vue3";
const { applicants, acceptApplication, rejectApplication } = useCoGuestState();

const handleAccept = async (userId: string) => {
    await acceptApplication({ userId });
};

const handleReject = async (userId: string) => {
    await rejectApplication({ userId });
};
</script>

Host Invites Audience to Join

Host Implementation

Invite an Audience Member
When the host selects an audience member and clicks "Invite to Join", call inviteToSeat.
import { useCoGuestState } from "tuikit-atomicx-vue3";

const { inviteToSeat } = useCoGuestState();

// Host selects an audience member and sends an invitation
const handleInviteToSeat = async (userId: string) => {
    try {
        await inviteToSeat({
            userId,
            seatIndex: -1, // Assign seat randomly
            timeout: 30,
        });
        console.log(`Sent guest invitation to audience ${userId}`);
    } catch (error) {
        console.error('Invitation failed', error);
    }
}
Handle Audience Response
Subscribe to the CoHostEvent.onHostInvitationResponded event to track whether the audience member accepts or rejects the invitation.
import { onMounted } from 'vue';
import { useCoGuestState, CoHostEvent } from "tuikit-atomicx-vue3";

const { subscribeEvent } = useCoGuestState();

onMounted(() => {
    subscribeEvent(CoHostEvent.onHostInvitationResponded, (eventInfo) => {
        if(eventInfo.isAccept){
            console.log(`Audience ${eventInfo.guestUser.userName} accepted your invitation`);
        } else {
            console.log(`Audience ${eventInfo.guestUser.userName} rejected your invitation`);
        }
    });
});

Audience Implementation

Receive Host Invitation
Subscribe to the CoGuestEvent.onHostInvitationReceived event to detect when the host sends an invitation.
import { onMounted } from 'vue';
import { useCoGuestState, CoGuestEvent } from "tuikit-atomicx-vue3";

const { subscribeEvent } = useCoGuestState();

onMounted(() => {
    subscribeEvent(CoGuestEvent.onHostInvitationReceived, (eventInfo) => {
        // Show a modal dialog for the user to accept or reject
        // Save eventInfo.hostUser.userId as inviterId
        showInviteDialog(eventInfo.hostUser.userId);
    });
});
Respond to Invitation
When the user chooses to accept or reject in the dialog, call the appropriate method.
import { useCoGuestState, useDeviceState } from "tuikit-atomicx-vue3";

const { acceptInvitation, rejectInvitation } = useCoGuestState();
const { openLocalMicrophone, openLocalCamera } = useDeviceState();

// User clicks "Accept"
const handleAccept = async (inviterId: string) => {
    try {
        await acceptInvitation({ inviterId });
        // Automatically enable microphone and camera after accepting
        openLocalMicrophone();
        openLocalCamera();
    } catch (error) {
        console.error('Failed to accept invitation', error);
    }
}

// User clicks "Reject"
const handleReject = async (inviterId: string) => {
    await rejectInvitation({ inviterId });
}

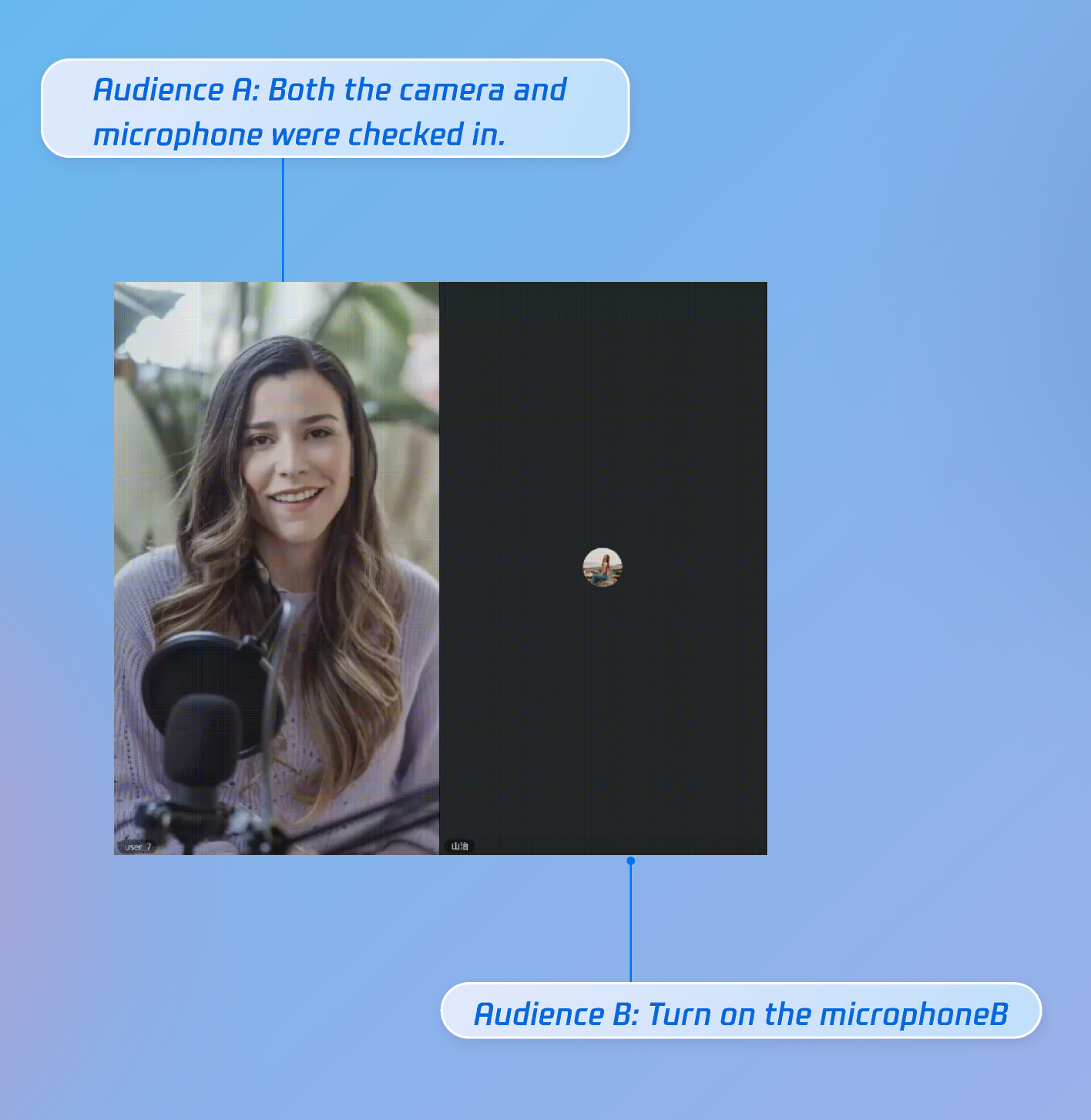

Feature Demo

After integrating these features, you can test guest connections with two audience members and one host: audience A enables both camera and microphone, while audience B enables only the microphone. The feature works as shown below.


API Documentation

For complete details on all public interfaces, properties, and methods for CoGuestState and related classes, refer to the official API documentation for the AtomicXCore framework. The key States used in this guide include:
State
Description
API Documentation
DeviceState
Audio/video device control: microphone (on/off / volume), camera (on/off / switch / quality), screen sharing, real-time device status monitoring.
CoGuestState
Audience guest management: guest request / invitation / accept / reject, guest member permissions control (microphone / camera), state synchronization.
LiveSeatState
Seat information management: seat list management, seat order management.

FAQs

Guest Connection Not Working (Request/Invite/Accept/Reject Fails)

Issue: Methods like applyForSeat, acceptApplication, or inviteToSeat do not work.
Cause: CoGuestState relies on the underlying room engine state. This usually happens if the user hasn’t joined the room, or the useCoGuestState context isn’t initialized.
Solution: Ensure the user has successfully joined the live room before calling these methods.

Missing Guest Connection Event Notifications

Issue: Audience does not receive host invitations, or host does not receive audience requests.
Cause:
subscribeEvent was not called correctly.
Incorrect event enum value used (e.g., mixing up CoHostEvent and CoGuestEvent).
Solution:
Host: Subscribe to CoHostEvent.onGuestApplicationReceived and CoHostEvent.onHostInvitationResponded.
Audience: Subscribe to CoGuestEvent.onGuestApplicationResponded and CoGuestEvent.onHostInvitationReceived.

No Video or Audio After Guest Connection

Issue: After joining as a guest, the seat list updates but there’s no video or audio.
Cause: CoGuestState only handles signaling for guest connections (seat assignment). Streaming (turning on microphone/camera) requires explicit calls to DeviceState methods.
Solution: In the callback for "accept request" or "accept invitation", make sure to call openLocalMicrophone and openLocalCamera. Also, check browser autoplay policies and ensure the user has interacted with the page.
