Android（Compose）
Last updated: 2026-03-03 14:18:05
TUIKit Compose is a Jetpack Compose component library built on top of the Chat SDK, providing a comprehensive solution for instant messaging features such as chat, conversation list, and contact management. This guide explains how to manually integrate the component and implement its core features.
Key Concepts
TUIKit Compose offers a complete set of instant messaging UI components, built on the AtomicXCore data layer and designed to help you quickly assemble functional pages.
Page Layer: Fully functional pages composed using TUIKit Compose components, such as ChatPage, ContactsPage, and ConversationsPage. You can use these pages directly in your app.
TUIKit Compose (UI Component Layer): Jetpack Compose components built on AtomicXCore, which you can embed into your own app pages.
AtomicXCore (Data Layer): Handles data management and business logic, including various Stores and Managers.
Prerequisites
Android Studio Ladybug | 2024.2.1 or higher
Android 5.0 or higher
Gradle 8.9 or higher
Android Gradle Plugin 8.6 or higher
JDK 17 or higher
Kotlin 1.9.0 or higher
A valid Tencent Cloud account and Chat application. Refer to Enable Service to obtain the following information from the console:
SDKAppID: The unique ID of your Chat application obtained from the console
SDKSecretKey: The application's SecretKey
Note：
This project currently only supports manual integration and does not support integration via package managers such as Maven.
To ensure a stable build environment, strictly follow the official compatibility requirements:
For compatibility between Gradle, Android Gradle Plugin, JDK, and Android Studio, refer to the official Android documentation: Version Notes.
For the version mapping between Kotlin, Android Gradle Plugin, and Gradle, refer to the official Kotlin documentation: Kotlin-Gradle Plugin Compatibility.
We recommend selecting a version combination that matches your project requirements exactly, based on the guidelines above.
Installation and Setup
Download Source Code
1. Download the TUIKit Compose source code from GitHub:
  git clone https://github.com/Tencent-RTC/TUIKit_Android_Compose.git
 The project directory structure is as follows:
  atomic-x/
  ├── src/main/
  │   ├── java/io/trtc/tuikit/atomicx/     # UI component source code (required for integration)
  │       ├── messagelist/      # Message list component
  │       ├── messageinput/     # Message input component
  │       ├── conversationlist/ # Conversation list component
  │       ├── contactlist/      # Contact list component
  │       ├── basecomponent/    # Base components
  │       └── ...               # Other UI components
  │   # Resource files (required for integration)
  │   ├── res/                    # Common resources
  │   ├── res-message-list/       # Message list component resources
  │   ├── res-message-input/      # Message input component resources
  │   ├── res-conversation-list/  # Conversation list component resources
  │   └── ...                     # Other component resources
  chat/
  ├── uikit/src/main/java/io/trtc/tuikit/chat/pages    # Page components (reference implementations)
  │   ├── ChatPage.kt
  │   ├── ContactsPage.kt
  │   └── ConversationsPage.kt
  └── demo/                 # Sample application (optional reference)
Integrate Components

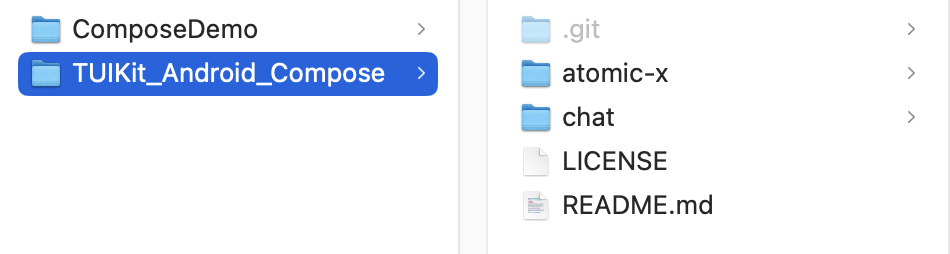

1. Copy the entire component directory into your Android project as shown below. In this example, ComposeDemo is the sample project, and TUIKit_Android_Compose is the component source code downloaded from GitHub:
﻿
2. Add the TUIKit Compose component in your settings.gradle.kts/settings.gradle file:
Note：
TUIKit_Android_Compose can be placed anywhere, as long as the relative path is correctly set in settings.gradle.
Kotlin DSL (Recommended)
Groovy DSL
// settings.gradle.kts
include(":atomicx")
project(":atomicx").projectDir = file("../TUIKit_Android_Compose/atomic-x")
// settings.gradle
include ':atomicx'
project(':atomicx').projectDir = new File(settingsDir, '../TUIKit_Android_Compose/atomic-x')
3. Add the following dependency in your app module's build.gradle.kts/build.gradle:
Kotlin DSL (Recommended)
Groovy DSL
// app/build.gradle.kts
dependencies {
    implementation(project(":atomicx"))
﻿
// app/build.gradle
dependencies {
    api project(':atomicx')
}
Notice：
When using the local integration approach, to upgrade, obtain the latest component code from GitHub and overwrite your local TUIKit Compose directory.
If there are conflicts between your private modifications and the remote repository, you need to manually merge and resolve conflicts.
Project Configuration
1. Locate the AndroidManifest.xml file in your app directory, and add tools:replace="android:allowBackup" to the application node to override the component's setting with your own.
  // app/src/main/AndroidManifest.xml
  <application
    android:name=".BaseApplication"
    android:allowBackup="false"
    android:icon="@drawable/app_ic_launcher"
    android:label="@string/app_name"
    android:largeHeap="true"
    android:theme="@style/AppTheme"
    tools:replace="android:allowBackup">
2. Configure dependencies.
Add the following dependencies to your project's gradle/libs.versions.toml file:
  # gradle/libs.versions.toml
  [versions]
  agp = "8.13.0"
  kotlin = "2.0.21"
  coreKtx = "1.10.1"
  junit = "4.13.2"
  junitVersion = "1.1.5"
  espressoCore = "3.5.1"
  appcompat = "1.7.1"
  material = "1.13.0"
  runner = "1.0.2"
  espressoCoreVersion = "3.0.2"
  appcompatV7 = "28.0.0"

  tuicore = "8.6.7021"
  lifecycleRuntimeKtx = "2.8.7"
  ui = "1.8.0"
  foundation = "1.8.0"
  composeBom = "2024.09.00"
  activityCompose = "1.10.1"
  activity = "1.8.0"
  constraintlayout = "2.2.1"

  [libraries]
  androidx-core-ktx = { group = "androidx.core", name = "core-ktx", version.ref = "coreKtx" }
  junit = { group = "junit", name = "junit", version.ref = "junit" }
  androidx-junit = { group = "androidx.test.ext", name = "junit", version.ref = "junitVersion" }
  androidx-espresso-core = { group = "androidx.test.espresso", name = "espresso-core", version.ref = "espressoCore" }
  androidx-appcompat = { group = "androidx.appcompat", name = "appcompat", version.ref = "appcompat" }
  material = { group = "com.google.android.material", name = "material", version.ref = "material" }
  runner = { group = "com.android.support.test", name = "runner", version.ref = "runner" }
  espresso-core = { group = "com.android.support.test.espresso", name = "espresso-core", version.ref = "espressoCoreVersion" }
  appcompat-v7 = { group = "com.android.support", name = "appcompat-v7", version.ref = "appcompatV7" }

  androidx-lifecycle-viewmodel-compose = { module = "androidx.lifecycle:lifecycle-viewmodel-compose", version.ref = "lifecycleRuntimeKtx" }
  androidx-compose-bom = { group = "androidx.compose", name = "compose-bom", version.ref = "composeBom" }
  androidx-compose-foundation = { group = "androidx.compose.foundation", name = "foundation", version.ref = "foundation" }
  androidx-compose-ui = { group = "androidx.compose.ui", name = "ui", version.ref = "ui" }
  androidx-compose-ui-graphics = { group = "androidx.compose.ui", name = "ui-graphics" }
  androidx-ui-tooling = { group = "androidx.compose.ui", name = "ui-tooling" }
  androidx-compose-material3 = { group = "androidx.compose.material3", name = "material3" }
  androidx-activity-compose = { group = "androidx.activity", name = "activity-compose", version.ref = "activityCompose" }
  androidx-lifecycle-runtime-ktx = { group = "androidx.lifecycle", name = "lifecycle-runtime-ktx", version.ref = "lifecycleRuntimeKtx" }
  androidx-ui-tooling-preview = { group = "androidx.compose.ui", name = "ui-tooling-preview" }
  androidx-ui-test-manifest = { group = "androidx.compose.ui", name = "ui-test-manifest" }
  tuicore = { module = "com.tencent.liteav.tuikit:tuicore", version.ref = "tuicore" }
  com-tencent-mmkv = { group = "com.tencent", name = "mmkv", version = "1.3.14" }

  [plugins]
  android-application = { id = "com.android.application", version.ref = "agp" }
  kotlin-android = { id = "org.jetbrains.kotlin.android", version.ref = "kotlin" }
  android-library = { id = "com.android.library", version.ref = "agp" }

  kotlin-compose = { id = "org.jetbrains.kotlin.plugin.compose", version.ref = "kotlin" }
3. Enable Compose support.
 Add the following configuration to your app module's build.gradle.kts/build.gradle:
Kotlin DSL (Recommended)
Groovy DSL
// app/build.gradle.kts
plugins {
    // Add Compose plugin
    alias(libs.plugins.kotlin.compose)
}
android {
    // Enable Compose
    buildFeatures {
        compose = true
    }
}
// app/build.gradle
plugins {
    // Add Compose plugin
    id libs.plugins.kotlin.compose.get().pluginId
}
android {
    // Enable Compose
    buildFeatures {
        compose true
    }
}
4. Configure ProGuard rules.
Add the following rules to your app/proguard-rules.pro file:
  -keep class com.tencent.** { *; }
5. In Android Studio, click File > Sync Project with Gradle Files to integrate the component.
Implementation
Step 1: Configure User Authentication

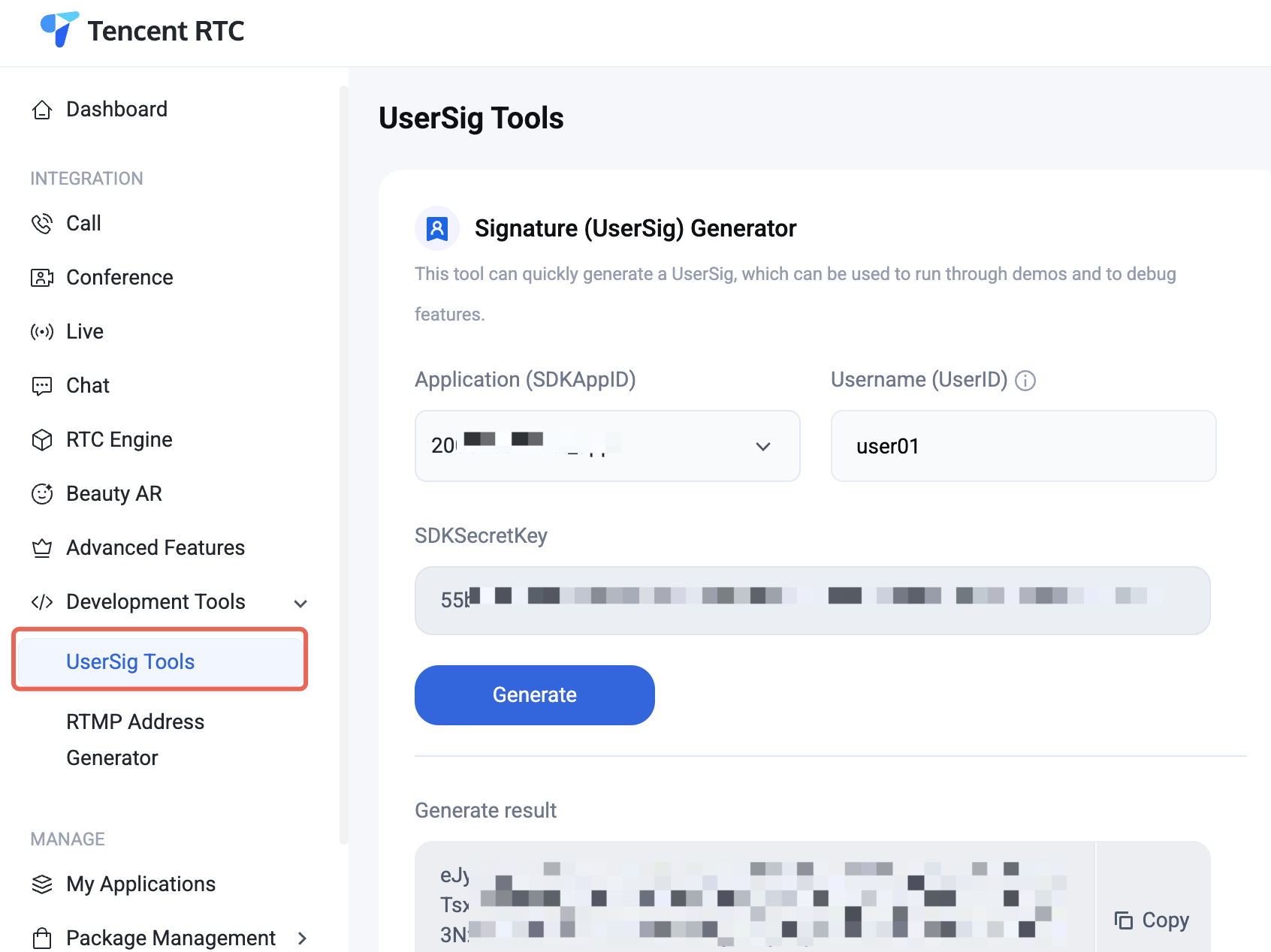

In the Tencent RTC Console, obtain the UserSig for your UserID. UserSig is required for authentication during login.
﻿
Step 2: User Login
You must complete authentication before using any component features. Call the login API and pass the SDKAppID and UserSig you obtained above to authenticate. Refer to the implementation in chat/demo/app/src/main/java/io/trtc/tuikit/chat/login/LoginActivity.kt:
// User login
LoginStore.shared.login(context, SDKAPPID, userID, userSig,
    object : CompletionHandler {
        override fun onSuccess() {
              // Login successful, you can navigate to the chat or conversation page
        }
        override fun onFailure(code: Int, desc: String) {
              // Login failed, display an error dialog
        }
    })
Warning：
In a production environment, generate UserSig on your server. When UserSig is needed, your app should request a dynamic UserSig from your business server for authentication. See Server-side UserSig Generation.
Step 3: Build Conversation List Interface
Use the ConversationList component from TUIKit Compose to build a conversation list page. ConversationList provides the following built-in features:
Displays the user's conversation list, including C2C Chat and Group conversations
Supports user actions on individual conversations: pin, delete, clear conversation messages, and more
You can integrate ConversationList directly into an existing app page or create a new conversation list page. Example UI effect:
﻿

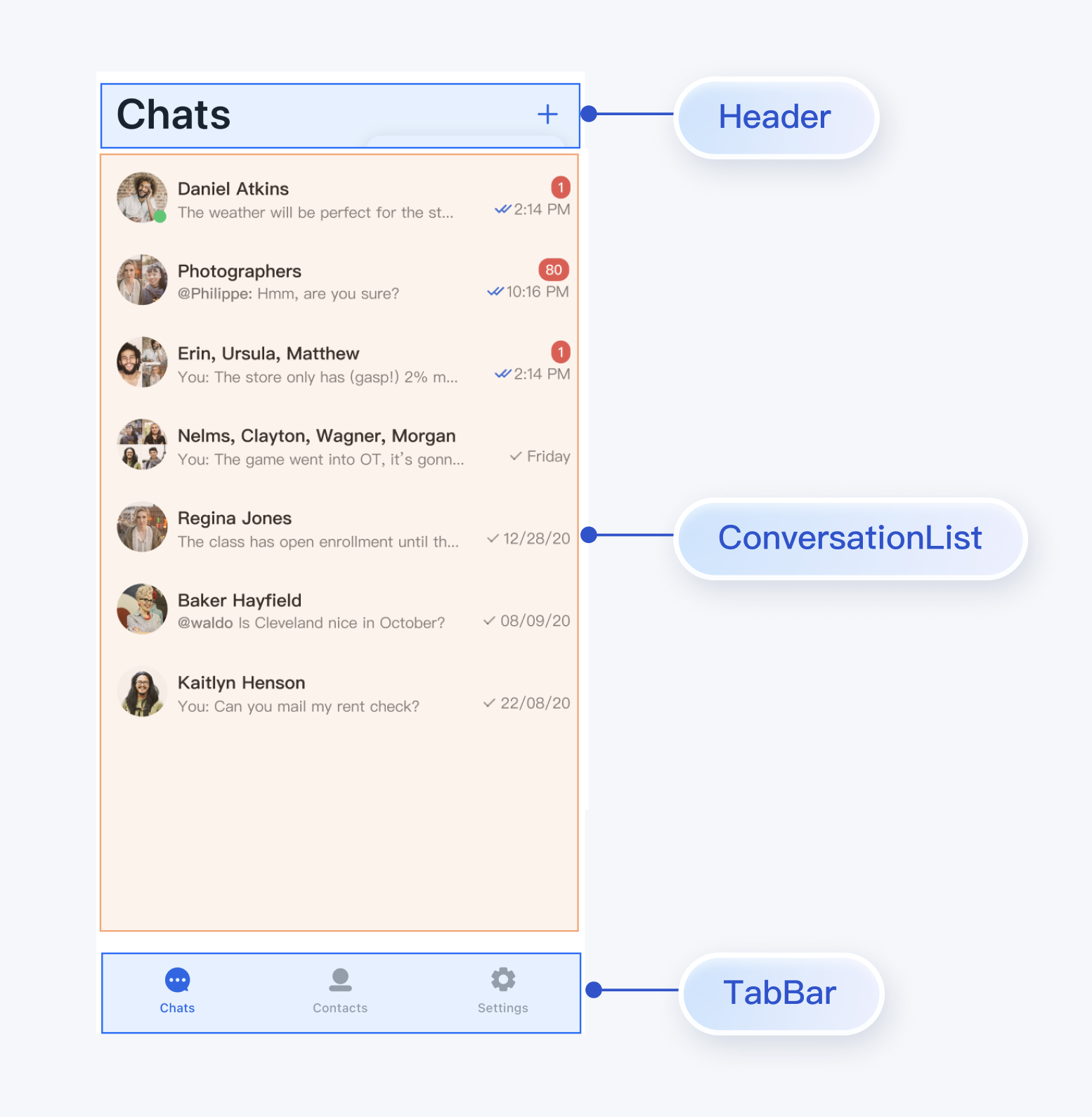

To wrap ConversationList as a conversation list page, refer to the implementation in chat/uikit/src/main/java/io/trtc/tuikit/chat/pages/ConversationsPage.kt. The ConversationsPage mainly performs the following tasks:
1. Adds a headerView above the ConversationList.
2. Passes the conversation list cell click event.
Core sample code:
@Composable
fun ConversationsPage(
    onConversationClick: (ConversationInfo) -> Unit = {},
    editContent: @Composable () -> Unit = {},
) {
    val colors = LocalTheme.current.colors
    Column(
        modifier = Modifier
            .fillMaxSize()
            .background(Colors.Transparent)
    ) {
﻿
        PageHeader(stringResource(R.string.chat_uikit_chat)) {
            editContent()
        }
﻿
        Box(modifier = Modifier.fillMaxSize(), contentAlignment = Alignment.Center) {
            ConversationList(modifier = Modifier.navigationBarsPadding(), onConversationClick = onConversationClick)
        }
    }
}
Step 4: Build Chat Interface
Use the MessageList and MessageInput components from TUIKit Compose to build a chat page.
MessageList provides the following built-in features:
Displays C2C Chat or Group message lists
Supports actions on individual messages: view images in full size, play video or voice messages, copy text, recall messages, delete messages, and more
MessageInput provides the following built-in features:
Allows users to compose and send various types of messages: text, emoji, image, voice, video, file, etc.
You can integrate MessageList and MessageInput directly into an existing app page or create a new chat page. Example UI effect:
﻿

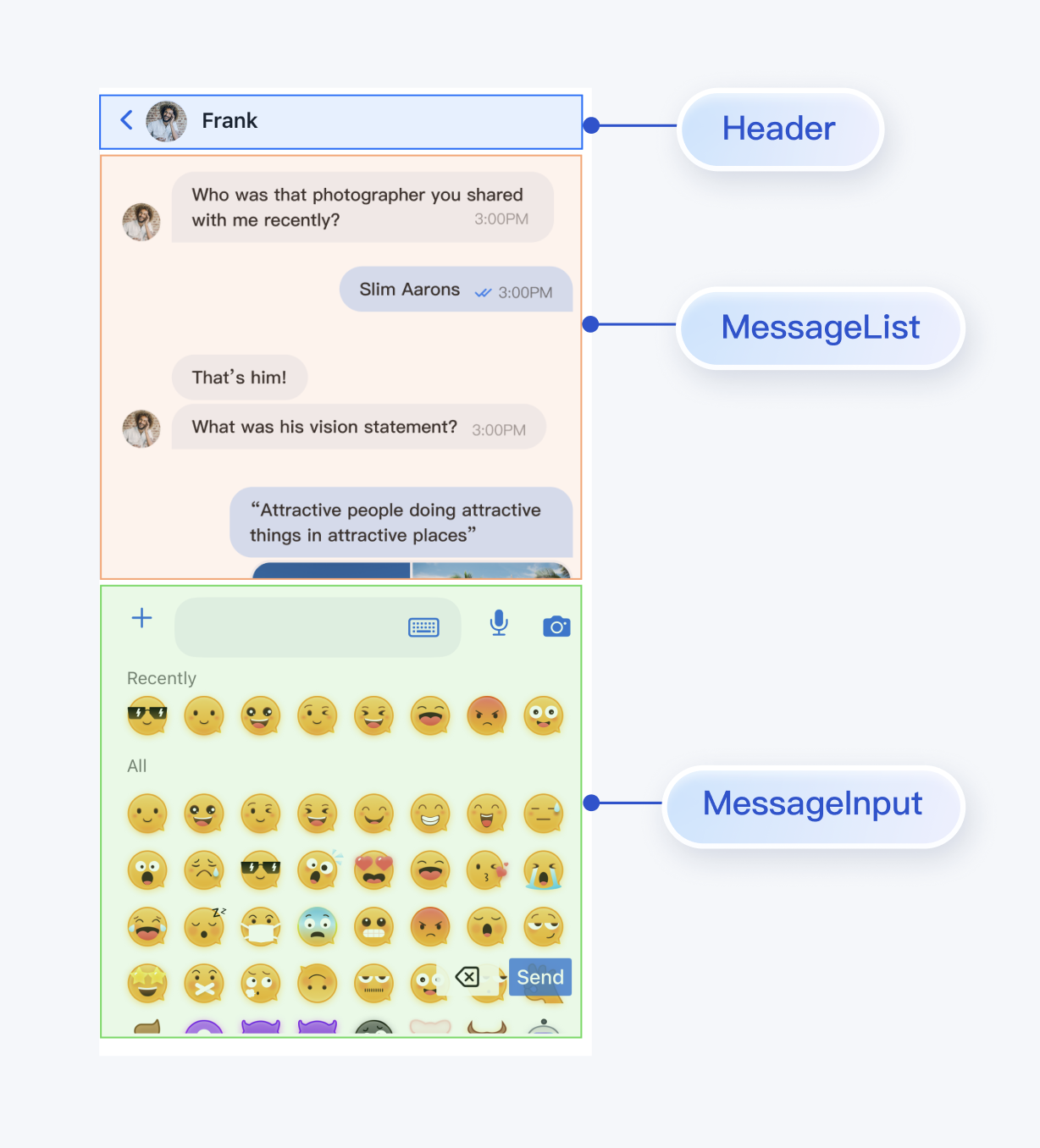

To assemble MessageList and MessageInput as a chat page, refer to the implementation in chat/uikit/src/main/java/io/trtc/tuikit/chat/pages/ChatPage.kt. The ChatPage mainly performs the following tasks:
1. Adds a headerView at the top to display the conversation name.
2. Arranges MessageList and MessageInput vertically for optimal mobile usability.
Core sample code:
@Composable
fun ChatPage(
    conversationID: String,
    locateMessage: MessageInfo? = null,
    onUserClick: (String) -> Unit,
    onChatHeaderClick: (String) -> Unit,
    onBackClick: () -> Unit,
) {
    ...
﻿
    val avatarUrl = conversationState.value?.avatarURL
    val displayName = conversationState.value?.title
    val colors = LocalTheme.current.colors
    Scaffold(
        modifier = Modifier
            .background(color = colors.bgColorOperate)
            .fillMaxSize()
            .wrapContentHeight(), topBar = {
            Box(
                modifier = Modifier
                    .background(color = colors.bgColorOperate)
                    .fillMaxWidth()
                    .statusBarsPadding()
            ) {
                ChatHeader(
                    avatarUrl = avatarUrl,
                    name = displayName ?: "",
                    onBackClick = onBackClick,
                    onAvatarClick = {
                        onChatHeaderClick(conversationID)
                    }
                )
            }
        },
        bottomBar = {
            Box(
                modifier = Modifier
                    .fillMaxWidth()
                    .background(color = colors.bgColorOperate)
            ) {
                MessageInput(modifier = Modifier.navigationBarsPadding(), conversationID = conversationID)
            }
﻿
        }) { padding ->
        Box(
            modifier = Modifier
                .padding(padding)
        ) {
            MessageList(conversationID = conversationID, locateMessage = locateMessage) {
                onUserClick(it)
            }
        }
    }
}
Step 5: Build Contact Interface
Use the ContactList component from TUIKit Compose to build a contacts page. ContactList provides the following built-in features:
View friend request list
View joined group list
Handle group invitations and applications
Manage blacklist
View friends
You can integrate ContactList directly into your existing app or create a new contact list page. Example UI effect:
﻿

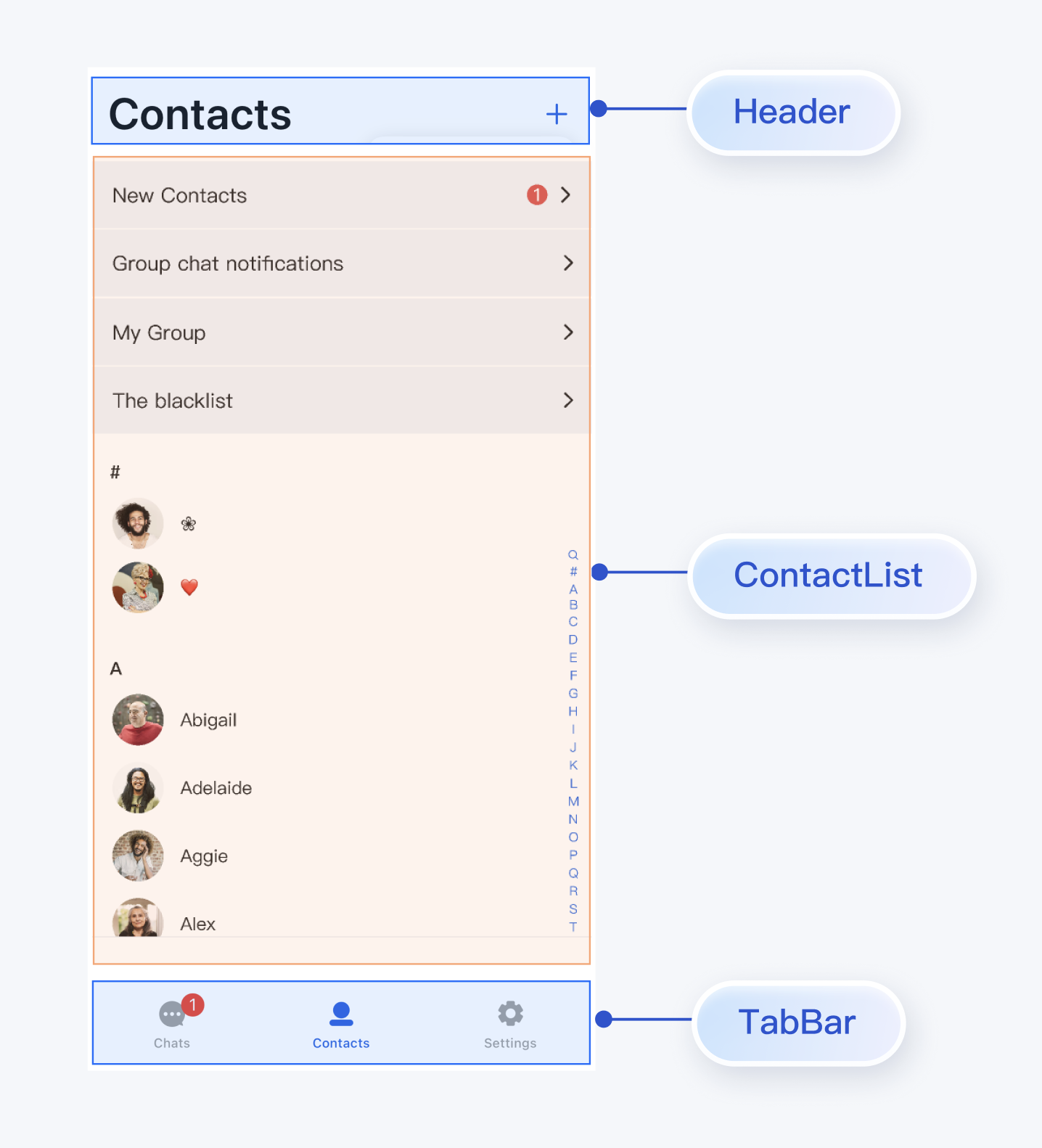

To wrap ContactList as a contact list page, refer to the implementation in chat/uikit/src/main/java/io/trtc/tuikit/chat/pages/ContactsPage.kt. The ContactsPage mainly performs the following tasks:
1. Adds a headerView above the ContactList.
2. Passes the contact list cell click event.
Core sample code:
@Composable
fun ContactsPage(
    onContactClick: (ContactInfo) -> Unit = {},
    onGroupClick: (ContactInfo) -> Unit = {},
    editContent: @Composable () -> Unit = {},
) {
﻿
    val colors = LocalTheme.current.colors
    Column(
        modifier = Modifier
            .fillMaxSize()
            .background(Colors.Transparent)
    ) {
        PageHeader(stringResource(R.string.chat_uikit_contacts)) {
            editContent()
        }
﻿
        Box(
            modifier = Modifier
                .fillMaxSize()
                .navigationBarsPadding(), contentAlignment = Alignment.Center
        ) {
            ContactList(onGroupClick = onGroupClick, onContactClick = onContactClick)
        }
    }
}
Step 6: Implement Navigation Logic Between Pages
ConversationsPage, ChatPage, and ContactsPage expose several user click events. You can customize these events to implement navigation between pages:
Page
Callback
Recommended Navigation Logic
ConversationsPage
onConversationClick: (ConversationInfo) -> Unit
Triggered when a conversation in the list is clicked; recommended to navigate to the chat page (ChatPage).
ContactsPage
onContactClick: (ContactInfo) -> Unit
Triggered when a contact cell is clicked; recommended to navigate to the user info page (C2CChatSetting).
﻿
onGroupClick: (ContactInfo) -> Unit
Triggered when a group cell is clicked; recommended to navigate to the group chat page (ChatPage).
ChatPage
onUserClick: (String) -> Unit
Triggered when a user's avatar or nickname in a message is clicked; recommended to navigate to the user info page (C2CChatSetting).
﻿
onChatHeaderClick: (String) -> Unit
Triggered when the avatar in the navigation bar is clicked; recommended to navigate to the user info page (C2CChatSetting) or group info page (GroupChatSetting).
﻿
onBackClick: () -> Unit
Triggered when the back button is clicked; recommended to return to the previous page.
chat/demo/app/src/main/java/io/trtc/tuikit/chat/MainActivity.kt and chat/demo/app/src/main/java/io/trtc/tuikit/chat/chat/ChatActivity.kt serve as the glue layer for the above Pages, implementing the callback events for each Page. Core sample code:
// chat/demo/app/src/main/java/io/trtc/tuikit/chat/MainActivity.kt
﻿
// Conversation list cell click navigation
ConversationsPage(onConversationClick = {
    activity?.startActivity(
        Intent(activity, ChatActivity::class.java).apply {
            putExtra("conversationID", it.conversationID)
        }
    )
})
﻿
// Contact page navigation
ContactsPage(onGroupClick = {
    ChatSettingActivity.start(context, "", it.contactID, true)
}, onContactClick = {
    ChatSettingActivity.start(context, it.contactID, "", true)
})
// chat/demo/app/src/main/java/io/trtc/tuikit/chat/chat/ChatActivity.kt
﻿
// Chat page navigation
ChatPage(
   conversationID = conversationID,
   locateMessage = message,
   onUserClick = {
       handleChatSettingNavigation(it)
   }, onChatHeaderClick = {
       val userID = getUserID(conversationID)
       val groupID = getGroupID(conversationID)
       handleChatSettingNavigation(userID, groupID)
   }, onBackClick = { finish() })
Refer to the callback descriptions and sample code above to implement the interaction logic between Pages.
FAQs
Login failed with signature error
Check that the SDKAppID and UserSig are correct, and verify that the UserSig has not expired. You can refer to the user authentication configuration above to regenerate the UserSig.
Contact Us
If you have any questions or suggestions during integration or usage, feel free to contact us for feedback.
Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
Feedback
Page	Callback	Recommended Navigation Logic
ConversationsPage	`onConversationClick: (ConversationInfo) -> Unit`	Triggered when a conversation in the list is clicked; recommended to navigate to the chat page (ChatPage).
ContactsPage	`onContactClick: (ContactInfo) -> Unit`	Triggered when a contact cell is clicked; recommended to navigate to the user info page (C2CChatSetting).
ContactsPage		`onGroupClick: (ContactInfo) -> Unit`	Triggered when a group cell is clicked; recommended to navigate to the group chat page (ChatPage).
ChatPage	`onUserClick: (String) -> Unit`	Triggered when a user's avatar or nickname in a message is clicked; recommended to navigate to the user info page (C2CChatSetting).
		`onChatHeaderClick: (String) -> Unit`	Triggered when the avatar in the navigation bar is clicked; recommended to navigate to the user info page (C2CChatSetting) or group info page (GroupChatSetting).
		`onBackClick: () -> Unit`	Triggered when the back button is clicked; recommended to return to the previous page.
tencent cloud

Key Concepts

Prerequisites

Installation and Setup

Download Source Code

Integrate Components

Project Configuration

Implementation

Step 1: Configure User Authentication

Step 2: User Login

Step 3: Build Conversation List Interface

Step 4: Build Chat Interface

Step 5: Build Contact Interface

Step 6: Implement Navigation Logic Between Pages

FAQs

Login failed with signature error

Contact Us
