Connecting Filebeat to CKafka

PDF
포커스 모드
폰트 크기
마지막 업데이트 시간: 2026-01-20 17:10:14

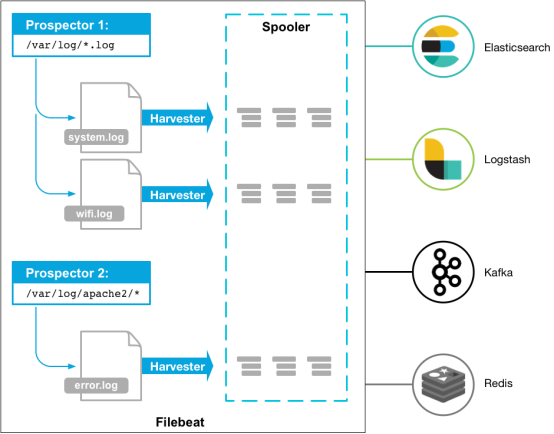

Beats Platform assembles various single-purpose data collectors. Once installed, these collectors function as lightweight agents to send collected data from hundreds, thousands, or even tens of thousands of machines to designated targets.

Beats offers various types of collectors. You can download specific collectors based on your requirements. This document uses Filebeat (a lightweight log collector) as an example to demonstrate how to connect Filebeat to CKafka, along with solutions to common issues encountered after connection.

Prerequisites

Download and install Filebeat (see Download Filebeat)
Download and install JDK 8 (see Download JDK 8)
has created an instance

Operation Steps

Step 1: Get the access address of CKafka instance

1. Log in to the CKafka console.
2. In the left sidebar, select Instance List, click the "ID" of the instance, and go to the instance basic information page.

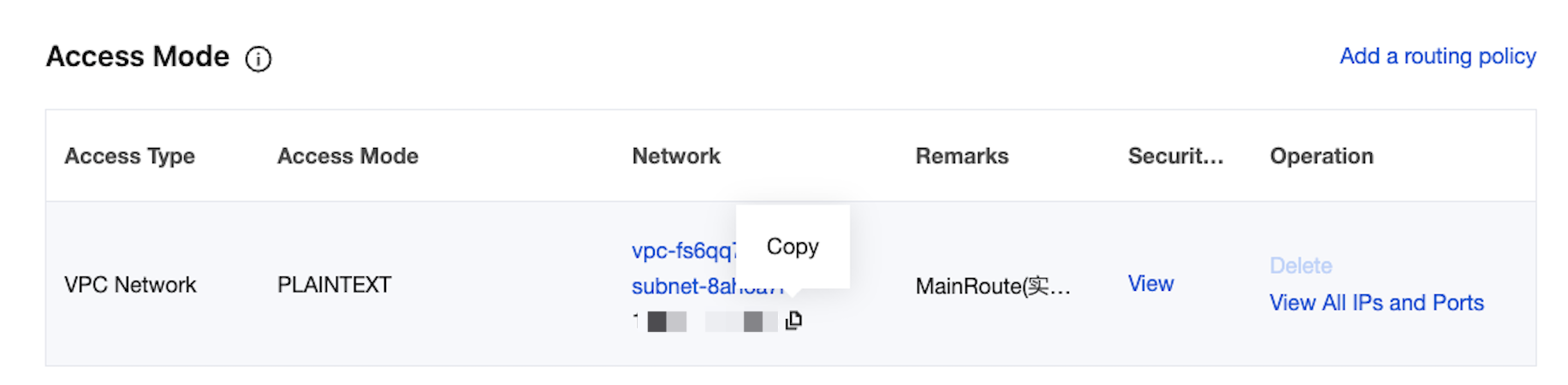

3. On the basic information page of the instance, in the Access Mode module, you can obtain the access address of the instance.



Step 2: Create topic

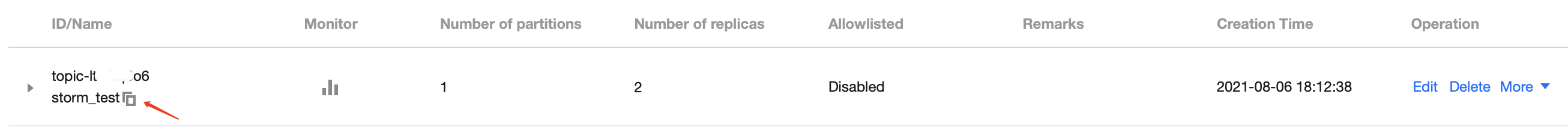

1. On the instance basic information page, select the Topic List tab at the top.
2. On the Topic Management page, click Create to create a Topic named test.



Step 3: Prepare the Configuration File

Enter the Filebeat installation directory and create a monitoring configuration file named filebeat.yml.
#======= For Filebeat 7.x and later versions, change filebeat.prospectors to filebeat.inputs =======
filebeat.prospectors:

- input_type: log

# Here is the listening file path.
  paths:
    - /var/log/messages

#=======  Outputs =========

#------------------ kafka -------------------------------------
output.kafka:
  version: 0.10.2 # Configure according to the open-source version of the CKafka instance.
  # Set to the access address of the CKafka instance.
  hosts: ["xx.xx.xx.xx:xxxx"]
  # Set the name of the target topic.
  topic: 'test'
  partition.round_robin:
    reachable_only: false

  required_acks: 1
  compression: none
  max_message_bytes: 1000000

  # Configure the following information for SASL. If not needed, the following two options can be omitted.
  username: "yourinstance#yourusername"  # The username needs to be concatenated with the instance ID and username.
  password: "yourpassword"


Step 4: Filebeat Send Messages

1. Run the following command to start the client.
sudo ./filebeat -e -c filebeat.yml
2. Add data to the monitoring file (for example, write the testlog file for listening).
echo ckafka1 >> testlog
echo ckafka2 >> testlog
echo ckafka3 >> testlog
3. Enable the topic corresponding to the consumer to obtain the following data.
{"@timestamp":"2017-09-29T10:01:27.936Z","beat":{"hostname":"10.193.9.26","name":"10.193.9.26","version":"5.6.2"},"input_type":"log","message":"ckafka1","offset":500,"source":"/data/ryanyyang/hcmq/beats/filebeat-5.6.2-linux-x86_64/testlog","type":"log"}
{"@timestamp":"2017-09-29T10:01:30.936Z","beat":{"hostname":"10.193.9.26","name":"10.193.9.26","version":"5.6.2"},"input_type":"log","message":"ckafka2","offset":508,"source":"/data/ryanyyang/hcmq/beats/filebeat-5.6.2-linux-x86_64/testlog","type":"log"}
{"@timestamp":"2017-09-29T10:01:33.937Z","beat":{"hostname":"10.193.9.26","name":"10.193.9.26","version":"5.6.2"},"input_type":"log","message":"ckafka3","offset":516,"source":"/data/ryanyyang/hcmq/beats/filebeat-5.6.2-linux-x86_64/testlog","type":"log"}

SASL/PLAINTEXT Mode

If you want to configure SASL/PLAINTEXT, you need to set the username and password under the Kafka configuration.
 # Configure the following information for SASL. If not needed, the following two options can be omitted.
  username: "yourinstance#yourusername" //username needs to be the concatenation of instance ID and username.
  password: "yourpassword"

FAQs

A large number of INFO logs appear in the Filebeat log (the default path is /var/log/filebeat/filebeat), for example:
2019-03-20T08:55:02.198+0800    INFO    kafka/log.go:53 producer/broker/544 starting up
2019-03-20T08:55:02.198+0800    INFO    kafka/log.go:53 producer/broker/544 state change to [open] on wp-news-filebeat/4
2019-03-20T08:55:02.198+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/4 selected broker 544
2019-03-20T08:55:02.198+0800    INFO    kafka/log.go:53 producer/broker/478 state change to [closing] because EOF
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 Closed connection to broker bitar1d12:9092
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/5 state change to [retrying-3]
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/4 state change to [flushing-3]
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/5 abandoning broker 478
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/2 state change to [retrying-2]
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/2 abandoning broker 541
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/leader/wp-news-filebeat/3 state change to [retrying-2]
2019-03-20T08:55:02.199+0800    INFO    kafka/log.go:53 producer/broker/478 shut down
A large number of INFO logs may indicate an issue with the Filebeat version, as Elastic products have very frequent releases, and major versions often contain incompatibilities. For example: Version 6.5.x natively supports Kafka versions 0.9, 0.10, 1.1.0, and 2.0.0, while version 5.6.x natively supports version 0.8.2.0.
You need to check the version configuration item in the configuration file:
output.kafka:
  version: 0.10.2 // Complete settings based on different open-source edition CKafka instances.

Notes

When sending data to CKafka, the compression.codec cannot be set.
Gzip compression is not supported by default. If you need this feature, submit a ticket to apply. Gzip compression consumes significant CPU resources. Using Gzip will cause all messages to be marked as InValid messages.
When using the LZ4 compression method, the program may fail to run normally due to the following reasons: Incorrect message format. The default CKafka version is 0.10.2, and you need to use the V1 message format.
The configuration methods for SDKs of different Kafka Clients vary. You can search in the open-source community (for example, Instructions for the C/C++ Client) to set the message format version.
