Java SDK

聚焦模式
字号
最后更新时间： 2026-01-30 15:23:30

功能概述

Eclipse Paho Java Client 是用 Java 编写的 MQTT 客户端库（MQTT Java Client），可用于 JVM 或其他 Java 兼容平台（例如 Android）。
Eclipse Paho Java Client 提供了 MqttAsyncClient 和 MqttClient 异步和同步 API。

云资源准备

请您先参见 创建资源 操作步骤完成云资源准备。

环境准备

通过 Maven 安装 Paho Java​

MQTT 5 Paho SDK
MQTT 3.1.1 Paho SDK
<dependency>
    <groupId>org.eclipse.paho</groupId>
    <artifactId>org.eclipse.paho.mqttv5.client</artifactId>
    <version>1.2.5</version>
</dependency>
<dependency>
    <groupId>org.eclipse.paho</groupId>
	<artifactId>org.eclipse.paho.client.mqttv3</artifactId>
	<version>1.2.5</version>
</dependency>

示例代码​

MQTT 5
MQTT 5 TLS
MQTT 3.1.1
MQTT 3.1.1 TLS
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;

import java.nio.ByteBuffer;
import org.eclipse.paho.mqttv5.client.IMqttToken;
import org.eclipse.paho.mqttv5.client.MqttCallback;
import org.eclipse.paho.mqttv5.client.MqttClient;
import org.eclipse.paho.mqttv5.client.MqttConnectionOptions;
import org.eclipse.paho.mqttv5.client.MqttDisconnectResponse;
import org.eclipse.paho.mqttv5.client.persist.MemoryPersistence;
import org.eclipse.paho.mqttv5.common.MqttException;
import org.eclipse.paho.mqttv5.common.MqttMessage;
import org.eclipse.paho.mqttv5.common.packet.MqttProperties;

public class QuickStart {
    public static void main(String[] args) throws MqttException, InterruptedException {

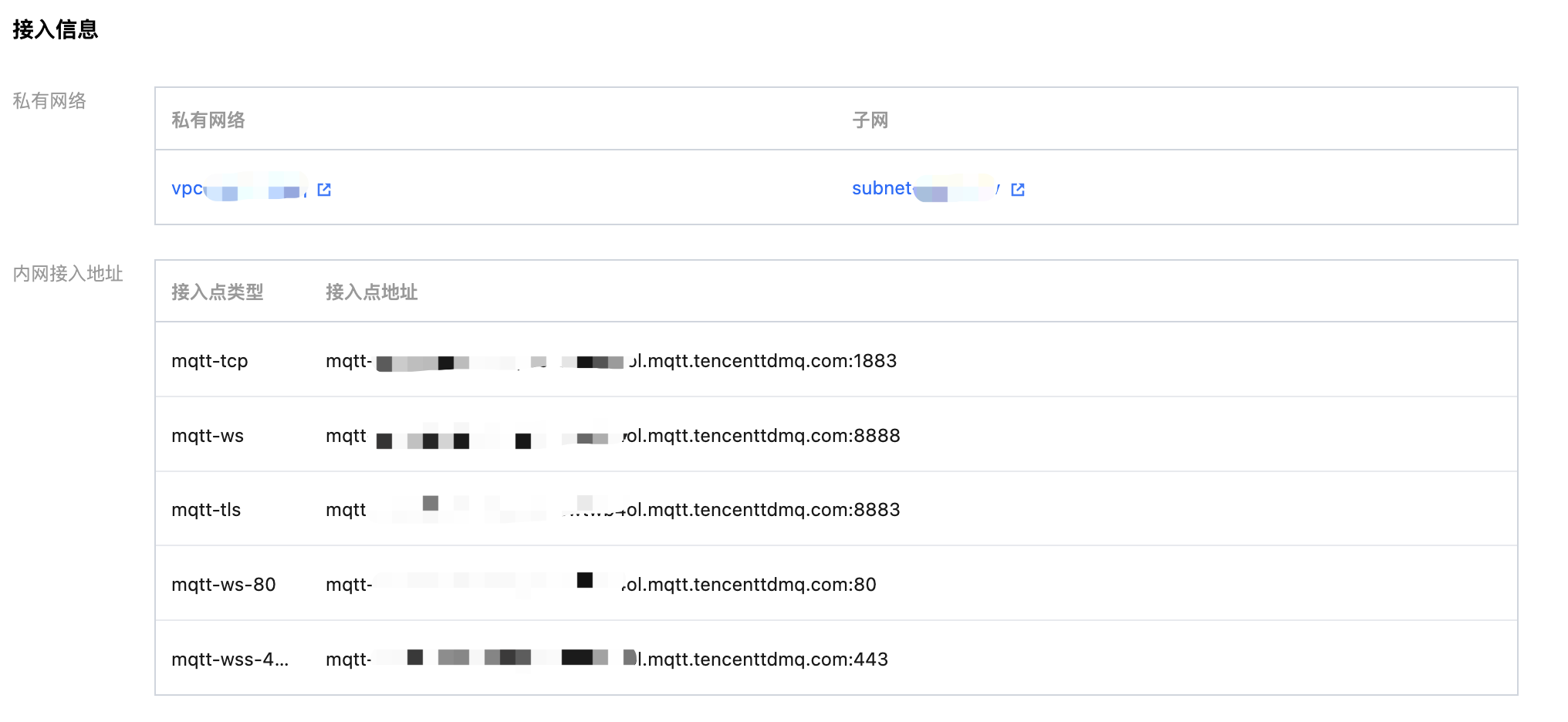

        // 从MQTT控制台获取接入点:
        // 通过Private Link实现VPC网络打通的用户, 使用内网接入点;
        // 通过公网访问的用户, 确保公网安全策略允许, 程序运行机器有公网接入;
        String serverUri = "tcp://mqtt-xxx.mqtt.tencenttdmq.com:1883";

        // 合法的Client Identifier包含 数字0-9, 小写英文字母a-z, 以及大写英文字母A-Z, 总长度为1-23个字符
        // 参考 https://docs.oasis-open.org/mqtt/mqtt/v5.0/os/mqtt-v5.0-os.html#_Toc3901059
        String clientId = "QuickStart";

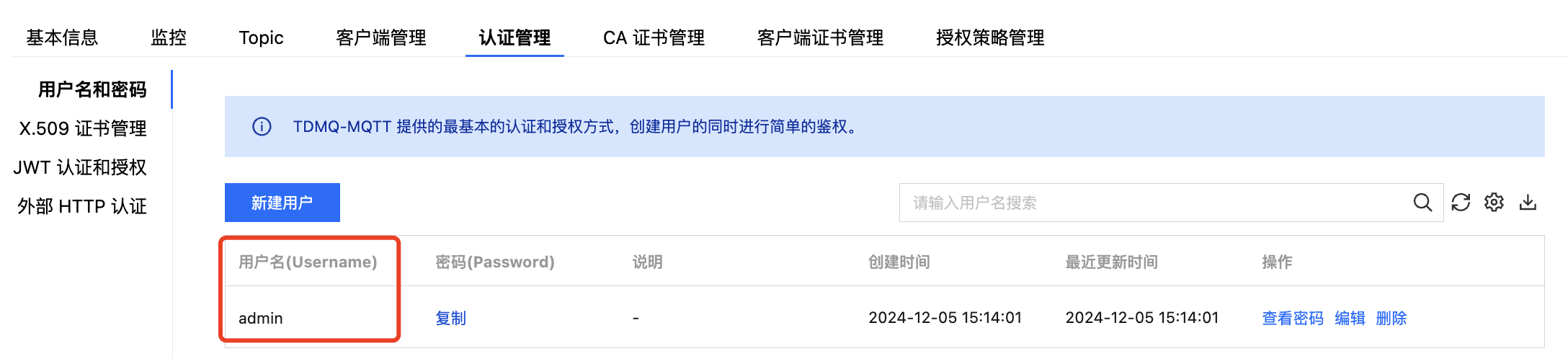

        // 在控制台 --> 认证 Tab页创建账户, 复制用户名和密码
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";

        // MQTT topic
        String pubTopic = "home/test";
        String[] topicFilters = new String[]{pubTopic, "home/#", "home/+"};
        int[] qos = new int[]{1, 1, 1};

        int total = 16;

        MqttClient client = new MqttClient(serverUri, clientId, new MemoryPersistence());
        client.setTimeToWait(3000);
        MqttConnectionOptions options = new MqttConnectionOptions();
        options.setUserName(username);
        options.setPassword(password.getBytes(StandardCharsets.UTF_8));
        options.setCleanStart(true);
        options.setAutomaticReconnect(true);

        client.setCallback(new MqttCallback() {
            @Override
            public void disconnected(MqttDisconnectResponse response) {
                System.out.println("Disconnected: " + response.getReasonString());
            }

            @Override
            public void mqttErrorOccurred(MqttException e) {
                e.printStackTrace();
            }

            @Override
            public void messageArrived(String topic, MqttMessage message) throws Exception {
                byte[] payload = message.getPayload();
                String content;
                if (4 == payload.length) {
                    ByteBuffer buf = ByteBuffer.wrap(payload);
                    content = String.valueOf(buf.getInt());
                } else {
                    content = new String(payload, StandardCharsets.UTF_8);
                }
                System.out.printf("Message arrived, topic=%s, QoS=%d content=[%s]%n",
                    topic, message.getQos(), content);
            }

            @Override
            public void deliveryComplete(IMqttToken token) {

            }

            @Override
            public void connectComplete(boolean reconnect, String serverURI) {
                System.out.println(reconnect ? "Reconnected" : "Connected" + " to " + serverURI);
                try {
                    // Subscribe
                    client.subscribe(topicFilters, qos);
                } catch (MqttException e) {
                    e.printStackTrace();
                }
            }

            @Override
            public void authPacketArrived(int i, MqttProperties properties) {
            }
        });

        client.connect(options);

        for (int i = 0; i < total; i++) {
            String msg = "Hello MQTT " + i;
            MqttMessage message = new MqttMessage(msg.getBytes(StandardCharsets.UTF_8));
            message.setQos(1);
            System.out.printf("Prepare to publish message %d%n", i);
            client.publish(pubTopic, message);
            System.out.printf("Published message %d%n", i);
            TimeUnit.SECONDS.sleep(3);
        }
        TimeUnit.SECONDS.sleep(3);

        client.disconnect();
    }
}
import java.nio.ByteBuffer;
import java.nio.charset.StandardCharsets;
import java.security.KeyManagementException;
import java.security.NoSuchAlgorithmException;
import java.util.List;
import java.util.concurrent.TimeUnit;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSocketFactory;
import org.eclipse.paho.mqttv5.client.IMqttToken;
import org.eclipse.paho.mqttv5.client.MqttCallback;
import org.eclipse.paho.mqttv5.client.MqttClient;
import org.eclipse.paho.mqttv5.client.MqttConnectionOptions;
import org.eclipse.paho.mqttv5.client.MqttDisconnectResponse;
import org.eclipse.paho.mqttv5.client.persist.MemoryPersistence;
import org.eclipse.paho.mqttv5.common.MqttException;
import org.eclipse.paho.mqttv5.common.MqttMessage;
import org.eclipse.paho.mqttv5.common.packet.MqttProperties;
import org.eclipse.paho.mqttv5.common.packet.UserProperty;

public class QuickStartTls {

    public static SSLSocketFactory buildSSLSocketFactory() throws NoSuchAlgorithmException, KeyManagementException {
        SSLContext ctx = SSLContext.getInstance("TLS");
        ctx.init(null, null, null);
        return ctx.getSocketFactory();
    }

    public static void main(String[] args) throws Exception {
        // 从MQTT控制台获取接入点:
        // 通过Private Link实现VPC网络打通的用户, 使用内网接入点;
        // 通过公网访问的用户, 确保公网安全策略允许, 程序运行机器有公网接入;
        String serverUri = "ssl://mqtt-xxx.mqtt.tencenttdmq.com:8883";

        // 合法的Client Identifier包含 数字0-9, 小写英文字母a-z, 以及大写英文字母A-Z, 总长度为1-23个字符
        // 参考 https://docs.oasis-open.org/mqtt/mqtt/v5.0/os/mqtt-v5.0-os.html#_Toc3901059
        String clientId = "QuickStartTls";

        // 在控制台 --> 认证 Tab页创建账户, 复制用户名和密码
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";

        // MQTT topic
        String topicName = "home/test";
        String[] topicFilters = new String[]{topicName, "home/#", "home/+"};
        int[] qos = new int[]{1, 1, 1};

        int total = 16;

        MqttClient client = new MqttClient(serverUri, clientId, new MemoryPersistence());
        client.setTimeToWait(3000);
        MqttConnectionOptions options = new MqttConnectionOptions();
        options.setSocketFactory(buildSSLSocketFactory());
        options.setHttpsHostnameVerificationEnabled(false);
        options.setUserName(username);
        options.setPassword(password.getBytes(StandardCharsets.UTF_8));
        options.setCleanStart(true);
        options.setAutomaticReconnect(true);

        client.setCallback(new MqttCallback() {
            @Override
            public void disconnected(MqttDisconnectResponse response) {
                System.out.println("Disconnected: " + response.getReasonString());
            }

            @Override
            public void mqttErrorOccurred(MqttException e) {
                e.printStackTrace();
            }

            @Override
            public void messageArrived(String topic, MqttMessage message) throws Exception {
                byte[] payload = message.getPayload();
                String content;
                if (4 == payload.length) {
                    ByteBuffer buf = ByteBuffer.wrap(payload);
                    content = String.valueOf(buf.getInt());
                } else {
                    content = new String(payload, StandardCharsets.UTF_8);
                }
                System.out.printf("Message arrived, topic=%s, QoS=%d content=[%s]%n",
                    topic, message.getQos(), content);
            }

            @Override
            public void deliveryComplete(IMqttToken token) {

            }

            @Override
            public void connectComplete(boolean reconnect, String serverURI) {
                System.out.println(reconnect ? "Reconnected" : "Connected" + " to " + serverURI);
                try {
                    // Subscribe
                    IMqttToken token = client.subscribe(topicFilters, qos);
                    int[] reasonCodes = token.getReasonCodes();
                    for (int i = 0; i < reasonCodes.length; i++) {
                        System.out.printf("Subscribed to topic %s with QoS=%d, Granted-QoS: %d%n",
                            topicFilters[i], qos[i], reasonCodes[i]);
                    }

                    if (token.isComplete()) {
                        List<UserProperty> userProperties = token.getResponseProperties().getUserProperties();
                        printUserProperties(userProperties);
                    }
                } catch (MqttException e) {
                    e.printStackTrace();
                }
            }

            @Override
            public void authPacketArrived(int i, MqttProperties properties) {
            }
        });

        client.connect(options);

        for (int i = 0; i < total; i++) {
            String msg = "Hello MQTT " + i;
            MqttMessage message = new MqttMessage(msg.getBytes(StandardCharsets.UTF_8));
            message.setQos(1);
            System.out.printf("Prepare to publish message %d%n", i);
            client.publish(topicName, message);
            System.out.printf("Published message %d%n", i);
            TimeUnit.SECONDS.sleep(3);
        }
        TimeUnit.SECONDS.sleep(3);

        client.disconnect();
    }

    static void printUserProperties(List<UserProperty> userProperties) {
        if (null != userProperties) {
            for (UserProperty userProperty : userProperties) {
                System.out.printf("User property: %s = %s%n", userProperty.getKey(), userProperty.getValue());
            }
        }
    }
}


import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeUnit;

import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;
import org.eclipse.paho.client.mqttv3.MqttCallbackExtended;
import org.eclipse.paho.client.mqttv3.MqttClient;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.eclipse.paho.client.mqttv3.MqttException;
import org.eclipse.paho.client.mqttv3.MqttMessage;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

public class QuickStart {
    public static void main(String[] args) throws MqttException, InterruptedException {
        // 从MQTT控制台获取接入点:
        // 通过Private Link实现VPC网络打通的用户, 使用内网接入点;
        // 通过公网访问的用户, 确保公网安全策略允许, 程序运行机器有公网接入;
        String serverUri = "tcp://mqtt-xxx.mqtt.tencenttdmq.com:1883";

        // 合法的Client Identifier包含 数字0-9, 小写英文字母a-z, 以及大写英文字母A-Z, 总长度为1-23个字符
        // 参考 https://docs.oasis-open.org/mqtt/mqtt/v5.0/os/mqtt-v5.0-os.html#_Toc3901059
        String clientId = "QuickStart";

        // 在控制台 --> 认证 Tab页创建账户, 复制用户名和密码
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";

        // 确认一级主题 "home" 在MQTT控制台已经创建
        String pubTopic = "home/test";
        String[] topicFilters = new String[]{pubTopic, "home/#", "home/+"};
        int[] qos = new int[]{1, 1, 1};

        int total = 16;

        try (MqttClient client = new MqttClient(serverUri, clientId, new MemoryPersistence())) {
            client.setTimeToWait(3000);
            MqttConnectOptions options = new MqttConnectOptions();
            options.setUserName(username);
            options.setPassword(password.toCharArray());
            options.setMqttVersion(MqttConnectOptions.MQTT_VERSION_3_1_1);
            options.setCleanSession(true);
            options.setAutomaticReconnect(true);

            MqttCallback callback = new MqttCallback(client, topicFilters, qos);
            client.setCallback(callback);

            client.connect(options);

            for (int i = 0; i < total; i++) {
                String msg = "Hello MQTT " + i;
                MqttMessage message = new MqttMessage(msg.getBytes(StandardCharsets.UTF_8));
                message.setQos(1);
                System.out.printf("Prepare to publish message %d%n", i);
                client.publish(pubTopic, message);
                System.out.printf("Published message %d%n", i);
                TimeUnit.SECONDS.sleep(3);
            }
            TimeUnit.SECONDS.sleep(3);

            client.disconnect();
        }
    }

    static class MqttCallback implements MqttCallbackExtended {

        private final MqttClient client;

        private final String[] topicFilters;
        private final int[] qos;

        public MqttCallback(MqttClient client, String[] topicFilters, int[] qos) {
            this.client = client;
            this.topicFilters = topicFilters;
            this.qos = qos;
        }

        public void messageArrived(String topic, MqttMessage message) {
            System.out.printf("Message arrived, topic=%s, QoS=%d, Dup=%s, Retained=%s, content=[%s]%n",
                    topic, message.getQos(), message.isDuplicate(), message.isRetained(),
                    new String(message.getPayload(), StandardCharsets.UTF_8));
        }

        public void connectionLost(Throwable cause) {
            System.out.println("connectionLost: " + cause.getMessage());
        }

        @Override
        public void connectComplete(boolean reconnect, String serverURI) {
            System.out.println(reconnect ? "Reconnected" : "Connected" + " to " + serverURI);
            try {
                client.subscribe(topicFilters, qos);
                System.out.printf("Subscribed %d topics%n", topicFilters.length);
            } catch (MqttException e) {
                e.printStackTrace();
            }
        }

        public void deliveryComplete(IMqttDeliveryToken token) {
            System.out.printf("Delivery completed: packet-id=%d%n", token.getMessageId());
        }
    }
}
import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;
import org.eclipse.paho.client.mqttv3.MqttCallbackExtended;
import org.eclipse.paho.client.mqttv3.MqttClient;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.eclipse.paho.client.mqttv3.MqttException;
import org.eclipse.paho.client.mqttv3.MqttMessage;
import org.eclipse.paho.client.mqttv3.persist.MemoryPersistence;

import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSocketFactory;
import java.nio.charset.StandardCharsets;
import java.security.KeyManagementException;
import java.security.NoSuchAlgorithmException;
import java.util.concurrent.TimeUnit;

public class QuickStartTls {

    public static SSLSocketFactory buildSSLSocketFactory() throws NoSuchAlgorithmException, KeyManagementException {
        SSLContext ctx = SSLContext.getInstance("TLS");
        ctx.init(null, null, null);
        return ctx.getSocketFactory();
    }

    public static void main(String[] args) throws MqttException, InterruptedException, NoSuchAlgorithmException, KeyManagementException {

        // 从MQTT控制台获取接入点:
        // 通过Private Link实现VPC网络打通的用户, 使用内网接入点;
        // 通过公网访问的用户, 确保公网安全策略允许, 程序运行机器有公网接入;
        String serverUri = "ssl://mqtt-xxxx.mqtt.tencenttdmq.com:8883";

        // 合法的Client Identifier包含 数字0-9, 小写英文字母a-z, 以及大写英文字母A-Z, 总长度为1-23个字符
        // 参考 https://docs.oasis-open.org/mqtt/mqtt/v5.0/os/mqtt-v5.0-os.html#_Toc3901059
        String clientId = "ClientQuickStartTls";

        // 在控制台 --> 认证 Tab页创建账户, 复制用户名和密码
        String username = "YOUR_USERNAME";
        String password = "YOUR_PASSWORD";

        // 确认一级主题 "home" 在MQTT控制台已经创建
        String topic = "home/test";

        String[] topicFilters = new String[]{"home/test"};
        int[] qos = new int[]{1};

        int total = 16;

        try (MqttClient client = new MqttClient(serverUri, clientId, new MemoryPersistence())) {
            client.setTimeToWait(3000);
            MqttConnectOptions options = new MqttConnectOptions();
            options.setUserName(username);
            options.setPassword(password.toCharArray());
            options.setSocketFactory(buildSSLSocketFactory());
            options.setHttpsHostnameVerificationEnabled(false);
            options.setMqttVersion(MqttConnectOptions.MQTT_VERSION_3_1_1);
            options.setCleanSession(true);
            options.setAutomaticReconnect(true);
            client.connect(options);

            client.setCallback(new MqttCallback(client, topicFilters, qos));

            for (int i = 0; i < total; i++) {
                String msg = "Hello MQTT " + i;
                MqttMessage message = new MqttMessage(msg.getBytes());
                message.setQos(1);
                System.out.printf("Prepare to publish message %d%n", i);
                client.publish(topic, message);
                System.out.printf("Published message %d%n", i);
                TimeUnit.SECONDS.sleep(1);
            }

            TimeUnit.SECONDS.sleep(3);

            client.disconnect();
        }
    }

    static class MqttCallback implements MqttCallbackExtended {

        private final MqttClient client;

        private final String[] topicFilters;
        private final int[] qos;

        public MqttCallback(MqttClient client, String[] topicFilters, int[] qos) {
            this.client = client;
            this.topicFilters = topicFilters;
            this.qos = qos;
        }

        public void messageArrived(String topic, MqttMessage message) {
            System.out.printf("Message arrived, topic=%s, QoS=%d content=[%s]%n", topic, message.getQos(),
                    new String(message.getPayload(), StandardCharsets.UTF_8));
        }

        public void connectionLost(Throwable cause) {
            System.out.println("connectionLost: " + cause.getMessage());
        }

        @Override
        public void connectComplete(boolean reconnect, String serverURI) {
            System.out.println(reconnect ? "Reconnected" : "Connect" + serverURI);
            try {
                client.subscribe(topicFilters, qos);
                System.out.printf("Subscribed %d topics%n", topicFilters.length);
            } catch (MqttException e) {
                e.printStackTrace();
            }
        }

        public void deliveryComplete(IMqttDeliveryToken token) {
            System.out.printf("Delivery completed: packet-id=%d%n", token.getMessageId());
        }
    }
}
参数
说明
pubTopic
待发布消息的目标主题。
消息主题可以包含多级(level)， 通过'/'隔开。第一级主题(Topic)需要在控制台 Topic Tab 页创建。详情参见 Topic Names and Topic Filters。
topicFilters
一个或者多个订阅表达式。
订阅表达式可以包含通配符(Wildcards)，详情参见 Topic Names and Topic Filters。
qos
服务质量数组，数组长度必须与 Topic Filters 数据保持一致。
最常用的 QoS 为1, 即至少投递一次(At-Least-Once)，详情参见 Quality of Service levels and protocol flows。
serverUri
MQTT 实例接入点，在控制台目标集群基本信息 > 接入信息模块复制。位置如下图所示。
标准接入点为: tcp://mqtt-xxx.mqtt.tencenttdmq.com:1883
TLS 接入点为: ssl://mqtt-xxx.mqtt.tencenttdmq.com:8883
标准 WebSocket 接入点: ws://mqtt-xxx.mqtt.tencenttdmq.com:80/mqtt
TLS WebSocket 接入点: wss://mqtt-xxx.mqtt.tencenttdmq.com:443/mqtt



clientId
设备唯一标识符: 例如车辆车架号 VIN、产品序列号等。
合法的 Client Identifier 包含: 数字0-9, 小写英文字母 a-z, 大写英文字母 A-Z; 总长度为1-23个字符。详情参见 Client Identifier。
username
连接用户名，在控制台集群详情页认证管理页面复制。



password
连接用户名匹配的密码，在控制台集群详情页认证管理页面复制。


上一篇: 接入点格式下一篇: C SDK

帮助和支持

本页内容是否解决了您的问题？

填写满意度调查问卷，共创更好文档体验。

文档反馈
