Barrage Component（Web Desktop Browser）
Last updated:2026-01-14 21:11:27
Barrage Component（Web Desktop Browser）
Last updated: 2026-01-14 21:11:27
This document provides a detailed introduction to the barrage component, including the barrage message component (BarrageList) and the message sending component (BarrageInput). You can refer to the sample code in this document for seamless integration of our pre-developed components into your existing project, or customize the style and layout according to your needs by following the component customization section in the document.

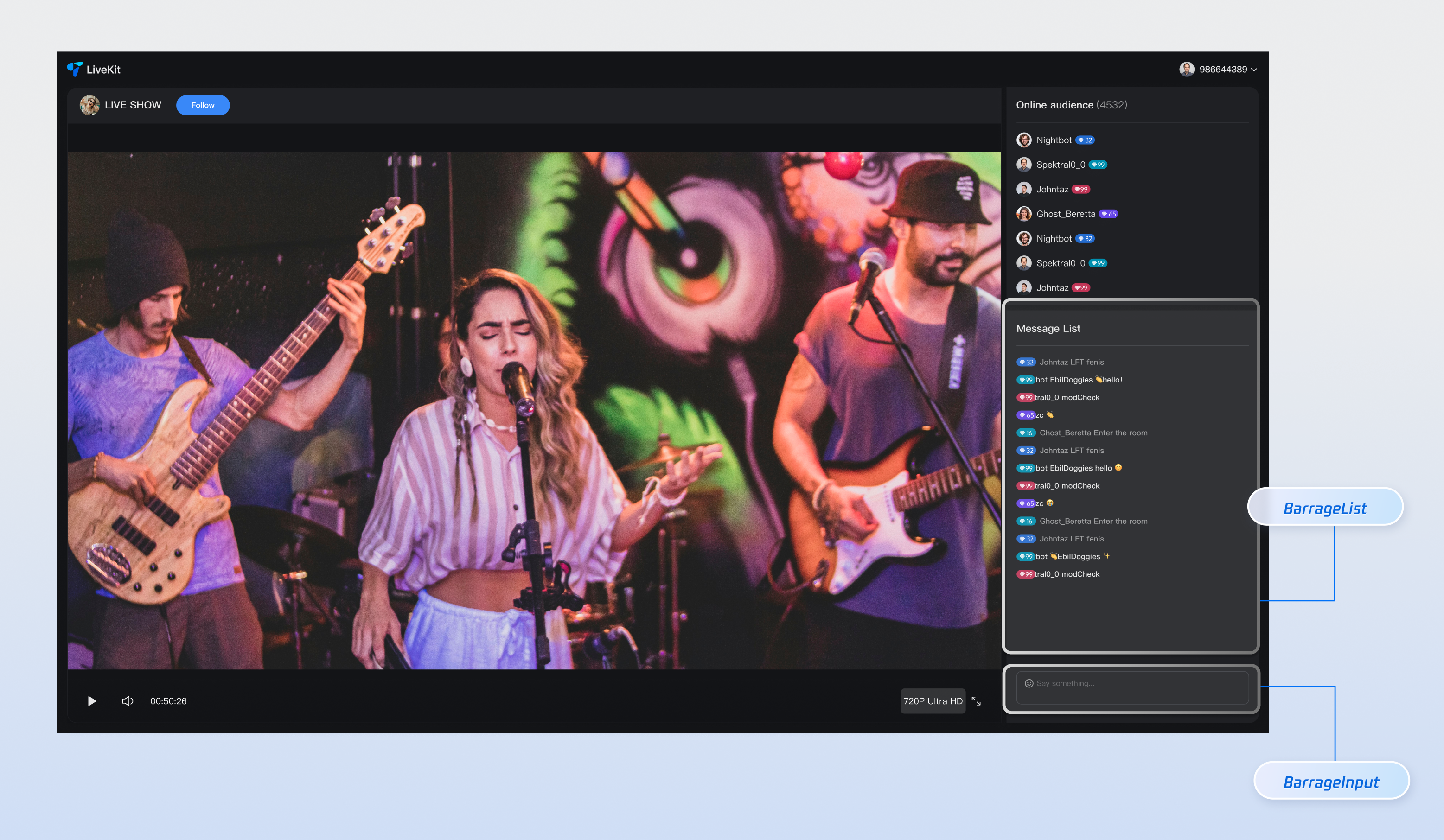

Component Composition

Component Name
Detailed Description
Barrage Message Component (BarrageList)
A component responsible for real-time display and management of barrage message streams, providing a complete message display solution including message list rendering, time aggregation, user interaction, and responsive adaptation.
Message Sending Component (BarrageInput)
An input component that provides rich text editing and message sending features, with seamless integration of emoji selector, character limit, status management, and cross-platform adaptation, offering users a smooth input experience.

Component Integration

Step 1: Configuring the Environment and Activating the Service

Before performing quick integration, you need to refer to preparations, meet the related environment configuration and activate the corresponding service.

Step 2: Installing Dependencies

npm
pnpm
yarn
npm install tuikit-atomicx-vue3 @tencentcloud/uikit-base-component-vue3 --save
pnpm add tuikit-atomicx-vue3 @tencentcloud/uikit-base-component-vue3
yarn add tuikit-atomicx-vue3 @tencentcloud/uikit-base-component-vue3

Step 3: Integrating the Barrage Component

Introduce and use the barrage component in your project. You can copy the following example directly to show a complete live streaming room barrage message component and message send component in your project.
<template>
  <UIKitProvider theme="dark" language="en-US">
    <div class="app">
      <div class="chat-container">
        <div class="chat-content">
          <BarrageList class="barrage-list" />
        </div>
        <div class="chat-input">
          <BarrageInput class="barrage-input" />
        </div>
      </div>
    </div>
  </UIKitProvider>
</template>

<script setup lang="ts">
import { onMounted, ref } from 'vue';
import { UIKitProvider } from '@tencentcloud/uikit-base-component-vue3';
import { BarrageList, BarrageInput, useLoginState, useLiveState } from 'tuikit-atomicx-vue3';

const { login, loginUserInfo } = useLoginState();
const { joinLive } = useLiveState();

async function initLogin() {
  try {
    await login({
      sdkAppId: 0,        // SDKAppID, see Step 1 to get
      userId: '',         // UserID, see Step 1 to get
      userSig: '',        // userSig, see Step 1 to get
    });
  } catch (error) {
    console.error('login error:', error);
  }
}

onMounted(async () => {
  await initLogin();
  await joinLive({
    liveId: 'input corresponding live streaming room LiveId',     // enter live room by inputting corresponding liveId
  });
});
</script>

<style scoped>.app{width:100vw;height:100vh;display:flex;justify-content:center;align-items:center;padding:20px;box-sizing:border-box}.chat-container{width:100%;max-width:500px;height:600px;border-radius:16px;display:flex;flex-direction:column;overflow:hidden}.chat-content{flex:1;overflow:hidden}.barrage-list{width:100%;height:100%}.chat-input{background-color:var(--bg-color-dialog);padding:16px}.barrage-input{width:100%}</style>

Customize Component

Barrage Message Component provides users with various and dimensional Props APIs for custom requirements, allowing users to customize features or UI. Parameter content is as shown in the table below.
Note:
Note: To directly learn about the custom details of the Barrage Message Component (BarrageList), quickly jump to the following link: Barrage Message Component Customization;
Note: To directly learn about the custom details of the Message Sending Component (BarrageInput), quickly jump to the following link: Message Sending Component Customization;

Barrage Message Component (BarrageList) Customization

Props

Parameter Name
Parameter Type
Default Value
Description
messageAggregationTime
Number
300
Maximum time interval for message grouping (seconds).
filter
(message: IMessageModel) => boolean
-
Functions for filtering messages.
Message
Component
Message
Custom Message Component
MessageTimeDivider
Component
MessageTimeDivider
Custom Message Time Segmentation Component.
LocalNoticeMessage
Component
LocalNoticeMessage
Custom Local Notification Component.
containerStyle
CSSProperties
-
Custom message list container style.
itemStyle
CSSProperties
-
Custom single message item style.
height
String
-
Component height, supports CSS units.
style
CSSProperties
-
Specify the root element's custom style.
As indicated in the table above, the Props custom part of the Barrage Message Component consists of three sections: component properties, replaceable subcomponents, and custom styles. Specific content is as shown in the table below.
Content
Parameter
Component Property
filter,messageAggregationTime
Replaceable subcomponent
Message,MessageTimeDivider,LocalNoticeMessage
Custom style
ContainerStyle,ItemStyle,height,style

Filter Message

By setting the filter parameter, you can flexibly control the message content displayed in the barrage message component.
<BarrageList :filter="(message) => message.type === 'TIMTextElem'" />

Message Aggregation Time

By setting the messageAggregationTime parameter, you can control the grouping time interval.
<BarrageList :messageAggregationTime="300" />

Custom Style

Barrage Message Component provides containerStyle, itemStyle, custom child component, etc., for customizing component styles.
1. To customize the message list container style, you can pass a style object to the containerStyle attribute.
Example: Custom container padding
<BarrageList :containerStyle="{ padding: '0px' }" />
2. To customize a single message style, you can pass a style object to the itemStyle attribute.
Example: Custom message item spacing, border, and message bubble color
<BarrageList :itemStyle="{ borderRadius: '10px', background: '#1C66e5', padding: '10px', boxSizing: 'border-box'}" />
3. The barrage message component supports custom message display components, and you can fully control the rendering method.
Example: Custom Message Component
// MyCustomMessage.vue
<template>
  <div class="custom-message">
    <div class="message-header">
      <span class="user-name">{{ getUserName(message) }}</span>
      <span class="message-time">{{ formatTime(message.time) }}</span>
    </div>
    <div class="message-content">
      {{ getMessageText(message) }}
    </div>
  </div>
</template>

<script setup lang="ts">
interface SimpleMessage {
  id: string;
  from: string;
  nick?: string;
  nameCard?: string;
  time: number;
  type: string;
  content: string;
  avatar?: string;
}

interface Props {
  message: SimpleMessage;
  isLastInChunk?: boolean;
}

const props = defineProps<Props>();

const formatTime = (timestamp: number) => {
  return new Date(timestamp * 1000).toLocaleTimeString('zh-CN', {
    hour: '2-digit',
    minute: '2-digit'
  });
};

const getUserName = (message: SimpleMessage) => {
  return message.nameCard || message.nick || message.from || 'anonymous user';
};

const getMessageText = (message: SimpleMessage) => {
  if (message.type === 'text') {
    return message.content || '';
  } else if (message.type === 'image') {
    return '[image message]';
  } else if (message.type === 'emoji') {
    return '[emoji message]';
  }
  return '[other types of messages]';
};
</script>

<style scoped>.custom-message{background:linear-gradient(135deg,#667eea 0%,#764ba2 100%);color:white;padding:12px;border-radius:12px;margin:4px 0;box-shadow:0 2px 8px rgba(0,0,0,0.1);transition:transform 0.2s ease}.custom-message:hover{transform:translateY(-2px)}.message-header{display:flex;justify-content:space-between;align-items:center;margin-bottom:8px;font-size:12px;opacity:0.9}.user-name{font-weight:500;max-width:120px;overflow:hidden;text-overflow:ellipsis;white-space:nowrap}.message-time{font-size:11px;opacity:0.7}.message-content{font-size:14px;line-height:1.4;word-break:break-word}</style>

// Use the barrage message component for use in
<template>
   <BarrageList :Message="MyCustomMessage" />
</template>

<script setup lang="ts">
import MyCustomMessage from "./MyCustomMessage.vue";
</script>

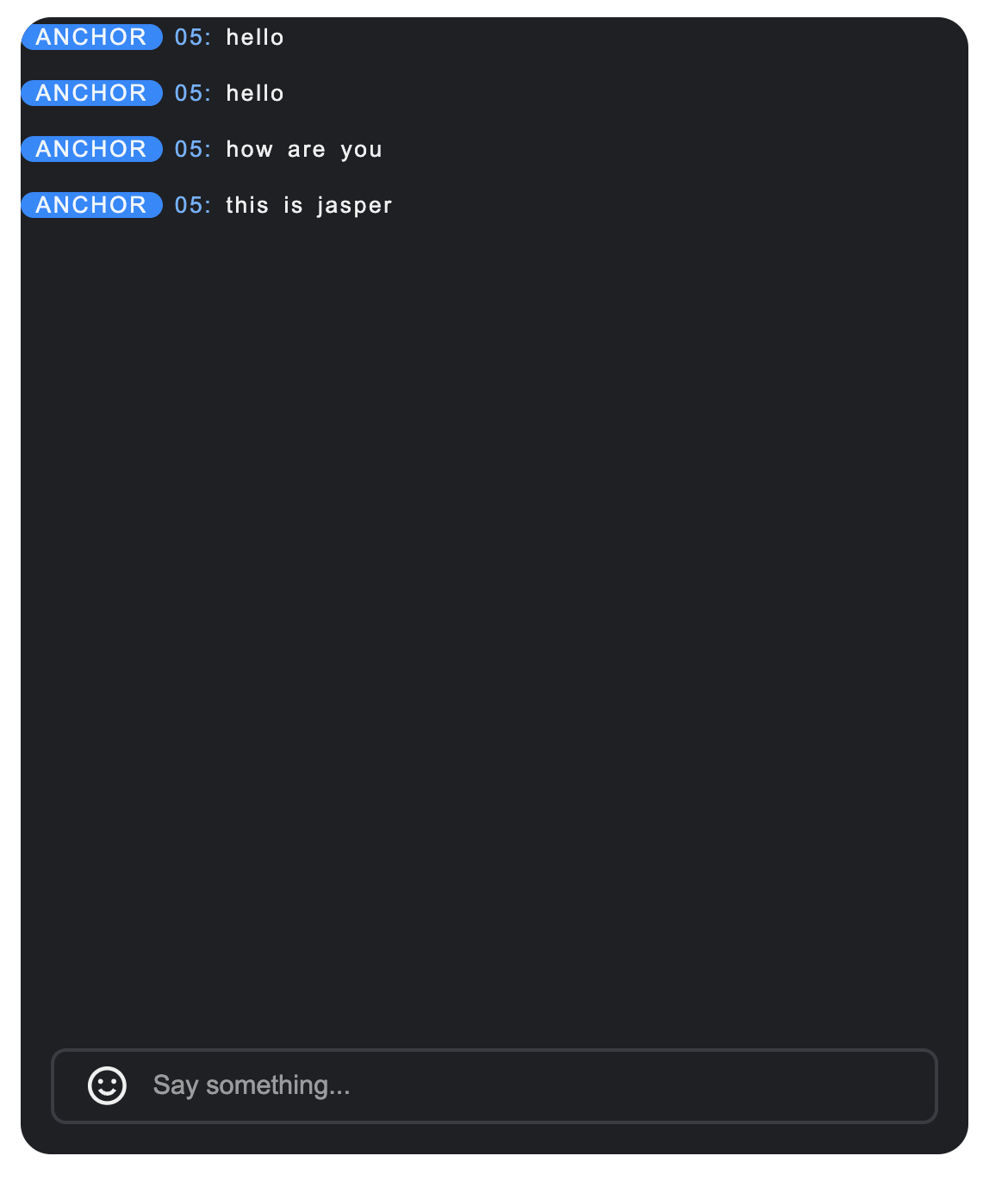

Before modification
After modification
Custom container padding

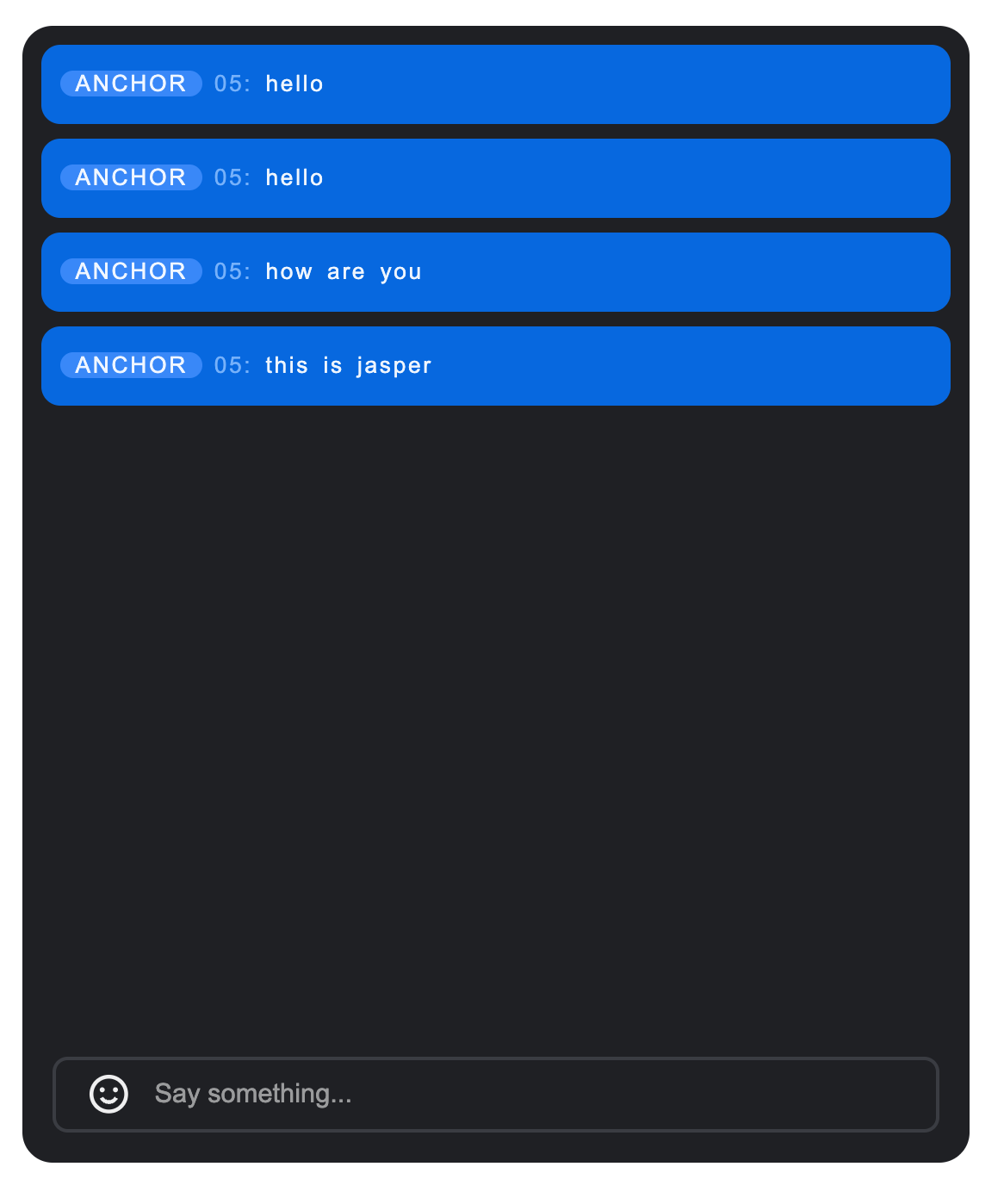

Custom message item spacing and border

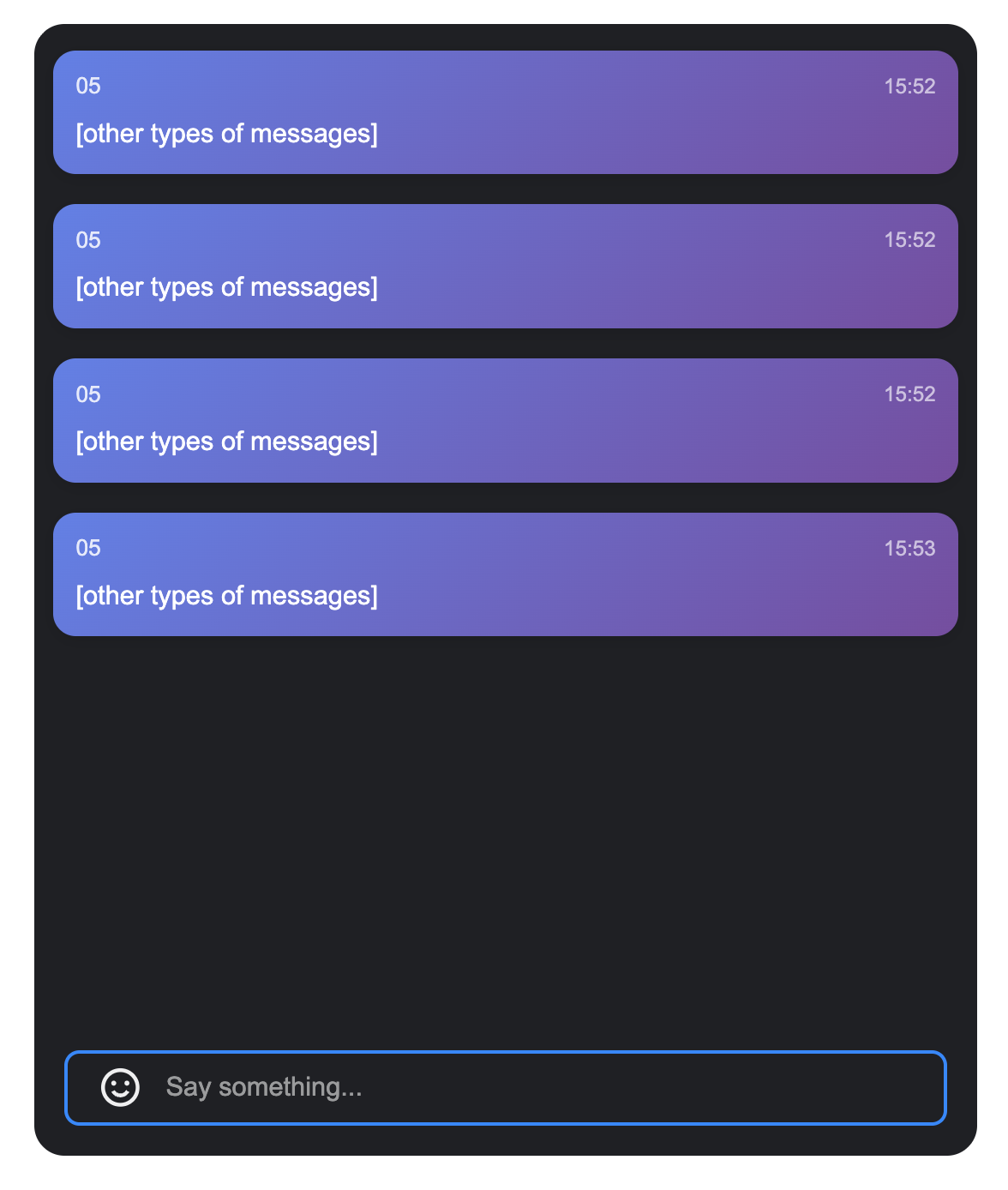

Custom Message Component









Message Sending Component (BarrageInput) Customization

Props

Parameter Name
Type
Default Value
Description
containerClass
String
''
Custom container CSS class name.
containerStyle
Record

{}
Inline style of custom container.
width
String
-
Component width, supports CSS units.
height
String
-
Component height, supports CSS units.
minHeight
String
'40px'
Minimum component height, supports CSS units.
maxHeight
String
'140px'
Max component height, supports CSS units.
placeholder
String
-
Placeholder text in the input box.
disabled
Boolean
false
Whether to disable the input box.
autoFocus
Boolean
true
Whether to auto-focus into the input box.
maxLength
Number
80
Maximum character limit for input content.

Events

Event Name
Parameter
Description
focus
-
Trigger when the input box gets focus.
blur
-
Trigger when the input box loses focus.
As indicated in the table above, the Props custom part of the Message Sending Component consists of three sections: size control, input restriction, and custom styles. Specific content is as shown in the table below.
Content
Parameter
Size control
width,height,minHeight,minWidth
Input restriction
maxLength
Custom style
ContainerStyle,ContainerClass

Size Control

By setting width, height, minHeight, maxHeight parameters, you can flexibly control the size of BarrageInput.
<BarrageInput width="400px" height="60px" minHeight="40px" maxHeight="120px" />

Input Restriction

By setting the maxLength parameter, you can control the maximum number of characters for input content.
<BarrageInput :maxLength="100" />

Custom Style

The message send component provides containerStyle and containerClass attributes for customizing component style.
1. To customize the input box container style, you can pass a style object to the containerStyle attribute.
Example: Custom container background and border rounded corners
<BarrageInput :containerStyle="{ backgroundColor: '#a8abb2', borderRadius: '0 0', boxShadow: '0 2px 8px rgba(0,0,0,0.1)'}" />
2. To customize the input box container class name, you can pass a class name string to the containerClass attribute.
Example: Custom container class name
<template>
  <BarrageInput containerClass="my-custom-input-container" />
</template>

<style>.my-custom-input-container {background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);border: none;border-radius: 20px;padding: 8px 20px;}.my-custom-input-container:focus-within {box-shadow: 0 0 0 3px rgba(102, 126, 234, 0.3);}</style>

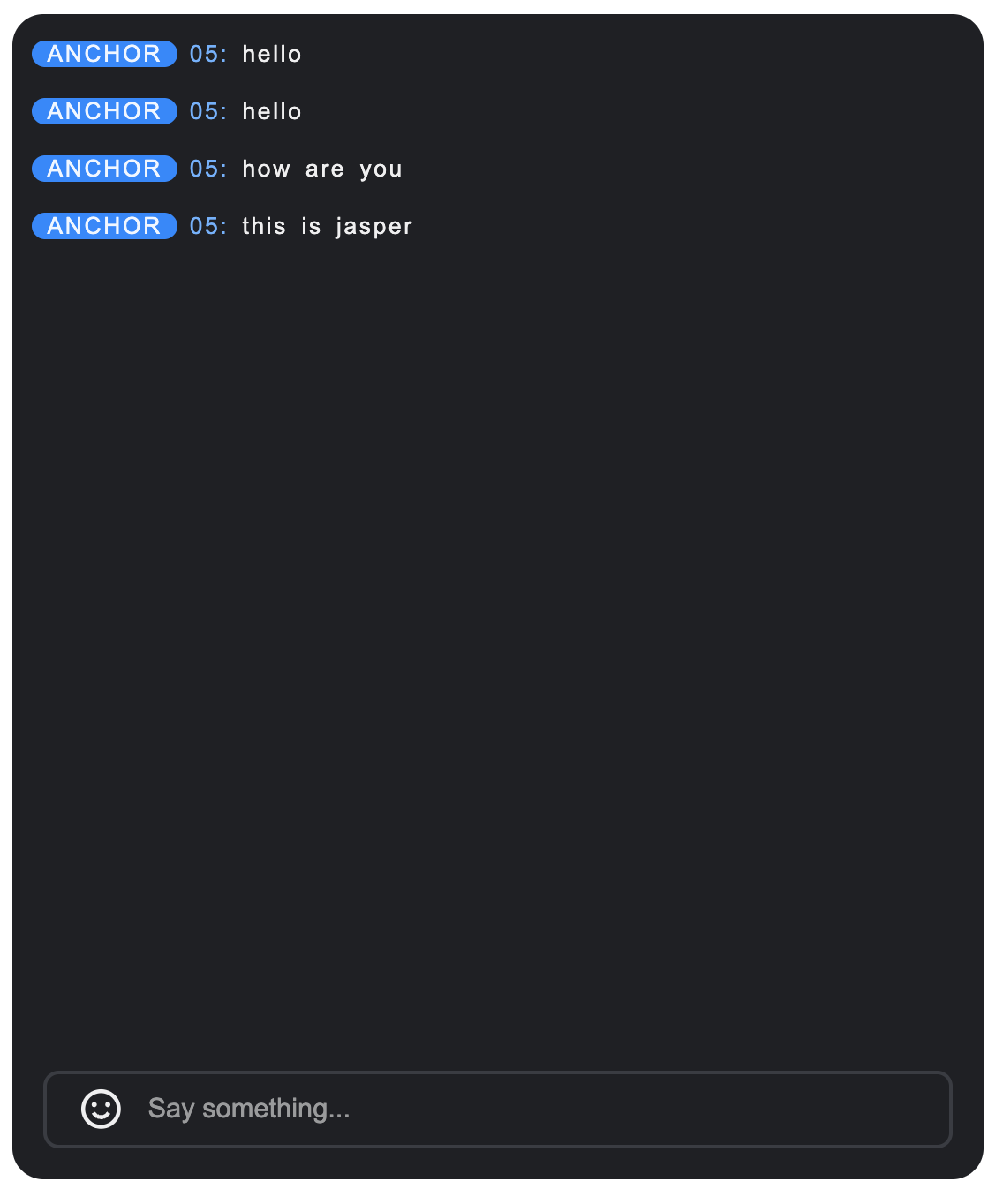

Before modification
After modification

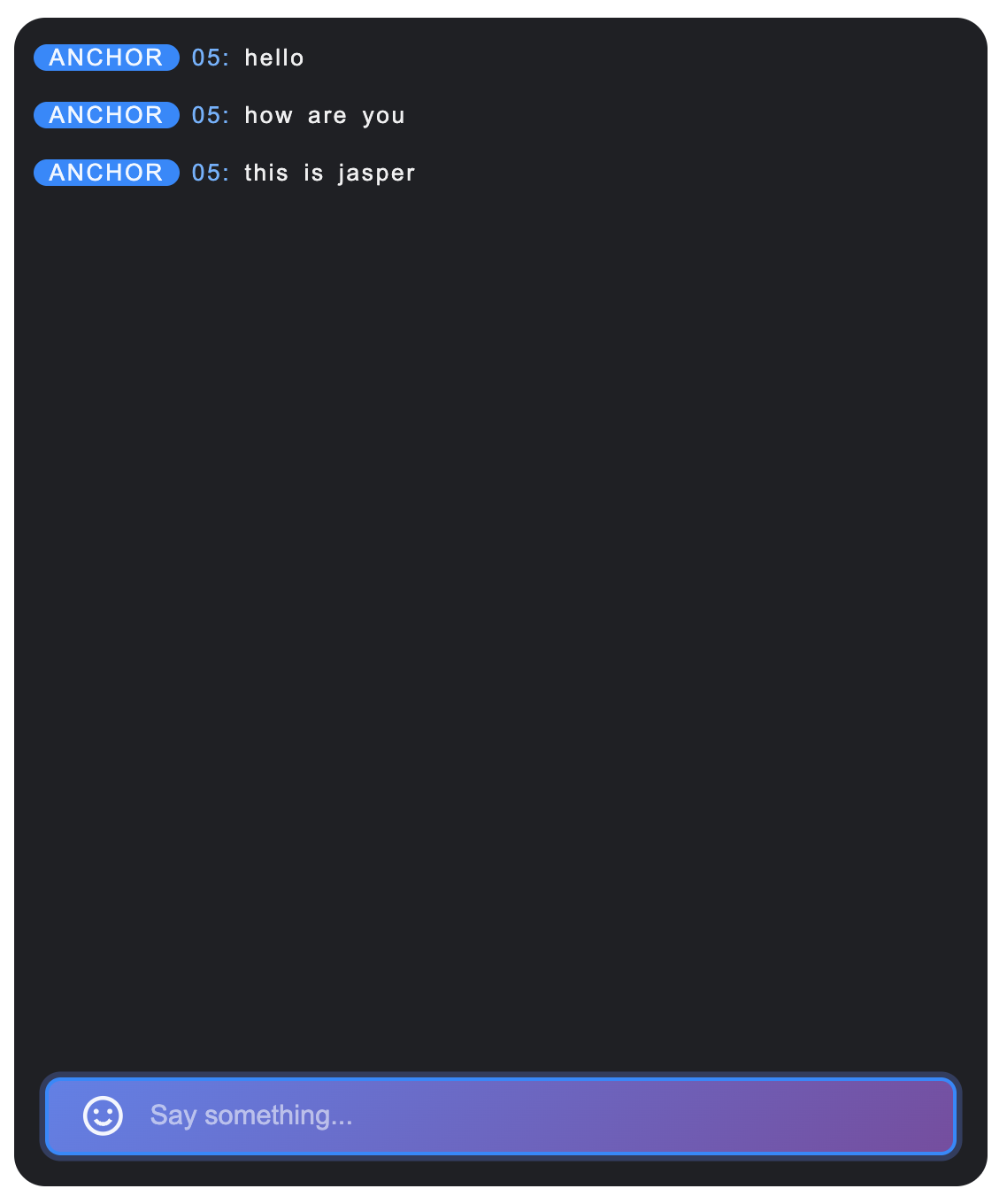

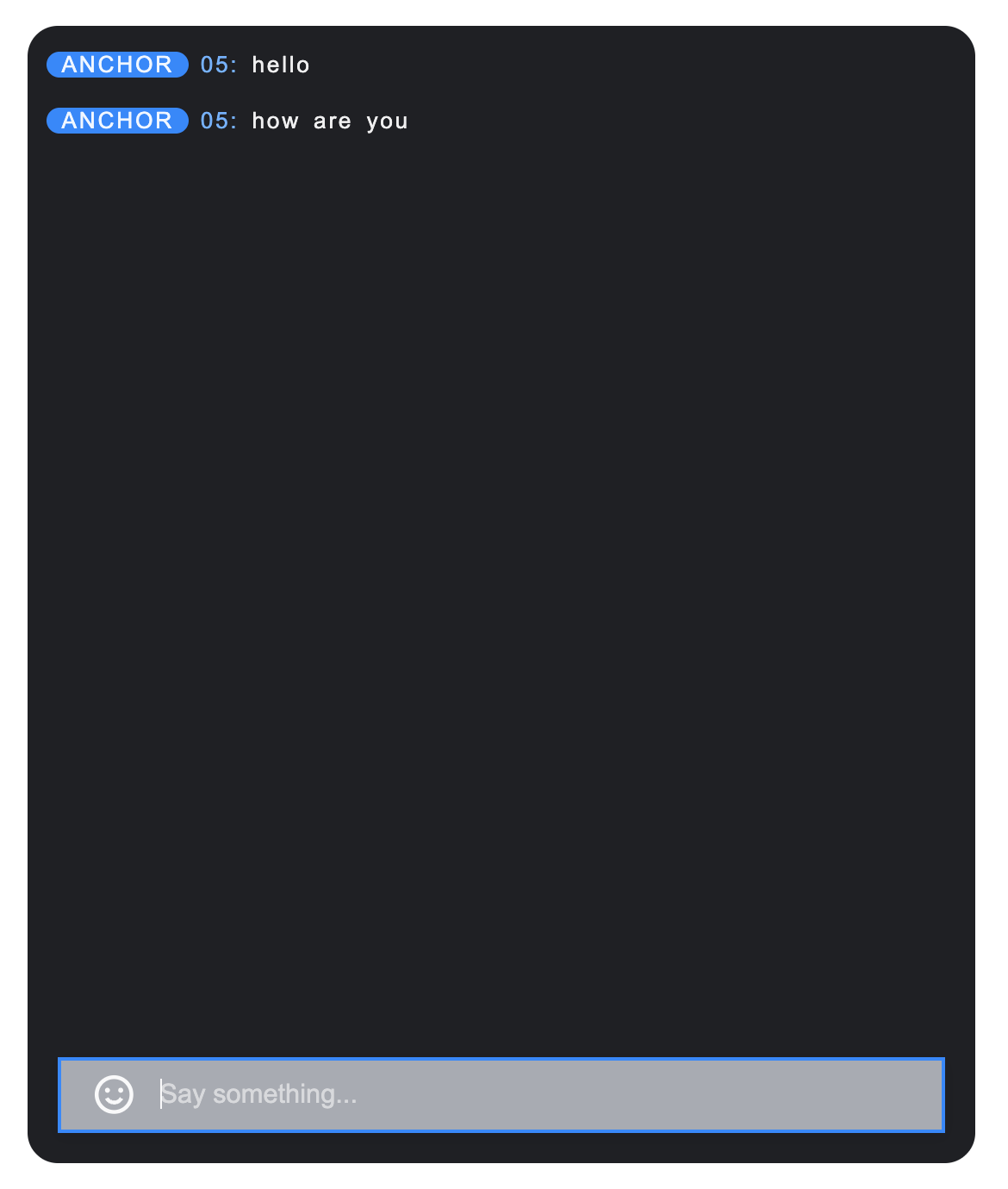

Custom container background and border rounded corners
Custom message item spacing and border
