This document describes how to deploy and use TACO-Training on GPU instances.

Notes

• Currently, TACO-Training is supported only by Cloud GPU Service.
• Currently, the three acceleration components of TACO-Training have been integrated into the same Docker image, which can be pulled at the following address:

  ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


Directions

Preparing the instance environment

1. Create at least two instances meeting the following requirements as instructed in Purchasing NVIDIA GPU Instance:

• Instance: We recommend you select the Computing GT4 GT4.41XLARGE948 8-card model.

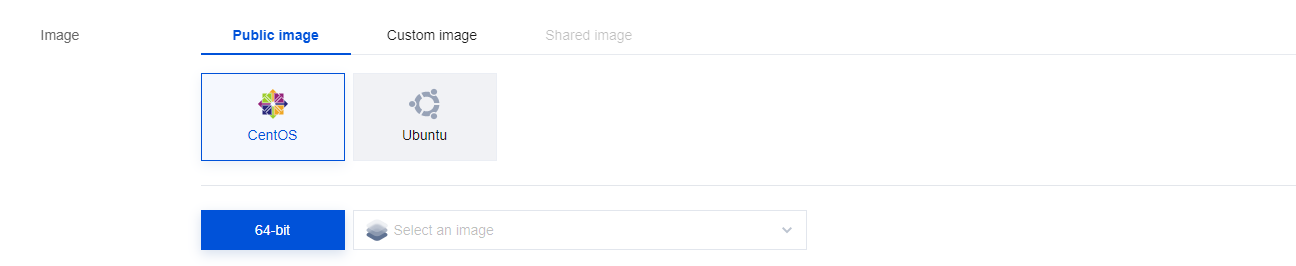

• Image: Select CentOS 7.8 or Ubuntu 18.04 or later and select Automatically install GPU driver on the backend to use the automatic installation feature to install the GPU driver.
  Automatic installation of CUDA and cuDNN is not required for this deployment, and you can choose as needed.

• System disk: We recommend you configure a system disk of 100 GB or above in size to store the Docker image and intermediate state files generated during training.

2. Install Docker as instructed in the corresponding document based on the operating system type of your instance:

   OS	Description
   CentOS	For detailed directions, see Install Docker Engine on CentOS.
   Ubuntu	For detailed directions, see Install Docker Engine on Ubuntu.

3. Install nvidia-docker as instructed in Docker.

Using TTF

Installation

1. Run the following command as the root user and install TTF through a Docker image:

   docker pull ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


2. Run the following command to start Docker:

   docker run -it --rm --gpus all --shm-size=32g --ulimit memlock=-1 --ulimit stack=67108864 --name ttf1.15-gpu ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


3. Run the following command to view the TTF version:

   pip show ttensorflow


Model adaptation

Dynamic embedding

Below is the code for the native static embedding of TF and dynamic embedding of TTF:

deep_dynamic_variables = tf.get_variable(
   name="deep_dynamic_embeddings",
   initializer=tf.compat.v1.random_normal_initializer(0, 0.005),
   shape=[100000000, self.embedding_size])
deep_sparse_weights = tf.nn.embedding_lookup(
   params=deep_dynamic_variables,
   ids=ft_sparse_val,
   name="deep_sparse_weights")
deep_embedding = tf.gather(deep_sparse_weights, ft_sparse_idx)
deep_embedding = tf.reshape(
   deep_embedding,
   shape=[self.batch_size, self.feature_num * self.embedding_size])

deep_dynamic_variables = tf.dynamic_embedding.get_variable(
   name="deep_dynamic_embeddings",
   initializer=tf.compat.v1.random_normal_initializer(0, 0.005),
   dim=self.embedding_size,
   devices=["/{}:0".format(FLAGS.device)],
   init_size=100000000)
deep_sparse_weights = tf.dynamic_embedding.embedding_lookup(
   params=deep_dynamic_variables,
   ids=ft_sparse_val,
   name="deep_sparse_weights")
deep_embedding = tf.gather(deep_sparse_weights, ft_sparse_idx)
deep_embedding = tf.reshape(
   deep_embedding,
   shape=[self.batch_size, self.feature_num * self.embedding_size])

By comparing the code, you can see that TTF mainly modifies the following two parts:

• Embedding uses tf.dynamic_embedding.get_variable. For more information, see tfra.dynamic_embedding.get_variable.
• Lookup uses tf.dynamic_embedding.embedding_lookup. For more information, see tfra.dynamic_embedding.embedding_lookup.
  For the detailed API documentation, see Module: tfra.dynamic_embedding.

Mixed precision

Mixed precision can be implemented by rewriting the code of the optimizer or modifying environment variables:

• Through code modification:

  opt = tf.train.experimental.enable_mixed_precision_graph_rewrite(opt)


• Through environment variable modification:

  export TF_ENABLE_AUTO_MIXED_PRECISION=1


The loss change curve of resnet50 training with the ImageNet dataset by TTF at mixed precisions is as follows:

XLA

XLA can be configured through the code or environment variables:

• Through code modification:

  config = tf.ConfigProto()
  config.graph_options.optimizer_options.global_jit_level = tf.OptimizerOptions.ON_1
  sess = tf.Session(config=config)


• Through environment variable modification:

  TF_XLA_FLAGS=--tf_xla_auto_jit=1


Demo

Before running the demo:

1. Run the following command to enter the demo directory:

   cd /opt/dynamic-embedding-demo


2. Run the following command to download the dataset:

   bash download_dataset.sh


You can get started with TTF quick by using the following demo:

# Enter the `benchmark` directory
cd benchmark
# Run the demo according to the default configuration
python train.py
# You need to delete the local dataset cache files every time you modify `batch size`.
rm -f .index .data-00000-of-00001
python train.py --batch_size=16384
# Use the static embedding and dynamic embedding to train the DeepFM model respectively
python train.py --batch_size=16384 --is_dynamic=False
python train.py --batch_size=16384 --is_dynamic=True
# Adjust the number of fully connected layers of the deep part
python train.py --batch_size=16384 --dnn_layer_num=12

cd ps && bash start.sh

cd estimator && bash start.sh

Using LightCC

Installation

1. Run the following command as the root user and install LightCC through a Docker image:

   docker pull ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


2. Run the following command to start Docker:

   docker run --network host -it --rm --gpus all --privileged --shm-size=32g --ulimit memlock=-1 --ulimit stack=67108864 --name lightcc ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


3. Run the following command to view the LightCC version:

   pip show light-horovod


Note

When the kernel protocol stack is used for NCCL network communication, or if the runtime environment of the HARP protocol stack is not configured, you need to move the /usr/lib/x86_64-linux-gnu/libnccl-net.so file in the image to a path other than the system lib directory, such as the /root directory, as the system will check whether the HARP configuration file exists in a certain directory in the lib directory during init and will report an error if the file doesn't exist.

Environment variable configuration

LightCC environment variables are as detailed below, which can be configured as needed:

Demo

1. After creating two GPU instances, install LightCC and configure environment variables in the above steps.
2. Run the following commands in the container to configure passwordless SSH login for the instances:

   # Allow the root user to use the SSH service and start the service (default port: 22)
   sed -i 's/#PermitRootLogin prohibit-password/PermitRootLogin yes/' /etc/ssh/sshd_config
   service ssh start && netstat -tulpn


# Change the default SSH port in the container to 2222 to avoid conflicts with the host
sed -i 's/#Port 22/Port 2222/' /etc/ssh/sshd_config
service ssh restart && netstat -tulpn

# Set `root passwd`
passwd root

# Generate an SSH key
ssh-keygen

# Configure SSH to use port 2222 by default
# Create `~/.ssh/config`, add the following content, and save and exit the file:
# Note: The IP used here is the IP displayed in `ifconfig eth0` of the two instances.
Host gpu1
hostname 10.0.2.8
port 2222
Host gpu2
hostname 10.0.2.9
port 2222

# Configure mutual passwordless login for the instances and local passwordless login for each instance
ssh-copy-id gpu1
ssh-copy-id gpu2

# Test whether passwordless login is configured successfully
ssh gpu1
ssh gpu2

3. Run the following command to download the benchmark test script of Horovod:

   wget https://raw.githubusercontent.com/horovod/horovod/master/examples/tensorflow/tensorflow_synthetic_benchmark.py


4. Run the following command to start multi-server training benchmark based on ResNet-50:

   /usr/local/openmpi/bin/mpirun -np 16 -H gpu1:8,gpu2:8 --allow-run-as-root -bind-to none -map-by slot -x NCCL_ALGO=RING -x NCCL_DEBUG=INFO -x HOROVOD_MPI_THREADS_DISABLE=1 -x HOROVOD_FUSION_THRESHOLD=0  -x HOROVOD_CYCLE_TIME=0 -x LIGHT_2D_ALLREDUCE=1 -x LIGHT_TOPK_ALLREDUCE=1 -x LIGHT_TOPK_THRESHOLD=2097152 -x LD_LIBRARY_PATH -x PATH -mca btl_tcp_if_include eth0 python3 tensorflow_synthetic_benchmark.py --model=ResNet50 --batch-size=256


Here, the command parameters are used for an 8-card model. To configure another model, modify the -np and -H parameters. Other parameters are as detailed below:

• NCCL_ALGO=RING: Select the ring algorithm as the communication algorithm in NCCL.
• NCCL_DEBUG=INFO: Enable debugging output in NCCL.
• -mca btl_tcp_if_include eth0: Select the eth0 device as network device for MPI multi-server communication. As some ENIs cannot communicate, you need to specify the ENI if there are multiple ones; otherwise, an error will occur if MPI chooses an ENI that cannot communicate.

The reference throughput rates of LightCC multi-server training benchmark in two GT4.41XLARGE948 instances are as detailed below:

Using HARP

Preparing the instance environment

1. Run the following command as the root user to modify cmdline of the kernel and configure a 50 GB huge page memory.

   sed -i '/GRUB_CMDLINE_LINUX/ s/"$/ default_hugepagesz=1GB hugepagesz=1GB hugepages=50"/' /etc/default/grub


Note

You can configure hugepages=50 for an 8-card instance or hugepages= (number of GPU cards * 5 + 10) for other models.

sudo update-grub2 && sudo reboot

sudo grub2-mkconfig -o /boot/grub2/grub.cfg && sudo reboot

3. Bind ENIs as follows. The number of ENIs should be the same as the number of GPU cards.
   3.1 Log in to the CVM console, select More > IP/ENI > Bind ENI on the right of the target instance.
   3.2 In the Bind ENI pop-up window, select created ENIs or create new ones and bind them as needed.
   3.3 Click OK.
4. Run the following command to initialize the configuration information.

   curl -s -L http://mirrors.tencent.com/install/GPU/taco/harp_setup.sh | bash


If the input result contains "Set up HARP successfully", and the ztcp*.conf configuration file is generated in the /usr/local/tfabric/tools/config directory, the configuration has been completed successfully.

Installation

1. Run the following command as the root user and install HARP through a Docker image:

   docker pull ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


2. Run the following command to start Docker:

   docker run -it --rm --gpus all --privileged --net=host -v /sys:/sys -v /dev/hugepages:/dev/hugepages -v /usr/local/tfabric/tools:/usr/local/tfabric/tools ccr.ccs.tencentyun.com/qcloud/taco-training:cu112-cudnn81-py3-0.3.2


Demo

1. After creating two GPU instances, configure the instance environment and install HARP in the above steps.
2. Run the following commands in Docker to configure passwordless SSH login for the instances:

   # Allow the root user to use the SSH service and start the service (default port: 22)
   sed -i 's/#PermitRootLogin prohibit-password/PermitRootLogin yes/' /etc/ssh/sshd_config
   service ssh start && netstat -tulpn


# Change the default SSH port in the container to 2222 to avoid conflicts with the host
sed -i 's/#Port 22/Port 2222/' /etc/ssh/sshd_config
service ssh restart && netstat -tulpn

# Set `root passwd`
passwd root

# Generate an SSH key
ssh-keygen

# Configure SSH to use port 2222 by default
# Create `~/.ssh/config`, add the following content, and save and exit the file:
# Note: The IP used here is the IP displayed in `ifconfig eth0` of the two instances.
Host gpu1
hostname 10.0.2.8
port 2222
Host gpu2
hostname 10.0.2.9
port 2222

# Configure mutual passwordless login for the instances and local passwordless login for each instance
ssh-copy-id gpu1
ssh-copy-id gpu2

# Test whether passwordless login is configured successfully
ssh gpu1
ssh gpu2

2. Run the following command to download the benchmark script of Horovod:

   wget https://raw.githubusercontent.com/horovod/horovod/master/examples/tensorflow/tensorflow_synthetic_benchmark.py


3. Run the following command to start multi-server training benchmark based on ResNet-50:

   /usr/local/openmpi/bin/mpirun -np 16 -H gpu1:8,gpu2:8 --allow-run-as-root -bind-to none -map-by slot -x NCCL_ALGO=RING -x NCCL_DEBUG=INFO -x HOROVOD_MPI_THREADS_DISABLE=1 -x HOROVOD_FUSION_THRESHOLD=0  -x HOROVOD_CYCLE_TIME=0 -x LIGHT_2D_ALLREDUCE=1 -x LIGHT_TOPK_ALLREDUCE=1 -x LIGHT_TOPK_THRESHOLD=2097152 -x LD_LIBRARY_PATH -x PATH -mca btl_tcp_if_include eth0 python3 tensorflow_synthetic_benchmark.py --model=ResNet50 --batch-size=256


Here, the command parameters are used for an 8-card model. To configure another model, modify the -np and -H parameters. Other parameters are as detailed below:

• NCCL_ALGO=RING: Select the ring algorithm as the communication algorithm in NCCL.
• NCCL_DEBUG=INFO: Enable debugging output in NCCL. After it is enabled, HARP will output the following content:

• -mca btl_tcp_if_include eth0: Select the eth0 device as network device for MPI multi-server communication. As some ENIs cannot communicate, you need to specify the ENI if there are multiple ones; otherwise, an error will occur if MPI chooses an ENI that cannot communicate.

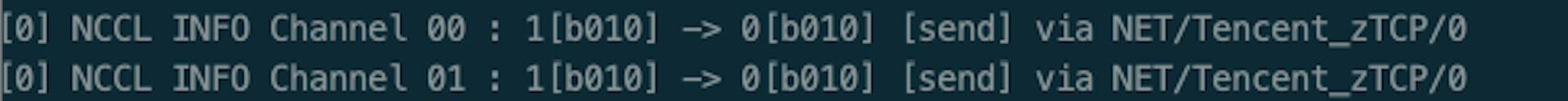

  After NCCL initialization, you can view the network output:


4. HARP is integrated to NCCL as a plugin and is enabled automatically without any configuration required. To disable HARP, run the following command in the container:

   mv /usr/lib/x86_64-linux-gnu/libnccl-net.so /usr/lib/x86_64-linux-gnu/libnccl-net.so_bak
