View the statistics dashboard
Download
Focus Mode
Font Size
Cloud Boundary Statistics
1. Log in to the CSC console, and click CSPM in the left navigation pane.

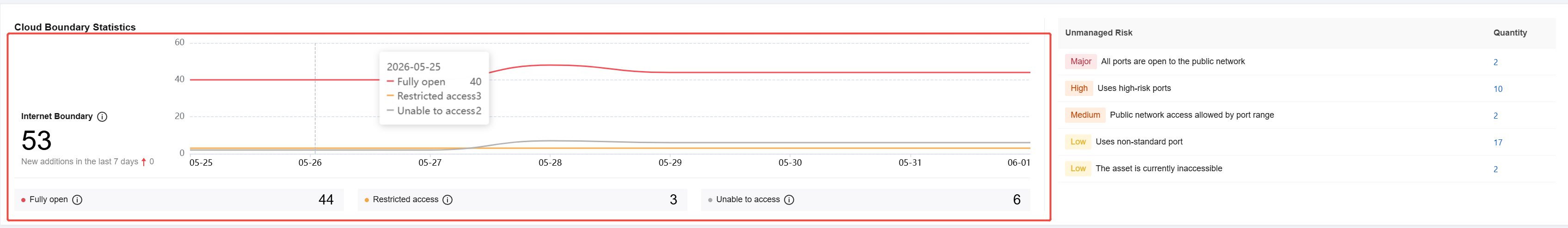

2. In Cloud Security Posture Management > Cloud Boundary Analysis, the left side of the statistics panel is Cloud Boundary Statistics. The data for Cloud Boundary Statistics is sourced from internet ports whose last identification time is within the last 24 hours. CSC classifies the open status of internet ports into the following three categories based on the policies and status of cloud resources:
Access Status | Description |
Fully Open | All addresses on the Internet can access this port. |
Restricted access | Access control is configured on the cloud resource, and only addresses in the allowlist can access this port. |
Unable to access | The cloud resource is in an abnormal state or powered off, and therefore cannot be accessed. |

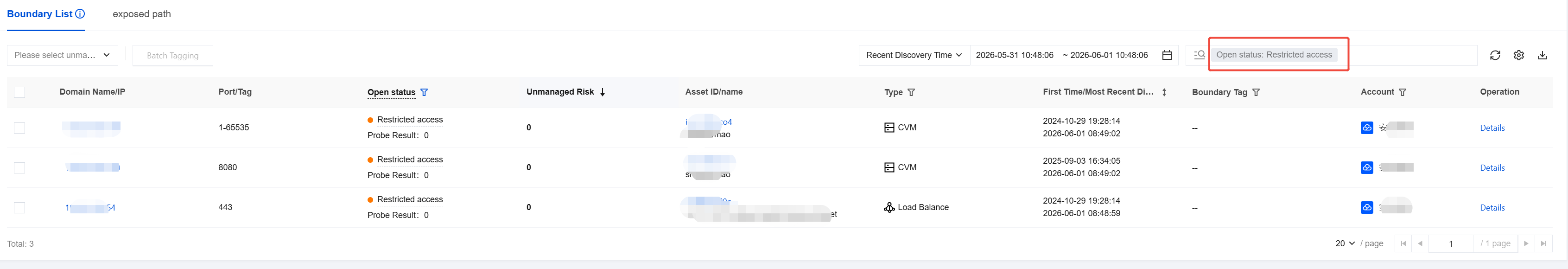

3. Feature Interaction: Click any of the four statistics to display the corresponding detailed results in the Boundary List below. The following figure shows the result displayed after the number corresponding to "Restricted Access" in the Cloud Boundary Statistics panel is clicked.

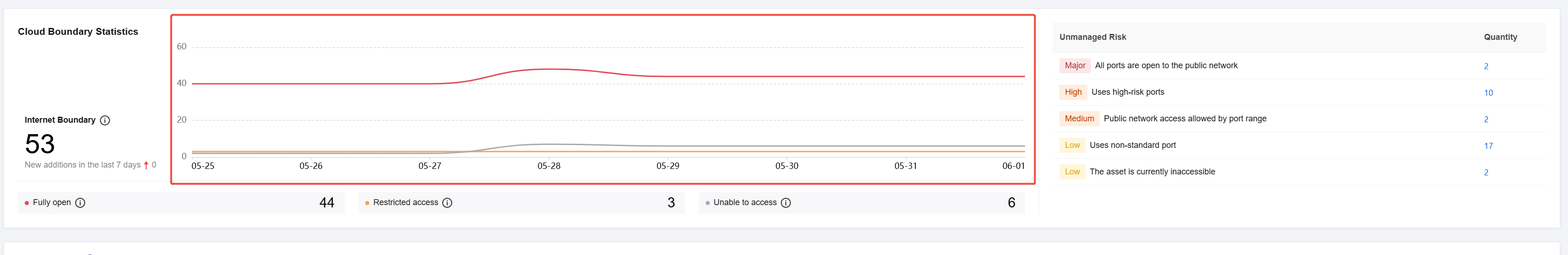

4. Cloud Boundary Quantity Trend Chart: This chart displays the overall trend of boundary quantities over the past 7 days.
Risks to Be Governed
1. Log in to the CSC console, and click CSPM in the left navigation pane.

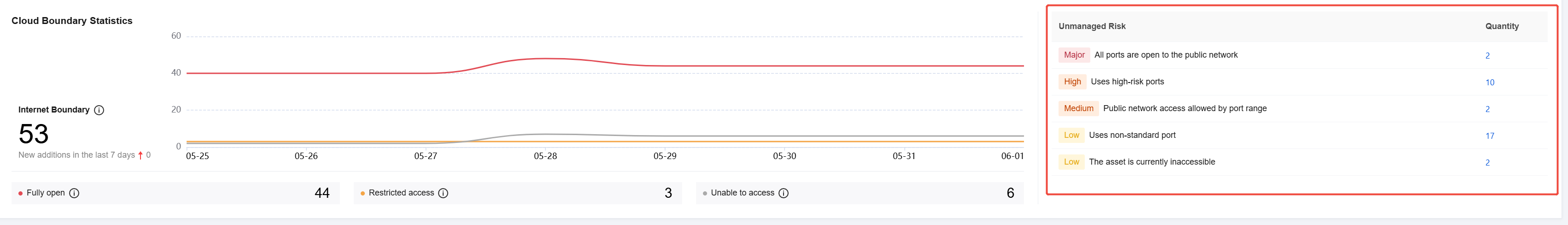

2. In Cloud Security Posture Management > Cloud Boundary Analysis, the right side of the statistics panel displays Unmanaged Risk.
3. Select the corresponding risk and click Quantity to view the content associated with that risk.
