Viewing Monitoring Data
Last updated: 2026-01-30 14:55:29
Download PDF
TDMQ for MQTT supports daily monitoring of resource status under your account. You can view monitoring data of various MQTT resources in real time through the console to learn about the health of clusters.

View the Cluster Monitoring

1. Log in to the MQTT Console.
2. Click Monitor in the left sidebar and select the region and cluster.
3. Select the Cluster tab, set the time range, and view the cluster monitoring data.
For detailed metric introduction, refer to Monitoring Metric Description.

Viewing Topic Monitoring

TDMQ for MQTT supports automatic creation of Topics. Users do not need to pre-create related Topics when sending or receiving messages. Additionally, to facilitate Topic management, TDMQ for MQTT allows viewing monitoring metrics for specified Topic aggregations. For example, if a user uses Topic "AAA" during message transmission, it maintains a first-level Topic aggregation, making "AAA" a Topic prefix. Users can then view monitoring data for all related subtopics under this prefix, such as "AAA/1", "AAA/2", and "AAA/BBB/CCC". This enables real-time monitoring of business status under each Topic aggregation and timely tracking of key business metrics.
To facilitate the management and monitoring of key Topics, you can configure a certain number of "Topic prefixes" in the console, supporting up to three levels. For example, after configuring the prefix "a/b", you can view data statistics for Topics such as "a/b/1", "a/b/2", ..., "a/b/n".
A single cluster supports creating a maximum of 300 Topic prefixes.

Creating Topic Prefix

1. Log in to the MQTT Console.
2. Click Cluster in the left sidebar. After selecting a region, click the "ID" of the target cluster to enter the cluster basic information page.

3. Select Monitoring > Topic Prefix tab, click Create in the upper left corner, and enter the topic prefix and description in the pop-up window.

Parameter
Description
Topic Prefix
Topic prefix supports up to 3 levels.
The first-level Topic can be empty. Other levels cannot be empty and can only contain letters, numbers, "-", and "_".
Topic prefix length: 1-256 characters.
Topic Prefix Description
The longest is 128 characters.
4. Click Submit to complete the creation.

Viewing Topic Monitoring Data

1. Log in to the MQTT Console.
2. Click Monitor in the left sidebar and select the region and cluster.

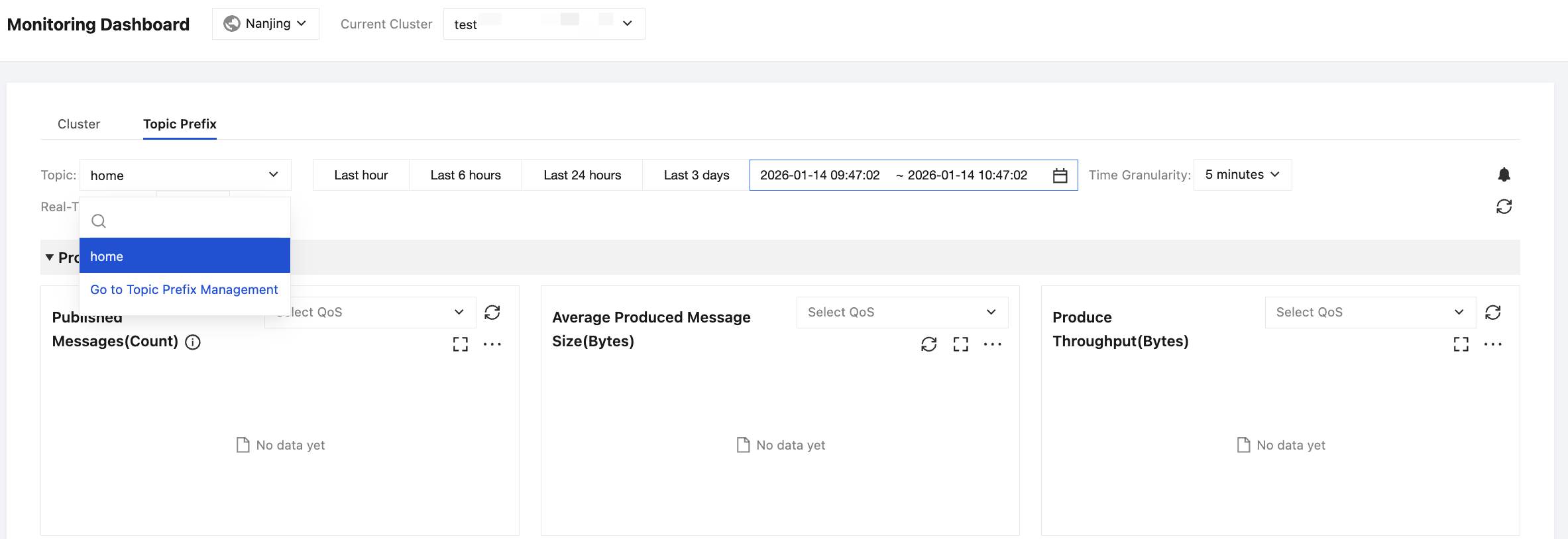

3. Select the Topic Prefix tab, choose the topic prefix you want to view in the dropdown list, set time range, and view the monitoring data.
For detailed metric introduction, refer to Monitoring Metric Description.


Viewing Shared Subscription Monitoring

1. Log in to the MQTT Console.
2. Go to Cluster > Shared Subscription Group Management and choose the specified shared subscription group.

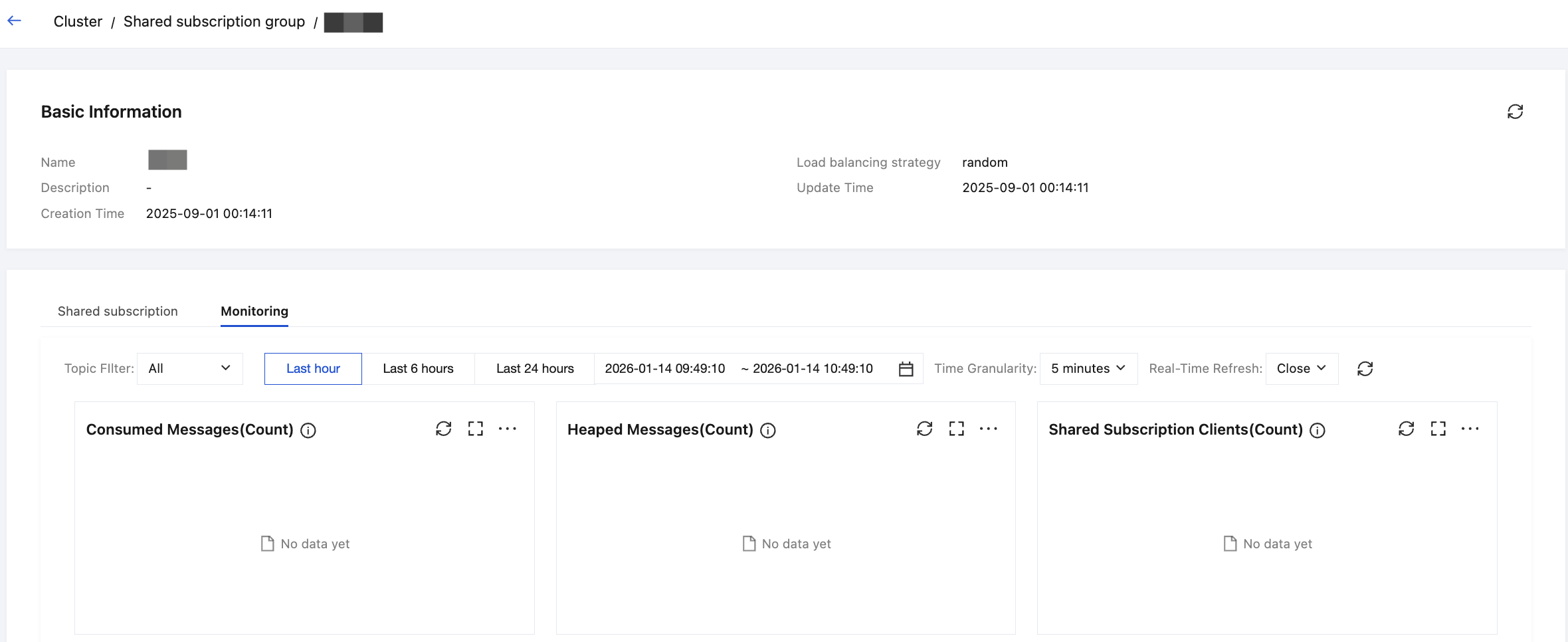

3. Select the Monitoring tab, choose the subscription expression you want to view in the dropdown list, set the time range, and view the monitoring data.


Time Selector Description

You can confirm it by the following features for flexible control of monitoring data display: Free Time Selection, adjust time granularity and refresh frequency.
Operation
Icon
Description
Time Range Selection


Time selection box, click to select the monitoring time range for chart display. Default selection is data within 1 hour.
Select a specified time interval quickly via the time value at the top.
Select a big range of time periods via the calendar.
Select a time range accurate to the second via "Select time" in the bottom-left corner.
Time granularity

Time granularity: Click to select 1 minute or 5 minutes.
real-time refresh

real-time refresh interval. Click on the right dropdown option to set the chart's overall auto refresh time, supporting 30 seconds, 1 minute, 5 minutes, or turn off.

Chart Icon Description

For each monitoring image provided by MQTT, you can execute the following operations:
Operation
Icon
Description
Viewing Data

Hover the mouse over the image to view data details at the corresponding time.
Refresh data

Click refresh to get the latest data in the monitoring chart.
Full screen display

Click to display the corresponding chart in full screen. Press Esc or the cross sign in the upper-right corner to exit full screen mode.
Data Export

Click to export chart data in CSV format or chart content in PNG format.
