Configuring Quorum Queue

Last updated: 2026-01-05 10:23:24

Quorum queue is highly available queue introduced in RabbitMQ 3.8+. They achieve multi-node data replication with the Raft consensus algorithm to ensure strong message consistency and persistent storage. Unlike mirrored queue, quorum queue adopt a quorum-based write mechanism where messages must be acknowledged by a majority of cluster nodes before being considered successfully written. This approach prevents split-brain issues and enhances data security.
Core Features
Strong consistency: Messages must be acknowledged by a majority of nodes to ensure no data loss.
Automatic failover: When the primary node crashes, the Raft protocol automatically elects a new primary node to recover the service.
Persistence first: All messages are persisted to the disk by default. This feature is suitable for critical business.
Unsupported features: such as TTL, priorities, and non-persistent messages.
Scenarios
Financial transaction systems (such as payment settlement): require that messages never get lost and can tolerate high latency.
Medical data synchronization: requires strong data consistency to avoid inaccurate data due to node failures.
Long-standing core business queues (such as order status updates): have extended lifecycles and require cross-node disaster recovery capabilities.
Cross-IDC deployment: The Raft protocol reduces split-brain risks. This configuration is suitable for multi-data center scenarios.
Constraints and Limitations
Currently, only Managed Edition clusters support configuring quorum queues. The Serverless Edition features distributed high-availability clusters and does not require configuring quorum queues.
Configuring Quorum Queue

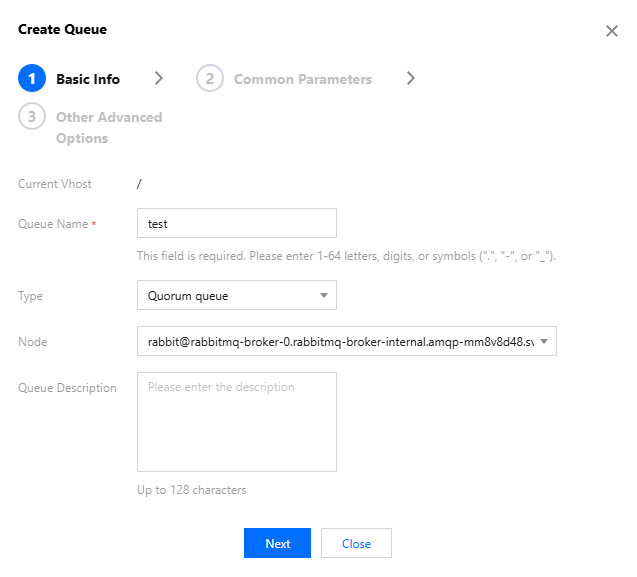

1. Log in to the TDMQ for RabbitMQ console.
2. In the left sidebar, choose Cluster > Queue, select a vhost, and then click Create to go to the queue creation page.
3. Enter the queue information according to the on-screen instructions, and click Submit to complete the queue creation.
﻿
Category
Parameter
Required
Description
Basic Info
Current Vhost
Yes
Indicates which vhost the queue is being created for.
﻿
Queue Name
Yes
Enter a queue name. It must be 1 to 64 characters in length and can only contain letters, digits, hyphens (-), and underscores (_).
After a queue is successfully created, the name cannot be modified.
﻿
Type
Yes
Select Quorum Queue.
﻿
Node
Yes
Select the cluster node where the queue is located from the drop-down list.
﻿
Queue Description
No
Enter the queue description information, with a maximum of 128 characters.
Common Parameters
Auto Expire
No
Idle time-to-live for a queue. When no consumer connections exist, and no messages are consumed or published within the specified time period, the queue will be automatically deleted.
﻿
Max Length
No
Maximum number of messages a queue can hold. Exceeding this set value will trigger the overflow behaviour policy.
﻿
Max Length Bytes
No
Maximum storage capacity for a queue. Exceeding this set value will trigger the overflow behaviour policy.
﻿
Delivery Limit
No
Number of retries allowed for failed message deliveries in the queue. A message will be automatically routed to the dead letter queue (if a dead letter exchange is configured) when its number of deliveries reaches the set value. If no dead letter exchange is configured, it will be discarded.
﻿
Overflow Behaviour
No
Message processing policy of the queue when the queue capacity reaches the upper limit:
drop-head: When the queue capacity reaches the upper limit, discard messages at the head of the queue.
reject-publish: When the queue capacity reaches the upper limit, reject the publishing of new messages and mark the publish operation as failed.
﻿
Dead Letter Policy
Yes
Policy for delivering messages that cannot be consumed normally to dead letter queues.
at-most-once: delivered at most once. Messages may be lost, but are never duplicated. This configuration is suitable for non-critical businesses that can tolerate message loss.
at-least-once: delivered at least once. Messages are never lost but may be duplicated. This configuration is suitable for critical businesses that cannot tolerate message loss. The at-least-once dead letter policy can only be selected when overflow behaviour is set to reject-publish.
﻿
Dead Letter Exchange
Yes
Messages that fail to be delivered after the maximum number of retries is reached will be delivered to a dead letter exchange, which is the AMQP default exchange by default.
Other Advanced Options
Single Active Consumer
No
Whether to enable the single active consumer, which is disabled by default.
If it is set to true, the queue allows only one consumer to process messages at a time. Other consumers remain in the standby status. When the active consumer disconnects, the system automatically selects the next consumer. This configuration is suitable for sequence-sensitive tasks, such as order status changes.
﻿
Max In Memory Length
No
Maximum number of messages that a quorum queue can cache in memory. Once this limit is exceeded, messages will be written to the disk.
﻿
Max In Memory Bytes
No
Total size (in bytes) of messages cached in memory by a quorum queue. When this limit is exceeded, messages will be written to the disk.
﻿
Initial cluster size
No
Defines the initial number of nodes participating in the Raft consensus for quorum queues in the cluster.
﻿
Leader locator
Yes
Specifies the leader node selection policy for quorum queues:
client-local: Prioritize selecting the node to which the client is connected as the leader node for the current queue, which can reduce network latency.
balanced: Distribute leader nodes evenly to prevent excessive load on certain nodes.
﻿
