模块 | 功能描述 |
通话视图核心组件。自动监听 CallStore 数据并完成画面渲染,同时支持 1v1 和多人通话布局自动切换。 | |
通话生命周期管理:拨打电话、接通电话、拒接电话、挂断电话。实时获取参与通话人员音视频状态,通话计时、通话记录等数据。 | |
音视频设备控制:麦克风(开关 / 音量)、摄像头(开关 / 切换 / 画质)、屏幕共享,设备状态实时监听。 |
flutter pubaddatomic_x_core
android/app/目录下找到build.gradle.kts(或build.gradle )文件中配置并开启混淆规则:android {buildTypes {release {isMinifyEnabled = trueproguardFiles(getDefaultProguardFile("proguard-android.txt"),"proguard-rules.pro")}}}
android {buildTypes {release {minifyEnabled trueproguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'}}}
android/app 目录下创建 proguard-rules.pro 文件,并在其中添加如下代码:-keep class com.tencent.** { *; }
AndroidManifest.xml 里设置 MainActivity 的 android:supportsPictureInPicture 为 true:<manifest xmlns:android="http://schemas.android.com/apk/res/android"><application><activityandroid:name=".MainActivity"android:supportsPictureInPicture="true"</activity></application></manifest>

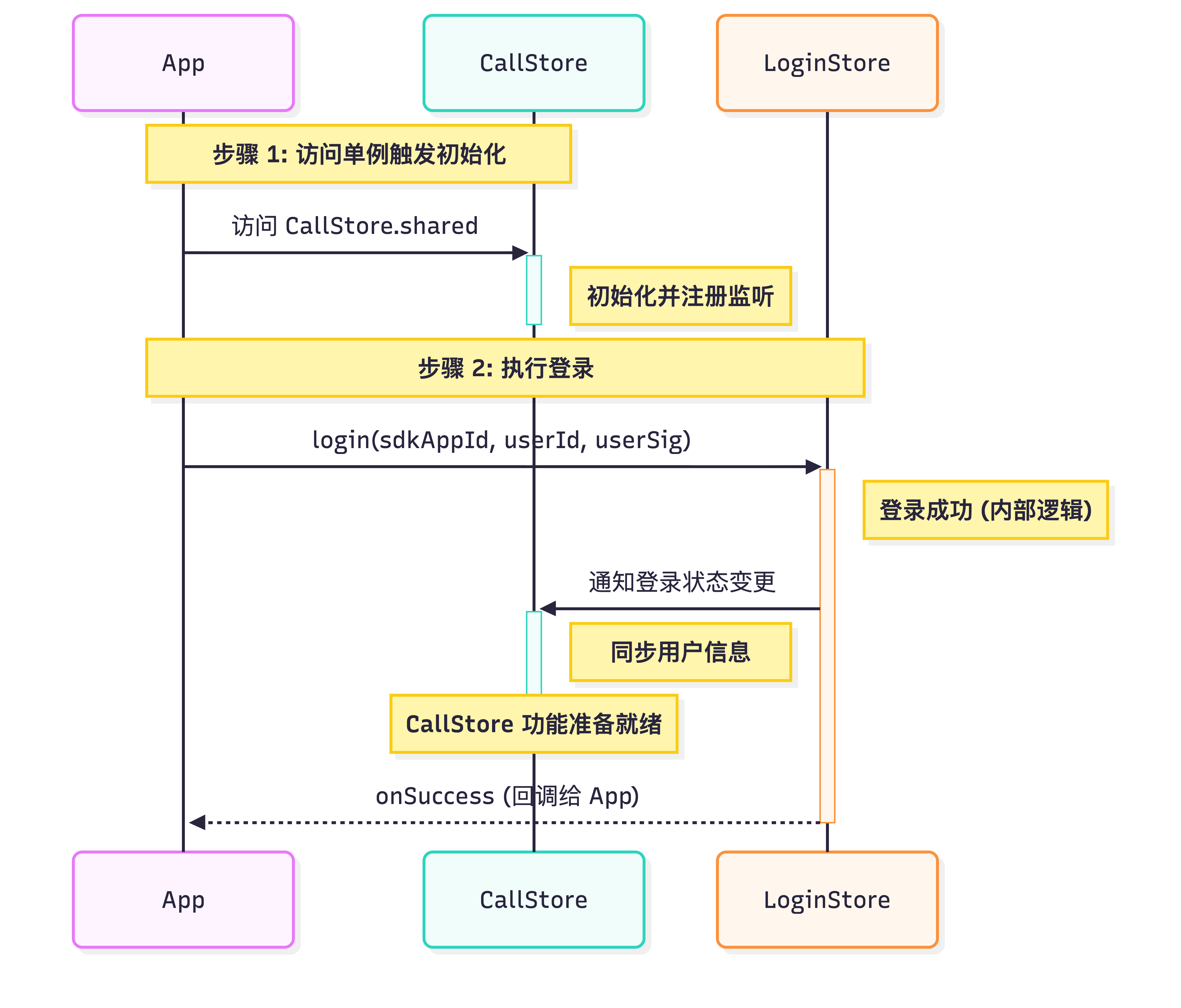

import 'package:atomic_x_core/atomicxcore.dart';import 'package:rtc_room_engine/api/call/tui_call_engine.dart';Future<void> _login() async {int sdkAppId = 1400000001; // 替换为您的 SDKAppIDString userId = 'test_001'; // 替换为您的 UserIDString userSig = 'xxxxxxxxxxx'; // 替换为您的 UserSigCallStore.shared;final result = await LoginStore.shared.login(sdkAppId, userId, userSig);TUICallEngine.instance.init(sdkAppId, userId, userSig);if (result.isSuccess) {// 登录成功debugPrint('login success');} else {// 登录失败debugPrint('login failed, code: ${result.code}, message: ${result.message}');}}
参数 | 类型 | 说明 |
userId | String | 当前用户的唯一 ID,仅包含英文字母、数字、连字符和下划线。为避免多端登录冲突,请勿使用 1、123 等简单 ID。 |
sdkAppId | int | |
userSig | String | 用于腾讯云鉴权的票据。请注意: 开发环境:您可以采用本地 GenerateTestUserSig.genTestUserSig 函数生成 userSig 或者通过 UserSig 辅助工具 生成临时的 UserSig。 生产环境:为了防止密钥泄露,请务必采用服务端生成 UserSig 的方式。详细信息请参考 服务端生成 UserSig。 |
StatefulWidget 作为通话宿主页面,用于响应来电时的跳转逻辑。controller 参数,自动监听 CallStore 数据并完成画面渲染,支持 1v1 和多人通话布局自动切换。import 'package:flutter/material.dart';import 'package:atomic_x_core/atomicxcore.dart';// 1. 创建通话页面 Widgetclass CallPage extends StatefulWidget {const CallPage({super.key});@overrideState<CallPage> createState() => _CallPageState();}class _CallPageState extends State<CallPage> {late CallCoreController controller;@overridevoid initState() {super.initState();controller = CallCoreController.create();}@overrideWidget build(BuildContext context) {// 2. 通话页面使用 CallCoreView Widgetreturn CallCoreView(controller: controller);}}
功能 | 说明 | 参考文档 |
设置布局模式 | 支持自由切换布局模式。若未设置,将根据通话人数自动适配布局。 | |
设置头像 | 支持通过传入头像资源路径,为特定用户自定义头像。 | |
设置音量提示图标 | 支持根据不同音量等级,配置个性化的音量指示图标。 | |
设置网络提示图标 | 支持根据实时网络质量,配置对应的网络状态提示图标。 | |
设置等待接听用户的动画 | 在多人通话场景下,支持传入 GIF 图像路径,为待接听状态的用户展示动画。 |
import 'package:flutter/material.dart';import 'package:atomic_x_core/atomicxcore.dart';// 创建底部控制按钮容器 Widgetclass ControlsContainer extends StatelessWidget {const ControlsContainer({super.key});@overrideWidget build(BuildContext context) {return Row(mainAxisAlignment: MainAxisAlignment.spaceEvenly,children: [// 在这里添加控制按钮],);}}
import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/material.dart';// 挂断按钮 WidgetWidget buildHangupButton() {return GestureDetector(onTap: () {// 调用 hangup 接口结束通话CallStore.shared.hangup();},child: Container(width: 60,height: 60,decoration: const BoxDecoration(color: Colors.red,shape: BoxShape.circle,),child: const Icon(Icons.call_end,color: Colors.white,size: 30,),),);}
import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/material.dart';// 麦克风开关按钮 Widget// 使用 ValueListenableBuilder 监听麦克风状态变化Widget buildMicrophoneButton() {return ValueListenableBuilder(valueListenable: DeviceStore.shared.state.microphoneStatus,builder: (context, status, child) {final isOn = status == DeviceStatus.on;return GestureDetector(onTap: () {// 根据当前状态开启或关闭麦克风if (isOn) {DeviceStore.shared.closeLocalMicrophone();} else {DeviceStore.shared.openLocalMicrophone();}},child: Container(width: 60,height: 60,decoration: BoxDecoration(color: Colors.white.withOpacity(0.2),shape: BoxShape.circle,),child: Icon(isOn ? Icons.mic : Icons.mic_off,color: Colors.white,size: 30,),),);},);}
import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/material.dart';// 摄像头开关按钮 Widget// 使用 ValueListenableBuilder 监听摄像头状态变化Widget buildCameraButton() {return ValueListenableBuilder(valueListenable: DeviceStore.shared.state.cameraStatus,builder: (context, status, child) {final isOn = status == DeviceStatus.on;return GestureDetector(onTap: () {// 根据当前状态开启或关闭摄像头if (isOn) {DeviceStore.shared.closeLocalCamera();} else {final isFrontCamera = DeviceStore.shared.state.isFrontCamera.value;DeviceStore.shared.openLocalCamera(isFrontCamera);}},child: Container(width: 60,height: 60,decoration: BoxDecoration(color: Colors.white.withOpacity(0.2),shape: BoxShape.circle,),child: Icon(isOn ? Icons.videocam : Icons.videocam_off,color: Colors.white,size: 30,),),);},);}
ValueListenableBuilder 监听麦克风和摄像头的状态变化,UI 会自动更新。import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/material.dart';// Flutter 中使用 ValueListenableBuilder 实现状态响应式更新// 当 DeviceStore 中的状态变化时,UI 会自动重建Widget buildDeviceControlButtons() {return Row(mainAxisAlignment: MainAxisAlignment.spaceEvenly,children: [// 麦克风按钮 - 自动响应 microphoneStatus 变化ValueListenableBuilder(valueListenable: DeviceStore.shared.state.microphoneStatus,builder: (context, status, _) {final isOn = status == DeviceStatus.on;return Text(isOn ? '关闭麦克风' : '开启麦克风');},),// 摄像头按钮 - 自动响应 cameraStatus 变化ValueListenableBuilder(valueListenable: DeviceStore.shared.state.cameraStatus,builder: (context, status, _) {final isOn = status == DeviceStatus.on;return Text(isOn ? '关闭摄像头' : '开启摄像头');},),],);}
AndroidManifest.xml 文件中声明应用需要的摄像头和麦克风权限。<manifest xmlns:android="http://schemas.android.com/apk/res/android"><!-- 麦克风权限 --><uses-permission android:name="android.permission.RECORD_AUDIO" /><!-- 摄像头权限 --><uses-permission android:name="android.permission.CAMERA" /></manifest>
Info.plist 文件中,在顶级 <dict> 元素下添加以下两项。<key>NSCameraUsageDescription</key><string>CallingApp需要访问您的相机权限,开启后录制的视频才会有画面</string><key>NSMicrophoneUsageDescription</key><string>CallingApp需要访问您的麦克风权限,开启后录制的视频才会有声音</string>
flutter pub add permission_handler
import 'package:permission_handler/permission_handler.dart';// 申请音视频权限Future<bool> requestCallPermissions() async {// 请求麦克风和摄像头权限Map<Permission, PermissionStatus> statuses = await [Permission.microphone,Permission.camera,].request();// 检查权限状态bool micGranted = statuses[Permission.microphone]?.isGranted ?? false;bool cameraGranted = statuses[Permission.camera]?.isGranted ?? false;if (micGranted && cameraGranted) {// 权限申请成功return true;} else {// 部分权限被拒绝,可引导用户开启权限return false;}}
calls 发起通话。import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/material.dart';// 发起通话Future<void> startCall(List<String> userIdList, CallMediaType mediaType) async {final handler = await CallStore.shared.calls(userIdList, mediaType, null);if (handler.errorCode == 0) {// 唤起通话页面if (mounted) {Navigator.push(context,MaterialPageRoute(builder: (context) => const CallPage()),);}} else {debugPrint('Call failed: ${handler.errorCode}, ${handler.errorMessage}');}}
参数 | 类型 | 是否必填 | 说明 |
userIdList | List<String> | 是 | 目标用户的 userId 列表。 |
mediaType | 是 | 通话媒体类型,用于指定发起音频通话还是视频通话。 CallMediaType.video:视频通话。CallMediaType.audio:语音通话。 | |
params | 否 | 通话扩展参数,如:房间号、通话邀请超时时间等。 roomId (String):房间 ID,可选参数,未指定时由服务端自动分配。timeout (Int) :呼叫超时时间(秒)。userData (String):用户自定义数据。chatGroupId (String):Chat 群组 ID,用于群组通话场景。isEphemeralCall (Boolean):是否为加密通话(不产生通话记录)。 |
onCallEnded 事件。onCallEnded 触发后,销毁通话页面。import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/cupertino.dart';void addListener(BuildContext context) {CallEventListener listener = CallEventListener(onCallEnded: (callId, mediaType, reason, userId) {Navigator.of(context).pop();});CallStore.shared.addListener(listener);}
参数 | 类型 | 说明 |
callId | String | 此次通话的唯一标识。 |
mediaType | 通话媒体类型,用于指定发起音频通话还是视频通话。 CallMediaType.video:视频通话。CallMediaType.audio:语音通话。 | |
reason | 通话结束的原因。 unknown:未知原因,无法确定结束原因。hangup:正常挂断,用户主动挂断通话。reject:拒绝接听,被叫方拒绝来电。noResponse:无响应,被叫方未在超时时间内接听。offline:对方离线,被叫方不在线。lineBusy:对方忙线,被叫方正在通话中。canceled:通话取消,主叫方在对方接听前取消。otherDeviceAccepted:其他设备已接听,通话已在另一登录设备上接听。otherDeviceReject:其他设备已拒绝,通话已在另一登录设备上拒绝。endByServer:服务器结束,通话被服务器终止。 | |
userId | String | 触发结束的用户 ID 。 |


Widget _buildCallCoreView() {Map<VolumeLevel, Image> volumeIcons = {VolumeLevel.mute : Image.asset(''), // 每个音量等级对应的图片};return CallCoreView(controller: CallCoreController.create(),volumeIcons: volumeIcons,);}
参数 | 类型 | 是否必填 | 说明 |
volumeIcons | 否 | 音量等级与图标资源的映射表。 key ( VolumeLevel ) 表示音量等级: VolumeLevel.mute:表示麦克风关闭,静音状态。VolumeLevel.low:表示音量范围 (0-25]。VolumeLevel.medium:表示音量范围 (25-50]。VolumeLevel.high:表示音量范围在 (50-75]。VolumeLevel.peak:表示音量范围在 (75-100]。Value ( Image ) 表示对应音量等级的图标资源。 |

Widget _buildCallCoreView() {Map<NetworkQuality, Image> networkQualityIcons = {NetworkQuality.bad : Image.asset(''), // 每个网络质量等级对应的图片};return CallCoreView(controller: CallCoreController.create(),networkQualityIcons: networkQualityIcons,);}
参数 | 类型 | 是否必填 | 说明 |
networkQualityIcons | 否 | 网络质量与图标资源的映射表。 Key ( NetworkQuality ) : 表示网络质量等级。 NetworkQuality.unknown:未知网络状态。NetworkQuality.excellent:网络状态极佳。NetworkQuality.good:网络状态较好。NetworkQuality.poor:网络状态较差。NetworkQuality.bad:网络状态差。NetworkQuality.veryBad :网络状态极差。NetworkQuality.down :网络断开。Value ( Image ) : 对应网络状态的图标资源。 |
图标 | 说明 | 下载地址 |
![]() | 【图标含义】网络较差的提示图标。 【推荐用法】您可以将该图标等级设置为 NetworkQuality.bad、NetworkQuality.veryBad 或 NetworkQuality.down ,当网络较差时显示该图标。 |
Widget _buildCallCoreView() {Image defaultAvatarImage = Image.asset(''); // 默认用户头像图片return CallCoreView(controller: CallCoreController.create(),defaultAvatar: defaultAvatarImage,);}
参数 | 类型 | 是否必填 | 说明 |
defaultAvatar | Image | 否 | 用户默认头像。 |
图标 | 说明 | 下载地址 |
![]() | 【图标含义】默认头像。 【推荐用法】当用户头像加载失败或无头像时,您可以给该用户设置此默认头像。 |

Widget _buildCallCoreView() {Image loading = Image.asset(''); // 默认加载动画资源return CallCoreView(controller: CallCoreController.create(),loadingAnimation: loading,);}
参数 | 类型 | 是否必填 | 说明 |
loadingAnimation | Image | 否 | GIF 格式图像资源。 |
图标 | 说明 | 下载地址 |
![]() | 【图标含义】用户等待接听动画。 【推荐用法】群组通话时设置的动画。设置后,当用户的状态为等待接听时,显示该动画。 |
CallStore.shared.state.activeCall , 建立当前活跃通话的响应式监听。activeCall.duration 字段绑定至 UI 控件。该字段为响应式数据,会自动驱动 UI 实时刷新,无需手动维护定时器。import 'package:atomic_x_core/atomicxcore.dart';import 'package:flutter/material.dart';class TimerWidget extends StatelessWidget {final double? fontSize;final FontWeight? fontWeight;const TimerWidget({super.key,this.fontSize,this.fontWeight,});@overrideWidget build(BuildContext context) {return ValueListenableBuilder(valueListenable: CallStore.shared.state.selfInfo,builder: (context, info, child) {if (info.status == CallParticipantStatus.accept) {return ValueListenableBuilder(valueListenable: CallStore.shared.state.activeCall,builder: (context, activeCall, child) {return Text(formatDuration(activeCall.duration.toInt()),style: TextStyle(fontSize: fontSize,fontWeight: fontWeight,),);},);} else {return Container();}});}String formatDuration(int timeCount) {int hour = timeCount ~/ 3600;int minute = (timeCount % 3600) ~/ 60;String minuteShow = minute <= 9 ? "0$minute" : "$minute";int second = timeCount % 60;String secondShow = second <= 9 ? "0$second" : "$second";if (hour > 0) {String hourShow = hour <= 9 ? "0$hour" : "$hour";return '$hourShow:$minuteShow:$secondShow';} else {return '$minuteShow:$secondShow';}}}
UserProfile profile = UserProfile(userID: "", // 您的 UserIdavatarURL: "", // 头像的 URLnickname: "", // 需要设置的昵称);CompletionHandler result = await LoginStore.shared.setSelfInfo(userInfo: profile);if (result.errorCode == 0) {print("setSelfInfo success");} else {print("setSelfInfo failed");}
参数 | 类型 | 是否必填 | 说明 |
userProfile | 是 | 用户信息结构体。 userID (String):用户的 ID 。avatarURL (String) : 用户头像的 URL。nickname (String) :用户的昵称。 | |
completion | CompletionHandler | 否 | 操作完成回调,用于返回接通电话的结果。 |

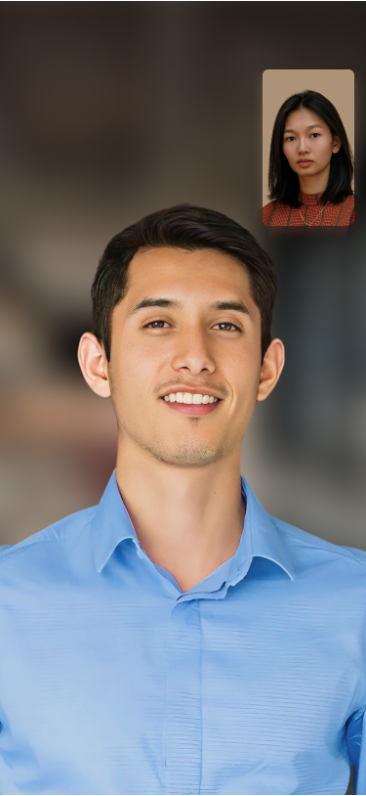

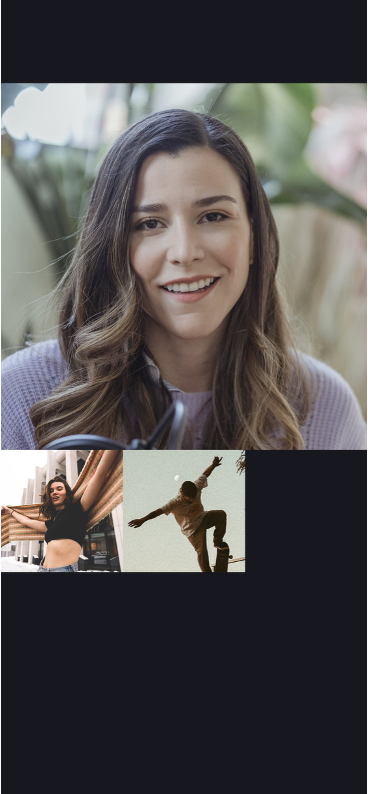

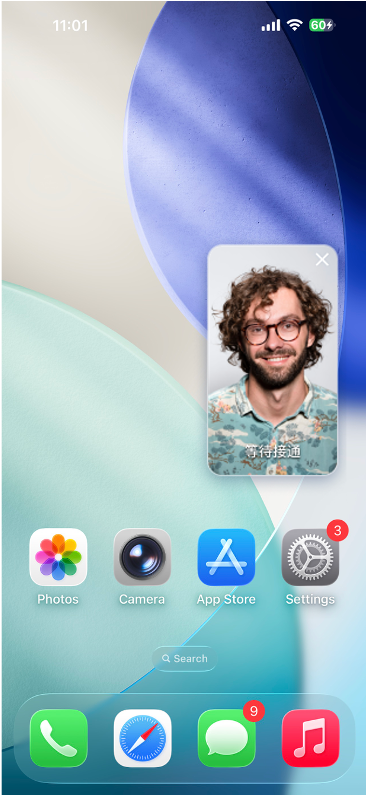

Float 模式,多人通话场景下则自动切换为 Grid 模式。不同布局模式的说明如下:Float 模式 | Grid 模式 | PIP 模式 |
![]() | ![]() | ![]() |
布局逻辑:呼叫等待时全屏显示己方画面;接通后全屏显示对方画面,己方画面以悬浮小窗展示。 交互特性:支持小窗拖拽移动,点击小窗可实现大小画面互换。 | 布局逻辑:所有成员画面呈网格状平铺排列成宫格模式布局,适用 2 人以上通话,支持点击放大画面功能。 交互特性:支持点击特定成员画面放大查看。 | 布局逻辑:1v1 场景固定显示对方画面,多人场景:采用当前发言者(Active Speaker) 策略,自动识别并全屏展示正在说话的用户。 交互特性:等待时显示自己的画面,接通后还会显示通话计时。 |
CallCoreController controller = CallCoreController.create();CallLayoutTemplate template = CallLayoutTemplate.float;controller.setLayoutTemplate(template);
参数 | 类型 | 是否必填 | 说明 |
template | 是 | CallCoreView 的布局模式。 CallLayoutTemplate.float:布局逻辑:呼叫等待时全屏显示己方画面;接通后全屏显示对方画面,己方画面以悬浮小窗展示。 交互特性:支持小窗拖拽移动,点击小窗可实现大小画面互换。 CallLayoutTemplate.grid:布局逻辑:所有成员画面呈网格状平铺排列成宫格模式布局,适用 2 人以上通话,支持点击放大画面功能。 交互特性:支持点击特定成员画面放大查看。 CallLayoutTemplate.pip:布局逻辑:1v1 场景固定显示对方画面,多人场景:采用当前发言者(Active Speaker) 策略,自动识别并全屏展示正在说话的用户。 交互特性:等待时显示自己的画面,接通后还会显示通话计时。 |
void startCall(List<String> userIdList, CallMediaType mediaType) {CallParams params = CallParams(timeout: 30, // 设置通话等待超时时间);CallStore.shared.calls(userIdList, mediaType, params);}
参数 | 类型 | 是否必填 | 说明 |
userIdList | List<String> | 是 | 目标用户的 userId 列表。 |
mediaType | 是 | 通话媒体类型,用于指定发起音频通话还是视频通话。 CallMediaType.video:视频通话。CallMediaType.audio:语音通话。 | |
params | 否 | 通话扩展参数,如:房间号、通话邀请超时时间等。 roomId (String):房间 ID,可选参数,未指定时由服务端自动分配。timeout (Int):呼叫超时时间(秒)。userData (String):用户自定义数据。chatGroupId (String):Chat 群组 ID,用于群组通话场景。isEphemeralCall (Boolean):是否为加密通话(不产生通话记录)。 |
_buildPipWindowWidget() {final pipWidth = MediaQuery.of(context).size.width;final pipHeight = MediaQuery.of(context).size.height;final scale = pipWidth / originWidth;CallCoreController controller = CallCoreController.create();controller.setLayoutTemplate(CallLayoutTemplate.pip);return Scaffold(body: SizedBox(width: pipWidth,height: pipHeight,child: Container(width: pipWidth,height: pipHeight,decoration: const BoxDecoration(color: Colors.transparent),child: MediaQuery(data: MediaQuery.of(context).copyWith(size: Size(originWidth ?? pipWidth, originHeight ?? pipHeight)),child: ClipRect(child: Transform.scale(scale: scale,alignment: Alignment.center,child: OverflowBox(maxWidth: originWidth,maxHeight: originHeight,alignment: Alignment.center,child: CallCoreView(controller: controller,),),),),),),),);}
MainActivity 配置MainActivity 的生命周期,当 enablePictureInPicture 为 true 时,应用退到后台时自动拉起画中画。import android.app.PictureInPictureParamsimport android.content.pm.PackageManagerimport android.os.Buildimport android.util.Logimport android.util.Rationalimport io.flutter.embedding.android.FlutterActivityimport io.flutter.embedding.engine.FlutterEngineimport io.flutter.plugin.common.MethodChannelclass MainActivity : FlutterActivity() {companion object {private const val TAG = "MainActivity"private const val CHANNEL = "atomic_x/pip"}private var enablePictureInPicture = falseoverride fun configureFlutterEngine(flutterEngine: FlutterEngine) {super.configureFlutterEngine(flutterEngine)MethodChannel(flutterEngine.dartExecutor.binaryMessenger, CHANNEL).setMethodCallHandler { call, result ->when (call.method) {"enablePictureInPicture" -> {val enable = call.argument<Boolean>("enable") ?: falseval success = enablePIP(enable)result.success(success)}"enterPictureInPicture" -> {val success = enterPIP()result.success(success)}else -> result.notImplemented()}}}override fun onUserLeaveHint() {super.onUserLeaveHint()// 用户按 Home 键时自动进入画中画if (enablePictureInPicture) {enterPIP()}}private fun enablePIP(enable: Boolean): Boolean {Log.i(TAG, "enablePictureInPicture: $enable")if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O &&packageManager.hasSystemFeature(PackageManager.FEATURE_PICTURE_IN_PICTURE)) {enablePictureInPicture = enablereturn true}return false}private fun enterPIP(): Boolean {if (!enablePictureInPicture) return falseif (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {try {val aspectRatio = Rational(9, 16)val params = PictureInPictureParams.Builder().setAspectRatio(aspectRatio).build()return enterPictureInPictureMode(params)} catch (e: Exception) {Log.e(TAG, "enterPIP failed: ${e.message}")}}return false}}
AndroidManifest 配置MainActivity 添加画中画能力配置: android:supportsPictureInPicture="true"<activityandroid:name=".MainActivity"android:exported="true"android:launchMode="singleTop"android:taskAffinity=""android:theme="@style/LaunchTheme"android:configChanges="orientation|keyboardHidden|keyboard|screenSize|smallestScreenSize|locale|layoutDirection|fontScale|screenLayout|density|uiMode"android:hardwareAccelerated="true"android:windowSoftInputMode="adjustResize"android:supportsPictureInPicture="true"><meta-dataandroid:name="io.flutter.embedding.android.NormalTheme"android:resource="@style/NormalTheme"/><intent-filter><action android:name="android.intent.action.MAIN"/><category android:name="android.intent.category.LAUNCHER"/></intent-filter></activity>
import 'package:flutter/services.dart';class PipManager {static const MethodChannel _channel = MethodChannel('atomic_x/pip');/// 启用/禁用画中画功能static Future<bool> enablePictureInPicture(bool enable) async {try {final result = await _channel.invokeMethod<bool>('enablePictureInPicture', {'enable': enable});return result ?? false;} catch (e) {return false;}}/// 立即进入画中画模式static Future<bool> enterPictureInPicture() async {try {final result = await _channel.invokeMethod<bool>('enterPictureInPicture');return result ?? false;} catch (e) {return false;}}}
Signing & Capabilities 中添加 Background Modes 能力,并勾选 Audio, AirPlay, and Picture in Picture。import 'package:tencent_rtc_sdk/trtc_cloud.dart';TRTCCloud.sharedInstance().then((trtcCloud) {trtcCloud.callExperimentalAPI('''{"api": "configPictureInPicture","params": {"enable": true,"cameraBackgroundCapture": true,"canvas": {"width": 720,"height": 1280,"backgroundColor": "#111111"},"regions": [{"userId": "remoteUserId","userName": "","width": 1.0,"height": 1.0,"x": 0.0,"y": 0.0,"fillMode": 0,"streamType": "high","backgroundColor": "#111111","backgroundImage": "file:///path/to/avatar.png"},{"userId": "localUserId","userName": "","width": 0.333,"height": 0.333,"x": 0.65,"y": 0.05,"fillMode": 0,"streamType": "high","backgroundColor": "#111111"}]}}''');});
import 'package:tencent_rtc_sdk/trtc_cloud.dart';TRTCCloud.sharedInstance().then((trtcCloud) {trtcCloud.callExperimentalAPI('''{"api": "configPictureInPicture","params": {"enable": false}}''');});
CallStore.shared.state.selfInfo.addListener(() {CallParticipantInfo info = CallStore.shared.state.selfInfo.value;if (info.status == CallParticipantStatus.accept || info.status == CallParticipantStatus.none) {// 停止播放铃音return;}if (info.status == CallParticipantStatus.waiting) {// 播放铃音}});
<manifest xmlns:android="http://schemas.android.com/apk/res/android"><uses-permission android:name="android.permission.FOREGROUND_SERVICE" /><uses-permission android:name="android.permission.FOREGROUND_SERVICE_CAMERA" /><uses-permission android:name="android.permission.FOREGROUND_SERVICE_MICROPHONE" /><application><serviceandroid:name=".CallForegroundService"android:enabled="true"android:exported="false"android:foregroundServiceType="camera|microphone" /></application></manifest>
import android.app.Notificationimport android.app.NotificationChannelimport android.app.NotificationManagerimport android.app.Serviceimport android.content.Contextimport android.content.Intentimport android.os.Buildimport android.os.IBinderimport androidx.core.app.NotificationCompatclass CallForegroundService : Service() {companion object {private const val NOTIFICATION_ID = 1001private const val CHANNEL_ID = "call_foreground_channel"fun start(context: Context) {val intent = Intent(context, CallForegroundService::class.java)if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {context.startForegroundService(intent)} else {context.startService(intent)}}fun stop(context: Context) {val intent = Intent(context, CallForegroundService::class.java)context.stopService(intent)}}override fun onCreate() {super.onCreate()createNotificationChannel()// 启动前台通知,确保后台采集权限startForeground(NOTIFICATION_ID, createNotification())}override fun onBind(intent: Intent?): IBinder? = nullprivate fun createNotification(): Notification {return NotificationCompat.Builder(this, CHANNEL_ID).setContentTitle("正在通话中").setContentText("应用正在后台运行以保持通话").setSmallIcon(android.R.drawable.ic_menu_call) // 请替换为您的应用图标.setPriority(NotificationCompat.PRIORITY_HIGH).build()}private fun createNotificationChannel() {if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {val channel = NotificationChannel(CHANNEL_ID,"通话保活服务",NotificationManager.IMPORTANCE_HIGH)val manager = getSystemService(NotificationManager::class.java)manager.createNotificationChannel(channel)}}}
Target > Signing & Capabilities。+ Capability 。Background Modes。Audio, AirPlay, and Picture in Picture(保持音频采集和画中画功能)。Voice over IP(支持 VoIP 通话)。Remote notifications(可选,用于接收离线推送)。Info.plist 文件会自动添加以下内容:<key>UIBackgroundModes</key><array><string>audio</string><string>voip</string><string>remote-notification</string></array>
viewDidLoad 或发起通话前设置:import AVFoundation/*** 设置音频会话,支持后台音频采集** 建议在以下场景调用:* 1. 通话界面的 viewDidLoad 中* 2. 发起通话 (calls) 之前* 3. 接听通话 (accept) 之前*/private func start() {let audioSession = AVAudioSession.sharedInstance()do {// 设置音频会话类别为播放和录音// .allowBluetooth: 支持蓝牙耳机// .allowBluetoothA2DP: 支持高质量蓝牙音频(A2DP 协议)try audioSession.setCategory(.playAndRecord, options: [.allowBluetooth, .allowBluetoothA2DP])// 激活音频会话try audioSession.setActive(true)} catch {// 音频会话配置失败}}
MethodChannel 调用 start() 方法以开启后台保活能力。功能 | 描述 | 集成指引 |
接听第一通电话 | 引导您快速完成接听流程集成。涵盖通话界面唤起、接听及拒接等核心控制功能。 |
